Schematic and parts list for: Hoover Model: C1800020
This is a list of parts and a diagram and schematic for: Hoover Model: C1800020
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Cloth Bagged Upright - Hoover Conquest
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Handle Grip Assembly | 39454060 | Not Available |
| 2 | Not Available | Hoover Cord Hook - Black | 39442017 | Not Available |
| 3 | Not Available | Hoover Screw - Self Tapping | 21447215 | Not Available |
| 4 |  | Cord, 50' Orange 18/3 With Grommet Conquest Part Number: 91001025 for Hoover | 91001025 | $45.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Hoover Cord Protector | 36215025 | Not Available |
| 6 | Not Available | Hoover Cord Retainer Clamp | 36172040 | Not Available |
| 7 |  | Kit, Bag Docking W/Hinge & Clip Part Number: 440013704 for Oreck | 440013704 | $17.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Hoover Motor Cushion | 31164004 | Not Available |
| 9 | No Image | SCREW, BELLOWS CLAMP 7069 Part Number: 21765140 for Hoover | 21765140 | $1.12Read more |
| 10 | Not Available | Hoover Handle Clamp Bolt | 21631301 | Not Available |
| 11 | Not Available | Hoover Clamp Band | 34797008 | Not Available |
| 12 |  | Handle, Chrome Upright Assembly C1800, Part Number: 48631149 for Hoover | 48631149 | $41.54Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Hoover Handle Bolt | 21831024 | Not Available |
| 14 | Not Available | Hoover Motor Cushion | 34132019 | Not Available |
| 15 | Not Available | Hoover Spring | 38335008 | Not Available |
| 16 | Not Available | Hoover Foot Pad | 38426030 | Not Available |
| 17 | Not Available | Hoover Handle Release Lever - Black | 43151006 | Not Available |
| 18 | Not Available | Hoover Screw | 21447003 | Not Available |
| 19 | Not Available | Hoover Shaft | 32215002 | Not Available |
| 20 | Not Available | Hoover Foot Lever Support | 35214009 | Not Available |
| 22 | Not Available | Hoover Bail / Handle Fork | 41416022 | Not Available |
| 24 | Not Available | Hoover Cord Retainer | 36172015 | Not Available |
| 25 | Not Available | Hoover Handle Clamp Nut | 32277008 | Not Available |
| 26 | Not Available | Hoover Rear Wheel Axle | 32512001 | Not Available |
| 27 | Not Available | Hoover Washer | 163110-- | Not Available |
| 28 | Not Available | Hoover Rear Wheel Bearing | 162143-- | Not Available |
| 29 | Not Available | Hoover Rear Wheel - Black | 38522036 | Not Available |
| 30 | Not Available | Hoover Lock Ring | 160017-- | Not Available |
| 31 | Not Available | Hoover Furniture Guard - Short Trnasparent | 36231154 | Not Available |
| 32 | Not Available | Hoover Bail / Handle Fork Shaft | 32563009 | Not Available |
| 33 | Not Available | Hoover Exhaust Flange Assembly | 42256106 | Not Available |
| 36 | Not Available | Hoover Cord Protector - Black | 36216008 | Not Available |
| 37 | Not Available | Hoover Strain Relief | 27478611 | Not Available |
| 38 | Not Available | Hoover Cap - Pewter Transparent | 37257282 | Not Available |
| 39 | Not Available | Hoover Air Duct - Natural | 38657020 | Not Available |
| 40 | Not Available | Hoover Insulating Pod | 162961-- | Not Available |
| 41 |  | Switch, Black Circular Push Button 2 Leads C180010 Part Number: 59156686 for Hoover | 59156686 | $12.23Read more |
| 42 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 43 | Not Available | Hoover Switch Pedal - Black | 38426047 | Not Available |
| 44 | Not Available | Hoover Wear Strip - Right Black | 36222021 | Not Available |
| 44 | Not Available | Hoover Wear Strip - Right Safety Orange | 36222017 | Not Available |
| 45 | Not Available | Hoover Speed Nut | 21364102 | Not Available |
| 46 |  | Hood, Black Plastic Nozzle Cover Conquest C1800 Part Number: 37252024 for Hoover | 37252024 | $35.84Read more |
| 47 | Not Available | Hoover Intake Duct Gasket | 38783005 | Not Available |
| 48 | Not Available | Hoover Hood Name Plate - | 51353002 | Not Available |
| 49 | Not Available | Hoover Wear Strip - Left Black | 36222014 | Not Available |
| 49 | Not Available | Hoover Wear Strip - Left Safety Orange | 36222012 | Not Available |
| 50 | No Image | Genuine Hoover conquest motor pn 43574106 for models U7069, U7071, C1800 | 43574106 | $99.99Read more |
| 51 | Not Available | Hoover Switch Clamp | 36171030 | Not Available |
| 52 | Not Available | Hoover Terminal | 163055-- | Not Available |
| 53 | No Image | Hoover Bellows Internal Motor To Base Conquest models C1800, C1800010, C1800020, C1810, C1810010, C1810020, C1820, CH1800010 and CH1810010 | 38671008 | $10.00Read more |
| 54 | Not Available | Hoover Hex Nut | 21652005 | Not Available |
| 55 | Not Available | Hoover Nut | 21852158 | Not Available |
| 56 |  | Bracket, Mounting Conquest C1800/C1810/C1820 Part Number: 36321002 for Hoover | 36321002 | $6.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 | Not Available | Hoover Sandwich Mount | 32724010 | Not Available |
| 58 | Not Available | Hoover Screw | 017001FW | Not Available |
| 59 |  | Windtunnel Canister Power Nozzle Belt 36528036 | 38528036 | $9.99Add to cart |
| 60 | Not Available | Hoover Pulley Assembly | 43256002 | Not Available |
| 61 | Not Available | Hoover Bearing | 31158008 | Not Available |
| 62 | Not Available | Hoover Pulley Arm And Shaft | 43256007 | Not Available |
| 63 | Not Available | Hoover Motor Support Bracket | 36321006 | Not Available |
| 64 | Not Available | Hoover Lock Ring | 013730-- | Not Available |
| 65 |  | Shaft, Pulley Arm Support Conquest C1800/C1810 Part Number: 31534001 for Hoover | 31534001 | $5.84Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 66 | Not Available | Hoover Duct Boot - Oyster White | 38671005 | Not Available |
| 67 | Not Available | Hoover Air Duct Gasket | 34253013 | Not Available |
| 68 | Not Available | Hoover Cap Lock Assembly | 41119008 | Not Available |
| 69 | Not Available | Hoover Nut | 015854EF | Not Available |
| 70 | Not Available | Hoover Furniture Guard - Transparent | 36231153 | Not Available |
| 71 | Not Available | Hoover Main Body / Nozzle Base - 14" Revised Black | 59156684 | Not Available |
| 72 |  | Hoover Conquest Commercial Upright V | 38528013 | $5.99Add to cart |
| 73 | No Image | Wheel, Front Conquest 7069-7071 Part Number: 38522034 for Hoover | 38522034 | $10.15Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 74 | Not Available | Hoover Washer | 21312754 | Not Available |
| 75 | Not Available | Hoover Front Axle | 32543005 | Not Available |
| 76 | Not Available | Hoover Bottom Plate Duct | 34122019 | Not Available |
| 77 |  | Bottom Plate, 14" Conquest C1800/U4347/U7069 Part Number: 440010755 for Hoover | 440010755 | $20.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 78 | No Image | The Hoover Brushroll Is Designed To Fit Uh71009 And Uh71214 Elite Rewind. It Also Fits Uh71209, Uh71012, Uh71215, Uh71209Rm, Uh71011, Uh71003, And Uh70035B. The Brushroll Has White Nylon Bristles. The Package Contains 1 Brushroll. | H-48416035 | $32.24Add to cart |
| 79 | Not Available | Hoover Screw - Self Tapping | 21447215 | Not Available |
| 80 | Not Available | Hoover Spring | 38381005 | Not Available |
| 81 | Not Available | Hoover Height Adjustment Cap - Black | 36436005 | Not Available |
| 82 | Not Available | Hoover Access Door | 35121001 | Not Available |
| # | Part image | Description | SKU | Price |

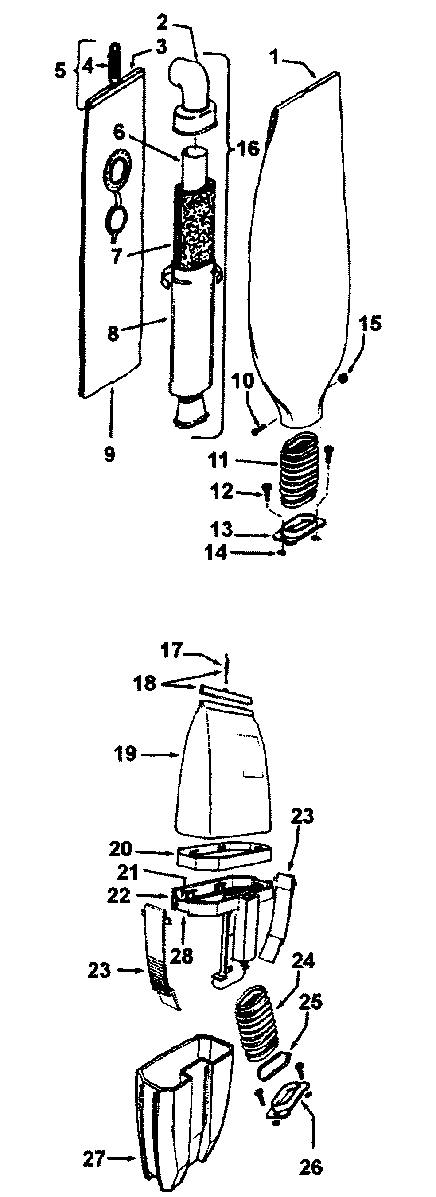

| 1 | Not Available | Hoover Outer Bag Assembly | 43674055 | Not Available |
| 1 | Not Available | Hoover Outer Bag Complete | 43678060 | Not Available |
| 2 | Not Available | Hoover Top Fill Tube | 38657012 | Not Available |
| 3 | Not Available | Hoover Bag Clip | 41128016 | Not Available |
| 4 | Not Available | Hoover Bag Clip Spring | 38336019 | Not Available |
| 5 | Not Available | Hoover Bag Spring And Clip Assembly | 41128016 | Not Available |
| 6 | Not Available | Hoover Muffler Liner | 31746020 | Not Available |
| 7 | Not Available | Hoover Foam Muffler | 34133005 | Not Available |
| 8 | Not Available | Hoover Muffler Housing | 37257083 | Not Available |
| 9 | No Image | PAPER BAG, :) HVR TYPE A ALLERGAN 3PK Part Number: H4010100A for Hoover Replacement | H4010100A | $8.22Read more |
| 9 | Not Available | Hoover Reusable Inner Bag Assembly Bottom Clip | 43667054 | Not Available |
| 9 | Not Available | Hoover Reusable Inner Bag Assembly Top Clip | 43667037 | Not Available |
| 9 | No Image | Paper Bag, DVC or Envirocare Hoover A 3Pk | HR-14015 | $6.99Add to cart |
| 10 | Not Available | Hoover Screw | 017206-- | Not Available |
| 11 |  | Bellows, Black Conquest C1800/C1810 Part Number: 38673010 for Hoover | 38673010 | $16.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Screw, Bag ConQuest 7071 Part Number: 36112002 for Hoover | 36112002 | $2.23Read more |
| 13 | Not Available | Hoover Bag Flange | 36425005 | Not Available |
| 14 | Not Available | Hoover Lock Ring | 013759-- | Not Available |
| 15 | Not Available | Hoover Nut | 015854EF | Not Available |
| 16 | Not Available | Hoover Muffler Assembly | 42256012 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Lock Washer | 36128003 | Not Available |
| 2 | Not Available | Hoover Nut | 33426001 | Not Available |
| 3 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 4 | Not Available | Hoover Fan Chamber Cover | 38736025 | Not Available |
| 5 | Not Available | Hoover Fan | 38755012 | Not Available |
| 6 | Not Available | Hoover Nut | 21641557 | Not Available |
| 7 | Not Available | Hoover Fan Chamber Assembly | 43588018 | Not Available |
| 8 | Not Available | Hoover Sandwich Mount | 32724015 | Not Available |
| 9 | Not Available | Hoover Spring | 012854-- | Not Available |
| 10 |  | Bearing, 8MM Upper Ball Elite/Legacy/Conquest Part Number: 24152807 for Hoover | 24152807 | $16.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Hoover Star Ring | 24198001 | Not Available |
| 12 | Not Available | Hoover Motor Bearing Retainer | 012025-- | Not Available |
| 13 | No Image | Genuine Hoover conquest motor pn 43574106 for models U7069, U7071, C1800 | 43574106 | $99.99Read more |
| 14 | Not Available | Hoover Armature - 5.2 | 44765184 | Not Available |
| 14 | No Image | Genuine Hoover conquest motor pn 43574106 for models U7069, U7071, C1800 | 43574106 | $99.99Read more |
| 15 | Not Available | Hoover Wave Spring Washer | 21345115 | Not Available |
| 16 | Not Available | Hoover Air Intake Duct | 37257086 | Not Available |
| 17 | Not Available | Hoover Screw | 21447041 | Not Available |
| 18 |  | Carbon Brush, For Concept/PowerMax/Spirit Part Number: 4400010333 for Hoover | 4400010333 | $7.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Hoover Conquest, Spirit, PowerMax Vacuum Carbon Brush W/Carrier, Spring 47318008 | 47318008 | $12.99Read more |
| 20 | Not Available | Hoover Screw | 21479302 | Not Available |
| 21 | Not Available | Hoover Spring | 38353004 | Not Available |
| 22 | Not Available | Hoover Lock Washer | 21338006 | Not Available |
| 23 | Not Available | Hoover Motor Housing | 37191090 | Not Available |
| 24 | Not Available | Hoover Screw | 21563061 | Not Available |
| 25 | Not Available | Hoover Rivet | 012503EF | Not Available |
| 26 | Not Available | Hoover Washer | 166563-- | Not Available |
| 27 | Not Available | Hoover Wire Holder | 045517-- | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Thread Guard Assembly | 41435066 | Not Available |
| 2 | | Bearing, 8MM Upper Ball Elite/Legacy/Conquest Part Number: 24152807 for Hoover | 24152807 | $16.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Hoover Wave Spring Washer | 21345113 | Not Available |
| 4 | Not Available | Hoover Agitator End | 36422004 | Not Available |
| 6 | Not Available | Hoover Thread Guard Assembly | 41435061 | Not Available |
| 7 | Not Available | Hoover Agitator Shaft - 14" | 32873007 | Not Available |
| 8 | No Image | The Hoover Brushroll Is Designed To Fit Uh71009 And Uh71214 Elite Rewind. It Also Fits Uh71209, Uh71012, Uh71215, Uh71209Rm, Uh71011, Uh71003, And Uh70035B. The Brushroll Has White Nylon Bristles. The Package Contains 1 Brushroll. | H-48416035 | $32.24Add to cart |
