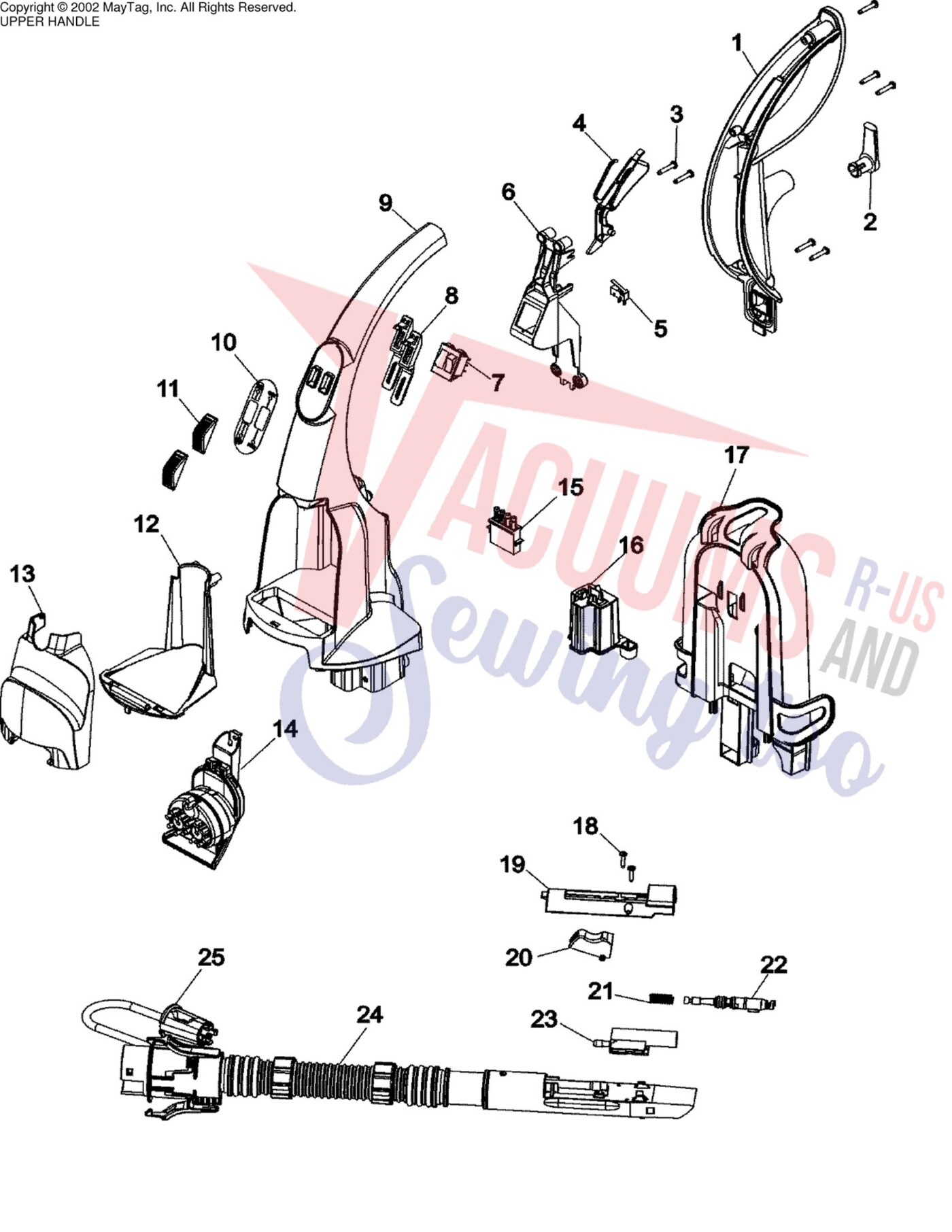

Schematic and parts book for Hoover F7427900, F7427-900 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | UPPER HANDLE REAR-AHB | 92001302 | Not Available |
| 1 | Not Available | METERING PLATE-MV | 92001310 | Not Available |
| 1 |  | Tapping Screw W/Wsh For: hoover | 23149004 | $0.78Add to cart Special order: ships in 2 to 4 weeks |
| 1 | Not Available | THREADED CAP-F7220 | 42272138 | Not Available |
| 2 | Not Available | CORD WRAP-AHB | 92001304 | Not Available |
| 2 | Not Available | SUPPLY TANK SUPP ASY | 41423024 | Not Available |
| 2 |  | Screw-Hoover Windtunnel Cord Retainer For: hoover | 23149002 | $0.96Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | SUP TANK LTCH/HDL-AHB | 39457068 | Not Available |
| 2 | Not Available | SUPPLY TANK ASY | 91001199 | Not Available |
| 3 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 3 | Not Available | LWR HNDL FRT-MV | 92001311 | Not Available |
| 3 | Not Available | MOTOR COVER-MV | 92001318 | Not Available |
| 3 | Not Available | SUPPLY TANK VALVE | 43513014 | Not Available |
| 4 | Not Available | CONTROL LEVER-AG | 38434030 | Not Available |
| 4 | Not Available | WIRING HARNESS-F7425 | 46658004 | Not Available |
| 4 |  | Gasket-Hoover Steamer Motor Seal For: hoover | 34113004 | $1.96Read more |
| 4 | Not Available | REC TANK CARRY HDL-AHB | 39457069 | Not Available |
| 5 | Not Available | MICRO SWITCH | 28218051 | Not Available |
| 5 | Not Available | CORD PROTECTOR-WTBGL | 36215028 | Not Available |
| 5 | Not Available | MOTOR BASE SEAL | 38781067 | Not Available |
| 5 | Not Available | REC TANK LID ASY COMP | 92001316 | Not Available |
| 6 | Not Available | UPPER HDL SUPP/ONLY | 36436023 | Not Available |
| 6 | Not Available | ATTACH CORD ASY-AG | 91001198 | Not Available |
| 6 | Not Available | LATCH-RH-REC TANK-AHB | 92001320 | Not Available |
| 6 | Not Available | FLOAT ASY | 43538002 | Not Available |
| 7 | Not Available | SWITCH-DBL ROCKER | 28267003 | Not Available |
| 7 | Not Available | LWR HNDL REAR-MV | 92001312 | Not Available |
| 7 | Not Available | LATCH-LH-REC TANK-AHB | 92001319 | Not Available |
| 7 |  | Float Retainer / Hoover F5851 Steam Vac For: hoover | 38719043 | $4.90Read more |
| 8 | Not Available | SWITCH ROD-AG | 38458065 | Not Available |
| 8 |  | Screws, :( Handle F7425 Part Number: 21447019 for Hoover | 21447019 | $1.30Read more |
| 8 | Not Available | SEAL-CUT-INNER | 38781074 | Not Available |
| 8 | Not Available | RECOVERY TANK-CP | 92001314 | Not Available |
| 9 | Not Available | UPPR HNDLE FRT-W/TOOLS-MV | 92001303 | Not Available |
| 9 | Not Available | HDLE HARDWARE-F7220 | 40201243 | Not Available |
| 9 |  | Hoover Screw | 21447269 | $1.11Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | SCREW-SELF TAPPING | 21447217 | Not Available |
| 9 | Not Available | REC TANK BFFL WALL-AJA | 92001317 | Not Available |
| 10 | Not Available | LABEL-F7425 | 52313108 | Not Available |
| 10 | Not Available | TRUNNON SLEEVE F7220 | 32456001 | Not Available |
| 10 |  | Hoover Turbine Assembly Part 440006173, 43191018, 440007404 for models F7411900, F7412900, F7428... | 91001097 | $49.50Read more |
| 11 | Not Available | SWITCH BUTTON-AHB | 92001305 | Not Available |
| 11 | Not Available | CORD HOSE HOOK-MV | 92001313 | Not Available |
| 11 | Not Available | MOTOR ASSEM. COMP | 90001167 | Not Available |
| 12 | Not Available | TOOL HOLDER-MV | 92001306 | Not Available |
| 12 | Not Available | INSULATOR F7220 | 34264006 | Not Available |
| 12 | Not Available | STANDPIPE SEAL | 38784063 | Not Available |
| 13 | Not Available | TOOL HOLDER COVER-CP | 92001307 | Not Available |
| 13 | Not Available | PRESSURE VALVE ASY | 43513013 | Not Available |
| 13 | Not Available | O RING-F7220 | 25156521 | Not Available |
| 14 | Not Available | TURBINE NOZZLE | 91001197 | Not Available |
| 14 |  | Pump / Hoover F7210-900 V-2 Steam Vac For: hoover | 43582011 | $94.55Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | HNDL REL PEDAL-AHB | 92001321 | Not Available |
| 15 | Not Available | UPR HDL SUP/SW-NEW | 46658005 | Not Available |
| 15 | Not Available | INSULATOR F7220 | 34264006 | Not Available |
| 15 | Not Available | TRUNNION BRCKT LH-MV | 92001322 | Not Available |
| 16 | Not Available | WIRE COVER-MV | 92001308 | Not Available |
| 16 | Not Available | INSULATOR-F7425 | 34285001 | Not Available |
| 16 | Not Available | SCREW | 21479438 | Not Available |
| 17 | Not Available | CADDY BODY-AHB | 92001281 | Not Available |
| 17 | Not Available | T CONNECTOR | 38681010 | Not Available |
| 17 | Not Available | SPRING-TURBINE ACT | 38331006 | Not Available |
| 18 | Not Available | SCREW | 21447239 | Not Available |
| 18 | Not Available | INSULATOR F7220 | 34264007 | Not Available |
| 18 | Not Available | TRUNNION BRCKT RH-MV | 92001323 | Not Available |
| 19 | Not Available | WAND COVER-AHB | 92001309 | Not Available |
| 19 |  | Clamp-Hoover F6210 Agility Hose For: hoover | 25411015 | $1.96Read more |
| 19 | Not Available | TURBINE ACTUATOR ARM | 38458066 | Not Available |
| 20 |  | Trigger, Black SteamVac FH50044 Part Number: 38433074 for Hoover | 38433074 | $2.16Read more |
| 20 | Not Available | QUICK DISCONNECT ASY SERV | 43523004 | Not Available |
| 20 | Not Available | LOCK RING | 160017 | Not Available |
| 21 |  | Spring-Hoover Steam-Vac 5411/5837 For: hoover | 38312019 | $2.13Add to cart Special order: ships in 2 to 4 weeks |
| 21 | Not Available | QUICK DISCON/TUBING | 43491046 | Not Available |
| 21 | Not Available | WHEEL-REAR-MV | 38522099 | Not Available |
| 22 | Not Available | NOZZLE/VALVE ASSEMBL | 43412007 | Not Available |
| 22 | Not Available | TUBING-6.750 LONG | 66173011 | Not Available |
| 22 | Not Available | REAR AXLE-6 BRUSH-AY | 90001211 | Not Available |
| 23 | Not Available | WAND VALVE ASSEMBLY | 91001060 | Not Available |
| 23 |  | Tubing-22.250 Long For: hoover | 66173013 | $4.68Add to cart Special order: ships in 2 to 4 weeks |
| 23 | Not Available | DOOR-TOOL PORT-CP | 92001325 | Not Available |
| 24 | Not Available | HOSE ASSEMBLY-CLEAR-SERVICE | 91001063 | Not Available |
| 24 | Not Available | TUBING-6.750 LONG | 66173011 | Not Available |
| 24 | Not Available | SEAL-DOOR | 38784091 | Not Available |
| 25 | Not Available | CONNECTOR COUPLER SL | 43513010 | Not Available |
| 25 | Not Available | NOZZLE ASY - 6 BRUSH | 91001096 | Not Available |
| 25 | Not Available | SQUEEGEE HARD FLOOR | 92001262 | Not Available |
| 26 | Not Available | SOLENOID COVER RH-MV | 92001326 | Not Available |
| 27 | Not Available | SOLUTION VALVE-F7220 | 25686056 | Not Available |
| 28 | | Clamp-Hoover F6210 Agility Hose For: hoover | 25411015 | $1.96Read more |
| 29 | Not Available | TUBING-6.750 LONG | 66173011 | Not Available |
| 30 | Not Available | GROOMERS | 92001266 | Not Available |
| 31 | Not Available | GROOMER PLATE | 92001267 | Not Available |
| 32 | Not Available | SCREW-SELF TAPPING | 21447217 | Not Available |
| 33 | Not Available | SCREW | 21447268 | Not Available |
| 34 | Not Available | FILTER CASSETTE & SCREEN ASSM | 43613018 | Not Available |
| 35 | Not Available | TUBING-6.750 LONG | 66173011 | Not Available |
| 36 | Not Available | SOLUTION VALVE-F7220 | 25686056 | Not Available |
| 37 | Not Available | SOLENOID COVER LH-MV | 92001327 | Not Available |
| 38 |  | Hoover Steam Cleaner Scrub Brush Block Assembly 6 Rotating Scrub Brushes Hoover Part Number 48437... | 48437030 | $30.80Read more |
| 38 | Not Available | SQUEEGEE HARD FLOOR | 92001262 | Not Available |
| 39 | Not Available | HOOD-BLACK | 91001203 | Not Available |
| 40 | Not Available | INDICATOR KNOB-AHB | 90001116 | Not Available |
| 41 | Not Available | BRUSH NAMEPLATE | 92001268 | Not Available |
| 42 | Not Available | MEDALLION | 51661020 | Not Available |
