Identify the Problem

Dyson stick vacuums commonly develop cracks in the cyclone assembly when they fall over, causing massive suction leaks. Does your cyclone assembly have visible cracks where it connects to the canister?

Apply Epoxy Repair

We'll use two-part epoxy to seal the cracks. This repair will be functional but not pretty. Some epoxy may get into the cyclones and block them permanently.

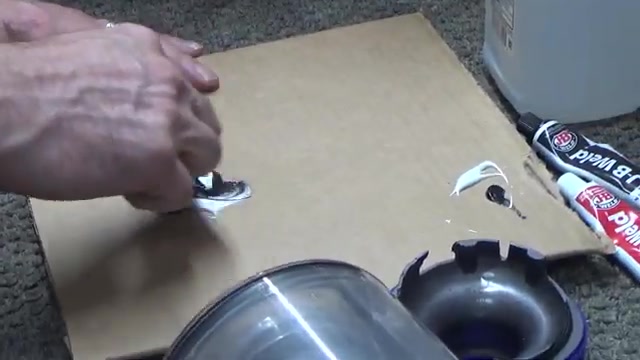

Work in a well-ventilated area
Mix equal parts of two-part epoxy (like JB Weld) on a disposable surface
Stir thoroughly until the mixture turns gray

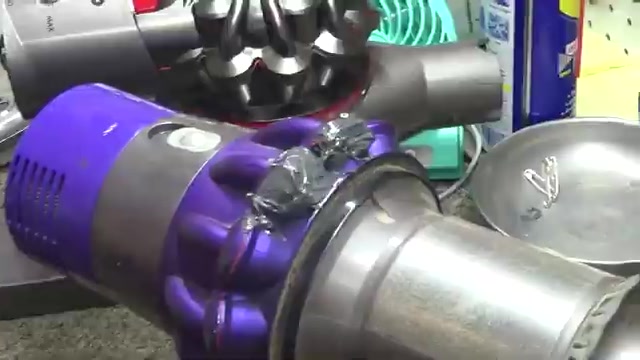

Apply epoxy generously over all cracked areas, filling gaps completely

Apply epoxy generously over all cracked areas, filling gaps completely
Don't worry about appearance – focus on sealing all air leaks
Ensure no epoxy drips into the canister connection area or blocks the canister from reattaching
Let cure for 24 hours before using the vacuum

Repair Complete

The epoxy repair will restore suction once fully cured. After 24 hours, test the vacuum to confirm the leak is sealed.

Back to Guides

Professional Service Needed

If you cannot complete the epoxy repair or the damage is too extensive, professional service is required. Note that many repair shops won't accept partially disassembled machines. Dyson only sells complete cyclone assemblies, not individual parts.

Back to Guides

Check for Other Issues

If there are no visible cracks but you're experiencing suction loss, the problem may be a clog or other issue not covered by this repair guide. Check for blockages in the wand and attachments.

Back to Guides

Repair Cracked Cyclone Assembly on Dyson Stick Vacuum

Identify the Problem

Apply Epoxy Repair

Repair Complete

Professional Service Needed

Check for Other Issues
