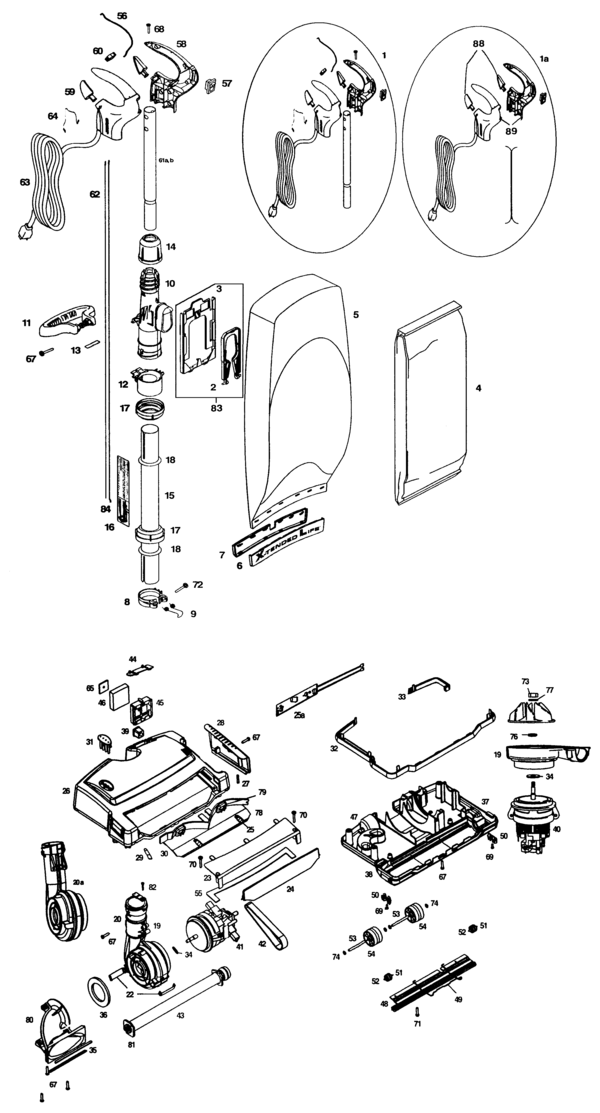

This is a list of parts and a diagram and schematic for: Oreck Model: XL21-750ECB
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: XL21-750ECB XL21
Popular Supplies
Helpful Repair Videos
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Oreck Handle Assembly | FNLA | Not Available |
| 2 | Not Available | Oreck Bag Dock - Rear | 75583-02-0327 | Not Available |
| 3 | Not Available | Oreck Hinge - Bag Dock | 75582-02-0327 | Not Available |
| 4 |  | Aftermarket Oreck Type CC HEPA Bags - 9pk | OR-1473A | $32.99Add to cart |
| 4 |  | Compatible alternatePaper Bag, DVC Oreck CC Upright after market DVC or envirocare 8Pk More Product Details | OR-1473 | $17.05Add to cart Special order — allow 2-4 weeks. |
| 4 |  | Compatible alternatePaper Bag, Old Style W/O Bag Docking 9 Pk Part Number: PK80009DW for Oreck More Product Details | PK80009DW | $51.48Add to cart Special order — allow 2-4 weeks. |
| 4 |  | Paper Bag, CC Purple Superior Filtration 6Pk | O-AK1CC6H | $62.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | | Aftermarket Oreck Type CC HEPA Bags - 9pk | OR-1473A | $32.99Add to cart |
| 7 |  | Pre-owned Oreck Cloth Outer Bag for XL21, XL21-700, XL21-750, and XL21-600 | 7703901R | $45.00Read more |
| 7 | Not Available | Oreck Bag Clip - Rear Merlot | 77006-01-477 | Not Available |
| 8 | Not Available | Oreck Clamp - Bag Clip | 77003-01-0327 | Not Available |
| 9 | Not Available | Oreck Spring - Bag | 75015-01 | Not Available |
| 10 |  | Oreck Connector Assembly for Conquer UK30300PC | 430000943 | $19.47Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Compatible alternateCarry Handle Oreck Xl21 Series Upright For: oreck More Product Details | 430000947 | $12.55Add to cart Special order — allow 2-4 weeks. |
| 11 | Not Available | Oreck Carrying Handle | 77014-02-0384 | Not Available |
| 12 |  | Rear Carry Handle for Oreck Elevate and XL21 | 77014040327 | $12.55Add to cart |
| 13 |  | Oreck Detent Carry Handle for XL21 | 7706601 | $6.52Add to cart |
| 14 | Not Available | Oreck Collar - Upper Handle | 77048-01-0384 | Not Available |
| 15 | Not Available | Oreck Tube - Lower | 77002-03 | Not Available |
| 16 | Not Available | Oreck Label - Tube | 77078-02 | Not Available |
| 17 | Not Available | Oreck Collar - Lower | 77049-01-0384 | Not Available |
| 18 | No Image | Oreck O-Ring for Lower Handle UK30300PC and XL21 | 7705401 | $7.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Oreck Fan Housing | 77025-01-0327 | Not Available |
| 20 | Not Available | Oreck Cover / Seal Overmold - Fan Housing | 77024-02-0327 | Not Available |
| 20A |  | Fan Kit and housing w/Washers for Oreck model XL21 | 097723051 | $44.26Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Oreck Clamp - Scroll | 77059-01 | Not Available |
| 24 | Not Available | Oreck Light Lens - Front | 77035-01-0329 | Not Available |
| 25A |  | Oreck XL Headlight With Circuit Board | 7577001 | $65.99Read more |
| 27 | Not Available | Oreck Pin Latch | 52033P1 | Not Available |
| 29 |  | Detent, XL21 Uprights | O-7701701 | $9.04Add to cart |
| 30A | Not Available | Oreck Light Mount | 77247-01-0000 | Not Available |
| 32 |  | Bumper, Gray Rubber Main XL21 Part Number: 430001003 for Oreck | 430001003 | $10.90Read more |
| 33 |  | Bumper, Gray RubberSide XL21-600/XL21-700ECB Part Number: 430000994 for Oreck | 430000994 | $13.77Read more |
| 34 |  | Gasket, Felt Motor Seal XL Platinum Pilot Ea Part Number: 75117-01M for Oreck | 7511701M | $2.06Read more |
| 35 |  | Gasket, Strip Black Seal Foam Inlet XL21 Part Number: 430000881 for Oreck | 430000881 | $24.22Read more |
| 36 | Not Available | Oreck Felt Seal - Inlet White | 77032-01 | Not Available |
| 37 | Not Available | Oreck Seal - 5" Power Nozzle | 77043-01 | Not Available |
| 38 |  | Gasket, 1 Power Nozzle Seal XL Platinum Pilot Part Number: 430000888 for Oreck | 430000888 | $20.36Read more |
| 39 | Not Available | Oreck Strain Relief - Square | 03-00494-01 | Not Available |
| 40 |  | Genuine Oreck Motor for XL21 Series | O-097703801 | $159.49Read more |
| 40 |  | Available ReconditionedCertified Reconditioned Genuine Oreck Motor for XL21 Series More Product Details | O-097703801R | $99.99Add to cart |
| 41 | Not Available | Oreck Motor Brush And Spring Kit / 2 Pack | 77114-01 | Not Available |
| 42 |  | Belt-Oreck - 3Pk - Upright - All Models For: oreck | 0300604 | $22.28Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 |  | Compatible alternateBelt, Oreck Upright Replacement DVC 2Pk More Product Details | OR-1010 | $10.99Add to cart |
| 42 |  | Oreck Upright Vacuum Flat Stretch Belt | OR-1000 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 |  | Oreck XL21 Brushroller w/o Magnet - 79192-01 | 58-3403-08 | $30.65Add to cart |
| 44 |  | Door, Black Filter Exhaust XL7/XL21 Series Part Number: 430000920 for Oreck | 430000920 | $8.47Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 |  | Housing, Exhaust Filter XL21-600 Part Number: 430001020 for Oreck | 430001020 | $19.02Read more |
| 46 |  | Filter, Exhaust XL21-600/XL21-700/XL21-750/XL21 Part Number: 430000889 for Oreck | 430000889 | $8.40Read more |
| 47 |  | Base Plate, XL21 Series | O-097712704 | $121.00Read more |
| 47 |  | NO LONGER AVAILABLE Bottom Plate for Oreck U7070 and XL Series | 097709205 | $18.03Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 |  | Available ReconditionedCertified Reconditioned Bottom Plate for Oreck U7070 and XL Series More Product Details | 097709205R | $43.99Add to cart |
| 48 | Not Available | Oreck Squeegee / Channel | 77046-02 | Not Available |
| 49 | Not Available | Oreck Sock Guard | 77055-01 | Not Available |
| 50 | Not Available | Oreck Edge Brush Assembly | 79186-01 | Not Available |
| 51 | Not Available | Oreck Front Wheel | 77050-02-0327 | Not Available |
| 52 |  | Axle, Front Wheel XL21/XL21-700/XL21-750/XL21-650 Part Number: 03-00583-01 for Oreck | 030058301 | $1.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 |  | NLA Axle, :( Front & Rear Wheel XL100C Part Number: 03-00630-01 for Oreck | 030063001 | $2.45Read more |
| 54 | Not Available | Oreck Rear Wheel - Black | 75187-02-0327 | Not Available |
| 55 | Not Available | Oreck Seal - Motor Mount | 77122-01 | Not Available |
| 55 |  | Oreck Handle Grip for U2000 - Black | 097557624 | $32.99Add to cart |
| 55 |  | Available ReconditionedCertified Reconditioned Oreck Handle Grip for classic Oreck XL type and modern commercial machine... More Product Details | 097557624R | $23.99Add to cart |
| 56 | Not Available | Oreck Static Wire | 77027-02 | Not Available |
| 57 |  | 2 Speed Switch for Oreck XL product has been discontinued remaining stock is all that is available | WP10051 | $43.99Add to cart |
| 57 |  | Available ReconditionedCertified Reconditioned 2 Speed Switch for Oreck XL More Product Details | WP10051R | $18.39Add to cart |
| 58 |  | Grip, Black Hard Wired XL21-600/U7000 | O-097712802 | $76.99Read more |
| 59 |  | Cord Dump, Black oreck xl21 | WP10066 | $18.69Read more |
| 60 |  | Detent, Cord Hook XL21/U7000 Series Part Number: 430000969 for Oreck | 430000969 | $5.91Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 61 | Not Available | Oreck Handle Tube | 77028-03 | Not Available |
| 62 |  | Cord, Black 2-Wire Lower XL21-750 TYPE 2-5 Part Number: 430001043 for Oreck | 430001043 | $42.89Read more |
| 62 |  | Available ReconditionedOreck Cord Harness, 2Conductor, Black used in pilot and XL21 types More Product Details | 430001043R | $29.99Add to cart |
| 63 |  | Cord, Black 2-Wire U7230 Part Number: 430001460 for Oreck | 430001460 | $39.89Read more |
| 63 |  | Available ReconditionedOreck Cord Set, Black, for pilot XL21 More Product Details | 430001460R | $39.99Add to cart |
| 67 | Not Available | Oreck Screw #8 - 10 X 3/4" 100 Pack | 03-00476-01M | Not Available |
| 68 | No Image | SCREW, SMALL HEAD D HDLE 2800 100PK Part Number: 030045601M for Oreck | 030045601M | $18.25Read more |
| 69 |  | Screw, Edge Brush XL21 Part Number: 03-00626-01M for Oreck | 030062601M | $39.14Read more |
| 70 | No Image | Screw, #6 x 1 Handle For XL Platinum Part Number: 03-00589-01M for Oreck | 030058901M | $35.09Read more |
| 71 | No Image | SCREW, INTAKE PIVOT 100PK Part Number: 03796M for Oreck | 03796M | $25.78Read more |
| 72 | Not Available | Oreck Screw #8 X 1.5" Plt 30 100 Pack | 03-00402-01M | Not Available |
| 73 | Not Available | Oreck Nut 1/4" - 32 Left Hand 100 Pack | 03-0448-01M | Not Available |
| 74 | Not Available | Oreck Washer | 03-00630-01M | Not Available |
| 76 |  | Washer, :( Fan Thrush Part Number: 030047901M for Oreck | 030047901M | $0.30Read more |
| 77 | Not Available | Oreck Lock Washer | 03-00480-01M | Not Available |
| 78 | Not Available | Oreck Reflector | 77053-01-0328 | Not Available |
| 79 |  | Connector, Lamp Harness Part Number: 430001192 for Oreck | 430001192 | $10.80Read more |
| 80 | No Image | Inlet, XL Platinum Pilot/XL Signature Part Number: 430000940 for Oreck | 430000940 | $25.62Read more |
| 80 |  | Available ReconditionedCertified Reconditioned Inlet, XL Platinum Pilot/XL Signature Part Number: 430000940 for Oreck More Product Details | 430000940R | $18.63Add to cart |
| 81 | Not Available | Oreck Endcard - Right | 77021-02 | Not Available |
| 82 | No Image | Screw, #6-32 X 3/8 Master Pack Part Number: 03-00620-01M for Oreck | 030062001M | $37.25Read more |
| 83 |  | Bag Dock Kit CC Style | 09-75675-01 | $12.68Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 83 |  | Available ReconditionedPre-owned Oreck Bag Dock Kit CC Style More Product Details | 09-75675-01R | $9.99Add to cart |
| 89 |  | Cord Hook, Black 9800 Model Part Number: 430001073 for Oreck | 430001073 | $8.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 89 |  | Available ReconditionedCertified Reconditioned Cord Hook, COLOR WILL VARY More Product Details | 430001073R | $9.99Add to cart |
| 89 | Not Available | Oreck Cord Wrap And Post Assembly - Merlot | 09-75185-27 | Not Available |
