Schematic and parts list for: Oreck Model: XL21-700ECPtest

Schematic and parts list for: Oreck Model: XL21-700ECP

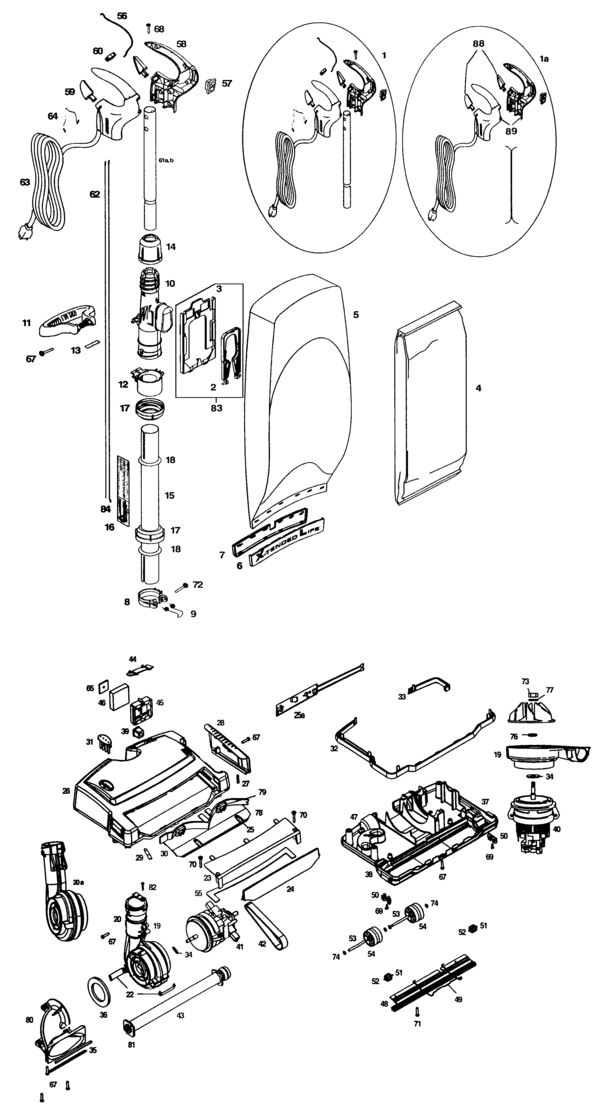

This is a list of parts and a diagram and schematic for: Oreck Model: XL21-700ECP

Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

Parts for: XL21-700ECP XL21 Platinum

Popular Supplies


Placeholder

Product is special order please allow 2-4 weeks for delivery.

Product is special order please allow 2-4 weeks for delivery.

Product is special order please allow 2-4 weeks for delivery.

Product is special order please allow 2-4 weeks for delivery.

Product is special order please allow 2-4 weeks for delivery.

Helpful Repair Videos




# Part image Description SKU Price
XXNot AvailableOreck User'S Manual 77080-04Not Available
XXNot AvailableOreck User'S Manual 77221-04Not Available
1Not AvailableOreck Handle Assembly Order 09-77207-01 09-77093-52Not Available
1ANo ImageKit, Retro, Handle Assembly, Black, includes items #57, 58, 59, 62, 63 Type 1 Units Only

More Product Details

09-77207-01

$115.99Read more

1Not AvailableOreck Handle Assembly Order 09-77207-01 09-77093-51Not Available
2No ImageDock, Blue Rear Bag Part Number: 430000946 for Oreck

More Product Details

430000946

$14.30Add to cart

Product is special order please allow 2-4 weeks for delivery.
3Not AvailableOreck Bag Dock Hinge 75582-03-0000Not Available
4No ImageOreck SUPERIOR HEPA Media Filtration Bags

More Product Details

AK1CC6A

$26.99Read more

4Not AvailableOreck Dust Bag - Hypo Alleginic / 25 Pack AK1CC25ANot Available
4Product ThumbnailPaper Bag, CC Purple Superior Filtration 6Pk

More Product Details

O-AK1CC6H

$34.99Read more

4Not AvailableOreck Dust Bag - Order Control / 25 Pack CCPK25OFNot Available
5Not AvailableOreck Outer Bag - Tan And Black Order 77039-08 77039-06Not Available
5Not AvailableOreck Outer Bag - Tan And Black With Pink Ribbon 77039-07Not Available
5Not AvailableOreck Outer Bag - Gray, Black, And Silver 77039-08Not Available
6Not AvailableOreck Bag Clip - Front Creme Order 09-77094-01 09-77094-02Not Available
6Not AvailableOreck Bag Clip - Front Black With Silver 09-77094-04Not Available
7Not AvailableOreck Bag Clip - Rear Creme 77006-01-453Not Available
7Product ThumbnailClip, Black Rear Bag XL21 Part Number: 430000995 for Oreck

More Product Details

430000995

$4.63Add to cart

Product is special order please allow 2-4 weeks for delivery.
8Not AvailableOreck Clamp - Bag Clip 77003-01-0327Not Available
9Not AvailableOreck Spring - Bag 75015-01Not Available
10Product ThumbnailOreck Connector Assembly for Conquer UK30300PC

More Product Details

430000943

$22.99Add to cart

11Not AvailableOreck Rear Carry Handle 77014-04-0384Not Available
12No ImageRear Carry Handle for Oreck Elevate and XL21

More Product Details

77014040327

$14.99Read more

13No ImageOreck Detent Carry Handle for XL21

More Product Details

7706601

$10.00Add to cart

14Not AvailableOreck Collar - Upper Handle 77048-01-0384Not Available
15Not AvailableOreck Tube - Lower 77002-03Not Available
15Product ThumbnailTUBE, LOWER XL21 Part Number: 77002-02 for Oreck

More Product Details

7700202

$15.30Add to cart

Product is special order please allow 2-4 weeks for delivery.
16Not AvailableOreck Label - Tube 77078-02Not Available
17Not AvailableOreck Collar - Lower 77049-01-0384Not Available
18No ImageOreck O-Ring for Lower Handle UK30300PC and XL21

More Product Details

7705401

$2.99Read more

19Not AvailableOreck Fan Housing 77025-01-0327Not Available
20ANo ImageFan Kit and housing w/Washers for Oreck model XL21

More Product Details

097723051

$59.99Add to cart

20Not AvailableOreck Cover / Seal Overmold - Fan Housing 77024-02-0327Not Available
22Not AvailableOreck Clamp - Scroll 77056-01Not Available
23Not AvailableOreck Headlight Cover Assembly - Chrome 09-77095-07Not Available
23Not AvailableOreck Headlight Cover Assembly - Black Order 09-77095-08 09-77095-03Not Available
23Not AvailableOreck Headlight Cover Assembly - Creme 09-77095-04Not Available
24Not AvailableOreck Headlight Lens - Front 77035-01-0329Not Available
25Product ThumbnailBulb, 14 Volt 2000/3000/4000/XL21 Series Part Number: 430001260 for Oreck

More Product Details

430001260

$10.79Add to cart

Product is special order please allow 2-4 weeks for delivery.
25AProduct ThumbnailOreck XL Headlight With Circuit Board

More Product Details

7577001

$59.99Read more

26Not AvailableOreck Top Cover Assembly With Side Lens - Black 09-77101-07Not Available
26Not AvailableOreck Top Cover Assembly With Side Lens - Light Gray Order 09-77101-07 09-77101-12Not Available
26Not AvailableOreck Top Cover Assembly With Side Lens - Creme Order 09-77101-07 09-77101-05Not Available
27Not AvailableOreck Pin Latch 52033P1Not Available
28Not AvailableOreck Belt Access Door - Black 77267-02-0327Not Available
28Not AvailableOreck Belt Access Door - Light Gray 77267-02-436Not Available
28Not AvailableOreck Belt Access Door - Creme 77267-02-453Not Available
29No ImageDetent, XL21 Uprights

More Product Details

O-7701701

$19.99Add to cart

30Not AvailableOreck Light Mount 77247-01-0000Not Available
30Not AvailableOreck Reflector Assembly 09-77071-02Not Available
31Not AvailableOreck Led Light Cover - Creme 77034-01-453Not Available
31Not AvailableOreck Led Light Cover - Black 77034-01-0327Not Available
32Product ThumbnailBumper, Gray Rubber Main XL21 Part Number: 430001003 for Oreck

More Product Details

430001003

$19.89Add to cart

Product is special order please allow 2-4 weeks for delivery.
33Product ThumbnailBumper, Gray RubberSide XL21-600/XL21-700ECB Part Number: 430000994 for Oreck

More Product Details

430000994

$12.52Add to cart

Product is special order please allow 2-4 weeks for delivery.
34Product ThumbnailGasket, Felt Motor Seal XL Platinum Pilot Ea Part Number: 75117-01M for Oreck

More Product Details

7511701M

$1.87Add to cart

Product is special order please allow 2-4 weeks for delivery.
35Product ThumbnailGasket, Strip Black Seal Foam Inlet XL21 Part Number: 430000881 for Oreck

More Product Details

430000881

$22.02Add to cart

Product is special order please allow 2-4 weeks for delivery.
36Not AvailableOreck Felt Inlet Seal - White 77032-01Not Available
37Not AvailableOreck Seal - 5" Power Nozzle 77043-01Not Available
38Product ThumbnailGasket, 1 Power Nozzle Seal XL Platinum Pilot Part Number: 430000888 for Oreck

More Product Details

430000888

$18.51Add to cart

Product is special order please allow 2-4 weeks for delivery.
39Not AvailableOreck Strain Relief - Square 03-00494-01Not Available
40Product ThumbnailGenuine Oreck Motor for XL21 Series

More Product Details

O-097703801

$149.99Read more

41Not AvailableOreck Motor Brush And Spring Kit / 2 Pack 77114-01Not Available
42Product ThumbnailOreck Upright Vacuum Flat Stretch Belt

More Product Details

OR-1000

$5.99Add to cart

42Product ThumbnailBelt-Oreck - 3Pk - Upright - All Models For: oreck

More Product Details

0300604

$17.93Add to cart

Product is special order please allow 2-4 weeks for delivery.
43No ImageOreck XL21 Brush Roll Red Nylon with Magnet – 79192-02

More Product Details

7919202

$32.99Add to cart

44Not AvailableOreck Exhaust Filter Door - Creme 77044-01-453Not Available
44Product ThumbnailDoor, Black Filter Exhaust XL7/XL21 Series Part Number: 430000920 for Oreck

More Product Details

430000920

$13.13Add to cart

Product is special order please allow 2-4 weeks for delivery.
44Not AvailableOreck Exhaust Filter Door - Light Gray 77044-01-436Not Available
45Product ThumbnailHousing, Exhaust Filter XL21-600 Part Number: 430001020 for Oreck

More Product Details

430001020

$17.29Add to cart

Product is special order please allow 2-4 weeks for delivery.
46Product ThumbnailFilter, Exhaust XL21-600/XL21-700/XL21-750/XL21 Part Number: 430000889 for Oreck

More Product Details

430000889

$7.64Add to cart

Product is special order please allow 2-4 weeks for delivery.
47Product ThumbnailBottom Plate for Oreck U7070 and XL Series

More Product Details

097709205

$54.99Read more

47No ImageBase Plate, XL21 Series

More Product Details

O-097712704

$110.00Read more

48Not AvailableOreck Squeegee With Channel 77046-02Not Available
49Not AvailableOreck Sock Guard 77055-01Not Available
50Not AvailableOreck Edge Brush Assembly - Blade 77018-01Not Available
50Not AvailableOreck Edge Brush Assembly - Tufted 79186-01Not Available
51Not AvailableOreck Front Wheel 77050-02-0327Not Available
52Product ThumbnailAxle, Front Wheel XL21/XL21-700/XL21-750/XL21-650 Part Number: 03-00583-01 for Oreck

More Product Details

030058301

$1.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
53Product ThumbnailAxle, :( Front & Rear Wheel XL100C Part Number: 03-00630-01 for Oreck

More Product Details

030063001

$2.23Add to cart

Product is special order please allow 2-4 weeks for delivery.
54Not AvailableOreck Rear Wheel - Black 75187-02-0327Not Available
55Not AvailableOreck Seal - Motor Mount 77122-01Not Available
56Not AvailableOreck Static Wire 77027-02Not Available
57Not AvailableOreck Switch - 2 Speed 75320-01Not Available
57Product Thumbnail2 Speed Switch for Oreck XL

More Product Details

WP10051

$22.99Add to cart

58Not AvailableOreck Handle Grips - Set Creme 09-77208-01Not Available
58Not AvailableOreck Handle Grips - Set Creme Order 09-77207-01 FNLANot Available
58No ImageGrip, Black Hard Wired XL21-600/U7000

More Product Details

O-097712802

$45.99Read more

59Product ThumbnailCord Dump, Black oreck xl21

More Product Details

WP10066

$16.99Read more

59Not AvailableOreck Cord Dump Assembly - Creme 09-77016-02Not Available
60Product ThumbnailDetent, Cord Hook XL21/U7000 Series Part Number: 430000969 for Oreck

More Product Details

430000969

$15.84Add to cart

Product is special order please allow 2-4 weeks for delivery.
61ABNot AvailableOreck Handle Tube Order 77028-03 And 77075-04-0327 FNLANot Available
61ABNot AvailableOreck Handle Tube 77028-03Not Available
62Not AvailableOreck Cord Harness - 2 Conductor With Terminals Black 77111-02Not Available
62Not AvailableOreck Cord Harness - 2 Conductor Black 77111-04-327Not Available
63Not AvailableOreck Cord Set - Black 75292-01-327Not Available
63Not AvailableOreck Cord Set - Black 77132-02-327Not Available
64Not AvailableOreck Jumper 7-3/4" Male And Female Black 77108-01Not Available
65Not AvailableOreck Odor Fighter Patch / 25 Pack ODOR25PKNot Available
65Not AvailableOreck Scent Cartridge - Vanilla / 8 Pack FA1PKNot Available
65Not AvailableOreck Scent Cartridge - Mulberry / 8 Pack FA2PKNot Available
65Not AvailableOreck Odor Fighter Patch / 3 Pack ODOR3PKNot Available
65Not AvailableOreck Scent Cartridge - Jasmine / 8 Pack FA3PKNot Available
67Not AvailableOreck Screw - #8 10 X 3/4" 100 Pack 03-00476-01MNot Available
68No ImageSCREW, SMALL HEAD D HDLE 2800 100PK Part Number: 030045601M for Oreck

More Product Details

030045601M

$18.25Read more

69Product ThumbnailScrew, Edge Brush XL21 Part Number: 03-00626-01M for Oreck

More Product Details

030062601M

$39.14Read more

70No ImageScrew, #6 x 1 Handle For XL Platinum Part Number: 03-00589-01M for Oreck

More Product Details

030058901M

$35.09Read more

71No ImageSCREW, INTAKE PIVOT 100PK Part Number: 03796M for Oreck

More Product Details

03796M

$25.78Read more

72Not AvailableOreck Screw - #8 X 1.5" Plt 30 100 Pack 03-00402-01MNot Available
73Not AvailableOreck Nut - 1/4" 32 Left Hand 100 Pack 03-00448-01MNot Available
74Not AvailableOreck Washer 03-00630-01MNot Available
76Product ThumbnailWasher, :( Fan Thrush Part Number: 030047901M for Oreck

More Product Details

030047901M

$0.27Read more

77Not AvailableOreck Lock Washer - External Tooth 03-00480-01MNot Available
78Not AvailableOreck Reflector 77053-01-0328Not Available
79Product ThumbnailConnector, Lamp Harness Part Number: 430001192 for Oreck

More Product Details

430001192

$9.82Add to cart

Product is special order please allow 2-4 weeks for delivery.
80No ImageInlet, XL Platinum Pilot/XL Signature Part Number: 430000940 for Oreck

More Product Details

430000940

$23.29Add to cart

Product is special order please allow 2-4 weeks for delivery.
81Not AvailableOreck Endcard - Right 77021-02Not Available
82No ImageScrew, #6-32 X 3/8 Master Pack Part Number: 03-00620-01M for Oreck

More Product Details

030062001M

$37.25Read more

83Product ThumbnailBag Dock Kit CC Style

More Product Details

09-75675-01

$17.99Read more

84No ImageRivet, 3/16 x 1.41 Master Pack XLPlatin Part Number: 03-00453-01M for Oreck

More Product Details

030045301M

$35.75Add to cart

Product is special order please allow 2-4 weeks for delivery.
