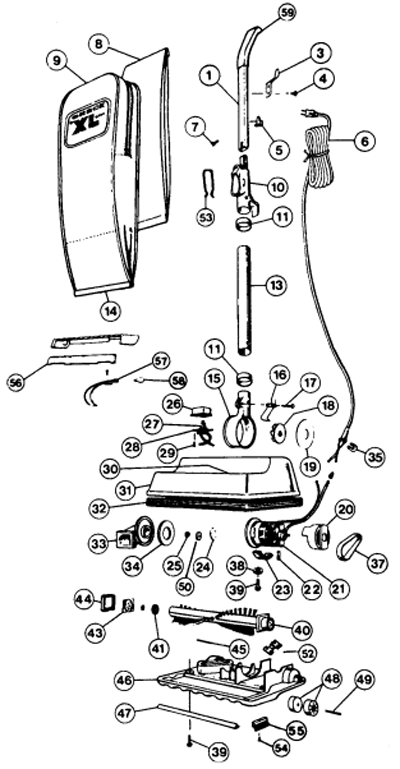

This is a list of parts and a diagram and schematic for: Oreck Model: XL100C
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: XL100C
Popular Supplies
Helpful Repair Videos
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Oreck Upper Handle Assembly | FNLA | Not Available |
| 03 | Not Available | Oreck Cord Bracket | FNLA | Not Available |
| 04 | No Image | SCREW, UPPER CORD HOOK Part Number: 880-7023 for Oreck | 8807023 | $1.60Read more |
| 07 | No Image | SCREW, UPPER CORD HOOK Part Number: 880-7023 for Oreck | 8807023 | $1.60Read more |
| 07 | Not Available | Oreck Screw, handle, all except 8300, late 100C | FNLA | Not Available |
| 08 |  | Aftermarket Oreck Type CC HEPA Bags - 9pk | OR-1473A | $32.99Add to cart |
| 08 |  | Compatible alternatePaper Bag, CC Purple Superior Filtration 6Pk More Product Details | O-AK1CC6H | $62.50Add to cart Special order: ships in 2 to 4 weeks |
| 08 |  | Compatible alternatePaper Bag, DVC Oreck CC Upright after market DVC or envirocare 8Pk More Product Details | OR-1473 | $17.05Add to cart Special order: ships in 2 to 4 weeks |
| 08 |  | Compatible alternatePaper Bag, Old Style W/O Bag Docking 9 Pk Part Number: PK80009DW for Oreck More Product Details | PK80009DW | $51.48Add to cart Special order: ships in 2 to 4 weeks |
| 08 | Not Available | Oreck Bag Paper Old Blue 25 Pack | 500125 | Not Available |
| 08 | | Aftermarket Oreck Type CC HEPA Bags - 9pk | OR-1473A | $32.99Add to cart |
| 10 | Not Available | Oreck Connector | FNLA | Not Available |
| 11 | Not Available | Oreck Collar | FNLA | Not Available |
| 13 | Not Available | Oreck Tube | 169546 | Not Available |
| 15 | Not Available | Oreck Fan Housing, w/ spring, w/o fan | 6034965 | Not Available |
| 16 | Not Available | Oreck Spring | 7501501 | Not Available |
| 17 | Not Available | Oreck Rivet | 8806134 | Not Available |
| 18 | Not Available | Oreck Fan Kit | FNLA | Not Available |
| 19 | Not Available | Oreck Seal, fan | 7501201 | Not Available |
| 20 | Not Available | Oreck Cover, early 5300,5000,888 | 132954 | Not Available |
| 22 | Not Available | Oreck Carbon Brush, set of 2 | FNLA | Not Available |
| 23 | Not Available | Oreck Seal, motor | 7509501 | Not Available |
| 24 | Not Available | Oreck Felt Washer | 107724 | Not Available |
| 25 |  | Nut-Oreck Fan-Upright For: douglas | 030044801 | $0.72Read more |
| 26 | Not Available | Oreck Switch Cover | FNLA | Not Available |
| 27 |  | Switch, Metal Push Button W/3 Leads 5300 Uprights Part Number: 7508407 for Oreck | 7508407 | $29.74Read more |
| 28 | Not Available | Oreck Switch Plate | FNLA | Not Available |
| 29 | Not Available | Oreck Screw | BI7026 | Not Available |
| 30 | Not Available | Oreck Nameplate | FNLA | Not Available |
| 32 | Not Available | Oreck Bumper | 7518103 | Not Available |
| 33 | Not Available | Oreck Intake Pivot | 97506601 | Not Available |
| 34 |  | Cover Frame Tayberry Red Of 3 Parking | 7506501 | $100.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | Not Available | Oreck Cord Retainer | FNLA | Not Available |
| 37 |  | Oreck Upright Vacuum Flat Stretch Belt | OR-1000 | $5.99Add to cart |
| 37 |  | Compatible alternateBelt-Oreck - 3Pk - Upright - All Models For: oreck More Product Details | 0300604 | $22.28Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Compatible alternateBelt, Oreck Upright Replacement DVC 2Pk More Product Details | OR-1010 | $10.99Add to cart |
| 37 |  | Screw 3.9 x 13 DIN 7981-A2 (single), for duo Sebo vacuum cleaner repair part | 0106 | $0.50Add to cart Special order: ships in 2 to 4 weeks |
| 38 | Not Available | Oreck Washer and Screw Assembly | 8807146 | Not Available |
| 39 | Not Available | Oreck Screw | 30047601 | Not Available |
| 40 |  | Oreck XL Wooden Brush Roller 9000 Series w/o Magnet - 75202-01 | OR2000 | $24.69Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Br Rl Seal And Eyelet Assy-Xl8300-100C-Oem Oreck For: oreck | 0157728 | $1.47Add to cart Special order: ships in 2 to 4 weeks |
| 43 | Not Available | Oreck Bearing and Gasket | FNLA | Not Available |
| 45 | Not Available | Oreck Seal | 7500801 | Not Available |
| 47 | Not Available | Oreck Channel | 7500702 | Not Available |
| 48 | Not Available | Oreck Wheel | FNLA | Not Available |
| 49 | Not Available | Oreck Axle | 5559049 | Not Available |
| 50 | Not Available | Oreck Washer | FNLA | Not Available |
| 52 | Not Available | Oreck Spring Detent | 7503601 | Not Available |
| 53 |  | Outer Bag Retainer Spring U-Clip for Oreck XL Vacuums. | 7503502 | $7.27Add to cart |
| 54 |  | Hoover 5 brush block for extractor steam vacs F7205-900, F7210-900, F7220-900, F7552-900, F6212-9... | 48437029 | $32.99Read more |
| 55 | Not Available | Oreck Corner Brush, | 7517902 | Not Available |
| 56 | Not Available | Oreck Lens | 75058010329 | Not Available |
| 57 | Not Available | Oreck Lamp Holder | 7508301 | Not Available |
| 58 | No Image | Crevice Tool, 1-1/4" For Jet Pack Part Number: 14-1814-62 for Fitall | 14181462 | $0.74Read more |
| 59 | Not Available | Oreck Handle Grip | 7527201 | Not Available |
