Schematic and parts list for: Oreck Model: BB1100DC

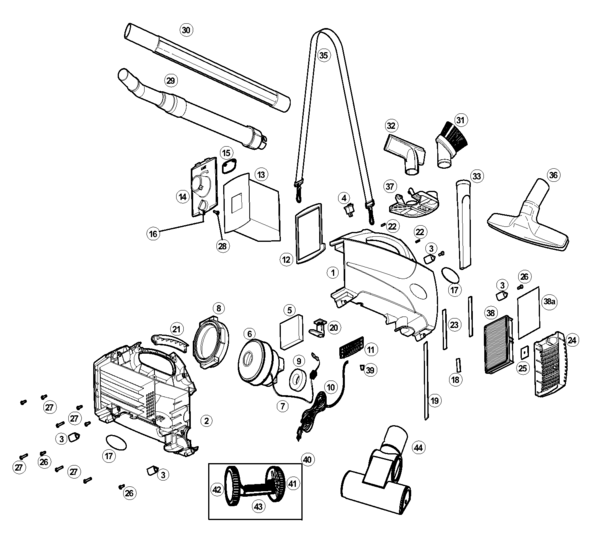

This is a list of parts and a diagram and schematic for: Oreck Model: BB1100DC
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: BB1100DC Housekeeper Ultimate Compact
Popular Supplies
Helpful Repair Videos
| # | Part image | Description | SKU | Price |
| XX | No Image | PN KIT, HOSE, WAND W POWER NOZZLE TRISTAR/COMPACT Part Number: 99.2 360-xxx for Compact Replacement | 992360XXX | $510.58Read more |
| XX | Not Available | Oreck User'S Manual | 73071-01 | Not Available |
| XX | Not Available | Oreck Label, Badge Decal, Gold | 73020-01 | Not Available |
| 1 | Not Available | Oreck Bb1100Dc: Left Housing W/Feet, Creme | 09-73033-06 | Not Available |
| 2 | Not Available | Oreck Bb1100Dc: Right Housing W/Feet, Creme | 09-73032-06 | Not Available |
| 3 | Not Available | Oreck Foot, Black | 73013-01-0327 | Not Available |
| 4 | Not Available | Oreck Switch, 2 Position, Black | 72002-02 | Not Available |
| 5 | Not Available | Oreck Micro Filter | 72005-01 | Not Available |
| 6 | Not Available | Oreck Motor Kit | 09-73058-01 | Not Available |
| 6a |  | Carbon Brush-Oreck Buster Motor For: oreck | 097220501 | $28.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Oreck Manual Reset Thermal Protector | 72132-03 | Not Available |
| 8 | Not Available | Oreck Motor Mount, Cup | 72123-01-0327 | Not Available |
| 9 | Not Available | Oreck Motor Mount, Small | 73044-01 | Not Available |
| 10 | Not Available | Oreck Power Cord, Black | 73005-04-327 | Not Available |
| 12 | Not Available | Oreck Bag Housing Gasket | 72017-02 | Not Available |
| 13 |  | Oreck Housekeeper Canister Bags 12pk | PKBB12DW | $17.99Read more |
| 14 | No Image | PN KIT, HOSE, WAND W POWER NOZZLE TRISTAR/COMPACT Part Number: 99.2 360-xxx for Compact Replacement | 992360XXX | $510.58Read more |
| 15 | Not Available | Oreck Dust Flap, Mylar | 72088-01 | Not Available |
| 16 | Not Available | Oreck Housing Door Knob, Black | 72090-01-0327 | Not Available |
| 17 | Not Available | Oreck Label, Badge Decal, Silver | 73020-02 | Not Available |
| 18 | Not Available | Oreck Gasket, 5 X .150 | 73047-01 | Not Available |
| 20 |  | Cord Hook, Black 9800 Model Part Number: 430001073 for Oreck | 430001073 | $18.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Oreck Handle W/Overmold, Gray | 73007-01-0384 | Not Available |
| 22 | Not Available | Oreck Pin, .125 X .5 | 03-00474-01M | Not Available |
| 23 | Not Available | Oreck Gasket, Filter Housing | 73018-01 | Not Available |
| 24 | Not Available | Oreck Bb1100Dc: Housing, Filter, Creme | 73004-01-453 | Not Available |
| 25b | Not Available | Oreck Scent Cartridge, Jasmine, 8Pk | FA3PK | Not Available |
| 25 | Not Available | Oreck Scent Cartridge, Vanilla, 8 Pk | FA1PK | Not Available |
| 25a | Not Available | Oreck Scent Cartridge, Mulberry, 8Pk | FA2PK | Not Available |
| 26 | No Image | SCREW, :( HEADLIGHT LENS 100PK Part Number: 03752-01M for Oreck | 0375201M | $30.26Read more |
| 27 | Not Available | Oreck Screw, #8 X .88" | 03754M | Not Available |
| 28 | Not Available | Oreck Screw, #8 - 10 X 1/2" | 03-00471-01M | Not Available |
| 29 |  | Oreck Buster B Hose - Non-flexible | 58110062 | $29.99Read more |
| 30 | Not Available | Oreck Wand, Extension Racheting | 73081-01-0327 | Not Available |
| 31 | Not Available | Oreck Dusting Brush, Black | 73027-01-0327 | Not Available |
| 32 | Not Available | Oreck Upholstery Tool, Black | 72030-01-0327 | Not Available |
| 33 | Not Available | Oreck Crevice Tool, Black | 72031-01-0327 | Not Available |
| 34 | Not Available | Oreck Adapter Tube, Black | 73041-01-0327 | Not Available |
| 35 |  | Strap, :( Black Adjustable Shoulder BB900/BB1 Part Number: 73010-01-0327 for Oreck | 73010010327 | $12.77Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | Oreck Floor And Wall Brush, Black | 73028-01-0327 | Not Available |
| 37 | Not Available | Oreck Tool Caddie, Black | 73012-01-0327 | Not Available |
| 38a | Not Available | Oreck Micro Filter Electritech | 82079-01 | Not Available |
| 38 |  | Filter ''Hepa'' Oreck Buster ''B'' 1000
Cc1600 For: oreck | HF1000 | $34.47Add to cart |
| 39 | Not Available | Oreck Wire Nut 71B 16 - 22 Awg | 03-00599-01M | Not Available |
| 40 | Not Available | Oreck Wheel Kit, Includes | 09-73069-01 | Not Available |
| 41 | Not Available | Oreck Wheel | 09-82032-01 | Not Available |
| 42 | Not Available | Oreck Wheel Cap | 82035-01-0327 | Not Available |
| 43 | Not Available | Oreck Wheel Bracket | 73065-01-0327 | Not Available |
