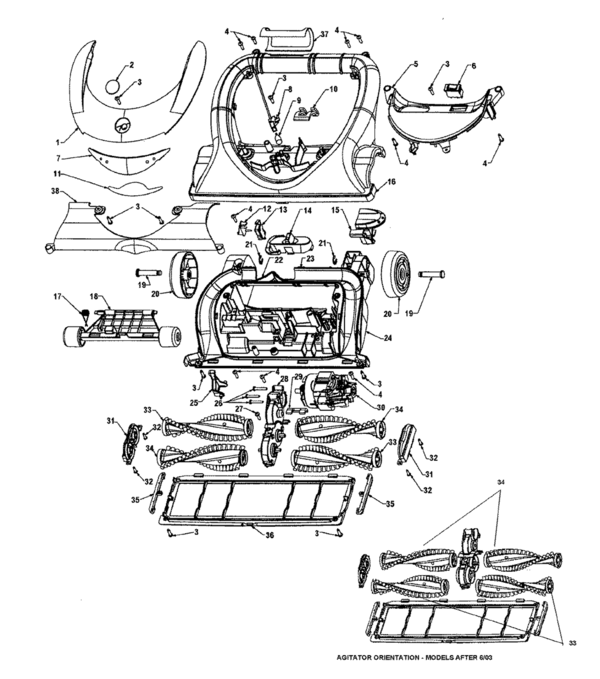

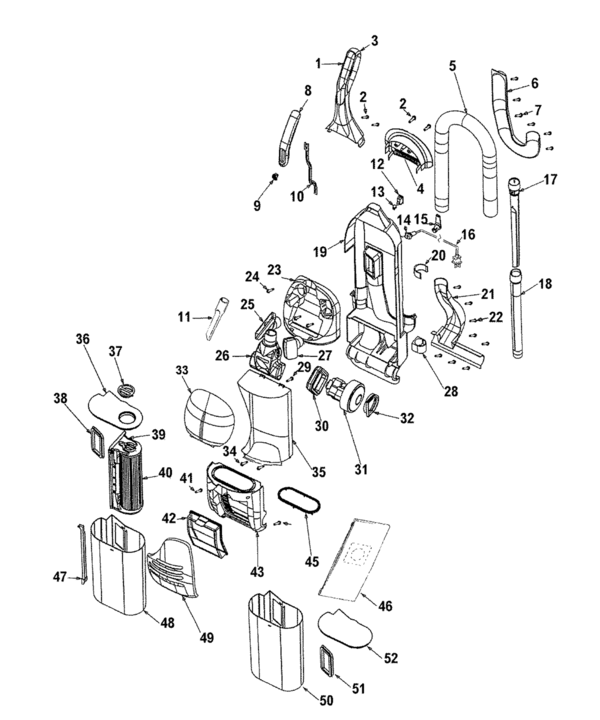

Schematic and parts list for: Hoover Model: U8121
This is a list of parts and a diagram and schematic for: Hoover Model: U8121
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
Popular Supplies
| # | Part image | Description | SKU | Price |
| xx | No Image | CORD, U8148 Part Number: 46512004 for Hoover | 46512004 | $10.89Read more |
| xx | No Image | CORD, PTO U8148 V2 3 WIRE Part Number: 46512003 for Hoover | 46512003 | $13.29Read more |
| 1 | Not Available | Hoover HoodAefU8141 | 37251009 | Not Available |
| 2 | Not Available | Hoover Medallion | 51661020 | Not Available |
| 3 | Not Available | Hoover Screw | 017001FW | Not Available |
| 4 | Not Available | Hoover Body Screw # 8 10 X .625" Self Tapping | 21447242 | Not Available |
| 5 | Not Available | Hoover Control PanelAef | 37246148 | Not Available |
| 5 | Not Available | Hoover Control PanelU8148 | 37246140 | Not Available |
| 6 | Not Available | Hoover Rocker Switch W/Cir Breaker | 27854029 | Not Available |
| 6 | Not Available | Hoover Rocker Sw W/Cir Brk | 27854030 | Not Available |
| 7 | Not Available | Hoover Lens | 39383113 | Not Available |
| 8 | Not Available | Hoover Lamp Socket | 47173037 | Not Available |
| 9 | Not Available | Hoover Lamp Bulb 13 Volt | 27313107 | Not Available |
| 10 |  | SEAL, TRUNNION V2 U8120/ 30/40/42/48 Part Number: 38783030 for Hoover | 38783030 | $2.76Read more |
| 11 | Not Available | Hoover Reflector | 39385008 | Not Available |
| 12 | Not Available | Hoover Switch Bracket Dark Charcoal Gray | 36913031 | Not Available |
| 13 | Not Available | Hoover Microswitch | 28218050 | Not Available |
| 14 | Not Available | Hoover Actuator KnobAg | 38421110 | Not Available |
| 14 | Not Available | Hoover Actuator Knob U8148 | 38421077 | Not Available |
| 15 | Not Available | Hoover Handle Release LeverAg | 38434026 | Not Available |
| 16 | Not Available | Hoover Agit Hsg W/Furniture Guard | 37243045 | Not Available |
| 17 | Not Available | Hoover Torsion Spring | 38355010 | Not Available |
| 18 | Not Available | Hoover Front WheelAg | 38521009 | Not Available |
| 18 | Not Available | Hoover Wheel CarriageAbe | 36432044 | Not Available |
| 18 | Not Available | Hoover Front Wheel CarrAssem | 43248067 | Not Available |
| 18 | Not Available | Hoover Wheel Retainer Natural | 36131056 | Not Available |
| 18 | Not Available | Hoover Wheel Shaft Zinc Plate | 32541007 | Not Available |
| 19 | Not Available | Hoover Rear AxleAaxU5433 | 32434008 | Not Available |
| 19 | Not Available | Hoover Rear AxleAax | 32434014 | Not Available |
| 20 | Not Available | Hoover Rear WheelW/TreadAef/Ag | 38522082 | Not Available |
| 21 | Not Available | Hoover EClip / Lock Ring | 160017 | Not Available |
| 22 | Not Available | Hoover Gasket27In | 38781065 | Not Available |
| 23 | Not Available | Hoover Gasket35In | 38781060 | Not Available |
| 24 | Not Available | Hoover Main BodyU8148 | 37241167 | Not Available |
| 24 | Not Available | Hoover Main BodyAbe | 37241169 | Not Available |
| 25 | Not Available | Hoover Height Adj LvrU8148 | 38458063 | Not Available |
| 25 | Not Available | Hoover Height Adj SlideBz | 38458072 | Not Available |
| 26 | No Image | SCREW, GEAR BOX V2 U8126 12 PK Part Number: 21445827 for Hoover | 21445827 | $1.81Read more |
| 27 | Not Available | Hoover ScrewSelf Tapping5/8 | 214793DA | Not Available |
| 28 | Not Available | Hoover Gear Hsg Mtr Aft6/03 Service | 42915024 | Not Available |
| 29 | | SEAL, TRUNNION V2 U8120/ 30/40/42/48 Part Number: 38783030 for Hoover | 38783030 | $2.76Read more |
| 30 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 31 | Not Available | Hoover End Cap Brush Roll / Graphite Gray | 41435026 | Not Available |
| 32 | Not Available | Hoover ScrewSelf Tap | 21479446 | Not Available |
| 33 | Not Available | Hoover Brush Roll Assembly Laced Right Hand | 48414125 | Not Available |
| 34 | Not Available | Hoover Brush Roll Assembly Laced Left Hand | 48414128 | Not Available |
| 35 | Not Available | Hoover Litter PickerAgs | 39511009 | Not Available |
| 36 | Not Available | Hoover Bottom PlateAbe | 37245102 | Not Available |
| 37 | | SEAL, TRUNNION V2 U8120/ 30/40/42/48 Part Number: 38783030 for Hoover | 38783030 | $2.76Read more |
| 38 | Not Available | Hoover Nozzle LinerCp | 37243036 | Not Available |
| # | Part image | Description | SKU | Price |
| xx | No Image | OWNER'S MANUAL, U8121/ 8141-900 Part Number: 56511B79 for Hoover | 56511B79 | $10.92Read more |
| xx | Not Available | Hoover Owner ManualU8122 | 56511B63 | Not Available |
| xx | Not Available | Hoover Owner Manual | 56511B73 | Not Available |
| xx | Not Available | Hoover Owner ManualU8120 | 56511B46 | Not Available |
| xx | Not Available | Hoover SealMotorCoverFront | 38781078 | Not Available |
| xx | Not Available | Hoover Bag AdapterAg | 36424005 | Not Available |
| xx | Not Available | Hoover Extra Reach Hose Assembly 20' Optional | 43434042 | Not Available |
| xx | Not Available | Hoover Muffler Foam | 34163016 | Not Available |
| xx | Not Available | Hoover Screw Self Tapping | 21447230 | Not Available |
| xx | Not Available | Hoover Owner ManualU8146 | 56511B57 | Not Available |
| xx | Not Available | Hoover Owner Manual | 56511B47 | Not Available |
| 1 | Not Available | Hoover Upper HandleAbe | 39466056 | Not Available |
| 2 | Not Available | Hoover ScrewSelf TappingC | 214472ED | Not Available |
| 3 | Not Available | Hoover Screw Cord Clip Extension | 21447236 | Not Available |
| 4 | Not Available | Hoover Hose HolderUpperAbe | 36433164 | Not Available |
| 5 | Not Available | Hoover Hose Assem Comp/Label | 43431223 | Not Available |
| 6 | Not Available | Hoover Dirt Duct CoverAbe | 38646084 | Not Available |
| 7 | Not Available | Hoover Body Screw # 8 10 X .625" Self Tapping | 21447242 | Not Available |
| 8 | Not Available | Hoover Handle GripAef | 39454078 | Not Available |
| 9 | Not Available | Hoover Switch Button Deep Sand Replaced By 38421113 | 38421098 | Not Available |
| 9 | Not Available | Hoover Switch ButtonAbe | 38421103 | Not Available |
| 10 | Not Available | Hoover Switch RodAg | 38458064 | Not Available |
| 11 | Not Available | Hoover Crevice ToolAbr | 38617027 | Not Available |
| 12 | Not Available | Hoover SwitchWt.025 Term | 28161067 | Not Available |
| 13 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 14 | Not Available | Hoover Cord Protector Black | 36215028 | Not Available |
| 15 | Not Available | Hoover Cord Wrap | 3944201P | Not Available |
| 16 | Not Available | Hoover Attachment Cord Assem31 Ft | 46383342 | Not Available |
| 17 | Not Available | Hoover Crevice ToolAbr | 38617029 | Not Available |
| 18 | Not Available | Hoover Extension Tube Black | 38634078 | Not Available |
| 19 | No Image | HOUSING, UPPER U8120 U8122 U8126 U8132 U8141 GRAY Part Number: 37259011 for Hoover | 37259011 | $32.45Read more |
| 20 | Not Available | Hoover Wand HolderUpperAbe | 36433165 | Not Available |
| 21 | Not Available | Hoover Gasket35In | 38781060 | Not Available |
| 21 | Not Available | Hoover Trunnion DuctAbe | 38683016 | Not Available |
| 22 | Not Available | Hoover Body Screw # 8 10 X .625" Self Tapping | 21447242 | Not Available |
| 23 | Not Available | Hoover Tool Holder Black | 36433178 | Not Available |
| 23 | Not Available | Hoover Tool HolderAdmU812 | 36433179 | Not Available |
| 23 | Not Available | Hoover Tool HolderAg U8122 | 36433180 | Not Available |
| 23 | Not Available | Hoover Tool HlderAefU8141 | 36433183 | Not Available |
| 23 | Not Available | Hoover Tool HolderWwU8148 | 36433174 | Not Available |
| 23 | Not Available | Hoover Tool HolderAfsU813 | 36433170 | Not Available |
| 23 | Not Available | Hoover Tool HolderAfjU812 | 36433163 | Not Available |
| 23 | Not Available | Hoover Tool Holder W/ThtAfm | 36433162 | Not Available |
| 23 | Not Available | Hoover Tool HolderAbrU814 | 36433175 | Not Available |
| 23 | Not Available | Hoover Tool HolderAclU814 | 36433189 | Not Available |
| 23 | Not Available | Hoover Tool HolderAcfU813 | 36433177 | Not Available |
| 24 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 25 | Not Available | Hoover Furniture Nozzle | 3861401E | Not Available |
| 26 | Not Available | Hoover Turbane Hand ToolAfn | 49129015 | Not Available |
| 26 | Not Available | Hoover Turbine Power Hand Tool Mist Gray Transparent | 49129019 | Not Available |
| 27 | Not Available | Hoover Dusting Brush Assem | 43414174 | Not Available |
| 28 | Not Available | Hoover Wand HolderLowerAbe | 36433166 | Not Available |
| 29 | Not Available | Hoover Body Screw # 8 10 X .625" Self Tapping | 21447242 | Not Available |
| 30 | Not Available | Hoover Motor MountMiddle | 36322036 | Not Available |
| 31 | Not Available | Hoover Thermal Protector | 91001027 | Not Available |
| 31 | Not Available | Hoover Suction Motor | 27212053 | Not Available |
| 32 | Not Available | Hoover Motor Face SealAg | 38785018 | Not Available |
| 33 | Not Available | Hoover Tool DoorCp | 37257281 | Not Available |
| 34 | Not Available | Hoover Body Screw # 8 10 X .625" Self Tapping | 21447242 | Not Available |
| 35 | Not Available | Hoover Fr PanelAdmU8126 | 37249034 | Not Available |
| 35 | Not Available | Hoover Frt PanelAfjU8120 | 37249022 | Not Available |
| 35 | Not Available | Hoover Fr PanelAgU8146 | 37249033 | Not Available |
| 35 | Not Available | Hoover Front PanelAgU8122 | 37249036 | Not Available |
| 35 | Not Available | Hoover Frt PanelAfsU8130 | 37249023 | Not Available |
| 35 | Not Available | Hoover Frt PanelWwU8148 | 37249026 | Not Available |
| 35 | Not Available | Hoover Front PanelAfm | 37249024 | Not Available |
| 35 | Not Available | Hoover Frnt PanelAefU8141 | 37249038 | Not Available |
| 35 | Not Available | Hoover Front PanelAcfU813 | 37249032 | Not Available |
| 35 | Not Available | Hoover Frt PanelAbrU8142 | 37249031 | Not Available |
| 35 | Not Available | Hoover Frt PanelAclU81449 | 37249050 | Not Available |
| 36 | Not Available | Hoover Dirt Cup Lid Dark Charcoal Gray Order 37249095 Graphite Gray | 37249035 | Not Available |
| 37 | Not Available | Hoover KnobCartridge FilterAbr | 38411010 | Not Available |
| 38 | Not Available | Hoover Dirt Cup Inlet Seal Black | 38783029 | Not Available |
| 39 | Not Available | Hoover PreFilter AssemblyAbr | 36426051 | Not Available |
| 40 | No Image | Aftermarket Hoover HEPA Filter for WindTunnell Bagless Vacuums Twin Chamber | 748167710621 | $18.99Add to cart |
| 41 | Not Available | Hoover Screw Self Tapping | 21447230 | Not Available |
| 42 | Not Available | Hoover Final / Exhaust Filter | 38766028 | Not Available |
| 42 | Not Available | Hoover Final Filter Hepa | 43613024 | Not Available |
| 43 | Not Available | Hoover Mtr CoverAbrU8142 | 37196166 | Not Available |
| 43 | Not Available | Hoover Mtr CoverAfsU8120 | 37196163 | Not Available |
| 43 | Not Available | Hoover Motor CoverAdmU812 | 37196170 | Not Available |
| 43 | Not Available | Hoover Mtr CoverWwU8148 | 37196165 | Not Available |
| 43 | Not Available | Hoover Motor CoverAfm | 37196164 | Not Available |
| 43 | Not Available | Hoover Motor CoverAg | 37196169 | Not Available |
| 43 | No Image | COVER, MOTOR U8120900 Part Number: 37196161 for Hoover | 37196161 | $15.10Read more |
| 43 | Not Available | Hoover Motor CverAefU8141 | 37196171 | Not Available |
| 43 | Not Available | Hoover Mtr CoverAclU81449 | 37196174 | Not Available |
| 43 | Not Available | Hoover Motor Cover AcfU813 | 37196168 | Not Available |
| 45 | Not Available | Hoover Exhaust SealAg | 38785017 | Not Available |
| 46 |  | Paper Bag, Y/Z Microlined 3Pk Part Number: 151907 for Hoover Replacement | 151907 | $4.81Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | Not Available | Hoover Expulsion Blade U663 | 39512020 | Not Available |
| 48 | Not Available | Hoover Dirt Cup Assembly Smoke Transparent | 38775094 | Not Available |
| 49 | Not Available | Hoover Final / Exhaust Filter Door Lt Gray | 38769017 | Not Available |
| 50 | Not Available | Hoover Bag ContainerU8120 | 37256003 | Not Available |
| 50 | Not Available | Hoover Bag Cont Wtv2 Af6/03 | 37256004 | Not Available |
| 51 | Not Available | Hoover Dirt Cup Inlet Seal Black | 38783029 | Not Available |
| 51 | No Image | GASKET, INLET DIRT CUP U8120/22/48 Part Number: 38783031 for Hoover | 38783031 | $4.20Read more |
| 52 | Not Available | Hoover Bag Container LidAbe | 37249041 | Not Available |
