Schematic and parts list for: Hoover Model: U6600
This is a list of parts and a diagram and schematic for: Hoover Model: U6600
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Self Propelled Wind Tunnel
Popular Supplies

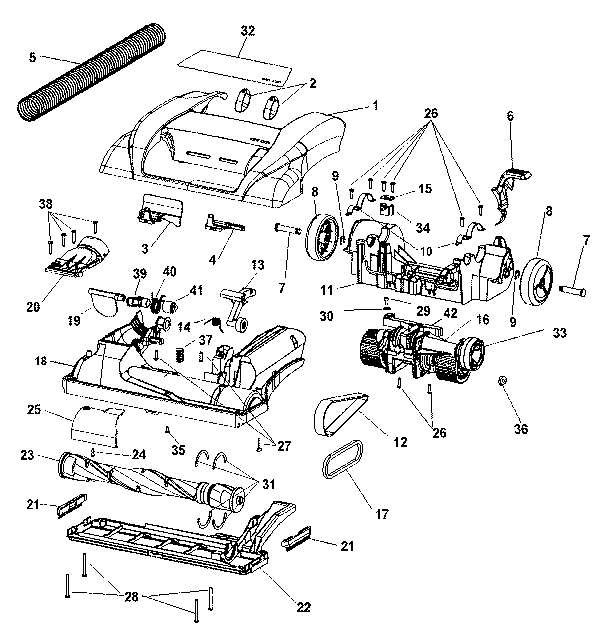

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover HoodAea | 92001261 | Not Available |
| 2 | Not Available | Hoover Adj KnobAbe | 38421099 | Not Available |
| 3 | Not Available | Hoover Nozzle Adj. CamAg | 38563026 | Not Available |
| 4 | Not Available | Hoover Idler Arm Lock | 36143004 | Not Available |
| 5 | Not Available | Hoover Lower Hose | 38671022 | Not Available |
| 6 |  | Pedal, Handle Release WindTunnel W/Power Drive Part Number: 38434023 for Hoover | 38434023 | $4.81Read more |
| 7 | Not Available | Hoover Rear Axle | 32434007 | Not Available |
| 8 | Not Available | Hoover Rear Wheel | 38522077 | Not Available |
| 9 | Not Available | Hoover Lock Ring | 160017 | Not Available |
| 10 | Not Available | Hoover Trunnion CoverAy/Fw | 36131096 | Not Available |
| 11 | Not Available | Hoover Main BodyAbe | 37241164 | Not Available |
| 12 |  | Hoover PowerDrive Belt (2-Pack), 40201170 | 073502508893 | $9.99Add to cart |
| 13 | Not Available | Hoover Idler Pulley & Bearing Assy | 43241006 | Not Available |
| 13 | Not Available | Hoover Idler Arm AssemComplete | 43241004 | Not Available |
| 14 | Not Available | Hoover Torsion Spring | 38356014 | Not Available |
| 15 | Not Available | Hoover RetainerControl Cab | 34125004 | Not Available |
| 16 |  | Power Drive, Assembly WindTunnel Self Propelled Part Number: 43124016 for Hoover | 43124016 | $224.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | NLA USE SKU 38-3305-04 Hoover Wind Tunnel Self Propelled Belt | 38528034 | $10.99Add to cart |
| 18 | Not Available | Hoover Agit Hsg W/Furn GrdAan | 37243034 | Not Available |
| 19 | Not Available | Hoover Valve DoorAg | 38718013 | Not Available |
| 20 | Not Available | Hoover Valve CoverAan | 38715017 | Not Available |
| 21 | Not Available | Hoover Litter Picker | 39511004 | Not Available |
| 22 | No Image | hoover bottom plate for power drive models U6439-900, U6454-900, U6485-900, UH50000, UH50005B, U6432900 U6630-900. U6634-900, UH60000, UH60010 U6485100, U6485200, U6485300, U6433900 U6425900, U6446900, U6445900, 6451900 | 42245030 | $15.00Read more |
| 23 |  | 14 1/4" Wooden Brush Roller for Hoover WindTunnel Self Propelled PN: 48414069 | 48414069 | $32.99Read more |
| 24 | Not Available | Hoover ScrewSelf Tap | 21479446 | Not Available |
| 25 | Not Available | Hoover Duct CoverNozzleAan | 37243013 | Not Available |
| 26 | Not Available | Hoover ScrewSelf Tapping | 21447242 | Not Available |
| 27 | Not Available | Hoover ScrewSelfTapping | 21447228 | Not Available |
| 28 | Not Available | Hoover Screw | 21447121 | Not Available |
| 29 | Not Available | Hoover Screw | 21751010 | Not Available |
| 30 | Not Available | Hoover Washer | 36128002 | Not Available |
| 31 | Not Available | Hoover Agitator Pulley Seal | 38781053 | Not Available |
| 32 | Not Available | Hoover HoodNameplate | 91001074 | Not Available |
| 33 | Not Available | Hoover Drive Pulley | 38537013 | Not Available |
| 34 | Not Available | Hoover Control Cable Support | 36131101 | Not Available |
| 35 | Not Available | Hoover Screw | 21447263 | Not Available |
| 36 | Not Available | Hoover Nut | 160031 | Not Available |
| 37 | Not Available | Hoover Nozzle Spring | 38313037 | Not Available |
| 38 | Not Available | Hoover Screw Self Tapping | 21447229 | Not Available |
| 39 |  | Valve Arm, Blk Front WindTunnel Self Prop Bagless Part Number: 38719049 for Hoover | 38719049 | $1.96Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | Hoover Torsion SpringV Arm | 38358001 | Not Available |
| 41 | Not Available | Hoover Valve Arm RearAg | 38719048 | Not Available |
| 42 | Not Available | Hoover Actuator Arm Assembly | 43143046 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Grip RodAg | 38512001 | Not Available |
| 2 | Not Available | Hoover Handle GripBack | 39454068 | Not Available |
| 3 | Not Available | Hoover Handle GribFront (Inc. Item 5) | 39454071 | Not Available |
| 4 | Not Available | Hoover ScrewSelfTapping | 21447228 | Not Available |
| 5 | Not Available | Hoover Drive Control Pin | 92001081 | Not Available |
| 6 | Not Available | Hoover Upper HandleAbe (Inc. Items 7, 8, 9,10,11) | 39466053 | Not Available |
| 7 | Not Available | Hoover Switch Rod PocketAbe | 37258119 | Not Available |
| 8 | Not Available | Hoover Switch ButtonAgr | 92001082 | Not Available |
| 9 | Not Available | Hoover ScrewSelf Tapping | 21447242 | Not Available |
| 10 | Not Available | Hoover Switch RodAbe | 38458062 | Not Available |
| 11 | Not Available | Hoover Handle Sleeve | 36436014 | Not Available |
| 12 | Not Available | Hoover Rod GuideAbe | 36923012 | Not Available |
| 13 | Not Available | Hoover Hose Assem CompDlxAbe | 43434267 | Not Available |
| 13 | Not Available | Hoover Hose Assembly Comp | 43434031 | Not Available |
| 14 |  | Power Drive Cable for Hoover WindTunnel | WP10568 | $11.99Read more |
| 15 | Not Available | Hoover Control Cable Tube | 66661205 | Not Available |
| 16 | Not Available | Hoover SwitchWt.025 Term | 28161067 | Not Available |
| 17 | Not Available | Hoover Tool HolderAbe | 36433157 | Not Available |
| 18 | Not Available | Hoover Dirt Cup HousingAbe (Inc. Items 15, 16, 48) | 37259010 | Not Available |
| 19 | Not Available | Hoover Wand/Hose HolderUpperAbe | 36433159 | Not Available |
| 20 | Not Available | Hoover Cam Slot CapAea | 92001096 | Not Available |
| 21 | Not Available | Hoover Dirt Duct CoverAbe | 38683014 | Not Available |
| 22 | Not Available | Hoover Tool DoorCp | 37257269 | Not Available |
| 23 |  | Filter, Exhaust 1 Lyr W/O Pwerdrve Windtunnel 2 Pk | 38-2302-07 | $9.99Read more |
| 24 | Not Available | Hoover Final Filter GrillAcw | 38769009 | Not Available |
| 25 | Not Available | Hoover Extension TubeAg | 38634078 | Not Available |
| 26 | Not Available | Hoover ScrewSv 3.125" | 21447246 | Not Available |
| 27 | Not Available | Hoover Exhaust SealAg | 38785017 | Not Available |
| 28 | Not Available | Hoover Hose Retaining ClipAg | 36172014 | Not Available |
| 29 | No Image | Aftermarket Hoover HEPA Filter for WindTunnell Bagless Vacuums Twin Chamber | 748167710621 | $18.99Add to cart |
| 31 | Not Available | Hoover Wand/Hose HolderLowerAbe | 36433158 | Not Available |
| 32 | Not Available | Hoover Wire Opening Plug | 34131019 | Not Available |
| 33 | Not Available | Hoover Lamp | 27313101 | Not Available |
| 34 | Not Available | Hoover Wiring Harness | 47173023 | Not Available |
| 35 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 36 | Not Available | Hoover Nameplate | 51637011 | Not Available |
| 37 | Not Available | Hoover Edf CoverAea | 92001092 | Not Available |
| 38 | Not Available | Hoover Dirt CupAcw | 38775084 | Not Available |
| 39 | Not Available | Hoover Cable Cover/Abe | 37259018 | Not Available |
| 40 | Not Available | Hoover LensCp | 39383115 | Not Available |
| 41 | Not Available | Hoover ScrewSelfTapping | 21447228 | Not Available |
| 42 | Not Available | Hoover Motor MountLrg | 36322035 | Not Available |
| 43 | Not Available | Hoover Motor Assembly | 43576191 | Not Available |
| 44 | Not Available | Hoover Thermal ProtectorWt | 28382093 | Not Available |
| 45 |  | Mount, :( Small Motor Belt Side WindTunnel Part Number: 440013147 for Hoover | 440013147 | $4.26Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | Not Available | Hoover Motor CoverAbe | 37196155 | Not Available |
| 47 | Not Available | Hoover ScrewSelf TappingF | 21447230 | Not Available |
| 48 | Not Available | Hoover Tapping Screw & Wash | 23149001 | Not Available |
| 49 | Not Available | Hoover Screw Self Tapping | 21447266 | Not Available |
| 50 | | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 51 | Not Available | Hoover Cord Wrap | 3944201P | Not Available |
| 52 | Not Available | Hoover Crevice ToolLongAgr | 38617031 | Not Available |
| 53 | Not Available | Hoover Cord ProtectorWtbgl | 36215028 | Not Available |
| 54 | Not Available | Hoover Inlet SealAg | 38783028 | Not Available |
| 55 | Not Available | Hoover PreFilter AssemblyAgr | 91001048 | Not Available |
| 56 | Not Available | Hoover Knob Cart FiltAg | 38411013 | Not Available |
| 57 | Not Available | Hoover Dirt Cup LidAbe | 37249011 | Not Available |
| 58 | Not Available | Hoover Litter Picker | 39511004 | Not Available |
| 59 | Not Available | Hoover PreFilter Brush Holder | 92001084 | Not Available |
| 60 | Not Available | Hoover Dirt Cup Hand CovAea | 92001093 | Not Available |
| 61 | Not Available | Hoover Screw | 21447043 | Not Available |
| 62 | Not Available | Hoover Handle Dirt CupAbe | 39457022 | Not Available |
| 63 | Not Available | Hoover Attachment Cord Assem31 Ft | 46383342 | Not Available |
| 64 | Not Available | Hoover Muffler/Wire Cover | 37259017 | Not Available |
| 65 | Not Available | Hoover Explusion Blade | 92001033 | Not Available |
| 66 | Not Available | Hoover Latch CoverAea | 92001095 | Not Available |
| 67 | Not Available | Hoover Muffler CoverRearAbe | 37255015 | Not Available |
| 68 | Not Available | Hoover Gasket35In | 38781060 | Not Available |
| 69 | Not Available | Hoover Latch Cover ShroudAea | 92001094 | Not Available |
| 70 | Not Available | Hoover Latch SleeveAbe | 36155013 | Not Available |
| 71 | Not Available | Hoover Lid Latch CamAg | 92001088 | Not Available |
| 72 | Not Available | Hoover Wire Connector | 27618508 | Not Available |
| 73 | Not Available | Hoover Furniture NozzleAgr | 38614044 | Not Available |
| 74 | Not Available | Hoover Dusting Brush AssemblyAgr | 43414195 | Not Available |
| 75 | Not Available | Hoover Turbine Hand Tool | 49129027 | Not Available |

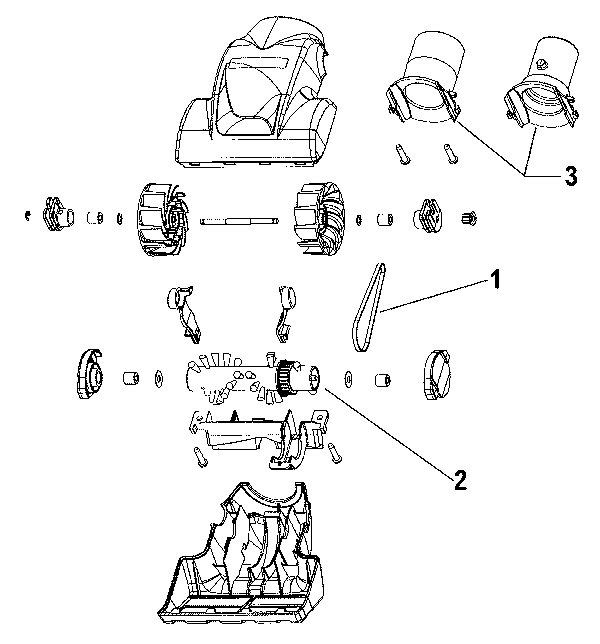

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover BeltTurbine Hand Tl | 38528037 | Not Available |
| 1 | Not Available | Hoover Turbine Hand Tool | 49129027 | Not Available |
| 2 | Not Available | Hoover AgitatorTur Hd Tool | 48414088 | Not Available |
| 3 | Not Available | Hoover ConnectorTur Hd Tool | 38632011 | Not Available |
