Schematic and parts list for: Hoover Model: U5454

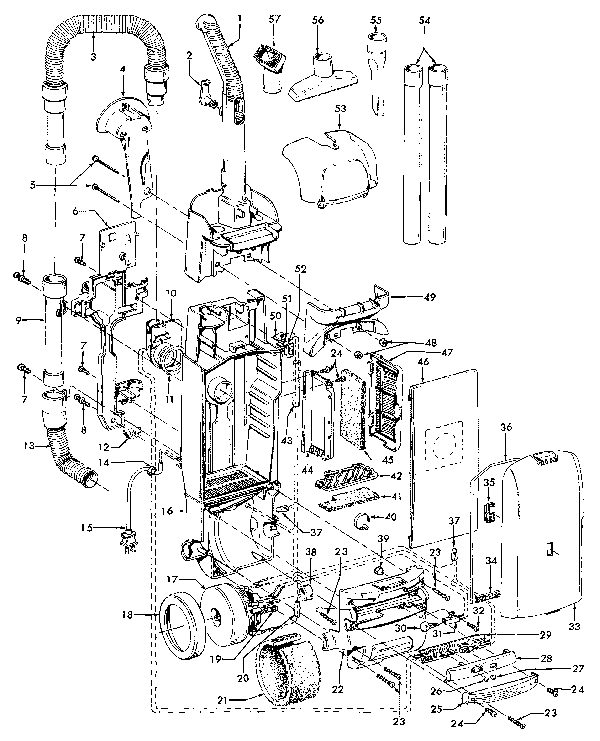

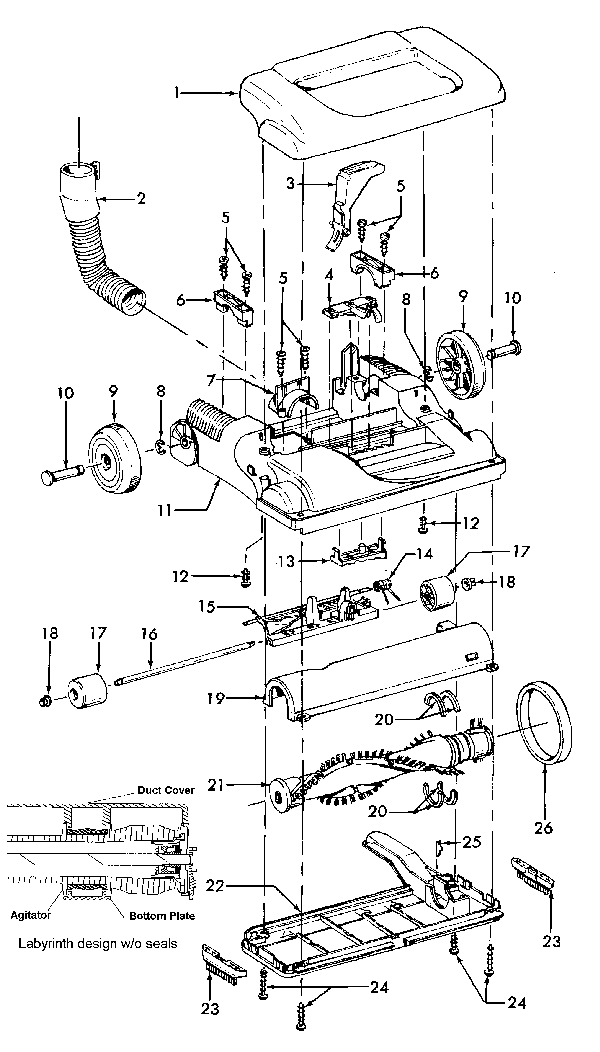

This is a list of parts and a diagram and schematic for: Hoover Model: U5454
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Falcon Jr Hood-Aft U5147-900 | 37253A42 | Not Available |
| 1 | Not Available | Hoover Hood-Ag-U5415-900 U5415-900 Cp 25.0 | 37253389 | Not Available |
| 1 | Not Available | Hoover Hood-Ag-U5477-900 U5477-900 | 37253388 | Not Available |
| 1 | Not Available | Hoover Hood-Abr-15-U5398-9 15 In - U5398-900 | 37253387 | Not Available |
| 1 | Not Available | Hoover Hood-Afe-U5452-900 15 In - U5452-900 Models Produced After 5/01 | 37253383 | Not Available |
| 1 | Not Available | Hoover Hood-Acx-13 In. Acx - 13" - U5330-900 | 37253381 | Not Available |
| 1 | Not Available | Hoover Hood-13 In-Std. Ads - 13 In - U5439-900, U5437-960 | 37253373 | Not Available |
| 1 | No Image | HOOD, U5450-900 Part Number: 37253364 for Hoover | 37253364 | $37.02Read more |
| 1 | Not Available | Hoover Hood-Acl-U5435-900 Adx - 13 In - U5435-900, U5435-940 | 37253363 | Not Available |
| 1 | No Image | HOOD, U5454900 UPRIGHT Part Number: 37253391 for Hoover | 37253391 | $20.79Read more |
| 1 | Not Available | Hoover Hood-Acf-U5394-900 13 In - U5394-900 | 37253395 | Not Available |
| 1 | Not Available | Hoover Hood-Std-Aby-U53399 13In - U5399-900 | 37253396 | Not Available |
| 1 | Not Available | Hoover Hood-15In-U5459 U5459-900 | 37253A41 | Not Available |
| 1 | Not Available | Hoover Hood-13In -U5142900 U5142-900 | 37253A40 | Not Available |
| 1 | Not Available | Hoover Hood Std-Agf U5154-900 | 37253A27 | Not Available |
| 1 | Not Available | Hoover Hood-Abm - U5432900 13 In - U5432-900 | 37253A06 | Not Available |
| 1 | Not Available | Hoover Hood-U5402900 U5402-900 | 37253429 | Not Available |
| 1 | Not Available | Hoover Hood-Falcom Jr 13 In-Afs 13 In - U5144-900 | 37253411 | Not Available |
| 1 | Not Available | Hoover Falcon Jr Hood-13 In-Afs 13 In - U5146-900 | 37253407 | Not Available |
| 1 | Not Available | Hoover Hood-13 In.-Adk U5438-900, U5438-960 | 37253402 | Not Available |
| 1 | Not Available | Hoover Hood-13 In.-Aay U5436-950 | 37253361 | Not Available |
| 1 | Not Available | Hoover Hood-Adx-U5457-900 15 In - U5457-900 | 37253360 | Not Available |
| 1 | Not Available | Hoover Hood-Ag Hood - Ag - 15 In - U5475-900 - (Late Models W/ Deluxe Hood) | 37253299 | Not Available |
| 1 | Not Available | Hoover Hood-Ag-15-U5469-91 15 In - U5469-910 | 37253298 | Not Available |
| 1 | Not Available | Hoover Hood-Aby-U5451-900 15 In - U5451-900 | 37253297 | Not Available |
| 1 | Not Available | Hoover Hood-Ag-U5443-900 15 In - U5443-900 | 37253294 | Not Available |
| 1 | No Image | HOOD, 13 INCH U5433-900 Part Number: 37253290 for Hoover | 37253290 | $31.91Read more |
| 1 | Not Available | Hoover Hood-Ag-U5475-900 5 In - U5475-900 - (Early Models W/ Standard Hood) | 37253289 | Not Available |
| 1 | Not Available | Hoover Hood Assembly-U5395- 13 In - U5395-900 | 37253287 | Not Available |
| 1 | No Image | ***USE H-37253364 HOOD, U5445-900 Part Number: 37253286 for Hoover | 37253286 | $28.86Read more |
| 1 | Not Available | Hoover Hood-U5433-900 U5433-900 | 37253285 | Not Available |
| 1 | Not Available | Hoover Hood-U5397-900 15 In - U5397-900 | 37253305 | Not Available |
| 1 | Not Available | Hoover Hood-Abr-15-U539690 15 In - U5396-900 | 37253306 | Not Available |
| 1 | Not Available | Hoover Hood-Ag-13 13 In - U5415-900 Mach 2.5 | 37253353 | Not Available |
| 1 | Not Available | Hoover Hood-Adx-U5460-900 U5460-900 | 37253350 | Not Available |
| 1 | No Image | HOOD, WINDTUNNEL U5450-900 Part Number: 37253343 for Hoover | 37253343 | $33.29Read more |
| 1 | Not Available | Hoover Hood-Adx-U5434-900 13 In - U5434-900 | 37253342 | Not Available |
| 1 | Not Available | Hoover Hood-Mu=U5447900 15 In - U5447-900 | 37253319 | Not Available |
| 1 | Not Available | Hoover Hood-Ag-U5420-900 15 In - U5416-900, U5420-900 | 37253316 | Not Available |
| 1 | Not Available | Hoover Hood Assembly-U5393 13 In - U5393-900 | 37253315 | Not Available |
| 1 | Not Available | Hoover Hood-Acf-U5449-940 15 In - U5449-940 | 37253313 | Not Available |
| 1 | Not Available | Hoover Hood 13 In - U5403-900 | 37253307 | Not Available |
| 2 | Not Available | Hoover Hose Door Assembly | 43431005 | Not Available |
| 3 | Not Available | Hoover Handle Release Lever | 38458043 | Not Available |
| 4 | Not Available | Hoover Nozzle Adjustment Lever( 38421087) And Cam(!%38563007) are sold | 38421087) And Cam(!%38563007) are sold seperately, | Not Available |
| 5 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 6 | Not Available | Hoover Trunnion Cover-Abe | 36131094 | Not Available |
| 7 | Not Available | Hoover Hose Clamp-Abe | 36171044 | Not Available |
| 8 | Not Available | Hoover Lock Ring | 160017-- | Not Available |
| 9 | Not Available | Hoover Rear Wheel | 38522077 | Not Available |
| 9 | Not Available | Hoover Rear Wheel Assembly-U642 U5452-900 | 43244005 | Not Available |
| 10 | Not Available | Hoover Rear Axle-Aax-U5433- | 32434008 | Not Available |
| 11 | Not Available | Hoover Main Body With Guard-13 In-Abe U5142-900 | 37242140 | Not Available |
| 11 | Not Available | Hoover Main Body-Abey 15 In | 37242123 | Not Available |
| 11 | Not Available | Hoover Main Body-Abe-U5433- 13 In | 37242124 | Not Available |
| 12 | Not Available | Hoover Screw-Self-Tapping | 21447228 | Not Available |
| 13 | Not Available | Hoover Nozzle Adjustment Lever( 38421087) And Cam(!%38563007) are sold | 38421087) And Cam(!%38563007) are sold seperately, | Not Available |
| 14 | Not Available | Hoover Torsion Spring | 38355010 | Not Available |
| 15 | Not Available | Hoover Front Wheel Support-Cp | 36432027 | Not Available |
| 15 |  | Wheel, 2-Front W/Axle & Carriage WindTunnel Uprigh | H-43248057 | $23.99Read more |
| 16 | Not Available | Hoover Wheel Shaft | 32541003 | Not Available |
| 17 | Not Available | Hoover Front Wheel | 38521004 | Not Available |
| 18 | Not Available | Hoover Wheel Retainer - Bz | 36131056 | Not Available |
| 19 | Not Available | Hoover Bottom Plate/Duct 13 Service 13 In (Incl. It. 22) | 40309025 | Not Available |
| 19 | Not Available | Hoover Bottom Plate/Duct 15 Service 15 In (Inc. It. 22, Order Item 20 Also) | 40309026 | Not Available |
| 19 | Not Available | Hoover Bottom Plate/Duct Cover | 40309034 | Not Available |
| 20 | Not Available | Hoover Agitator Pulley Seal | 38781053 | Not Available |
| 21 | Not Available | Hoover Agitator-13-Service | 48414110 | Not Available |
| 21 | No Image | 15" wooden hoover brush roller sealed bearings replace PN: | HR2015 | $15.00Add to cart |
| 22 | Not Available | Hoover Bottom Plate/Duct 13 Service 13 In (Incl. It. 19) | 40309025 | Not Available |
| 22 | Not Available | Hoover Bottom Plate/Duct 15 Service 15 In (Order Item 20 Also) | 40309026 | Not Available |
| 22 | Not Available | Hoover Bottom Plate/Duct Cover | 40309034 | Not Available |
| 23 | Not Available | Hoover Litter Picker | 39511004 | Not Available |
| 24 | Not Available | Hoover Screw | 21447121 | Not Available |
| 25 | Not Available | Hoover Rib Shoe | 13261AY- | Not Available |
| 26 | No Image | Belt, Flat Brushroll WindTunnel W/O Power Drive | H-38528033 | $4.99Read more |
| 27 | Not Available | Hoover Bag Housing Door-U54029 U5402-900 | 37254257 | Not Available |
| 27 | Not Available | Hoover Dusting Brush Assembly-Agr | 43414195 | Not Available |
| 27 | Not Available | Hoover Crevice Tool-Abr U5402-900 | 38617032 | Not Available |
| 27 | Not Available | Hoover Furniture Guard Filler U5142-900 | 36235088 | Not Available |
| 27 | Not Available | Hoover Furniture Nozzle-Agr U5402-900 | 38614044 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Handle Cap-Dlx-Abe | 37911080 | Not Available |
| 1 | Not Available | Hoover Upper Handle Assembly (Inc. It. 2, 49) | 48663205 | Not Available |
| 2 | Not Available | Hoover Cord Wrap | 3944201P | Not Available |
| 3 | Not Available | Hoover Hose Assembly | 43434031 | Not Available |
| 4 | Not Available | Hoover Hose Holder | 36433137 | Not Available |
| 5 | Not Available | Hoover Handle Hardware Assembly | 40201149 | Not Available |
| 6 | Not Available | Hoover Wand/Hose Holder | 36433120 | Not Available |
| 7 | Not Available | Hoover Screw-Self Tapping | 21447242 | Not Available |
| 8 | Not Available | Hoover Screw-Self Tapping | 23149002 | Not Available |
| 9 | Not Available | Hoover Hose Door Assembly | 43457024 | Not Available |
| 10 | Not Available | Hoover Edf Micro/Duct Assembly | 47823003 | Not Available |
| 11 | Not Available | Hoover Hose Connector Gasket | 31178017 | Not Available |
| 12 | Not Available | Hoover Wire Opening Seal | 34311004 | Not Available |
| 13 | Not Available | Hoover Hose Door Assembly | 43431005 | Not Available |
| 14 | Not Available | Hoover Strain Relief | 27482230 | Not Available |
| 15 | Not Available | Hoover Cord-35'-Wt | 440011633 | Not Available |
| 16 | Not Available | Hoover Bag Housing Kit-Deluxe Includes Bag Housing And Motor Cover (Ref: Service Bulletin 4-01) | 40309040 | Not Available |
| 16 | Not Available | Hoover Bag Housing.-U5435-900 Bag Housing - U5462-900, U5464-900 | 37255029 | Not Available |
| 17 | Not Available | Hoover Nut-S3005 | 33426001 | Not Available |
| 17 | Not Available | Hoover Fan | 43566016 | Not Available |
| 17 | Not Available | Hoover Motor Assembly | 43576188 | Not Available |
| 18 | Not Available | Hoover Motor Mount-Lrg | 36322035 | Not Available |
| 19 | Not Available | Hoover Motor Brush | 41311017 | Not Available |
| 20 | Not Available | Hoover Thermol Protector-.250 | 28382087 | Not Available |
| 20 | Not Available | Hoover Thermal Protector W/ 3/16" Terminal | 47534027 | Not Available |
| 20 | Not Available | Hoover Toc Label-Windtunnel | 51873001 | Not Available |
| 22 | Not Available | Hoover Motor Cover-Abe-C170 | 37196009 | Not Available |
| 22 | Not Available | Hoover Motor Cover-Abe U5454-900, U5458-900, U5459-900, U5462-900, U5464-900 | 37196158 | Not Available |
| 23 | Not Available | Hoover Screw-Self Tapping-F | 21447230 | Not Available |
| 24 | Not Available | Hoover Screw-Self-Tapping | 21447228 | Not Available |
| 25 | Not Available | Hoover Lens-Cp | 39383107 | Not Available |
| 26 | Not Available | Hoover Snap In Lens-Red | 27352030 | Not Available |
| 27 | Not Available | Hoover Snap In Lens-Green | 27352031 | Not Available |
| 28 | Not Available | Hoover Edf Cover-U5420-900 U5452-900 | 42258002 | Not Available |
| 28 |  | COVER, ABE-EDF Part Number: 42258001 for Hoover | 42258001 | $9.01Read more |
| 29 | Not Available | Hoover Edf Circuit Bd-U5420 Edf Pc Board With Amber, Red, And Green Lights - U5452-900 | 46851032 | Not Available |
| 29 | Not Available | Hoover Edf Printed Circuit Board Edf Pc Board With Amber, Red, And Green Lights - U5452-900 | 46851031 | Not Available |
| 30 | Not Available | Hoover Lamp | 27313101 | Not Available |
| 31 | Not Available | Hoover Wiring Harness | 47173028 | Not Available |
| 31 | Not Available | Hoover Wiring Harness | 47173024 | Not Available |
| 32 | | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 33 | Not Available | Hoover Bag Housing Door-Aby (Inc. Items 34, 36) | 42255087 | Not Available |
| 33 | Not Available | Hoover Bag Housing Door-U5435-9 U5454-900 | 42255063 | Not Available |
| 33 | Not Available | Hoover Bag Housing Door-Dlx U5453-900, U5456-900, U5458-900, U5464-900 (Order 34, 35, 36) | 37254176 | Not Available |
| 33 | Not Available | Hoover Bag Housing Door-Dlx-Afe U5452-900 (Order 34, 35, And 36) | 37254191 | Not Available |
| 33 | Not Available | Hoover Bag Housing Dr-U5459 U5459-900 | 37254241 | Not Available |
| 33 | Not Available | Hoover Bag Housing Door-Ads (Inc. Items 34, 36) - U5439-900 | 42255099 | Not Available |
| 33 | Not Available | Hoover Bag Housing Door-Ads U5462-900 | 42255103 | Not Available |
| 34 | Not Available | Hoover Bag Door Gasket-Bottom | 34123050 | Not Available |
| 35 | Not Available | Hoover Bag Indicator U5453-900, U5454-900, U5458-900 | 51151010 | Not Available |
| 36 | Not Available | Hoover Bag Door Gasket 34.5" | 38781057 | Not Available |
| 37 | Not Available | Hoover Wire Connector | 27618508 | Not Available |
| 38 |  | Mount, :( Small Motor Belt Side WindTunnel Part Number: 440013147 for Hoover | 440013147 | $4.26Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | Not Available | Hoover Wire Opening Plug | 34131019 | Not Available |
| 40 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 41 | Not Available | Hoover Secondary Filter | AH41001 | Not Available |
| 42 |  | Frame, :( Filter WindTunnel Upright Part Number: 36426034 for Hoover | 36426034 | $2.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | Not Available | Hoover Protector Tube | 66655409 | Not Available |
| 44 | Not Available | Hoover Filter Holder-Abe-U5 | 36426033 | Not Available |
| 45 |  | Hoover Filter without Power Drive for Windtunnels | 40110004 | $9.99Read more |
| 46 |  | Paper Bag, Y/Z Microlined 3Pk Part Number: 151907 for Hoover Replacement | 151907 | $4.81Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | Not Available | Hoover Filter Grill-Abe | 37257221 | Not Available |
| 48 | Not Available | Hoover Handle Hardware Assembly | 40201149 | Not Available |
| 52 | Not Available | Hoover Switch Kit-Service | 40309033 | Not Available |
| 52 | Not Available | Hoover Switch-Wt-.025 Term | 28161067 | Not Available |
| 53 | Not Available | Hoover Tool Door | 37257260 | Not Available |
| 54 | Not Available | Hoover Extension Tube-Ag | 38634078 | Not Available |
| 55 | Not Available | Hoover Crevice Tool-Abr | 38617027 | Not Available |
| 56 | Not Available | Hoover Furniture Nozzle | 3861401E | Not Available |
| 57 |  | Dust Brush, :( Black WindTunnel Upright Part Number: 43414197 for Hoover | 43414197 | $11.71Read more |
| 58 | Not Available | Hoover Handle Cap-Dlx-Abe | 37911080 | Not Available |
| 58 | Not Available | Hoover Cord Clamp | 012910-- | Not Available |
| 58 | Not Available | Hoover Turbine Hand Tool Sapphire - U5456-900, U5458-900, U5462-900, U5464-900 | 40200013 | Not Available |
| 58 | Not Available | Hoover Lead Wire-Blue-.250 | 49811072 | Not Available |
| 58 | Not Available | Hoover Turbine Hnd Tl-Afx U5459-900 | 49129019 | Not Available |
| 58 | Not Available | Hoover Extra Hose Assembly | 43434042 | Not Available |
| 58 | Not Available | Hoover Snap In Lens-Amber | 27352032 | Not Available |
| 59 | Not Available | Hoover Owner Manual U5439-900, U5453-900, U5454-900, U5456-900, U5458-900 | 56511A67 | Not Available |
| 59 | Not Available | Hoover Dirt Duct Assembly | 43486010 | Not Available |
