Schematic and parts list for: Hoover Model: U5148
This is a list of parts and a diagram and schematic for: Hoover Model: U5148
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

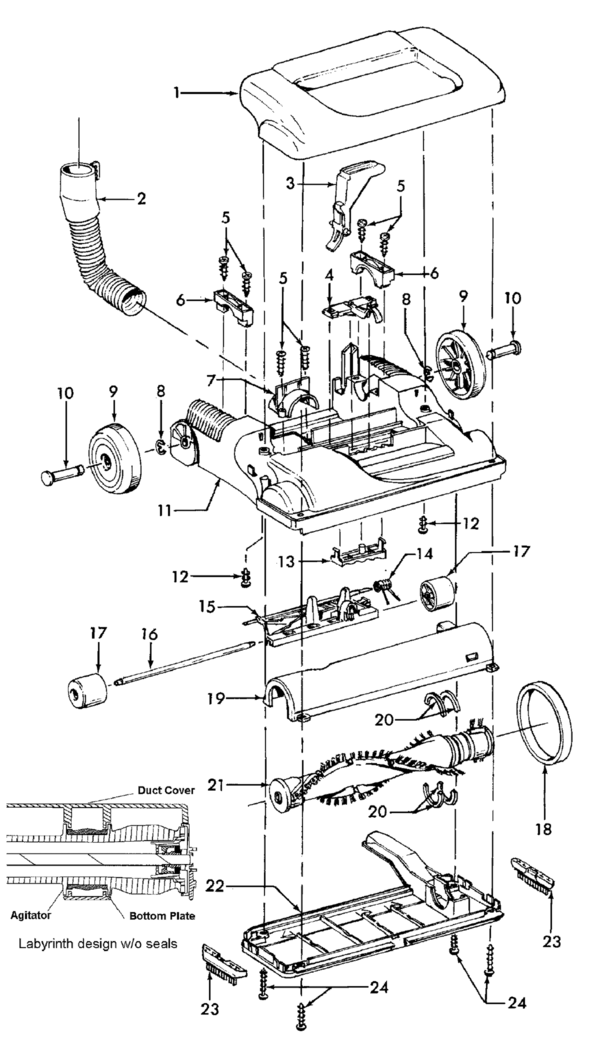

Parts for: Upright
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Std Hood-15-Aft | 92001251 | Not Available |
| 2 | Not Available | Hoover Lower Hose / Inlet Door Assembly | 43431005 | Not Available |
| 3 | Not Available | Hoover Handle Release Lever - Black | 38458043 | Not Available |
| 4 | Not Available | Hoover Nozzle Adjustment Lever( 38421087) And Cam(!%38563007) are sold | 38421087) And Cam(!%38563007) are sold seperately, | Not Available |
| 5 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 6 | Not Available | Hoover Trunnion Cover - Dark Charcoal Gray | 36131094 | Not Available |
| 7 | Not Available | Hoover Hose Clamp - Dark Charcoal Gray | 36171044 | Not Available |
| 8 | Not Available | Hoover E-Clip / Lock Ring | 160017- | Not Available |
| 9 | Not Available | Hoover Rear Wheel | 38522077 | Not Available |
| 10 | Not Available | Hoover Rear Axle | 32434006 | Not Available |
| 11 | Not Available | Hoover Main Body W/Guard 15-Abe | 92001061 | Not Available |
| 12 | Not Available | Hoover Body Screw - #6 - 10 Self Tapping | 21447228 | Not Available |
| 13 | Not Available | Hoover Nozzle Adjustment Lever( 38421087) And Cam(!%38563007) are sold | 38421087) And Cam(!%38563007) are sold seperately, | Not Available |
| 14 | Not Available | Hoover Torsion Spring | 38355010 | Not Available |
| 15 | Not Available | Hoover Front Wheel Assem Complete | 92001026 | Not Available |
| 15 | Not Available | Hoover Front Wheel Support - Only Clear | 36432027 | Not Available |
| 16 | Not Available | Hoover Wheel Shaft - Zinc Plate | 32541007 | Not Available |
| 17 | Not Available | Hoover Front Wheel-Ag | 38521009 | Not Available |
| 18 | No Image | Belt, Flat Brushroll WindTunnel W/O Power Drive | H-38528033 | $4.99Read more |
| 19 | Not Available | Hoover Bottom Plate And Duct Assembly - 15" | 40309026 | Not Available |
| 20 | Not Available | Hoover Pulley Seal - Agitator / Brush Roll | 38781053 | Not Available |
| 21 | No Image | 15" wooden hoover brush roller sealed bearings replace PN: | HR2015 | $15.00Add to cart |
| 22 | Not Available | Hoover Bottom Plate And Duct Assembly - 15" | 40309026 | Not Available |
| 23 | Not Available | Hoover Furniture Guard Filler | 36235088 | Not Available |
| 24 | Not Available | Hoover Screw # 8 - 10 X 1.625" - Self Tapping | 21447121 | Not Available |
| # | Part image | Description | SKU | Price |
| xx | Not Available | Hoover Bag Indicator | 51151010 | Not Available |
| xx | Not Available | Hoover Manual, Owners | 56511C40 | Not Available |
| 1 | Not Available | Hoover Handle Assm.-Service | 48663206 | Not Available |
| 2 | Not Available | Hoover Cord Wrap | 3944201P | Not Available |
| 3 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 4 | Not Available | Hoover Wire Connector | 27618508 | Not Available |
| 5 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 6 | Not Available | Hoover Switch-Wt-.025 Term | 28161067 | Not Available |
| 6 | Not Available | Hoover Switch Kit - Order 1 Ea: 28161075 / 49811075 / 018972 | 40309033 | Not Available |
| 7 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 8 | Not Available | Hoover Bag Housing-C1703/05 | 37255013 | Not Available |
| 9 | Not Available | Hoover Handle Hardware Assembly / 2 - Screws 3-15/16" - 3 Nuts | 40201149 | Not Available |
| 10 | Not Available | Hoover Strain Relief | 27482230 | Not Available |
| 11 | No Image | Cord, 25' Blk 1/4 Terminal WindTunnel and Bagless | H-46383331 | $26.99Read more |
| 12 | Not Available | Hoover Gasket - Hose Connector | 31178017 | Not Available |
| 13 | Not Available | Hoover Dirt Duct | 38641005 | Not Available |
| 14 | Not Available | Hoover Hose Assembly Complete - 8' Replaced By 304102001 | 43434031 | Not Available |
| 15 | Not Available | Hoover Body Screw # 8 -10 X .625" - Self Tapping | 21447242 | Not Available |
| 16 | Not Available | Hoover Tool/Hose Holder | 36433112 | Not Available |
| 17 | Not Available | Hoover Screw - Self Tapping | 23149002 | Not Available |
| 18 | Not Available | Hoover Lower Hose / Inlet Door Assembly | 43431005 | Not Available |
| 19 | Not Available | Hoover Seal - Wire Opening | 34311004 | Not Available |
| 20 | Not Available | Hoover Furniture Nozzle-Agr | 38614044 | Not Available |
| 21 | Not Available | Hoover Crevice Tool - Deep Sand | 38617032 | Not Available |
| 21 | Not Available | Hoover Crevice Tool / Long - Graphite Gray | 38617031 | Not Available |
| 22 | Not Available | Hoover Dusting Brush Assembly-Agr | 43414195 | Not Available |
| 23 | Not Available | Hoover Extension Tube - Black | 38634078 | Not Available |
| 24 | Not Available | Hoover Motor Mount-Lrg | 36322035 | Not Available |
| 25 | Not Available | Hoover Motor Assem Comp. | 43576188 | Not Available |
| 25 | Not Available | Hoover Fan Assembly | 90001206 | Not Available |
| 25 | Not Available | Hoover Motor Brush Used With Motor 27212081 | 41311017 | Not Available |
| 26 | Not Available | Hoover Thermal Protector | 28382086 | Not Available |
| 26 | Not Available | Hoover Toc Label-Windtunnel | 51873001 | Not Available |
| 27 | Not Available | Hoover Screw - Self Tapping | 21447230 | Not Available |
| 28 | Not Available | Hoover Motor Cover-Abe | 37196158 | Not Available |
| 29 | Not Available | Hoover Body Screw - #6 - 10 Self Tapping | 21447228 | Not Available |
| 30 | Not Available | Hoover Lens - Clear | 39383107 | Not Available |
| 31 | Not Available | Hoover Front Bag Door Gasket - Bottom | 34123050 | Not Available |
| 32 | Not Available | Hoover Cover - Dark Charcoal Gray | 37944010 | Not Available |
| 33 | | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 34 | Not Available | Hoover Wiring Harness | 47173023 | Not Available |
| 35 | Not Available | Hoover Lamp - Bulb #912 12 Volt / Can Sub 27313101 | 27313101 | Not Available |
| 36 | Not Available | Hoover Plug - Wire Opening Black | 34131019 | Not Available |
| 37 |  | Mount, :( Small Motor Belt Side WindTunnel Part Number: 440013147 for Hoover | 440013147 | $4.26Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 |  | Secondary Filter for Hoover Windtunnel | 38765019 | $6.99Read more |
| 39 |  | Frame, :( Filter WindTunnel Upright Part Number: 36426034 for Hoover | 36426034 | $2.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | Hoover Hex Nut - Black Zinc | 21641558 | Not Available |
| 40 | Not Available | Hoover Handle Hardware Assembly / 2 - Screws 3-15/16" - 3 Nuts | 40201149 | Not Available |
| 41 | Not Available | Hoover Exhaust Filter Holder | 36426060 | Not Available |
| 42 | Not Available | Hoover Final / Exhaust Filter - Cartridge | 38766008 | Not Available |
| 42 |  | Hoover Filter without Power Drive for Windtunnels | 40110004 | $9.99Read more |
| 43 |  | Paper Bag, Y/Z Microlined 3Pk Part Number: 151907 for Hoover Replacement | 151907 | $4.81Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | Not Available | Hoover Front Bag Door Gasket - 34.5" | 38781057 | Not Available |
| 45 | Not Available | Hoover Bag Hsg Door-Std | 37254244 | Not Available |
| 46 | Not Available | Hoover Lower Wand Holder - Dark Charcoal Gray | 36433116 | Not Available |
| 47 | Not Available | Hoover Upper Wand Holder - Dark Charcoal | 36433117 | Not Available |
