Schematic and parts list for: Hoover Model: S6755
This is a list of parts and a diagram and schematic for: Hoover Model: S6755
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

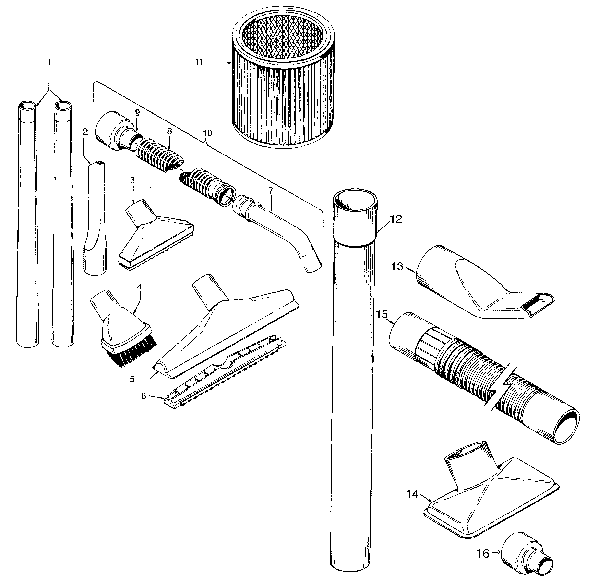

Parts for: Canister
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Extension Tube-Ag | 38634078 | Not Available |
| 02 | Not Available | Hoover Crevice Tool - Ag | 38617024 | Not Available |
| 02 | Not Available | Hoover Crevice Tool 2-1/2" | 38617008 | Not Available |
| 03 | Not Available | Hoover Furniture Nozzle-Ag | 38614029 | Not Available |
| 04 | Not Available | Hoover Dusting Brush | 43414145 | Not Available |
| 05 | Not Available | Hoover Nozzle 14" | 38615009 | Not Available |
| 05 | Not Available | Hoover Nozzle 10" | 38615008 | Not Available |
| 06 | Not Available | Hoover Squeegee (For 10" Nozzle ) | 39512006 | Not Available |
| 07 | Not Available | Hoover Hand Grip | 39454059 | Not Available |
| 09 | Not Available | Hoover Hose Connector | 38638061 | Not Available |
| 10 | Not Available | Hoover Hose-Wet/Dry-S6529 | 43434034 | Not Available |
| 11 | Not Available | Hoover Cartridge Filter (Optional) | 43611009 | Not Available |
| 12 | Not Available | Hoover Extension Tube 2-1/2" | 38638032 | Not Available |
| 13 | Not Available | Hoover Blower Nozzle 2-1/2" | 38619016 | Not Available |
| 14 | Not Available | Hoover Utility Nozzle 2-1/2" | 38614027 | Not Available |
| 15 | Not Available | Hoover Hose 2-1/2" | 43434004 | Not Available |
| 16 | Not Available | Hoover Adaptor For Using 1-1/4" Tools On 2" Hose. | 32283002 | Not Available |

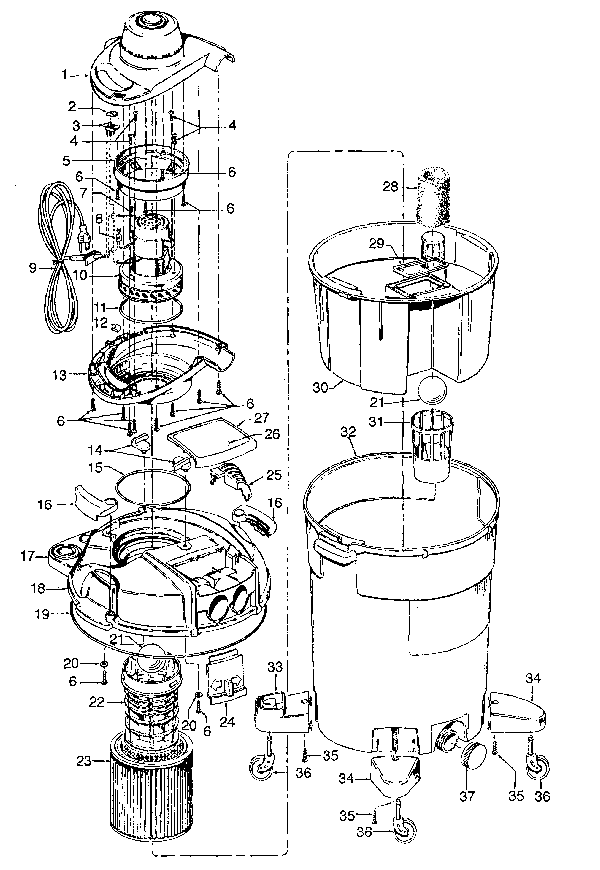

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Blower Housing-Upper Abz | 37471004 | Not Available |
| 01 | Not Available | Hoover Blower Housing-Upper-S67 | 37471001 | Not Available |
| 02 | Not Available | Hoover Switch Button-Abn-S6 | 38421043 | Not Available |
| 02 | Not Available | Hoover Switch Button-S6757 Switch Button - S6757 | 38421044 | Not Available |
| 02 | Not Available | Hoover Switch Button-Ag-S32 S6760, S6760-600 | 38421020 | Not Available |
| 03 | Not Available | Hoover Switch-S6751/55 | 28177030 | Not Available |
| 04 | Not Available | Hoover Screw - Self Tapping | 21455325 | Not Available |
| 05 | Not Available | Hoover Motor Mounting Ring-S6 | 36322009 | Not Available |
| 06 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 07 | Not Available | Hoover Screw-Tapping | 21447240 | Not Available |
| 08 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 09 | Not Available | Hoover Attach Cord-12'-S675 S6751 | 46543007 | Not Available |
| 09 | Not Available | Hoover Attach Cord-12'-S675 S6755, S6757, S6760, S6760-600 | 46543008 | Not Available |
| 10 | Not Available | Hoover Motor-3 Php-S6751 | 27222004 | Not Available |
| 10 | Not Available | Hoover Motor-4 Php-S6755 6.0 Php - S6755, S6757, S6760, S6760-600 | 27222005 | Not Available |
| 11 | Not Available | Hoover Seal - S6751/55 | 38781033 | Not Available |
| 12 | Not Available | Hoover Insulator-S6751/55 | 36913021 | Not Available |
| 13 | Not Available | Hoover Blower Housing-Lower Abz (Incl. It. 11) | 37471003 | Not Available |
| 13 | Not Available | Hoover Blower Hsg-Lower-S67 (Incl. Item 11) | 37471002 | Not Available |
| 14 | Not Available | Hoover Latch-S6757 | 36152022 | Not Available |
| 14 | Not Available | Hoover Latch-Abn-S6751/55 | 36152021 | Not Available |
| 15 | Not Available | Hoover Seal-Inner - S6751/5 | 38781034 | Not Available |
| 16 | Not Available | Hoover Latch | 36153051 | Not Available |
| 16 | Not Available | Hoover Latch-S6633 S6757, S6760 | 36153057 | Not Available |
| 17 | Not Available | Hoover Tool Rack-Ag-S6751/5 | 36433091 | Not Available |
| 18 | Not Available | Hoover Lid Assembly-S6757 Lid Assembly. (Incl. It. 14, 19, 20, 24, 25, 26, 27) (S6757) | 42232028 | Not Available |
| 18 | Not Available | Hoover Lid Assembly-Ag-S6751/55 Lid Assembly. (Incl. It. 14, 19, 20, 24, 25, 26, 27) | 42232026 | Not Available |
| 18 | Not Available | Hoover Lid-S6760 Lid Assembly. (Incl. It. 14, 19, 20, 24, 25, 26, 27) (S6760) | 42232033 | Not Available |
| 19 | Not Available | Hoover Seal-S6635/41 | 34123046 | Not Available |
| 19 | Not Available | Hoover Seal (0-Ring) | 38781035 | Not Available |
| 20 | Not Available | Hoover Flat Washer | 21312797 | Not Available |
| 21 | Not Available | Hoover Ball Float-S6529/43/ | 25661015 | Not Available |
| 22 | Not Available | Hoover Filter Support | 36426026 | Not Available |
| 23 | Not Available | Hoover Cartridge Filter | 43611009 | Not Available |
| 24 | Not Available | Hoover Valve Door | 37238005 | Not Available |
| 24 | Not Available | Hoover Valve Door-S6633 S6757, S6760, S6760-600 | 37238006 | Not Available |
| 26 | Not Available | Hoover Valve Cover Label-S6 | 51689037 | Not Available |
| 26 | Not Available | Hoover Valve Cover Label-S6 S6757 | 51669073 | Not Available |
| 26 | Not Available | Hoover Valve Cover Label-S6 S6760, S6760-600 | 51639158 | Not Available |
| 28 | Not Available | Hoover Inner Tank Filter | 43611040 | Not Available |
| 29 | Not Available | Hoover Inner Tank Gasket | 38783002 | Not Available |
| 30 | Not Available | Hoover Inner Tank (Includes Items 28,29) | 43641022 | Not Available |
| 31 | Not Available | Hoover Float Retainer | 38719026 | Not Available |
| 32 | Not Available | Hoover Tank 16 Gal. - S6755 | 38777013 | Not Available |
| 32 | Not Available | Hoover Tank-16 Gal-S6760-60 16 Gal. - S6760-600 | 38777055 | Not Available |
| 32 | Not Available | Hoover Tank-16 Gal.-S6760 16 Gal. - S6760 | 38777047 | Not Available |
| 32 | No Image | TANK, 16 GAL S7657 Part Number: 38777023 for Hoover | 38777023 | $36.95Read more |
| 32 | Not Available | Hoover Tank-Mw-12.5 Gal-S66 12.5 Gal. - S6751 | 38777014 | Not Available |
| 33 | Not Available | Hoover Castor Support-Deluxe | 36432046 | Not Available |
| 34 | Not Available | Hoover Caster Support | 36432042 | Not Available |
| 35 | Not Available | Hoover Screw-Self Tapping | 21447215 | Not Available |
| 36 | Not Available | Hoover Caster Wheel | 23737112 | Not Available |
| 37 | Not Available | Hoover Drain Cap & Seal-S65 | 37911008 | Not Available |
| 37 | Not Available | Hoover Drain Cap & Seal - S 6757, S6760 | 37911010 | Not Available |
| 38 | Not Available | Hoover Top Support | 58366095 | Not Available |
| 38 | Not Available | Hoover Ext. Tube Support-S6 S6760 | 58286014 | Not Available |
| 38 | Not Available | Hoover Extension Tube Support | 58286010 | Not Available |
| 38 | Not Available | Hoover Owner Manual-S6760 S6760 | 56514020 | Not Available |
| 38 | Not Available | Hoover Owner Manual - S6757 | 56514013 | Not Available |
| 40 | Not Available | Hoover Hose-Wet/Dry-S6529 | 43434034 | Not Available |
| 40 | Not Available | Hoover Hose 2-1/2" | 43434004 | Not Available |
| 40 | Not Available | Hoover Dusting Brush S6757 | 43414145 | Not Available |
| 40 | Not Available | Hoover Squeegee (For 10" Nozzle) | 39512006 | Not Available |
| 40 | Not Available | Hoover Extension Tube 2-1/2" | 38638032 | Not Available |
| 40 | Not Available | Hoover Extension Tube-Ag 1-1/4" S6760, S6760-600 | 38634078 | Not Available |
| 40 | Not Available | Hoover Blower Nozzle 2-1/2" | 38619016 | Not Available |
| 40 | Not Available | Hoover Crevice Tool - Ag | 38617024 | Not Available |
| 40 | Not Available | Hoover Nozzle 14" - S6757 | 38615009 | Not Available |
| 40 | Not Available | Hoover Nozzle 10" (For 1-1/4" Hose) | 38615008 | Not Available |
| 40 | Not Available | Hoover Furniture Nozzle-Ag | 38614029 | Not Available |
| 40 | Not Available | Hoover Utility Nozzle 2-1/2" | 38614027 | Not Available |
| 40 | Not Available | Hoover Adaptor S6757 | 32283002 | Not Available |
| 996 | Not Available | Hoover Wire Connector | 27618508 | Not Available |
