Schematic and parts list for: Hoover Model: S6631
This is a list of parts and a diagram and schematic for: Hoover Model: S6631
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
# | Part image | Description | SKU | Price |
01 | Not Available | Hoover Extension Tube-Ag | 38634078 | Not Available |
02 | Not Available | Hoover Crevice Tool - Ag | 38617024 | Not Available |
02 | Not Available | Hoover Crevice Tool 2-1/2" | 38617008 | Not Available |
03 | Not Available | Hoover Furniture Nozzle-Ag | 38614029 | Not Available |
04 | Not Available | Hoover Dusting Brush | 43414145 | Not Available |
05 | Not Available | Hoover Nozzle 14" | 38615009 | Not Available |
05 | Not Available | Hoover Nozzle 10" | 38615008 | Not Available |
06 | Not Available | Hoover Squeegee (For 10" Nozzle ) | 39512006 | Not Available |
07 | Not Available | Hoover Hand Grip | 39454059 | Not Available |
09 | Not Available | Hoover Hose Connector | 38638061 | Not Available |
10 | Not Available | Hoover Hose-Wet/Dry-S6529 | 43434034 | Not Available |
11 | Not Available | Hoover Cartridge Filter (Optional) | 43611009 | Not Available |
12 | Not Available | Hoover Extension Tube 2-1/2" | 38638032 | Not Available |
13 | Not Available | Hoover Blower Nozzle 2-1/2" | 38619016 | Not Available |
14 | Not Available | Hoover Utility Nozzle 2-1/2" | 38614027 | Not Available |
15 | Not Available | Hoover Hose 2-1/2" | 43434004 | Not Available |
16 | Not Available | Hoover Adaptor For Using 1-1/4" Tools On 2" Hose. | 32283002 | Not Available |

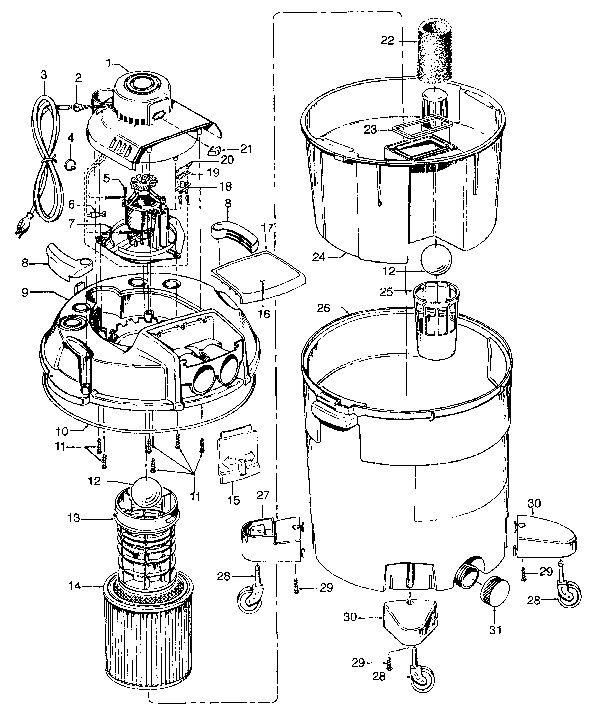

# | Part image | Description | SKU | Price |
01 | Not Available | Hoover Motor Cover-S6633 | 37232017 | Not Available |
01 | Not Available | Hoover Motor Cover-S6631/35 | 37232015 | Not Available |
02 | Not Available | Hoover Strain Relief | 27482145 | Not Available |
03 | Not Available | Hoover Attach Cord - 6 Ft. | 46543006 | Not Available |
03 | Not Available | Hoover Attach Cord - S6650 | 46543017 | Not Available |
04 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
05 | Not Available | Hoover Screw-Tapping | 21447240 | Not Available |
06 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
07 | Not Available | Hoover Motor-S6650 | 43573017 | Not Available |
08 | Not Available | Hoover Latch-S6633 | 36153057 | Not Available |
08 | Not Available | Hoover Latch | 36153051 | Not Available |
09 | Not Available | Hoover Lid-S6633 Lid (Incl. It. 8, 15, 16, 17) - S6633 | 42232025 | Not Available |
09 | Not Available | Hoover Lid Assembly-S6631/35/4 Lid (Incl. It. 8, 15, 16, 17) | 42232020 | Not Available |
09 | Not Available | Hoover Lid-S6640/50 Lid (Incl. It. 8, 15, 16, 17) - S6640, S6640-600, S6650, S6650-600 | 42232032 | Not Available |
10 | Not Available | Hoover Seal-S6635/41 (S6631, S6635 Late) S6641, S6633, S6640, S6640-600 | 34123046 | Not Available |
10 | Not Available | Hoover Seal (0-Ring) (S6631, S6635 Early) | 38781035 | Not Available |
11 | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more | |
12 | Not Available | Hoover Ball Float-S6529/43/ | 25661015 | Not Available |
13 | Not Available | Hoover Filter Support | 36426026 | Not Available |
14 | Not Available | Hoover Cartridge Filter | 43611009 | Not Available |
15 | Not Available | Hoover Valve Door | 37238005 | Not Available |
15 | Not Available | Hoover Valve Door-S6633 S6633, S6640, S6640-600, S6650, S6650-600 | 37238006 | Not Available |
16 | Not Available | Hoover Valve Cover Label-S6 | 51689036 | Not Available |
16 | Not Available | Hoover Valve Cover Label-S6 S6633 | 51669072 | Not Available |
16 | Not Available | Hoover Valve Cover Label-S6 S6640, S6640-600, S6650, S6650-600 | 52135079 | Not Available |
18 | Not Available | Hoover Switch-S6529/43/47 | 28177028 | Not Available |
19 | Not Available | Hoover Switch Insulator-S65 | 34127004 | Not Available |
20 | Not Available | Hoover Speed Nut-S6529/43/4 | 21364107 | Not Available |
21 | Not Available | Hoover Switch Button-S6633 S6633, S6640, S6640-600, S6650, S6650-600 | 38421006 | Not Available |
21 | Not Available | Hoover Switch Button | 38421004 | Not Available |
22 | Not Available | Hoover Inner Tank Filter | 43611040 | Not Available |
23 | Not Available | Hoover Inner Tank Gasket | 38783002 | Not Available |
24 | Not Available | Hoover Inner Tank (Incl. Items 22,23) | 43641022 | Not Available |
25 | Not Available | Hoover Float Retainer | 38719026 | Not Available |
26 | Not Available | Hoover Tank-16 Gal-S6650-60 16 Gal. - S6650-600 | 38777054 | Not Available |
26 | Not Available | Hoover Tank-S6640-600 12.5 Gal. - S6640-600 | 38777053 | Not Available |
26 | Not Available | Hoover Tank-16 Gal.-S5650 16 Gal. - S6650 | 38777046 | Not Available |
26 | Not Available | Hoover Tank-12.5 Gal.-S6640 12.5 Gal. - S6640 | 38777045 | Not Available |
26 | Not Available | Hoover Cleaner Tank-S6633 12.5 Gal. - S6633 | 38777022 | Not Available |
26 | Not Available | Hoover Tank-Mw-12.5 Gal-S66 12.5 Gal. - S6631 | 38777014 | Not Available |
26 | Not Available | Hoover Tank 16 Gal. - S6635 | 38777013 | Not Available |
26 | Not Available | Hoover Tank-Mw-16 Gal-S6641 16 Gal. - S6641 | 38777010 | Not Available |
27 | Not Available | Hoover Castor Support-Delux | 36432046 | Not Available |
28 | Not Available | Hoover Caster Wheel | 23737112 | Not Available |
29 | Not Available | Hoover Screw-Self Tapping | 21447215 | Not Available |
30 | Not Available | Hoover Caster Support | 36432042 | Not Available |
31 | Not Available | Hoover Drain Cap & Seal-S65 | 37911008 | Not Available |
31 | Not Available | Hoover Drain Cap & Seal - S 6633, S6640, S6640-600, S6650, S6650-600 | 37911010 | Not Available |
32 | Not Available | Hoover Ext. Tube Support-S6 | 58286013 | Not Available |
32 | Not Available | Hoover Ext. Tube Support-S6 | 58286012 | Not Available |
32 | Not Available | Hoover Extension Tube Support | 58286010 | Not Available |
32 | Not Available | Hoover Owner Manual-S6640/5 S6640, S6640-600, S6650, S6650-600 | 56514019 | Not Available |
32 | Not Available | Hoover Owner Manual-S6633 S6633 | 56514012 | Not Available |
32 | Not Available | Hoover Owner Manual-S6631/3 | 56514003 | Not Available |
33 | Not Available | Hoover Hose-Wet/Dry-S6529 | 43434034 | Not Available |
33 | Not Available | Hoover Dusting Brush | 43414145 | Not Available |
33 | Not Available | Hoover Floor Brush Assembly-Ag- | 43414142 | Not Available |
33 | Not Available | Hoover Squeegee (For 10" Nozzle)S6631, S6633, S6640, S6640-600 | 39512006 | Not Available |
33 | Not Available | Hoover Extension Tube-Ag | 38634078 | Not Available |
33 | Not Available | Hoover Crevice Tool - Ag | 38617024 | Not Available |
33 | Not Available | Hoover Nozzle 10" S6631, S6633, S6640, S6640-600 | 38615008 | Not Available |
33 | Not Available | Hoover Furniture Nozzle-Ag | 38614029 | Not Available |
34 | Not Available | Hoover Hose 2-1/2" | 43434004 | Not Available |
34 | Not Available | Hoover Extension Tube | 38638032 | Not Available |
34 | Not Available | Hoover Blower Nozzle | 38619016 | Not Available |
34 | Not Available | Hoover Utility Nozzle | 38614027 | Not Available |
34 | Not Available | Hoover Adaptor | 32283002 | Not Available |
996 | No Image | SCREW, HOOD SELF TAPPING C1710-900 Part Number: 21447218 for Hoover | 21447218 | $2.14Read more |
996 | Not Available | Hoover Wire Connector | 27618508 | Not Available |
