This is a list of parts and a diagram and schematic for: Hoover Model: S6530Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HEREParts for: Canister

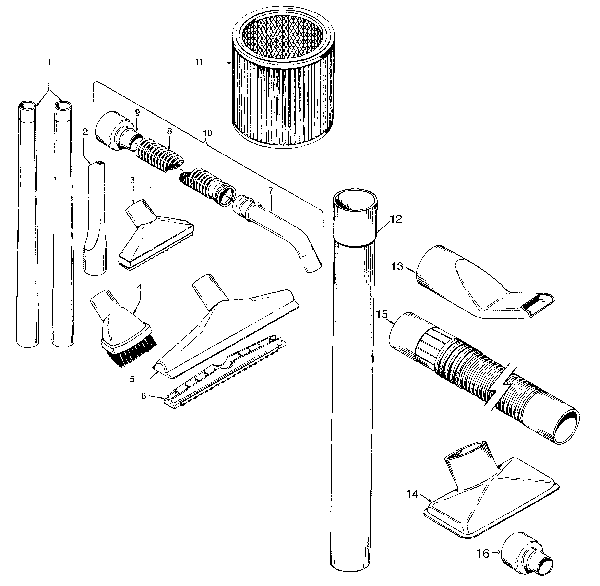

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Extension Tube | 38634078 | Not Available |
| 03 | Not Available | Hoover Furniture Nozzle | 38614029 | Not Available |
| 04 | Not Available | Hoover Dusting Brush | 43414145 | Not Available |
| 06 | Not Available | Hoover Squeegee (For 10" Nozzle ) | 39512006 | Not Available |
| 07 | Not Available | Hoover Hand Grip | 39454059 | Not Available |
| 09 | Not Available | Hoover Hose Connector | 38638061 | Not Available |
| 10 | Not Available | Hoover Hose-Wet/Dry | 43434034 | Not Available |
| 11 | Not Available | Hoover Cartridge Filter (Optional) | 43611009 | Not Available |
| 12 | Not Available | Hoover Extension Tube 2-1/2" | 38638032 | Not Available |
| 13 | Not Available | Hoover Blower Nozzle 2-1/2" | 38619016 | Not Available |
| 14 | Not Available | Hoover Utility Nozzle 2-1/2" | 38614027 | Not Available |
| 15 | Not Available | Hoover Hose 2-1/2" | 43434004 | Not Available |
| 16 | Not Available | Hoover Adaptor For Using 1-1/4" Tools On 2" Hose. | 32283002 | Not Available |

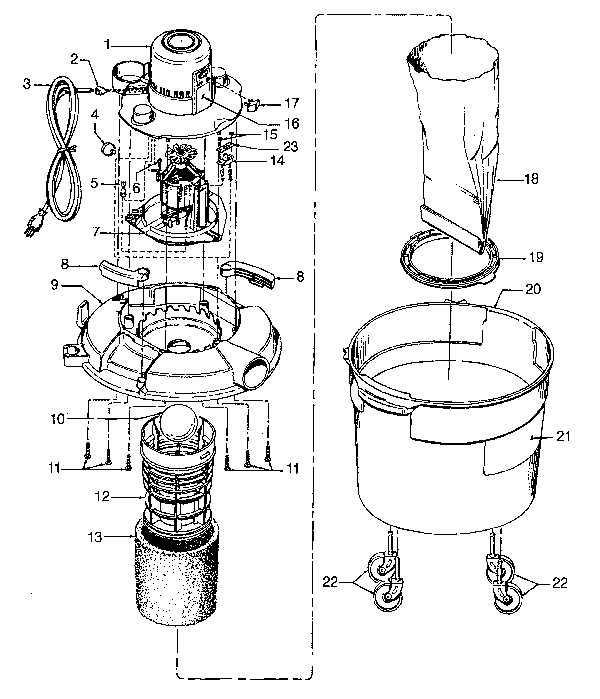

| # | Part image | Description | SKU | Price |
| 02 | Not Available | Hoover Strain Relief | 27482145 | Not Available |
| 03 | Not Available | Hoover Attach Cord - 6 Ft. | 46543006 | Not Available |
| 04 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 05 | Not Available | Hoover Terminals | 12227 | Not Available |
| 06 | Not Available | Hoover Screw-Tapping | 21447240 | Not Available |
| 08 | Not Available | Hoover Latch | 36153051 | Not Available |
| 09 | Not Available | Hoover Lid Lid - Std. (Incl. Item 8) | 37232020 | Not Available |
| 10 | Not Available | Hoover Ball Float | 25661015 | Not Available |
| 11 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 12 | Not Available | Hoover Filter Support | 36426026 | Not Available |
| 13 |  | Filter-Hoover Wet-Dry Shop Vac For: hoover | 40203001 | $14.11Read more |
| 14 | Not Available | Hoover Switch | 28177028 | Not Available |
| 15 | Not Available | Hoover Speed Nut | 21364107 | Not Available |
| 16 | Not Available | Hoover Not Required Part Or See Note Motor Cover Label | FNLA | Not Available |
| 17 | Not Available | Hoover Switch Button | 38421004 | Not Available |
| 18 | Not Available | Hoover Paper Filter X - 5-Pk Filter Bag - 5 Pk. | 4010074X | Not Available |
| 19 | Not Available | Hoover Bag Retainer | 36426023 | Not Available |
| 22 | Not Available | Hoover Caster Wheel | 23737112 | Not Available |
| 23 | Not Available | Hoover Switch Insulator | 34127004 | Not Available |
| 23 | Not Available | Hoover Cartridge Filter (Optional) | 43611009 | Not Available |
