Schematic and parts list for: Hoover Model: S3627
This is a list of parts and a diagram and schematic for: Hoover Model: S3627
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
Popular Supplies

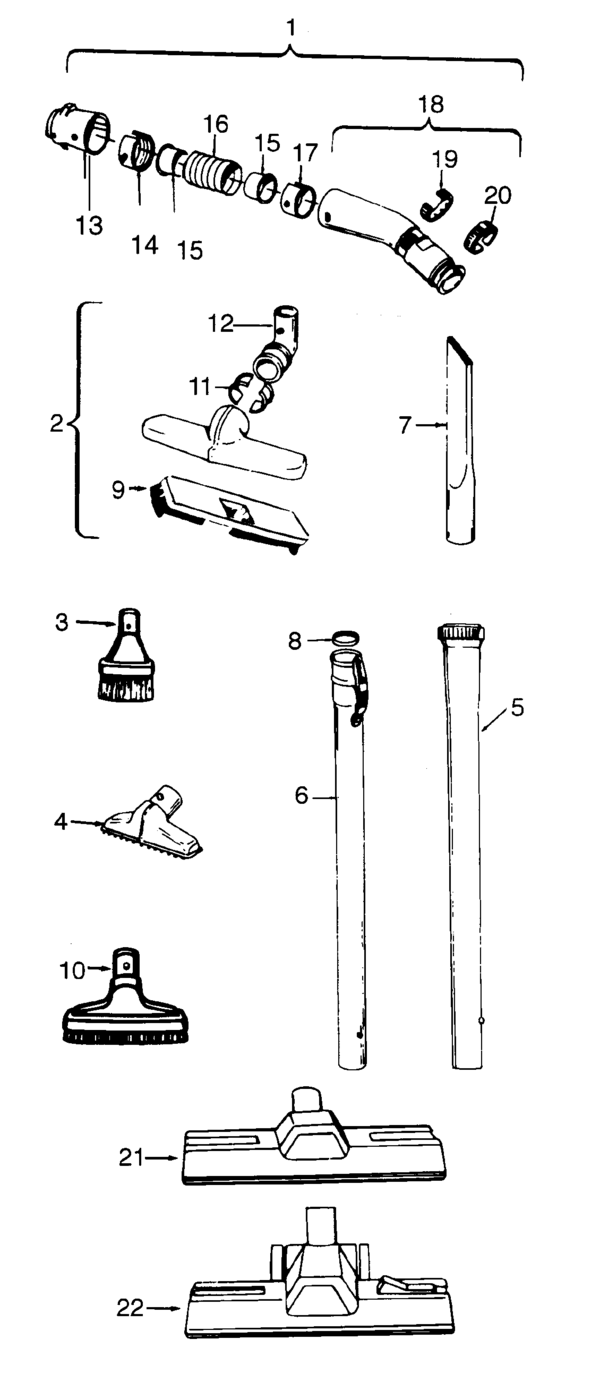

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Hose-Jm-Molded-Spiri | 43434130 | Not Available |
| 1 | Not Available | Hoover Hose-Aap-Molded-S/C- | 43434125 | Not Available |
| 1 | Not Available | Hoover Hose-Aap-Molded-6 | 43434231 | Not Available |
| 1 | Not Available | Hoover Hose-Ag/Abx-6 | 43434233 | Not Available |
| 1 | Not Available | Hoover Hose Complete-Abx | 43434191 | Not Available |
| 1 | Not Available | Hoover Hose-Jm-S3203 | 43434155 | Not Available |
| 1 | Not Available | Hoover Hose-Aap-7-Molded-Sp | 43434131 | Not Available |
| 1 | Not Available | Hoover Aav Molded Hose S/C | 43434126 | Not Available |
| 1 | Not Available | Hoover Hose-Jm | 43434065 | Not Available |
| 1 | Not Available | Hoover Hose Assem-C2075-080 | 43434013 | Not Available |
| 2 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Hoover Floor Brush-Jm | 43414072 | Not Available |
| 3 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Hoover Furniture Nozzle-S10 | 38614020 | Not Available |
| 4 | Not Available | Hoover Furniture Nozzle - A | 38614024 | Not Available |
| 4 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Hoover Extension Tube-Poly | 43453037 | Not Available |
| 5 | No Image | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| 6 | Not Available | Hoover Ext Tube-20-Ax | 43453052 | Not Available |
| 7 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 8 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 9 | Not Available | Hoover Brush Back -S3273-S3 | 48447001 | Not Available |
| 10 | Not Available | Hoover Furniture Brush-Ag | 43414016 | Not Available |
| 10 | Not Available | Hoover Multi-Purpose Brush | 43414015 | Not Available |
| 11 | Not Available | Hoover Split Ring | 33712007 | Not Available |
| 12 | Not Available | Hoover Swivel Connector - A | 38644020 | Not Available |
| 12 | Not Available | Hoover Swivel Connector - A | 38644040 | Not Available |
| 13 | Not Available | Hoover Hose Connector-Ag | 32855003 | Not Available |
| 13 | Not Available | Hoover Hose Connector-Aap-S | 38638019 | Not Available |
| 13 | Not Available | Hoover Hose Connector-Aap | 38638017 | Not Available |
| 13 | Not Available | Hoover Hose Connector-Ag-S3 | 38638039 | Not Available |
| 14 | Not Available | Hoover Hose Connector Colla | 38671011 | Not Available |
| 14 |  | Collar, White Connects Hose Coupling Part Number: 012615BZ for Hoover | 012615BZ | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Hoover Hose Sleeve - Bz | 32156010 | Not Available |
| 16 | Not Available | Hoover Hose-Abx-S3393-040 | 38671033 | Not Available |
| 16 | Not Available | Hoover Hose - Aav | 38671029 | Not Available |
| 17 | Not Available | Hoover Hose Connector Colla | 36116006 | Not Available |
| 17 | Not Available | Hoover Hose Connector Colla | 36171025 | Not Available |
| 18 | Not Available | Hoover Hose Grip W/Sc-Ag-S1 | 43466068 | Not Available |
| 18 | Not Available | Hoover Hose Grip-Ag-S1315 | 43466066 | Not Available |
| 19 | Not Available | Hoover Suction Control Ring | 38711007 | Not Available |
| 19 | Not Available | Hoover Suction Control Ring | 38711014 | Not Available |
| 20 | Not Available | Hoover Latch Ring-Ag-S3273 | 36153009 | Not Available |
| 21 | Not Available | Hoover Rug & Floor Nozzle-A | 43414139 | Not Available |
| 21 | Not Available | Hoover Rug & Floor Nozzle | 0M114169 | Not Available |
| 22 | Not Available | Hoover Wheeled R & F Noz-Aa | 43414101 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw | 21447041 | Not Available |
| 2 | Not Available | Hoover Motor Cover-S3627 | 37195089 | Not Available |
| 2 | Not Available | Hoover Motor Cover - Aam | 37195084 | Not Available |
| 2 | Not Available | Hoover Motor Cover - Ag | 37195075 | Not Available |
| 3 | Not Available | Hoover Diffuser | 34163003 | Not Available |
| 4 | Not Available | Hoover Speed Nut-S3129 | 21366004 | Not Available |
| 5 | Not Available | Hoover Seal-S3203 | 34133007 | Not Available |
| 6 | Not Available | Hoover Pad-C2075 | 34132015 | Not Available |
| 7 | Not Available | Hoover Seal-S3203 | 34143002 | Not Available |
| 8 | Not Available | Hoover Motor Assembly | 43578069 | Not Available |
| 8 | Not Available | Hoover Motor - 331-S3259 | 43578051 | Not Available |
| 9 | Not Available | Hoover Wire Nut | 048969 | Not Available |
| 9 | Not Available | Hoover Terminals-0513 | 012227 | Not Available |
| 10 | Not Available | Hoover Attach Cord - Aap | 46363297 | Not Available |
| 10 | Not Available | Hoover Cord - 16' | 46363039 | Not Available |
| 11 | Not Available | Hoover Strain Relief | 27482301 | Not Available |
| 12 | Not Available | Hoover Wheel Bearing-Ag | 38511015 | Not Available |
| 13 | Not Available | Hoover Wheel - Aap | 38522058 | Not Available |
| 13 | Not Available | Hoover Wheel - Ag | 38522061 | Not Available |
| 15 | Not Available | Hoover Wheel Carrier-Ag-S32 | 41432040 | Not Available |
| 16 | Not Available | Hoover Thermal Protector As | 47534018 | Not Available |
| 17 | Not Available | Hoover Main Body - Ag | 37223213 | Not Available |
| 17 | Not Available | Hoover Main Body - Aap - S3 | 37231069 | Not Available |
| 18 | Not Available | Hoover Latch | 36151015 | Not Available |
| 19 | Not Available | Hoover Filter-C2075 | 31114010 | Not Available |
| 20 | Not Available | Hoover Bulkhead-C2075 | 36426014 | Not Available |
| 21 | Not Available | Hoover Motor Retainer-S3405 | 36321012 | Not Available |
| 22 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 23 | Not Available | Hoover Foam Muffler - Spiri | 34287021 | Not Available |
| 24 | Not Available | Hoover Switch - S3289 | 28164276 | Not Available |
| 25 | Not Available | Hoover Control Panel-S3627 | 37214167 | Not Available |
| 25 | Not Available | Hoover Control Panel-M-S321 | 37214052 | Not Available |
| 26 | Not Available | Hoover Screw | 21447027 | Not Available |
| 27 | Not Available | Hoover Spring Clip | 36172046 | Not Available |
| 28 | Not Available | Hoover Bag Indicator | 51151010 | Not Available |
| 29 | Not Available | Hoover Lid Seal | 38781010 | Not Available |
| 30 | Not Available | Hoover Bag Housing Lid - Aa | 42212075 | Not Available |
| 30 | Not Available | Hoover Bag Housing Lid-S362 | 42212118 | Not Available |
| 30 | Not Available | Hoover Exp - Bag Housing Li | 42212102 | Not Available |
| 30 | Not Available | Hoover Bag Housing Lid - Ag | 42212096 | Not Available |
| 31 | Not Available | Hoover Nameplate-S3213 | 51375064 | Not Available |
| 31 | Not Available | Hoover Nameplate-S3627 | 52125123 | Not Available |
| 31 | Not Available | Hoover Nameplate - S3269 | 52125112 | Not Available |
| 32 |  | Paper Bag, Micro Lined Type K Canister Spirit 3 Pk Part Number: 4010028K for Hoover | 4010028K | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | Hoover Tool Rack - Aam - S3 | 36433059 | Not Available |
| 33 | Not Available | Hoover Tool Rack - Ag | 36433060 | Not Available |
| 34 | Not Available | Hoover Screw | 21447003 | Not Available |
| 35 | Not Available | Hoover Insulating Pod | 160472 | Not Available |
| 36 | Not Available | Hoover Owner Manual-S3619/2 | 56513310 | Not Available |
| 36 | Not Available | Hoover Top Support - Spirit | 58461023 | Not Available |
| 36 | Not Available | Hoover Owner Manual-S3431/7 | 56513252 | Not Available |
| 36 | Not Available | Hoover Owner Manual-S3485-0 | 56513281 | Not Available |
| 36 | Not Available | Hoover Mid Pad-S3245 | 58351015 | Not Available |
| 36 | Not Available | Hoover Tool Storage Tray | 36433071 | Not Available |
| 36 | Not Available | Hoover Bottom Support-S3243 | 58353007 | Not Available |
| 36 | Not Available | Hoover Front Support-S3243 | 58364013 | Not Available |
| 36 | Not Available | Hoover Front Support-S3259 | 58364015 | Not Available |
| 36 | Not Available | Hoover Rear Support | 58461021 | Not Available |
| 37 | | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | Not Available | Hoover Furniture Nozzle - A | 38614024 | Not Available |
| 37 | Not Available | Hoover Rug & Floor Nozzle | 0M114169 | Not Available |
| 37 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 37 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 37 | Not Available | Hoover Hose Assem-C2075-080 | 43434013 | Not Available |
| 37 | No Image | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| 37 | Not Available | Hoover Wheeled R & F Noz-Aa | 43414101 | Not Available |
| 37 | Not Available | Hoover Hose-Ag/Abx-6 | 43434233 | Not Available |
| 37 | | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw S3057-59-61 | 21429406 | Not Available |
| 1 | Not Available | Hoover Motor Assembly | 43578070 | Not Available |
| 1 | Not Available | Hoover Motor - 3.1-S3259 | 43578051 | Not Available |
| 2 | Not Available | Hoover Brush Housing-Only-S | 168038AG | Not Available |
| 3 | Not Available | Hoover Brush Housing Comp-S | 168506 | Not Available |
| 4 | Not Available | Hoover Spring U3101/3 U4201 | 38353004 | Not Available |
| 5 | Not Available | Hoover Carbon Brush Complete | 167679 | Not Available |
| 6 | Not Available | Hoover Wire Protect Bushing | 169702BZ | Not Available |
| 7 | Not Available | Hoover Screw-U7069/71 | 21563061 | Not Available |
| 7 | Not Available | Hoover Bolt | 36112003 | Not Available |
| 8 | Not Available | Hoover Motor Housing-C2075 | 42192016 | Not Available |
| 9 | Not Available | Hoover Spring Washer-C2075 | 21345116 | Not Available |
| 10 | Not Available | Hoover Thrust Washer-C2075 | 21312778 | Not Available |
| 11 | Not Available | Hoover Star Ring-C2075 | 24198002 | Not Available |
| 12 | Not Available | Hoover Field-S3129 | 45311022 | Not Available |
| 12 | Not Available | Hoover Field Coil-C2075 | 45311048 | Not Available |
| 13 | Not Available | Hoover Armature & Brg-C2075 | 44765185 | Not Available |
| 13 | Not Available | Hoover Armature | 44765225 | Not Available |
| 14 | Not Available | Hoover Motor Seal | 31195004 | Not Available |
| 14 | Not Available | Hoover Insulator -C2075 | 31195003 | Not Available |
| 15 | Not Available | Hoover Diffuser-C2075 | 43551013 | Not Available |
| 16 | Not Available | Hoover Spacer -C2075 | 31148009 | Not Available |
| 17 | Not Available | Hoover Washer | 21312701 | Not Available |
| 18 | Not Available | Hoover Fan | 43566017 | Not Available |
| 19 | Not Available | Hoover Interstage-C2075 | 42192033 | Not Available |
| 20 | Not Available | Hoover Spacer -C2075 | 31743003 | Not Available |
| 21 | Not Available | Hoover Nut-S3005 | 33426001 | Not Available |
| 22 | Not Available | Hoover Fan Cover -C2075 | 37196087 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Rug & Floor Nozzle | 43414170 | Not Available |
| 1 | Not Available | Hoover Rug & Floor Nozzle-A | 43414140 | Not Available |
| 1 | Not Available | Hoover Rug & Floor Nozzle-A | 43414139 | Not Available |
| 1 | Not Available | Hoover Rug & Floor Nozzle-A | 43414121 | Not Available |
| 1 | Not Available | Hoover Rug & Floor Nozzle | 0M114169 | Not Available |
| 2 | Not Available | Hoover Nozzle Tube-Ag-S1221 | 38646039 | Not Available |
| 3 | Not Available | Hoover Rug & Floor Noz-Abe | 38615182 | Not Available |
| 3 | Not Available | Hoover Rug & Floor Nozzle-A | 38615153 | Not Available |
| 4 | Not Available | Hoover Roller - S2095 | 38521018 | Not Available |
| 5 | Not Available | Hoover Roller Axle - S2095 | 31511004 | Not Available |
| 6 | Not Available | Hoover Brush Housing-Abr-S1 | 36414018 | Not Available |
| 7 | Not Available | Hoover Spring-2910 | 166649 | Not Available |
| 8 | Not Available | Hoover Brush Back Assm-S209 | 48443004 | Not Available |
| 9 | Not Available | Hoover Screw-S2095/97/99 | 21447203 | Not Available |
| 10 | Not Available | Hoover Brush Back Lever - S | 38454004 | Not Available |
| 10 | Not Available | Hoover Brush Back Lever-Abn | 38454006 | Not Available |
| 11 | Not Available | Hoover Washer-Felt-S2095/97 | 21329105 | Not Available |
| 12 | Not Available | Hoover Wheeled R & F Noz-Aa | 43414101 | Not Available |
| 13 | Not Available | Hoover Nozzle Connector - A | 38646045 | Not Available |
| 14 | Not Available | Hoover Wheel/Axle Assembly | 43244043 | Not Available |
| 15 | Not Available | Hoover Wheel Bearing-Aat-S2 | 38511016 | Not Available |
| 16 | Not Available | Hoover Rug & Floor Nozzle | 43414117 | Not Available |
| 17 | Not Available | Hoover Roller - S2095 | 38521018 | Not Available |
| 18 | Not Available | Hoover Roller Axle - S2095 | 31511004 | Not Available |
| 19 | Not Available | Hoover Slider - Ag - S2099 | 38451008 | Not Available |
| 20 | Not Available | Hoover Brush Housing - Mv | 36414013 | Not Available |
| 21 | No Image | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.99Read more |
| 22 | Not Available | Hoover Brush Back Assm-S209 | 48443004 | Not Available |
| 23 | Not Available | Hoover Screw-S2095/97/99 | 21447203 | Not Available |
| 24 | Not Available | Hoover Seal - S2099 | 34122013 | Not Available |
| 25 | Not Available | Hoover Pedal - Mv- S2099 | 38434015 | Not Available |
