Schematic and parts list for: Hoover Model: S3483
This is a list of parts and a diagram and schematic for: Hoover Model: S3483
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
Popular Supplies

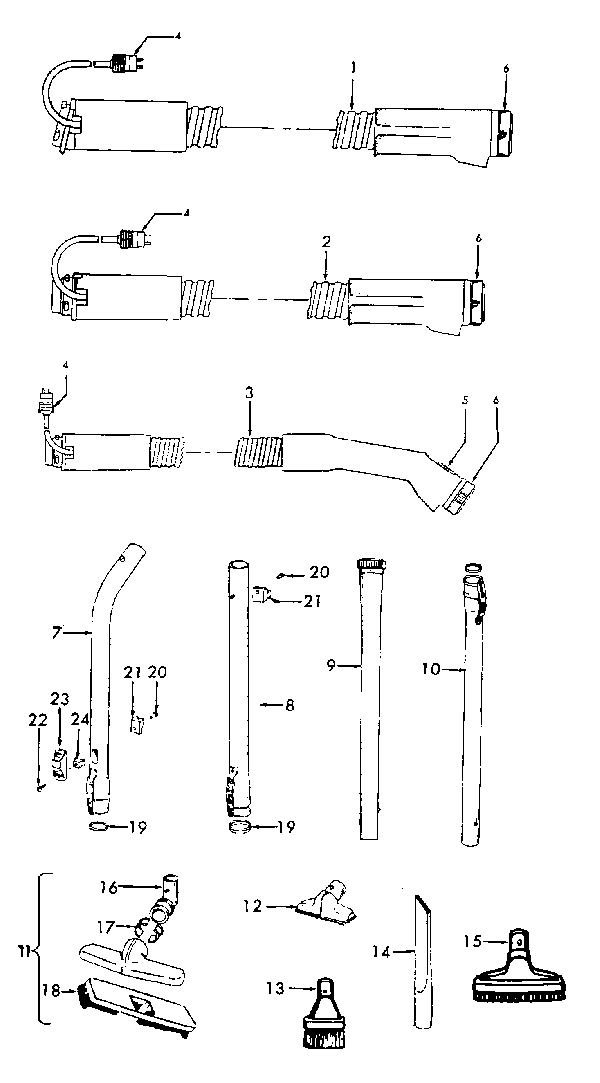

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Cur Carry Hose | 43433085 | Not Available |
| 02 | Not Available | Hoover El Hose-Jm-6-Spirit 5-1/2' | 43433032 | Not Available |
| 03 | Not Available | Hoover Hose-2W-Aap-S/C-Spir | 43433067 | Not Available |
| 03 | Not Available | Hoover Hose Comp-2 Wire-S36 | 43433081 | Not Available |
| 03 | Not Available | Hoover Hose Assembly - Aap - S | 43433084 | Not Available |
| 03 | Not Available | Hoover Hose-2W-Ag-S3420 | 43433111 | Not Available |
| 04 | Not Available | Hoover Repair Kit-Celebrity | 46321076 | Not Available |
| 05 | Not Available | Hoover Suction Regulator-Mv | 34777007 | Not Available |
| 05 | Not Available | Hoover Suction Regulator-S3 | 34777005 | Not Available |
| 06 | Not Available | Hoover Latch Ring-Ag-S3273 | 36153009 | Not Available |
| 07 | Not Available | Hoover Hose Tube Assembly | 43468055 | Not Available |
| 08 | Not Available | Hoover Extension Wand-Ax-22 | 43453035 | Not Available |
| 08 | Not Available | Hoover Extension Tube-20-Ax | 43453052 | Not Available |
| 08 | Not Available | Hoover Extension Tube - Bl - 20 | 43453058 | Not Available |
| 08 | Not Available | Hoover Extension Wand | 43453086 | Not Available |
| 09 | No Image | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| 10 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 11 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Hoover Furniture Nozzle-Lz | 38614023 | Not Available |
| 12 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 15 | Not Available | Hoover Multi-Purpose Brush | 43414015 | Not Available |
| 15 | Not Available | Hoover Furniture Brush-Ag | 43414016 | Not Available |
| 16 | Not Available | Hoover Swivel Connector - A | 38644020 | Not Available |
| 16 | Not Available | Hoover Swivel Connector - A | 38644040 | Not Available |
| 17 | Not Available | Hoover Split Ring | 33712007 | Not Available |
| 18 | Not Available | Hoover Brush Back | 48447001 | Not Available |
| 19 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 20 |  | Handle, Blk Right & Left Snap Together Kit Part Number: R12783K for Rexair | R12783K | $39.73Read more |
| 21 | Not Available | Hoover Cord Clip - Mv | 36171008 | Not Available |
| 22 | Not Available | Hoover Screw | 13275 | Not Available |
| 23 | Not Available | Hoover Suction Reg | 13142AG | Not Available |
| 24 | Not Available | Hoover Suction Regulator | 013257BZ | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Screw | 21447041 | Not Available |
| 02 | Not Available | Hoover Motor Cover-Mr-S3299 | 37195063 | Not Available |
| 03 | Not Available | Hoover Diffuser | 34163003 | Not Available |
| 04 | Not Available | Hoover Speed Nut-S3129 | 21366004 | Not Available |
| 05 | Not Available | Hoover Seal-S3203 | 34133007 | Not Available |
| 06 | Not Available | Hoover Pad-C2075 | 34132015 | Not Available |
| 07 | Not Available | Hoover Seal-S3203 | 34143002 | Not Available |
| 08 | Not Available | Hoover Motor Assembly 4.0 - (P-1 56) | 43578069 | Not Available |
| 09 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 09 | Not Available | Hoover Wire Nut | 48969 | Not Available |
| 10 | Not Available | Hoover Terminal-Insulated-U | 18972 | Not Available |
| 11 | Not Available | Hoover Attachment Cord - Aa | 46363038 | Not Available |
| 12 | Not Available | Hoover Strain Relief | 27482301 | Not Available |
| 13 | Not Available | Hoover Wheel Bearing-Ag | 38511015 | Not Available |
| 14 | Not Available | Hoover Wheel - Ag | 38522061 | Not Available |
| 15 | Not Available | Hoover Wheel Carrier-Ag-S32 | 41432040 | Not Available |
| 16 | Not Available | Hoover Receptacle Assembly | 46326079 | Not Available |
| 17 | Not Available | Hoover Main Body-Mx-S3419 | 37231063 | Not Available |
| 18 | Not Available | Hoover Latch | 36151015 | Not Available |
| 19 | Not Available | Hoover Filter-C2075 R | 31114010 | Not Available |
| 20 | Not Available | Hoover Bulkhead-C2075 | 36426014 | Not Available |
| 21 | Not Available | Hoover Motor Retainer-S3405 | 36321012 | Not Available |
| 22 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 23 | Not Available | Hoover Foam Muffler - Spiri | 34287021 | Not Available |
| 24 | Not Available | Hoover Switch - S3289 | 28164276 | Not Available |
| 25 | Not Available | Hoover Control Panel-M-S321 | 37214052 | Not Available |
| 26 | Not Available | Hoover Lid Seal | 38781010 | Not Available |
| 27 | Not Available | Hoover Bag Housing Lid - Mr (Incl. Items 26,30,31) | 42212097 | Not Available |
| 28 | Not Available | Hoover Nameplate | 52125116 | Not Available |
| 29 |  | Paper Bag, Micro Lined Type K Canister Spirit 3 Pk Part Number: 4010028K for Hoover | 4010028K | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | Hoover T00L Rack-Mx S3209-0 | 36433053 | Not Available |
| 31 | Not Available | Hoover Screw | 21447003 | Not Available |
| 32 | Not Available | Hoover Thermal Protector As | 47534018 | Not Available |
| 33 | Not Available | Hoover Top Support - Spirit | 58461023 | Not Available |
| 33 | Not Available | Hoover Mid Pad-S3403 | 58366069 | Not Available |
| 33 | Not Available | Hoover Owner Manual-S3483 | 56513272 | Not Available |
| 33 | Not Available | Hoover Insulating Pod | 160472 | Not Available |
| 34 | | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 34 | | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | Hoover Hose Assembly - Aap - S | 43433084 | Not Available |
| 34 | Not Available | Hoover Ext Tube-20-Ax | 43453052 | Not Available |
| 34 | Not Available | Hoover Power Nozzle-Lz-S340 | 48438190 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Screw S3057-59-61 | 21429406 | Not Available |
| 01 | Not Available | Hoover Motor - 3.1 - S3259 | 43578051 | Not Available |
| 01 | Not Available | Hoover Motor Assembly | 43578070 | Not Available |
| 02 | Not Available | Hoover Brush Housing-Only-S | 168038AG | Not Available |
| 03 | Not Available | Hoover Brush Housing Comp-S | 168506 | Not Available |
| 04 | Not Available | Hoover Spring U3101/3 U4201 | 38353004 | Not Available |
| 05 | Not Available | Hoover Carbon Brush Complete | 167679 | Not Available |
| 06 | Not Available | Hoover Wire Protect Bushing | 169702BZ | Not Available |
| 07 | Not Available | Hoover Screw-U7069/71 Bolt 4.0 | 21563061 | Not Available |
| 07 | Not Available | Hoover Bolt 3.1 | 36112003 | Not Available |
| 08 | Not Available | Hoover Motor Housing-C2075 | 42192016 | Not Available |
| 09 | Not Available | Hoover Spring Washer-C2075 | 21345116 | Not Available |
| 10 | Not Available | Hoover Thrust Washer-C2075 | 21312778 | Not Available |
| 11 | Not Available | Hoover Star Ring-C2075 | 24198002 | Not Available |
| 12 | Not Available | Hoover Field Coil-C2075 Field Coil 3.1 | 45311048 | Not Available |
| 12 | Not Available | Hoover Field-S3129 Field Coil 4.0 | 45311022 | Not Available |
| 13 | Not Available | Hoover Armature 3.1 | 44765185 | Not Available |
| 13 | Not Available | Hoover Armature 4 | 44765225 | Not Available |
| 14 | Not Available | Hoover Insulator -C2075 | 31195003 | Not Available |
| 14 | Not Available | Hoover Motor Seal 4 | 31195004 | Not Available |
| 15 | Not Available | Hoover Diffuser-C2075 | 43551013 | Not Available |
| 16 | Not Available | Hoover Spacer -C2075 | 31148009 | Not Available |
| 17 | Not Available | Hoover Washer | 21312701 | Not Available |
| 18 | Not Available | Hoover Fan | 43566017 | Not Available |
| 19 | Not Available | Hoover Interstage-C2075 | 42192033 | Not Available |
| 20 | Not Available | Hoover Spacer -C2075 | 31743003 | Not Available |
| 21 | Not Available | Hoover Nut-S3005 | 33426001 | Not Available |
| 22 | Not Available | Hoover Fan Cover -C2075 | 37196087 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Cord Assembly | 46321088 | Not Available |
| 01 | Not Available | Hoover Power Nozzle-Lz-S340 | 48438190 | Not Available |
| 02 | Not Available | Hoover Nozzle Body | 42252174 | Not Available |
| 03 | Not Available | Hoover Agitator Assembly Complete | 48416009 | Not Available |
| 04 | Not Available | Hoover Strain Relief - 6460 | 163768 | Not Available |
| 05 | Not Available | Hoover Bracket-Rh | 34663003 | Not Available |
| 06 | Not Available | Hoover Nozzle Connector-Lz | 43482024 | Not Available |
| 07 | Not Available | Hoover Wire Nut | 48969 | Not Available |
| 07 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 08 | Not Available | Hoover Seal | 34112005 | Not Available |
| 09 | Not Available | Hoover Seal | 34337003 | Not Available |
| 10 | Not Available | Hoover Screw | 21447041 | Not Available |
| 11 | Not Available | Hoover Wheel-Ag | 32175025 | Not Available |
| 12 | Not Available | Hoover Wheel Shaft-S3199 | 31523005 | Not Available |
| 13 | Not Available | Hoover Bottom Plate - Pn (Incl. Items 11,12) | 42246120 | Not Available |
| 14 | Not Available | Hoover Screw | 21447007 | Not Available |
| 15 | Not Available | Hoover Seal-Lower | 34337004 | Not Available |
| 16 | Not Available | Hoover Duct Cover (Ji) | 42256090 | Not Available |
| 17 | Not Available | Hoover Seal | 34123015 | Not Available |
| 18 | Not Available | Hoover Detent Spring | 35276001 | Not Available |
| 19 | Not Available | Hoover Motor - Pn | 43177073 | Not Available |
| 20 | Not Available | Hoover Bracket-Lh | 35271001 | Not Available |
| 21 | No Image | Belt, Old Style Hoover Power Nozzle | 38528011 | $5.99Add to cart |
| 22 | Not Available | Hoover Thread Guard U3101/3 | 41435018 | Not Available |
| 23 |  | Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 25 | Not Available | Hoover Agitator End U3101 | 36422001 | Not Available |
| 26 | Not Available | Hoover Agitator Brush-Concept-5 | 48445017 | Not Available |
| 27 | Not Available | Hoover Agitator Shaft 1170 | 160070 | Not Available |
| 28 | Not Available | Hoover Agitator End Pulley | 38537002 | Not Available |
| 29 | Not Available | Hoover Thread Guard U3101/3 | 41435021 | Not Available |
