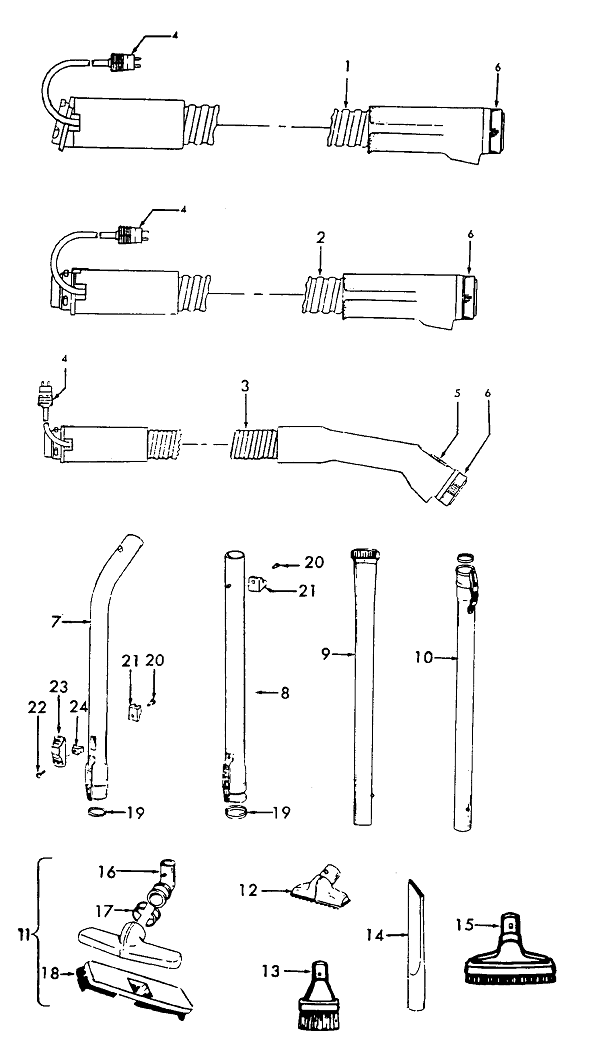

This is a list of parts and a diagram and schematic for: Hoover Model: S3439
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Cur Carry Hose W/O T | 43433085 | Not Available |
| 2 | Not Available | Hoover El Hose-Jm-6-Spirit | 43433032 | Not Available |
| 4 | Not Available | Hoover Repair Kit-Celebrity | 46321076 | Not Available |
| 6 | Not Available | Hoover Latch Ring-Ag-S3273 | 36153009 | Not Available |
| 7 |  | Hose End-Curved For Pwr Nzl Electric H For: hoover | 43468055 | $43.16Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $39.59Add to cart |
| 10 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.32Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $12.08Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Compatible alternateFloor Tool,White Metal Neck W/Pin Part Number: 38-1500-93 for Hoover Replacement More Product Details | 38150093 | $12.08Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Upholstery Tool, With plastic bump for hoover porta power | 43414057 | $9.58Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $7.15Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $10.99Read more |
| 17 | Not Available | Hoover Split Ring | 33712007 | Not Available |
| 18 | Not Available | Hoover Brush Back -S3273-S3 | 48447001 | Not Available |
| 19 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 20 | Not Available | Hoover Rivet | 012783- | Not Available |
| 21 | Not Available | Hoover Cord Clip - Silver Sand Medium | 36171008 | Not Available |
| 22 | Not Available | Hoover Screw | 013275- | Not Available |
| 23 | Not Available | Hoover Suction Reg | 13142AG- | Not Available |
| 24 | Not Available | Hoover Suction Regulator | 013257BZ | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw | 21447041 | Not Available |
| 2 | Not Available | Hoover Motor Cover-Mx-S3209 | 37195041 | Not Available |
| 3 | Not Available | Hoover Diffuser | 34163003 | Not Available |
| 4 | Not Available | Hoover Speed Nut-S3129 | 21366004 | Not Available |
| 5 | Not Available | Hoover Seal-S3203 | 34133007 | Not Available |
| 6 | Not Available | Hoover Pad | 34132006 | Not Available |
| 7 | Not Available | Hoover Seal-S3203 | 34143002 | Not Available |
| 8 | Not Available | Hoover Motor | 43577011 | Not Available |
| 9 | Not Available | Hoover Wire Nut | 048969- | Not Available |
| 10 | Not Available | Hoover Cord - 16' | 46363039 | Not Available |
| 11 | Not Available | Hoover Strain Relief | 27482301 | Not Available |
| 12 | Not Available | Hoover Wheel Bearing-Ag | 38511015 | Not Available |
| 13 | Not Available | Hoover Wheel - Ag | 38522061 | Not Available |
| 15 | Not Available | Hoover Wheel Carrier-Ag-S32 | 41432040 | Not Available |
| 16 | Not Available | Hoover Receptacle Assem. - | 46326079 | Not Available |
| 17 | Not Available | Hoover Main Body - Aak - S3 | 37223196 | Not Available |
| 18 | Not Available | Hoover Latch | 36151015 | Not Available |
| 19 | Not Available | Hoover Filter | 31114010 | Not Available |
| 20 | Not Available | Hoover Filter Support-S3203 | 36426012 | Not Available |
| 21 | Not Available | Hoover Motor Retainer - S34 | 36321011 | Not Available |
| 22 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 23 | Not Available | Hoover Foam Muffler - Spiri | 34287021 | Not Available |
| 24 | Not Available | Hoover Switch - S3289 | 28164276 | Not Available |
| 25 | Not Available | Hoover Control Panel-M-S321 | 37214052 | Not Available |
| 29 | Not Available | Hoover Lid Seal | 38781010 | Not Available |
| 30 | Not Available | Hoover Bag Housing Lid - Aa | 42212074 | Not Available |
| 31 | Not Available | Hoover Nameplate - S3435 | 52125111 | Not Available |
| 32 |  | Paper Bag, Micro Lined Type K Canister Spirit 3 Pk Part Number: 4010028K for Hoover | 4010028K | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 36 | Not Available | Hoover Tool Rack - Aar - S3 | 36433063 | Not Available |
| 38 | | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $39.59Add to cart |
| 38 | | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $7.15Add to cart Special order: ships in 2 to 4 weeks |
| 38 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $10.99Read more |
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Washer | 21312701 | Not Available |
| 3 | Not Available | Hoover Screw | 21434224 | Not Available |
| 4 | Not Available | Hoover Outerstage Housing-S | 37191016 | Not Available |
| 5 | Not Available | Hoover Fan | 43566017 | Not Available |
| 6 | Not Available | Hoover Interstage Assm-S101 | 43551005 | Not Available |
| 7 | Not Available | Hoover Fan Spacer-S1015-075 | 31742010 | Not Available |
| 8 | Not Available | Hoover Screw S3057-59-61 | 21429406 | Not Available |
| 9 | Not Available | Hoover Brush Housing-Only-S | 167696AG | Not Available |
| 10 |  | Hoover Conquest, Spirit, PowerMax Vacuum Carbon Brush W/Carrier, Spring 47318008 | 47318008 | $12.99Read more |
| 11 | Not Available | Hoover Spring U3101/3 U4201 | 38353004 | Not Available |
| 12 | Not Available | Hoover Carbon Brush And Terminal | 167681- | Not Available |
| 13 | Not Available | Hoover Motor Hsg-Upper (Ji | 42937003 | Not Available |
| 14 | Not Available | Hoover Wire Protect Bushing | 169702BZ | Not Available |
| 15 | Not Available | Hoover Field Lamination Bol | 33421004 | Not Available |
| 16 | Not Available | Hoover Insulator | 31195002 | Not Available |
| 18 | Not Available | Hoover Spring-S3005 | 167721FW | Not Available |
| 20 | Not Available | Hoover Motor Hsg Assm-Lower | 37191085 | Not Available |
| 21 | Not Available | Hoover Spacer | 31148002 | Not Available |
| 22 | Not Available | Hoover Interstage Mtg Plate | 36322002 | Not Available |
| 23 | Not Available | Hoover Nut - Special S3005 | 167695EF | Not Available |

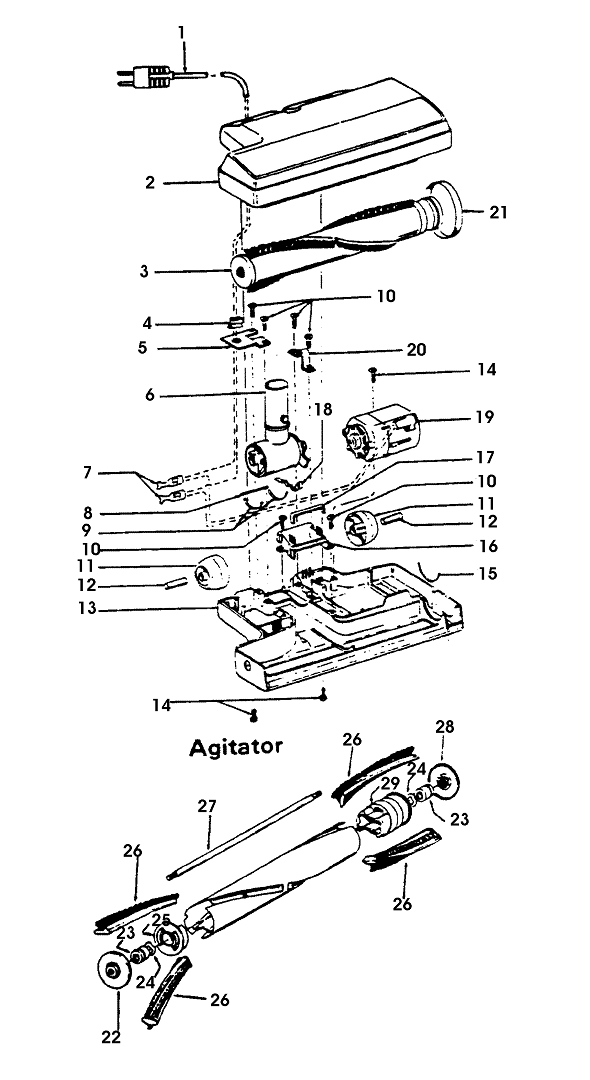

| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Nozzle Body - Aap ( | 42252174 | Not Available |
| 3 | Not Available | Hoover Agitator Assm Comp-U | 48416009 | Not Available |
| 4 | Not Available | Hoover Strain Relief - 6460 | 163768- | Not Available |
| 5 | Not Available | Hoover Bracket-Rh | 34663003 | Not Available |
| 6 | Not Available | Hoover Nozzle Connector-Lz | 43482024 | Not Available |
| 8 | Not Available | Hoover Seal | 34112005 | Not Available |
| 9 | Not Available | Hoover Seal | 34337003 | Not Available |
| 10 | Not Available | Hoover Screw | 21447041 | Not Available |
| 11 | Not Available | Hoover Wheel-Ag | 32175025 | Not Available |
| 12 | Not Available | Hoover Wheel Shaft-S3199 | 31523005 | Not Available |
| 13 | Not Available | Hoover Bottom Plate - Pn | 42246120 | Not Available |
| 14 | Not Available | Hoover Screw | 21447007 | Not Available |
| 15 | Not Available | Hoover Seal-Lower | 34337004 | Not Available |
| 16 | Not Available | Hoover Duct Cover (Ji) | 42256090 | Not Available |
| 17 | Not Available | Hoover Seal | 34123015 | Not Available |
| 18 | Not Available | Hoover Detent Spring | 35276001 | Not Available |
| 19 | Not Available | Hoover Motor - Pn Order 43177075 | 43177073 | Not Available |
| 20 | Not Available | Hoover Bracket-Lh | 35271001 | Not Available |
| 21 |  | No Longer available sub for MC-270B Belt, Old Style Hoover Power Nozzle | 38528011 | $5.99Read more |
| 22 | Not Available | Hoover Thread Guard U3101/3 | 41435018 | Not Available |
| 23 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for ... | 43267002 | $4.81Read more |
| 24 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 25 | Not Available | Hoover EndCap - Agitator / Brush Roll | 36422001 | Not Available |
| 26 | Not Available | Hoover Agit Brush-Concept-5 | 48445017 | Not Available |
| 27 | Not Available | Hoover Agitator Shaft 1170 | 160070- | Not Available |
| 28 | Not Available | Hoover Agitator End Pulley | 38537002 | Not Available |
| 29 | Not Available | Hoover Thread Guard U3101/3 | 41435021 | Not Available |
