Schematic and parts list for: Hoover Model: S3433
This is a list of parts and a diagram and schematic for: Hoover Model: S3433
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

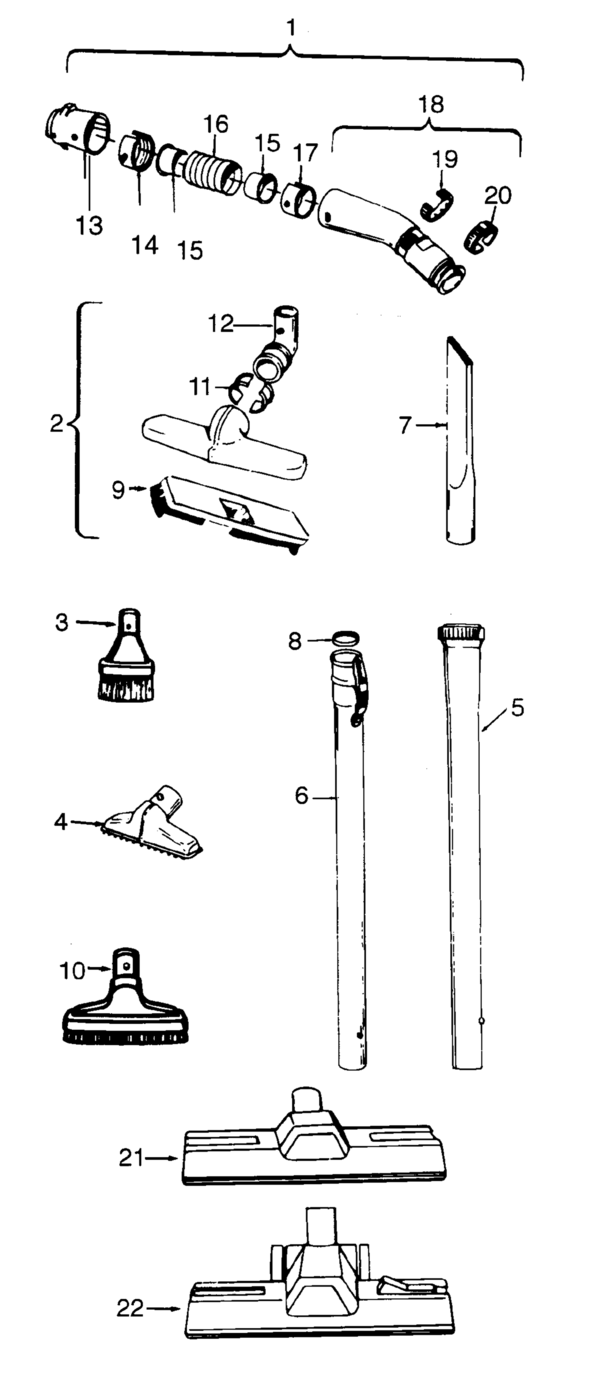

Parts for: Canister
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Hose-Jm-Molded-Spiri | 43434130 | Not Available |
| 1 | Not Available | Hoover Hose-Aap-Molded-S/C- | 43434125 | Not Available |
| 1 | Not Available | Hoover Hose-Aap-Molded-6 | 43434231 | Not Available |
| 1 | Not Available | Hoover Hose-Ag/Abx-6 | 43434233 | Not Available |
| 1 | Not Available | Hoover Hose Complete-Abx | 43434191 | Not Available |
| 1 | Not Available | Hoover Hose-Jm-S3203 | 43434155 | Not Available |
| 1 | Not Available | Hoover Hose-Aap-7-Molded-Sp | 43434131 | Not Available |
| 1 | Not Available | Hoover Aav Molded Hose S/C- | 43434126 | Not Available |
| 1 | Not Available | Hoover Hose-Jm | 43434065 | Not Available |
| 1 | Not Available | Hoover Hose Assem-C2075-080 | 43434013 | Not Available |
| 2 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Hoover Floor Brush-Jm | 43414072 | Not Available |
| 3 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Hoover Furniture Nozzle-S10 | 38614020 | Not Available |
| 4 | Not Available | Hoover Furniture Nozzle - A | 38614024 | Not Available |
| 4 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Hoover Extension Tube-Poly | 43453037 | Not Available |
| 5 | No Image | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| 6 | Not Available | Hoover Ext Tube-20-Ax | 43453052 | Not Available |
| 7 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 8 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 9 | Not Available | Hoover Brush Back -S3273-S3 | 48447001 | Not Available |
| 10 | Not Available | Hoover Furniture Brush-Ag | 43414016 | Not Available |
| 10 | Not Available | Hoover Multi-Purpose Brush | 43414015 | Not Available |
| 11 | Not Available | Hoover Split Ring | 33712007 | Not Available |
| 12 | Not Available | Hoover Swivel Connector - A | 38644020 | Not Available |
| 12 | Not Available | Hoover Swivel Connector - A | 38644040 | Not Available |
| 13 | Not Available | Hoover Hose Connector-Ag | 32855003 | Not Available |
| 13 | Not Available | Hoover Hose Connector-Aap-S | 38638019 | Not Available |
| 13 | Not Available | Hoover Hose Connector-Aap | 38638017 | Not Available |
| 13 | Not Available | Hoover Hose Connector-Ag-S3 | 38638039 | Not Available |
| 14 | Not Available | Hoover Hose Connector Colla | 38671011 | Not Available |
| 14 |  | Collar, White Connects Hose Coupling Part Number: 012615BZ for Hoover | 012615BZ | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Hoover Hose Sleeve - Bz | 32156010 | Not Available |
| 16 | Not Available | Hoover Hose-Abx-S3393-040 | 38671033 | Not Available |
| 16 | Not Available | Hoover Hose - Aav | 38671029 | Not Available |
| 17 | Not Available | Hoover Hose Connector Colla | 36116006 | Not Available |
| 17 | Not Available | Hoover Hose Connector Colla | 36171025 | Not Available |
| 18 | Not Available | Hoover Hose Grip W/Sc-Ag-S1 | 43466068 | Not Available |
| 18 | Not Available | Hoover Hose Grip-Ag-S1315 | 43466066 | Not Available |
| 19 | Not Available | Hoover Suction Control Ring | 38711007 | Not Available |
| 19 | Not Available | Hoover Suction Control Ring | 38711014 | Not Available |
| 20 | Not Available | Hoover Latch Ring-Ag-S3273 | 36153009 | Not Available |
| 21 | Not Available | Hoover Rug & Floor Nozzle-A | 43414139 | Not Available |
| 21 | Not Available | Hoover Rug & Floor Nozzle | 0M114169 | Not Available |
| 22 | Not Available | Hoover Wheeled R & F Noz-Aa | 43414101 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw | 21447041 | Not Available |
| 2 | Not Available | Hoover Motor Cover-Mx-S3209 | 37195041 | Not Available |
| 3 | Not Available | Hoover Diffuser | 34163003 | Not Available |
| 4 | Not Available | Hoover Speed Nut-S3129 | 21366004 | Not Available |
| 5 | Not Available | Hoover Seal-S3203 | 34133007 | Not Available |
| 6 | Not Available | Hoover Pad | 34132006 | Not Available |
| 7 | Not Available | Hoover Seal-S3203 | 34143002 | Not Available |
| 8 | Not Available | Hoover Motor-S3203 | 43577109 | Not Available |
| 9 | Not Available | Hoover Wire Nut | 048969- | Not Available |
| 10 | Not Available | Hoover Cord - 16' | 46363039 | Not Available |
| 11 | Not Available | Hoover Strain Relief | 27482301 | Not Available |
| 12 | Not Available | Hoover Wheel Bearing-Ag | 38511015 | Not Available |
| 13 | Not Available | Hoover Wheel - Ag | 38522061 | Not Available |
| 15 | Not Available | Hoover Wheel Carrier-Ag-S32 | 41432040 | Not Available |
| 16 | Not Available | Hoover Receptacle Assem. - | 46326079 | Not Available |
| 17 | Not Available | Hoover Main Body - Aak - S3 | 37223196 | Not Available |
| 18 | Not Available | Hoover Latch | 36151015 | Not Available |
| 19 | Not Available | Hoover Filter | 31114010 | Not Available |
| 20 | Not Available | Hoover Filter Support-S3203 | 36426012 | Not Available |
| 21 | Not Available | Hoover Motor Retainer - S34 | 36321011 | Not Available |
| 22 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 23 | Not Available | Hoover Foam Muffler - Spiri | 34287021 | Not Available |
| 24 | Not Available | Hoover Switch - S3289 | 28164276 | Not Available |
| 25 | Not Available | Hoover Control Panel-M-S321 | 37214052 | Not Available |
| 29 | Not Available | Hoover Lid Seal | 38781010 | Not Available |
| 30 | Not Available | Hoover Bag Housing Lid - Zw | 42212077 | Not Available |
| 32 | Not Available | Hoover Mid Pad-S3403 | 58366069 | Not Available |
| 32 |  | Paper Bag, Micro Lined Type K Canister Spirit 3 Pk Part Number: 4010028K for Hoover | 4010028K | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | Not Available | Hoover Top Support - Spirit | 58461023 | Not Available |
| 32 | Not Available | Hoover Owner Manual - S3433 | 56513247 | Not Available |
| 33 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 33 | Not Available | Hoover Furniture Brush-Ag | 43414016 | Not Available |
| 33 | Not Available | Hoover Extension Tube-Ag-Po | 38638044 | Not Available |
| 33 | Not Available | Hoover Power Nozzle-Lz-S340 | 48438190 | Not Available |
| 33 | Not Available | Hoover Cord Set Package | 46348022 | Not Available |
| 33 | Not Available | Hoover Hose Assem-C2075-080 | 43434013 | Not Available |
| 33 | Not Available | Hoover Cord / Wand Clip - Black | 36172584 | Not Available |
| 33 | Not Available | Hoover Cord Strap - Black | 36172023 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Nut-S3005 | 33426001 | Not Available |
| 2 | Not Available | Hoover Washer | 21312701 | Not Available |
| 3 | Not Available | Hoover Screw | 21434224 | Not Available |
| 4 | Not Available | Hoover Outerstage Housing-S | 37191016 | Not Available |
| 5 | Not Available | Hoover Fan | 43566017 | Not Available |
| 6 | Not Available | Hoover Interstage Assm-S101 | 43551005 | Not Available |
| 7 | Not Available | Hoover Fan Spacer-S1015-075 | 31742010 | Not Available |
| 8 | Not Available | Hoover Screw S3057-59-61 | 21429406 | Not Available |
| 9 | Not Available | Hoover Brush Housing-Only-S | 167696AG | Not Available |
| 10 |  | Hoover Conquest, Spirit, PowerMax Vacuum Carbon Brush W/Carrier, Spring 47318008 | 47318008 | $12.99Read more |
| 11 | Not Available | Hoover Spring U3101/3 U4201 | 38353004 | Not Available |
| 12 | Not Available | Hoover Carbon Brush And Terminal | 167681- | Not Available |
| 13 | Not Available | Hoover Motor Hsg-Upper (Ji | 42937003 | Not Available |
| 14 | Not Available | Hoover Wire Protect Bushing | 169702BZ | Not Available |
| 15 | Not Available | Hoover Field Lamination Bol | 33421004 | Not Available |
| 16 | Not Available | Hoover Insulator | 31195002 | Not Available |
| 17 | Not Available | Hoover Field Assm Comp-S101 | 45311035 | Not Available |
| 18 | Not Available | Hoover Spring-S3005 | 167721FW | Not Available |
| 19 | Not Available | Hoover Arm Assm Comp-S1015- | 44765171 | Not Available |
| 20 | Not Available | Hoover Motor Hsg Assm-Lower | 37191085 | Not Available |
| 21 | Not Available | Hoover Spacer | 31148002 | Not Available |
| 22 | Not Available | Hoover Interstage Mtg Plate | 36322002 | Not Available |
| 23 | Not Available | Hoover Nut - Special S3005 | 167695EF | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Power Nozzle-Lz-S340 | 48438190 | Not Available |
| 1 | Not Available | Hoover Cord Assembly | 46321088 | Not Available |
| 2 | Not Available | Hoover Nozzle Body - Aap ( | 42252174 | Not Available |
| 3 | Not Available | Hoover Agitator Assm Comp-U | 48416009 | Not Available |
| 4 | Not Available | Hoover Strain Relief - 6460 | 163768- | Not Available |
| 5 | Not Available | Hoover Bracket-Rh | 34663003 | Not Available |
| 6 | Not Available | Hoover Nozzle Connector-Lz | 43482024 | Not Available |
| 7 | Not Available | Hoover Terminals-0513 | 012227- | Not Available |
| 7 | Not Available | Hoover Wire Nut | 048969- | Not Available |
| 8 | Not Available | Hoover Seal | 34112005 | Not Available |
| 9 | Not Available | Hoover Seal | 34337003 | Not Available |
| 10 | Not Available | Hoover Screw | 21447041 | Not Available |
| 11 | Not Available | Hoover Wheel-Ag | 32175025 | Not Available |
| 12 | Not Available | Hoover Wheel Shaft-S3199 | 31523005 | Not Available |
| 13 | Not Available | Hoover Bottom Plate - Pn | 42246120 | Not Available |
| 14 | Not Available | Hoover Screw | 21447007 | Not Available |
| 15 | Not Available | Hoover Seal-Lower | 34337004 | Not Available |
| 16 | Not Available | Hoover Duct Cover (Ji) | 42256090 | Not Available |
| 17 | Not Available | Hoover Seal | 34123015 | Not Available |
| 18 | Not Available | Hoover Detent Spring | 35276001 | Not Available |
| 19 | Not Available | Hoover Motor - Pn Order 43177075 | 43177073 | Not Available |
| 20 | Not Available | Hoover Bracket-Lh | 35271001 | Not Available |
| 21 | No Image | Belt, Old Style Hoover Power Nozzle | 38528011 | $5.99Add to cart |
| 22 | Not Available | Hoover Thread Guard U3101/3 | 41435018 | Not Available |
| 23 |  | Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 25 | Not Available | Hoover End Cap - Agitator / Brush Roll | 36422001 | Not Available |
| 26 | Not Available | Hoover Agit Brush-Concept-5 | 48445017 | Not Available |
| 27 | Not Available | Hoover Agitator Shaft 1170 | 160070- | Not Available |
| 28 | Not Available | Hoover Agitator End Pulley | 38537002 | Not Available |
| 29 | Not Available | Hoover Thread Guard U3101/3 | 41435021 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Rug & Floor Nozzle | 43414170 | Not Available |
| 1 | Not Available | Hoover Rug & Floor Nozzle-A | 43414140 | Not Available |
| 1 | Not Available | Hoover Rug & Floor Nozzle-A | 43414139 | Not Available |
| 1 | Not Available | Hoover Rug & Floor Nozzle-A | 43414121 | Not Available |
| 1 | Not Available | Hoover Rug & Floor Nozzle | 0M114169 | Not Available |
| 2 | Not Available | Hoover Nozzle Tube-Ag-S1221 | 38646039 | Not Available |
| 3 | Not Available | Hoover Rug & Floor Noz-Abe- | 38615182 | Not Available |
| 3 | Not Available | Hoover Rug & Floor Nozzle-A | 38615153 | Not Available |
| 4 | Not Available | Hoover Roller - S2095 | 38521018 | Not Available |
| 5 | Not Available | Hoover Roller Axle - S2095 | 31511004 | Not Available |
| 6 | Not Available | Hoover Brush Housing-Abr-S1 | 36414018 | Not Available |
| 7 | Not Available | Hoover Spring-2910 | 166649- | Not Available |
| 8 | Not Available | Hoover Brush Back Assm-S209 | 48443004 | Not Available |
| 9 | Not Available | Hoover Screw-S2095/97/99 | 21447203 | Not Available |
| 10 | Not Available | Hoover Brush Back Lever - S | 38454004 | Not Available |
| 10 | Not Available | Hoover Brush Back Lever-Abn | 38454006 | Not Available |
| 11 | Not Available | Hoover Washer-Felt-S2095/97 | 21329105 | Not Available |
| 12 | Not Available | Hoover Wheeled R & F Noz-Aa | 43414101 | Not Available |
| 13 | Not Available | Hoover Nozzle Connector - A | 38646045 | Not Available |
| 14 | Not Available | Hoover Wheel/Axle Assembly | 43244043 | Not Available |
| 15 | Not Available | Hoover Wheel Bearing-Aat-S2 | 38511016 | Not Available |
| 16 | Not Available | Hoover Rug & Floor Nozzle | 43414117 | Not Available |
| 17 | Not Available | Hoover Roller - S2095 | 38521018 | Not Available |
| 18 | Not Available | Hoover Roller Axle - S2095 | 31511004 | Not Available |
| 19 | Not Available | Hoover Slider - Ag - S2099 | 38451008 | Not Available |
| 20 | Not Available | Hoover Brush Housing - Mv - | 36414013 | Not Available |
| 21 | No Image | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.99Read more |
| 22 | Not Available | Hoover Brush Back Assm-S209 | 48443004 | Not Available |
| 23 | Not Available | Hoover Screw-S2095/97/99 | 21447203 | Not Available |
| 24 | Not Available | Hoover Seal - S2099 | 34122013 | Not Available |
| 25 | Not Available | Hoover Pedal - Mv- S2099 | 38434015 | Not Available |
