Schematic and parts list for: Hoover Model: S3403
This is a list of parts and a diagram and schematic for: Hoover Model: S3403
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
Popular Supplies

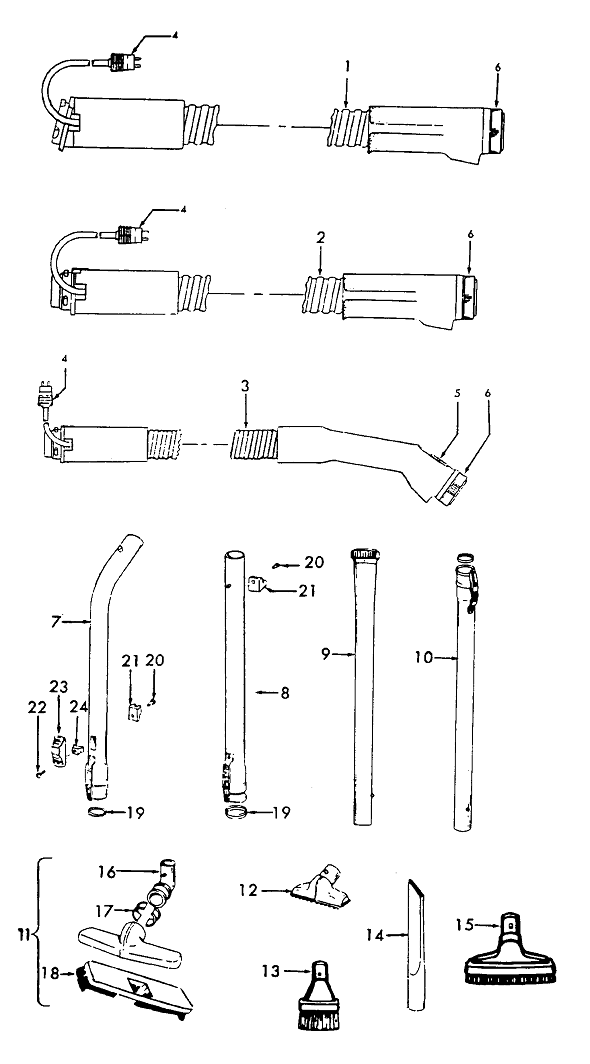

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Cur Carry Hose W/O T | 43433085 | Not Available |
| 2 | Not Available | Hoover El Hose-Jm-6-Spirit | 43433032 | Not Available |
| 3 | Not Available | Hoover Hose Assem - Aap - S | 43433084 | Not Available |
| 3 | Not Available | Hoover Hose Comp-2 Wire-S36 | 43433081 | Not Available |
| 3 | Not Available | Hoover Hose-2W-Ag-S3420 | 43433111 | Not Available |
| 3 | Not Available | Hoover Hose-2W-Aap-S/C-Spir | 43433067 | Not Available |
| 4 | Not Available | Hoover Repair Kit-Celebrity | 46321076 | Not Available |
| 5 | Not Available | Hoover Suction Regulator-Mv | 34777007 | Not Available |
| 5 | Not Available | Hoover Suction Regulator-S3 | 34777005 | Not Available |
| 6 | Not Available | Hoover Latch Ring-Ag-S3273 | 36153009 | Not Available |
| 7 | Not Available | Hoover Hose Tube Assem W/Co | 43468055 | Not Available |
| 8 | Not Available | Hoover Ext Tube-20-Ax | 43453052 | Not Available |
| 8 | Not Available | Hoover Ext Wand-Ax-22 | 43453035 | Not Available |
| 8 | Not Available | Hoover Ext Tube - Bl - 20 | 43453058 | Not Available |
| 8 | Not Available | Hoover Extension Wand | 43453086 | Not Available |
| 9 | No Image | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| 10 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 11 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Hoover Furniture Nozzle - A | 38614024 | Not Available |
| 12 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Hoover Furniture Nozzle-Lz | 38614023 | Not Available |
| 13 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 15 | Not Available | Hoover Furniture Brush-Ag | 43414016 | Not Available |
| 15 | Not Available | Hoover Multi-Purpose Brush | 43414015 | Not Available |
| 16 | Not Available | Hoover Swivel Connector - A | 38644020 | Not Available |
| 16 | Not Available | Hoover Swivel Connector - A | 38644040 | Not Available |
| 17 | Not Available | Hoover Split Ring | 33712007 | Not Available |
| 18 | Not Available | Hoover Brush Back -S3273-S3 | 48447001 | Not Available |
| 19 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 20 | Not Available | Hoover Rivet | 012783- | Not Available |
| 21 | Not Available | Hoover Cord Clip - Silver Sand Medium | 36171008 | Not Available |
| 22 | Not Available | Hoover Screw | 013275- | Not Available |
| 23 | Not Available | Hoover Suction Reg | 13142AG- | Not Available |
| 24 | Not Available | Hoover Suction Regulator | 013257BZ | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw | 21447041 | Not Available |
| 2 | Not Available | Hoover Motor Cover-Jm-S3401 | 37195047 | Not Available |
| 3 | Not Available | Hoover Diffuser | 34163003 | Not Available |
| 4 | Not Available | Hoover Speed Nut-S3129 | 21366004 | Not Available |
| 5 | Not Available | Hoover Seal-S3203 | 34133007 | Not Available |
| 6 | Not Available | Hoover Pad | 34132006 | Not Available |
| 7 | Not Available | Hoover Seal-S3203 | 34143002 | Not Available |
| 8 | Not Available | Hoover Motor-S3203 | 43577109 | Not Available |
| 8 | Not Available | Hoover Motor | 43577011 | Not Available |
| 9 | Not Available | Hoover Terminal-Insulated-U | 018972- | Not Available |
| 10 | Not Available | Hoover Cord - 16' | 46363039 | Not Available |
| 11 | Not Available | Hoover Strain Relief | 27482301 | Not Available |
| 12 | Not Available | Hoover Wheel Bearing-Ag | 38511015 | Not Available |
| 13 | Not Available | Hoover Wheel - Ag | 38522061 | Not Available |
| 15 | Not Available | Hoover Wheel Carrier-Ag-S32 | 41432040 | Not Available |
| 16 | Not Available | Hoover Receptacle Assem. - | 46326079 | Not Available |
| 17 | Not Available | Hoover Main Body - Mx - S34 | 37223192 | Not Available |
| 18 | Not Available | Hoover Latch | 36151015 | Not Available |
| 19 | Not Available | Hoover Filter | 31114010 | Not Available |
| 20 | Not Available | Hoover Filter Support-S3203 | 36426012 | Not Available |
| 21 | Not Available | Hoover Motor Retainer - S34 | 36321011 | Not Available |
| 22 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 23 | Not Available | Hoover Foam Muffler - Spiri | 34287021 | Not Available |
| 24 | Not Available | Hoover Switch - S3289 | 28164276 | Not Available |
| 25 | Not Available | Hoover Control Panel-M-S321 | 37214052 | Not Available |
| 29 | Not Available | Hoover Lid Seal | 38781010 | Not Available |
| 30 | Not Available | Hoover Bag Hsg Lid-Mz-S3403 | 42212048 | Not Available |
| 31 | Not Available | Hoover Nameplate-S3403 | 52125103 | Not Available |
| 31 | Not Available | Hoover Nameplate-S3403-022 | 52125107 | Not Available |
| 32 |  | Paper Bag, Micro Lined Type K Canister Spirit 3 Pk Part Number: 4010028K for Hoover | 4010028K | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | Hoover Tool Rack-Mz-S3403 | 36433048 | Not Available |
| 37 | Not Available | Hoover Mid Pad-S3403 | 58366069 | Not Available |
| 37 | Not Available | Hoover Top Support - Spirit | 58461023 | Not Available |
| 37 | Not Available | Hoover Owner Manual-S3403 | 56513226 | Not Available |
| 37 | Not Available | Hoover Owner Manual-S3403-0 | 56513248 | Not Available |
| 37 | Not Available | Hoover Screw | 21447003 | Not Available |
| 38 | Not Available | Hoover Ext Tube-20-Ax | 43453052 | Not Available |
| 38 | Not Available | Hoover Furniture Nozzle - A | 38614024 | Not Available |
| 38 | Not Available | Hoover Power Nozzle-Lz-S326 | 48438189 | Not Available |
| 38 | | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | Hoover Hose-2W-Abx-S3395-04 | 43433100 | Not Available |
| 38 | | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |

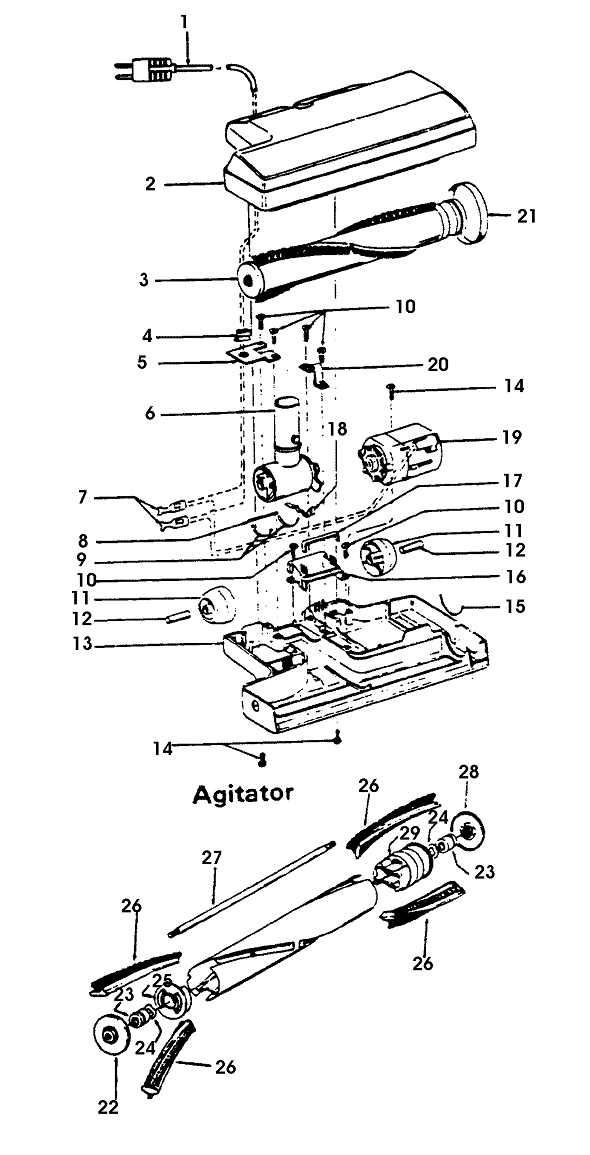

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Cord Assembly - Black | 46321005 | Not Available |
| 1 | Not Available | Hoover Cord Assembly | 46321088 | Not Available |
| 2 | Not Available | Hoover Nameplate | 52125113 | Not Available |
| 2 | Not Available | Hoover Nozzle Body - Aap ( | 42252174 | Not Available |
| 2 | Not Available | Hoover Strain Relief - 6460 | 163768- | Not Available |
| 2 | Not Available | Hoover Nameplate-S3193 | 51375042 | Not Available |
| 2 | Not Available | Hoover Nameplate-S3273 | 52125088 | Not Available |
| 2 | Not Available | Hoover Nameplate-S3211 | 52125095 | Not Available |
| 2 | Not Available | Hoover Nameplate-S3403 | 52125096 | Not Available |
| 2 | Not Available | Hoover Hood Assembly - Mr - | 42252149 | Not Available |
| 2 | Not Available | Hoover Nameplate-S3403-022 | 52125107 | Not Available |
| 2 | Not Available | Hoover Nozzle Body-Ls-S3193 | 42252059 | Not Available |
| 3 | Not Available | Hoover Agitator Assm Comp-U | 48416009 | Not Available |
| 5 | Not Available | Hoover Bracket-Rh | 34663003 | Not Available |
| 6 | Not Available | Hoover Nozzle Connector-Lz | 43482024 | Not Available |
| 7 | Not Available | Hoover Terminals-0513 | 012227- | Not Available |
| 8 | Not Available | Hoover Seal | 34112005 | Not Available |
| 9 | Not Available | Hoover Seal | 34337003 | Not Available |
| 10 | Not Available | Hoover Screw | 21447041 | Not Available |
| 11 | Not Available | Hoover Wheel-Ag | 32175025 | Not Available |
| 12 | Not Available | Hoover Wheel Shaft-S3199 | 31523005 | Not Available |
| 13 | Not Available | Hoover Bottom Plate - Pn | 42246120 | Not Available |
| 14 | Not Available | Hoover Screw | 21447007 | Not Available |
| 15 | Not Available | Hoover Seal-Lower | 34337004 | Not Available |
| 16 | Not Available | Hoover Duct Cover (Ji) | 42256090 | Not Available |
| 17 | Not Available | Hoover Seal | 34123015 | Not Available |
| 18 | Not Available | Hoover Detent Spring | 35276001 | Not Available |
| 19 | Not Available | Hoover Motor - Pn Order 43177075 | 43177073 | Not Available |
| 20 | Not Available | Hoover Bracket-Lh | 35271001 | Not Available |
| 21 | No Image | Belt, Old Style Hoover Power Nozzle | 38528011 | $5.99Add to cart |
| 22 | Not Available | Hoover Thread Guard U3101/3 | 41435018 | Not Available |
| 23 |  | Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 25 | Not Available | Hoover EndCap - Agitator / Brush Roll | 36422001 | Not Available |
| 26 | Not Available | Hoover Agit Brush-Concept-5 | 48445017 | Not Available |
| 27 | Not Available | Hoover Agitator Shaft 1170 | 160070- | Not Available |
| 28 | Not Available | Hoover Agitator End Pulley | 38537002 | Not Available |
| 29 | Not Available | Hoover Thread Guard U3101/3 | 41435021 | Not Available |
| 30 | Not Available | Hoover Power Nozzle-Lz-4.5 | 48438058 | Not Available |
| 30 | Not Available | Hoover Power Nozzle-Lz-S340 | 48438190 | Not Available |
| 30 | Not Available | Hoover Power Nozzle-Mx-4.5 | 48438057 | Not Available |
| 30 | Not Available | Hoover Power Nozzle-Lz-S326 | 48438189 | Not Available |
