This is a list of parts and a diagram and schematic for: Hoover Model: S3279
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

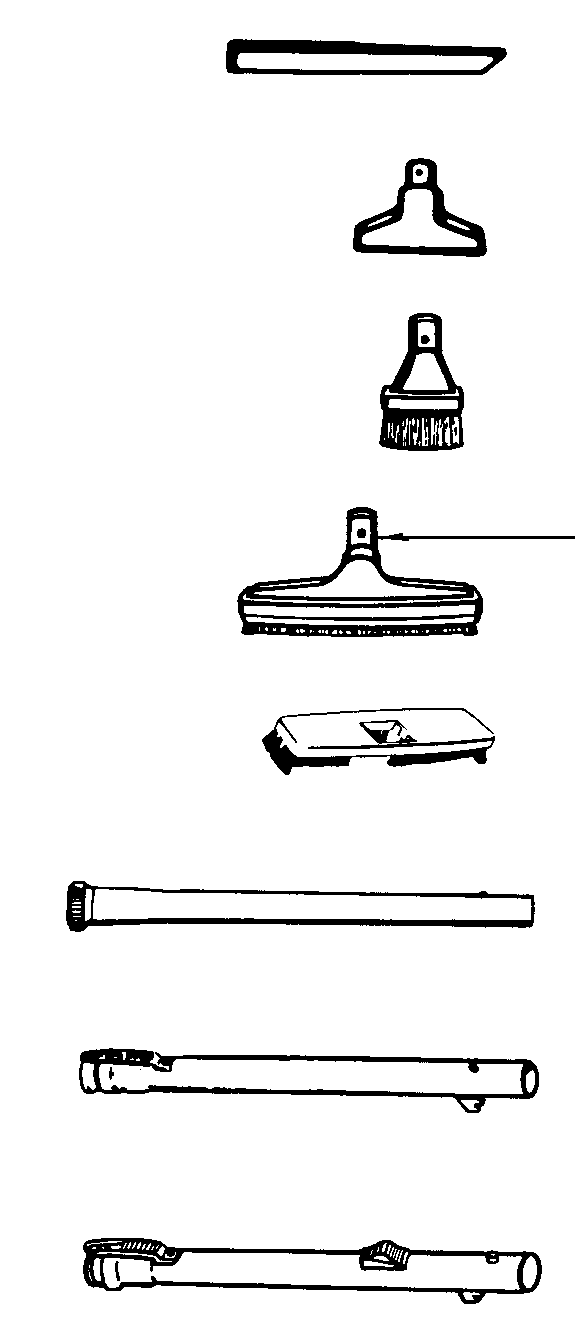

Parts for: Canister
Popular Supplies
| # | Part image | Description | SKU | Price |
| 01 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $10.99Read more |
| 02 |  | Upholstery Tool, With plastic bump for hoover porta power | 43414057 | $9.58Add to cart Special order: ships in 2 to 4 weeks |
| 03 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $7.15Add to cart Special order: ships in 2 to 4 weeks |
| 04 | Not Available | Hoover Swivel Connector - A | 38644020 | Not Available |
| 05 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $12.08Add to cart Special order: ships in 2 to 4 weeks |
| 05 |  | Compatible alternateFloor Tool,White Metal Neck W/Pin Part Number: 38-1500-93 for Hoover Replacement More Product Details | 38150093 | $12.08Add to cart Special order: ships in 2 to 4 weeks |
| 06 | Not Available | Hoover Brush Back -S3273-S3 | 48447001 | Not Available |
| 07 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $39.59Add to cart |
| 08 | Not Available | Hoover Extension Tube - Bl - 20 | 43453058 | Not Available |
| 09 | Not Available | Hoover Extension Tube-20-Ax | 43453052 | Not Available |
| 10 | Not Available | Hoover Extension Tube-Ax-20 | 43453023 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Nameplate S3161 | 51375027 | Not Available |
| 03 | Not Available | Hoover Lens-S3275 | 39383095 | Not Available |
| 04 | Not Available | Hoover Bag Indicator-S3277 | 27343213 | Not Available |
| 05 | Not Available | Hoover Vent Tube-S3279 | 31727026 | Not Available |
| 06 | Not Available | Hoover Retainer Clip-S3273 | 36131052 | Not Available |
| 07 | Not Available | Hoover Screw-3616 | 160508 | Not Available |
| 09 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 10 | Not Available | Hoover Terminal-Insulated-U | 18972 | Not Available |
| 11 | Not Available | Hoover Screw | 21447125 | Not Available |
| 12 | Not Available | Hoover Seal-S3277 | 31178027 | Not Available |
| 13 | Not Available | Hoover Brush Block-S3273 | 47342008 | Not Available |
| 14 | Not Available | Hoover Screw | 21447003 | Not Available |
| 15 | Not Available | Hoover Bracket-S3273 | 36924005 | Not Available |
| 16 | Not Available | Hoover Vent Tube-S3273 | 31725018 | Not Available |
| 17 | Not Available | Hoover Relay-S3279 | 28318002 | Not Available |
| 18 | Not Available | Hoover Cord Reel | 46831025 | Not Available |
| 19 | Not Available | Hoover Spring-S3273 | 38356006 | Not Available |
| 20 | Not Available | Hoover Brake Pad | 36222008 | Not Available |
| 21 | Not Available | Hoover Foam Pad-S3273 | 34132014 | Not Available |
| 22 | Not Available | Hoover Spacer-S3279 | 31199006 | Not Available |
| 24 | Not Available | Hoover Brake Arm-S3273 | 38458012 | Not Available |
| 25 | Not Available | Hoover Retainer | 36131017 | Not Available |
| 26 | Not Available | Hoover Seal-S3273 | 34132008 | Not Available |
| 27 | Not Available | Hoover Rear Panel - Ag | 42224005 | Not Available |
| 28 | Not Available | Hoover Attachment Cord | 46383308 | Not Available |
| 29 | Not Available | Hoover Seal-S3273 | 34123025 | Not Available |
| 30 | Not Available | Hoover Ferrule-S3273 | 35253004 | Not Available |
| 32 | Not Available | Hoover Carbon Brush Complete | 167679 | Not Available |
| 33 | Not Available | Hoover Hi-Limit Thermostat-S327 | 28382111 | Not Available |
| 34 | Not Available | Hoover Motor Assembly | 43578082 | Not Available |
| 35 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 36 | Not Available | Hoover Motor Cap-S3273 | 37196110 | Not Available |
| 37 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 38 | Not Available | Hoover Seal-Lh-S3273 | 34214002 | Not Available |
| 39 | Not Available | Hoover Seal-S3273 | 34172026 | Not Available |
| 40 | Not Available | Hoover Seal-Rh-S3273 | 34214001 | Not Available |
| 41 | Not Available | Hoover Inside Wheel-S3273 | 43244021 | Not Available |
| 42 | Not Available | Hoover Outside Wheel - Ag | 32811012 | Not Available |
| 44 | Not Available | Hoover Screw | 21447121 | Not Available |
| 45 | Not Available | Hoover Lower Case - Ag | 37212138 | Not Available |
| 46 | Not Available | Hoover Seal-S3273 | 38784013 | Not Available |
| 47 | Not Available | Hoover Caster Wheel-S3273 | 43244025 | Not Available |
| 49 | Not Available | Hoover Tube Adapter-S3273 | 32271003 | Not Available |
| 50 | Not Available | Hoover Seal-S3273 | 38784015 | Not Available |
| 51 | Not Available | Hoover Washer | 21328071 | Not Available |
| 52 | No Image | SPRING, LATCH ASSY C2081-061 COMMERCIAL Part Number: 38313017 for Hoover | 38313017 | $0.37Read more |
| 53 | Not Available | Hoover Slide Latch-S3273 | 36152005 | Not Available |
| 55 | Not Available | Hoover Slide Button-C2127,C | 38421011 | Not Available |
| 56 | Not Available | Hoover Receptacle-3W-S3279 | 46526008 | Not Available |
| 57 | Not Available | Hoover Clamp-S3273 | 36171009 | Not Available |
| 58 | Not Available | Hoover Screw-S2095/97/99 | 21447203 | Not Available |
| 59 | Not Available | Hoover Main Frame - Ag - S3 | 37215111 | Not Available |
| 60 | Not Available | Hoover Tube Adapter-S3273 | 32282008 | Not Available |
| 61 | Not Available | Hoover Back Support-S3273 | 36434105 | Not Available |
| 62 | Not Available | Hoover Screw | 21447003 | Not Available |
| 63 | Not Available | Hoover Filter-S3273 | 38765006 | Not Available |
| 64 | Not Available | Hoover Seal-S3273 | 38784017 | Not Available |
| 65 | Not Available | Hoover Bag Collar Support-S | 36425032 | Not Available |
| 66 | Not Available | Hoover Spring-S3273 | 38351006 | Not Available |
| 67 | Not Available | Hoover Bag Latch-S3273 | 36153026 | Not Available |
| 68 | Not Available | Hoover Filter Retainer-S327 | 37944004 | Not Available |
| 69 |  | Hoover Dimension Canister Vacuum Type M Filter Paper Bags 3 Pk | 836301003118 | $6.99Add to cart |
| 72 | Not Available | Hoover Switch Assembly | 47511030 | Not Available |
| 73 | Not Available | Hoover Spring | 38313021 | Not Available |
| 75 | Not Available | Hoover Seal-S3273 | 31526003 | Not Available |
| 76 | Not Available | Hoover Screw | 21447017 | Not Available |
| 77 | Not Available | Hoover Spring-S3273 | 21378157 | Not Available |
| 80 | No Image | SPRING, LATCH ASSY C2081-061 COMMERCIAL Part Number: 38313017 for Hoover | 38313017 | $0.37Read more |
| 81 | Not Available | Hoover Pop-Up Button-S3273 | 38411053 | Not Available |
| 82 | Not Available | Hoover Latch Retainer-S3273 | 36131048 | Not Available |
| 84 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $10.99Read more |
| 84 | | Upholstery Tool, With plastic bump for hoover porta power | 43414057 | $9.58Add to cart Special order: ships in 2 to 4 weeks |
| 84 | | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $7.15Add to cart Special order: ships in 2 to 4 weeks |
| 84 | | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $12.08Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 02 | Not Available | Hoover Grip-Mv-S3279 | 38634067 | Not Available |
| 03 | Not Available | Hoover Hose Connector-S3279 | 38638030 | Not Available |
| 04 | Not Available | Hoover Hose-3W-Aab | 43431014 | Not Available |
| 05 | Not Available | Hoover Insulating Sleeve-S3 | 31712006 | Not Available |
| 06 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 07 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 09 | Not Available | Hoover Grip Cont Panel-Ag-S (Incl. Items 6, 7,17) | 47551025 | Not Available |
| 10 | Not Available | Hoover Latch Ring-S3279 | 36153029 | Not Available |
| 11 | Not Available | Hoover Inner Tube-S3279 | 38646034 | Not Available |
| 13 | Not Available | Hoover Screw-S3279 | 21447124 | Not Available |
| 14 | Not Available | Hoover Retaining Ring-Abr | 36131087 | Not Available |
| 15 | No Image | PLUG, HOSE 3 PIN DIMENSION Part Number: 46521008 for Hoover | 46521008 | $13.92Read more |
| 16 | Not Available | Hoover Hose Repair Kit - Di (43433082 Only) | 46325024 | Not Available |
| 17 | Not Available | Hoover Wire Splice-S3281 | 27613003 | Not Available |
| 18 | Not Available | Hoover Switch | 28161051 | Not Available |
| 19 | Not Available | Hoover Latch Ring-Ag-S3273 | 36153009 | Not Available |
| 20 | Not Available | Hoover Suction Regulator-Mv | 34777007 | Not Available |
| # | Part image | Description | SKU | Price |
| 03 | Not Available | Hoover Agitator-4B-S3199 | 48416030 | Not Available |
| 04 | Not Available | Hoover Strain Relief - 6460 | 163768 | Not Available |
| 05 | Not Available | Hoover Screw | 21447041 | Not Available |
| 06 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 08 | Not Available | Hoover Nozzle Connector Assembly | 43461021 | Not Available |
| 09 | Not Available | Hoover Seal | 34112005 | Not Available |
| 10 | Not Available | Hoover Seal | 34337003 | Not Available |
| 11 | Not Available | Hoover Socket | 47171009 | Not Available |
| 12 | Not Available | Hoover Terminal-Insulated-U | 18972 | Not Available |
| 13 | Not Available | Hoover Wire Holder | 45517 | Not Available |
| 14 | Not Available | Hoover Duct Cover | 42256098 | Not Available |
| 15 | Not Available | Hoover Seal | 34123017 | Not Available |
| 16 | Not Available | Hoover Detent Spring | 35276001 | Not Available |
| 17 | Not Available | Hoover Wheel-Ag | 32175025 | Not Available |
| 18 | Not Available | Hoover Wheel Shaft-S3199 | 31523005 | Not Available |
| 19 |  | Wheel, :( Front Quadraflex Power Nozzle Part Number: 32761001 for Hoover | 32761001 | $4.72Read more |
| 20 | Not Available | Hoover Wheel Shaft | 31522004 | Not Available |
| 21 | Not Available | Hoover Screw | 21447007 | Not Available |
| 22 | Not Available | Hoover Base Pl W/Post & Sho Incl. Items 17,18,19,20,23,24) | 42246121 | Not Available |
| 23 | Not Available | Hoover Seal-Lower | 34337004 | Not Available |
| 24 | Not Available | Hoover Rib Shoe | 13261AY- | Not Available |
| 25 | Not Available | Hoover Isolation Grommet S3 | 36218005 | Not Available |
| 26 | Not Available | Hoover Dirt Finder Lamp 15 | 27317307 | Not Available |
| 27 | Not Available | Hoover Motor - Pn | 43177073 | Not Available |
| 29 | Not Available | Hoover Terminal | 27666702 | Not Available |
| 30 | Not Available | Hoover Shield | 37258082 | Not Available |
| 31 | Not Available | Hoover Switch - S2095 | 281770KD | Not Available |
| 32 | Not Available | Hoover Indicator - Ph - Ccs | 51151053 | Not Available |
| 33 | Not Available | Hoover Switch Actuator | 34361001 | Not Available |
| 34 | Not Available | Hoover Actuator Housing | 42262032 | Not Available |
| 35 | Not Available | Hoover Retainer | 36131017 | Not Available |
| 36 |  | SPRING, TORSION Part Number: 38353007 for Hoover | 38353007 | $2.56Read more |
| 37 | Not Available | Hoover Pivot Pin | 31523006 | Not Available |
| 38 |  | Acuator/Pedal Pin-Hoover 3441 For: hoover | 38458002 | $2.13Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | No Longer available sub for MC-270B Belt, Old Style Hoover Power Nozzle | 38528011 | $5.99Read more |
| 41 | Not Available | Hoover Nozzle Body - Ag (Incl. Items 2,43) | 42252189 | Not Available |
| 43 | Not Available | Hoover Lens-Kc | 39383060 | Not Available |
| 44 | Not Available | Hoover Swivel Tube - Ag | 43457037 | Not Available |
| 45 | Not Available | Hoover Thread Guard Left Hand | 48495AY- | Not Available |
| 46 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for ... | 43267002 | $4.81Read more |
| 47 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 48 | Not Available | Hoover Agitator End U3101 | 36422001 | Not Available |
| 49 | Not Available | Hoover Agitator Brush-Concept-5 | 48445017 | Not Available |
| 50 | Not Available | Hoover Thread Guard U3101/3 | 41435018 | Not Available |
| 51 | Not Available | Hoover End Pulley | 38537008 | Not Available |
| 52 | Not Available | Hoover Brush Ring-S3199 | 48418001 | Not Available |
| 53 | Not Available | Hoover Spacer | 31722019 | Not Available |
| 54 | Not Available | Hoover Agitator Shaft | 32724005 | Not Available |
