Schematic and parts list for: Hoover Model: S3273
This is a list of parts and a diagram and schematic for: Hoover Model: S3273
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
Popular Supplies

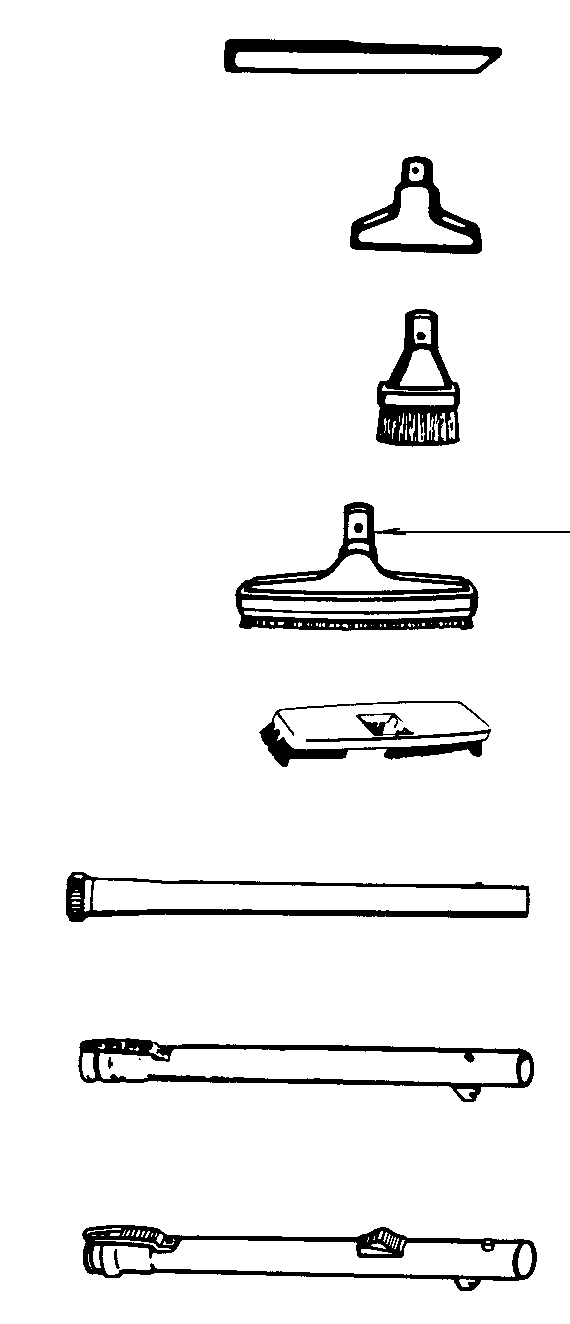

| # | Part image | Description | SKU | Price |
| 01 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 02 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 03 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 04 | Not Available | Hoover Swivel Connector | 38644020 | Not Available |
| 05 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Hoover Brush Back -S3273 | 48447001 | Not Available |
| 07 | No Image | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| 08 | Not Available | Hoover Extension Tube | 43453058 | Not Available |
| 09 | Not Available | Hoover Extension Tube | 43453052 | Not Available |
| 10 | Not Available | Hoover Extension Tube | 43453023 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Switch Pedal | 38434003 | Not Available |
| 02 | Not Available | Hoover Nameplate-S3273 | 51375085 | Not Available |
| 03 | Not Available | Hoover Control Panel | 37214161 | Not Available |
| 04 | Not Available | Hoover Cord Pedal - S3633 | 38434008 | Not Available |
| 05 | Not Available | Hoover Lens-S3275 | 39383095 | Not Available |
| 06 | Not Available | Hoover Bag Indicator-S3277 | 27343213 | Not Available |
| 07 | Not Available | Hoover Retainer Clip-S3273 | 36131052 | Not Available |
| 08 | Not Available | Hoover Screw-3616 | 160508 | Not Available |
| 09 | Not Available | Hoover Rear Deck-S3273 | 37221010 | Not Available |
| 09 | Not Available | Hoover Rear Deck-S3275 | 37221023 | Not Available |
| 10 | Not Available | Hoover Spring | 38313021 | Not Available |
| 11 | Not Available | Hoover Terminal-Insulated | 18972 | Not Available |
| 12 | Not Available | Hoover Screw | 21447003 | Not Available |
| 13 | Not Available | Hoover Bracket-S3273 | 36924005 | Not Available |
| 14 | Not Available | Hoover Brush Block-S3273 | 47342008 | Not Available |
| 15 | Not Available | Hoover Vent Tube-S3273 | 31725018 | Not Available |
| 16 | Not Available | Hoover Spring-S3273 | 38356006 | Not Available |
| 17 | Not Available | Hoover Brake Pad | 36222008 | Not Available |
| 18 | Not Available | Hoover Foam Pad-S3273 | 34132014 | Not Available |
| 19 | Not Available | Hoover Retainer | 36131017 | Not Available |
| 20 | Not Available | Hoover Brake Arm-S3273 | 38458012 | Not Available |
| 21 | Not Available | Hoover Plug Housing | 37926009 | Not Available |
| 22 | Not Available | Hoover Seal-S3273 | 34132008 | Not Available |
| 23 | Not Available | Hoover Cord Reel | 46831025 | Not Available |
| 24 | Not Available | Hoover Rear Panel-My-S3273 | 42224001 | Not Available |
| 25 | Not Available | Hoover Terminal - Cord Reel | 164123 | Not Available |
| 25 | Not Available | Hoover Attachment Cord | 46383308 | Not Available |
| 26 | Not Available | Hoover Seal-S3273 | 34123025 | Not Available |
| 27 | Not Available | Hoover Ferrule-S3273 | 35253004 | Not Available |
| 28 | Not Available | Hoover Carbon Brush Complete | 167679 | Not Available |
| 29 | Not Available | Hoover Hi-Limit Thermostat | 28382111 | Not Available |
| 30 | Not Available | Hoover Motor-S3273 | 43578053 | Not Available |
| 31 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 32 | Not Available | Hoover Motor Cap-S3273 | 37196110 | Not Available |
| 33 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 34 | Not Available | Hoover Seal-Left Hand-S3273 | 34214002 | Not Available |
| 35 | Not Available | Hoover Seal-S3273 | 34172026 | Not Available |
| 36 | Not Available | Hoover Seal-Right Hand-S3273 | 34214001 | Not Available |
| 37 | Not Available | Hoover Inside Wheel-S3273 | 43244021 | Not Available |
| 38 | Not Available | Hoover Outside Wheel | 32811001 | Not Available |
| 38 | Not Available | Hoover Outside Wheel | 32811012 | Not Available |
| 39 | Not Available | Hoover Tire - Ag | 38522053 | Not Available |
| 40 | Not Available | Hoover Screw | 21447121 | Not Available |
| 41 | Not Available | Hoover Lower Case & Seal- S3275 | 37212124 | Not Available |
| 41 | Not Available | Hoover Lower Case & Seal- S3273 | 37212013 | Not Available |
| 42 | Not Available | Hoover Seal-S3273 | 38784013 | Not Available |
| 43 | Not Available | Hoover Caster Wheel-S3273 | 43244025 | Not Available |
| 45 | Not Available | Hoover Tube Adapter-S3273 | 32271003 | Not Available |
| 46 | Not Available | Hoover Furniture Guard-Right Hand | 36235023 | Not Available |
| 47 | Not Available | Hoover Seal-S3273 | 38784015 | Not Available |
| 48 | Not Available | Hoover Washer | 21328071 | Not Available |
| 49 | No Image | SPRING, LATCH ASSY C2081-061 COMMERCIAL Part Number: 38313017 for Hoover | 38313017 | $0.37Read more |
| 50 | Not Available | Hoover Slide Latch-S3273 | 36152005 | Not Available |
| 51 | Not Available | Hoover Hose Module-S3273 | 37218010 | Not Available |
| 51 | Not Available | Hoover Hose Module-S3275 | 37218017 | Not Available |
| 52 | Not Available | Hoover Slide Button-C2127 | 38421011 | Not Available |
| 53 | Not Available | Hoover Receptacle-S3273 | 46325018 | Not Available |
| 54 | Not Available | Hoover Clamp-S3273 | 36171009 | Not Available |
| 55 | Not Available | Hoover Screw-S2095 | 21447203 | Not Available |
| 56 | Not Available | Hoover Main Frame | 37215111 | Not Available |
| 57 | Not Available | Hoover Seal-S3273 | 38784017 | Not Available |
| 58 | Not Available | Hoover Tube Adapter-S3273 | 32282008 | Not Available |
| 59 | Not Available | Hoover Filter-S3273 | 38765006 | Not Available |
| 60 | Not Available | Hoover Back Support-S3273 | 36434105 | Not Available |
| 61 | Not Available | Hoover Filter Retainer-S327 | 37944004 | Not Available |
| 62 | Not Available | Hoover Bag Collar Support | 36425032 | Not Available |
| 63 | Not Available | Hoover Spring-S3273 | 38351006 | Not Available |
| 64 | Not Available | Hoover Bag Latch-S3273 | 36153026 | Not Available |
| 65 |  | Paper Bag, Hoover Type M Can Dimension DVC 3Pk Part Number: 406821 for Hoover Replacement | 406821 | $6.46Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 66 | Not Available | Hoover Furniture Guard-Left Hand | 36235024 | Not Available |
| 67 | Not Available | Hoover Seal-S3273 | 31526003 | Not Available |
| 68 | Not Available | Hoover Screw | 21447017 | Not Available |
| 69 | Not Available | Hoover Spring-S3273 | 21378157 | Not Available |
| 70 | Not Available | Hoover Bag Lid S3273, S3275 | 42217106 | Not Available |
| 71 | Not Available | Hoover Latch S3275 | 36152013 | Not Available |
| 71 | Not Available | Hoover Latch-S3273 S3273 | 36152007 | Not Available |
| 72 | No Image | SPRING, LATCH ASSY C2081-061 COMMERCIAL Part Number: 38313017 for Hoover | 38313017 | $0.37Read more |
| 73 | Not Available | Hoover Pop-Up Button-S3273 | 38411053 | Not Available |
| 74 | Not Available | Hoover Latch Retainer-S3273 | 36131048 | Not Available |
| 75 | Not Available | Hoover Vent Tube-S3273 | 31727025 | Not Available |
| 76 | Not Available | Hoover Switch Assembly | 47511030 | Not Available |
| 77 | Not Available | Hoover Front Support | 58461025 | Not Available |
| 77 | Not Available | Hoover Rear Support - S3273 | 58461024 | Not Available |
| 77 | Not Available | Hoover Bottom Support-S3275 | 58369022 | Not Available |
| 77 | Not Available | Hoover Mid Pad-S3273 | 58333010 | Not Available |
| 77 | Not Available | Hoover Bottom Pad-S3273 | 58216010 | Not Available |
| 77 | Not Available | Hoover Owner Manual-S3633 | 56513207 | Not Available |
| 77 | Not Available | Hoover Owner Manual-S3273 | 56513206 | Not Available |
| 77 | Not Available | Hoover Tool Lid | 36433024 | Not Available |
| 78 | | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 78 | | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 78 | | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 78 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 79 | Not Available | Hoover Hose Complete-S3633 | 43433080 | Not Available |
| 79 | Not Available | Hoover Extention Tube | 43453052 | Not Available |
| 79 | Not Available | Hoover Power Nozzle | 48438190 | Not Available |
| 80 | Not Available | Hoover Hose Complete-S3633 | 43433080 | Not Available |
| 80 | Not Available | Hoover Extention Tube | 43453052 | Not Available |
| 80 | Not Available | Hoover Power Nozzle | 48438024 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Drive Screw-S3279 | 21124102 | Not Available |
| 01 | Not Available | Hoover Hose-S3279 | 43433025 | Not Available |
| 01 | Not Available | Hoover Hose Assembly | 43433082 | Not Available |
| 02 | Not Available | Hoover Grip-Mv-S3279 | 38634067 | Not Available |
| 03 | Not Available | Hoover Hose Connector-S3279 | 38638030 | Not Available |
| 04 | Not Available | Hoover Hose | 43431014 | Not Available |
| 05 | Not Available | Hoover Insulating Sleeve | 31712006 | Not Available |
| 06 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 07 | Not Available | Hoover Terminals | 12227 | Not Available |
| 08 | Not Available | Hoover Hose Grip-Left Hand-S3575 | 39461008 | Not Available |
| 08 | Not Available | Hoover Hose Grip Assembly | 48663161 | Not Available |
| 09 | Not Available | Hoover Grip Cont Panel (Incl. Items 6, 7,17) | 47551025 | Not Available |
| 10 | Not Available | Hoover Latch Ring-S3279 | 36153029 | Not Available |
| 11 | Not Available | Hoover Inner Tube-S3279 | 38646034 | Not Available |
| 12 | Not Available | Hoover Hose Grip-Right Hand-S3575 | 39461007 | Not Available |
| 12 | Not Available | Hoover Hose Grip Assembly | 48663161 | Not Available |
| 13 | Not Available | Hoover Screw-S3279 | 21447124 | Not Available |
| 14 | Not Available | Hoover Retaining Ring | 36131087 | Not Available |
| 15 | No Image | PLUG, HOSE 3 PIN DIMENSION Part Number: 46521008 for Hoover | 46521008 | $13.92Read more |
| 16 | Not Available | Hoover Hose Repair Kit | 46325024 | Not Available |
| 17 | Not Available | Hoover Wire Splice-S3281 | 27613003 | Not Available |
| 18 | Not Available | Hoover Switch | 28161051 | Not Available |
| 19 | Not Available | Hoover Latch Ring-S3273 | 36153009 | Not Available |
| 20 | Not Available | Hoover Suction Regulator | 34777007 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Screw S3057 | 21429406 | Not Available |
| 01 | Not Available | Hoover Cord Assembly | 46321088 | Not Available |
| 02 | Not Available | Hoover Br Housing | 168038 | Not Available |
| 02 | Not Available | Hoover Nozzle Body | 42252174 | Not Available |
| 03 | Not Available | Hoover Brush Housing | 168506 | Not Available |
| 03 | Not Available | Hoover Agitator Assembly | 48416009 | Not Available |
| 04 | Not Available | Hoover Strain Relief - 6460 | 163768 | Not Available |
| 04 | Not Available | Hoover Spring U3101 | 38353004 | Not Available |
| 05 | Not Available | Hoover Carbon Brush Complete | 167679 | Not Available |
| 05 | Not Available | Hoover Bracket-Right Hand | 34663003 | Not Available |
| 06 | Not Available | Hoover Wire Protect Bushing | 169702BZ | Not Available |
| 06 | Not Available | Hoover Nozzle Connector | 43482024 | Not Available |
| 07 | Not Available | Hoover Wire Nut | 48969 | Not Available |
| 07 | Not Available | Hoover Bolt | 36112003 | Not Available |
| 08 | Not Available | Hoover Motor Housing-C2075 | 42192016 | Not Available |
| 08 | Not Available | Hoover Seal | 34112005 | Not Available |
| 09 | Not Available | Hoover Spring Washer-C2075 | 21345116 | Not Available |
| 09 | Not Available | Hoover Seal | 34337003 | Not Available |
| 10 | Not Available | Hoover Thrust Washer-C2075 | 21312778 | Not Available |
| 10 | Not Available | Hoover Screw | 21447041 | Not Available |
| 11 | Not Available | Hoover Wheel | 32175025 | Not Available |
| 11 | Not Available | Hoover Star Ring-C2075 | 24198002 | Not Available |
| 12 | Not Available | Hoover Field Coil-C2075 | 45311048 | Not Available |
| 12 | Not Available | Hoover Wheel Shaft-S3199 | 31523005 | Not Available |
| 13 | Not Available | Hoover Armature & Brg-C2075 | 44765185 | Not Available |
| 13 | Not Available | Hoover Bottom Plate | 42246120 | Not Available |
| 14 | Not Available | Hoover Screw | 21447007 | Not Available |
| 14 | Not Available | Hoover Motor Mount-S3273 | 36322012 | Not Available |
| 15 | Not Available | Hoover Diffuser-C2075 | 43551013 | Not Available |
| 15 | Not Available | Hoover Seal-Lower | 34337004 | Not Available |
| 16 | Not Available | Hoover Spacer -C2075 | 31148009 | Not Available |
| 16 | Not Available | Hoover Duct Cover | 42256090 | Not Available |
| 17 | Not Available | Hoover Seal | 34123015 | Not Available |
| 17 | Not Available | Hoover Washer | 21312701 | Not Available |
| 18 | Not Available | Hoover Fan | 43566017 | Not Available |
| 18 | Not Available | Hoover Detent Spring | 35276001 | Not Available |
| 19 | Not Available | Hoover Interstage-C2075 | 42192033 | Not Available |
| 19 | Not Available | Hoover Motor - Pn | 43177073 | Not Available |
| 20 | Not Available | Hoover Bracket-Left Hand | 35271001 | Not Available |
| 20 | Not Available | Hoover Spacer -C2075 | 31743003 | Not Available |
| 21 | Not Available | Hoover Nut-S3005 | 33426001 | Not Available |
| 21 | No Image | Belt, Old Style Hoover Power Nozzle | 38528011 | $5.99Add to cart |
| 21 | Not Available | Hoover Nameplate-S3273 | 52125088 | Not Available |
| 22 | Not Available | Hoover Fan Cover -C2075 | 37196087 | Not Available |
| 22 | Not Available | Hoover Thread Guard U3101 | 41435018 | Not Available |
| 23 |  | Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 25 | Not Available | Hoover Agitator End U3101 | 36422001 | Not Available |
| 26 | Not Available | Hoover Agitator Brush | 48445017 | Not Available |
| 27 | Not Available | Hoover Agitator Shaft | 160070 | Not Available |
| 28 | Not Available | Hoover Agitator End Pulley | 38537002 | Not Available |
| 29 | Not Available | Hoover Thread Guard U3101 | 41435021 | Not Available |
