Schematic and parts list for: Hoover Model: S3203
This is a list of parts and a diagram and schematic for: Hoover Model: S3203
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
Popular Supplies
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Seal Foam-S3001 | 34113001 | Not Available |
| 01 | Not Available | Hoover Wheeled Rug & Floor Nozzle S3259, S3207, S3257 | 43414101 | Not Available |
| 01 | Not Available | Hoover Nozzle Connector Tub | 43463012 | Not Available |
| 01 | Not Available | Hoover Rug & Floor Nozzle S3205, S3299,S3299-031 | 48476026 | Not Available |
| 01 | Not Available | Hoover Rug & Floor Nozzle-Jm-S3129 S3187, S3187-030 | 48476064 | Not Available |
| 02 | Not Available | Hoover Washer-S3001 | 169241AW | Not Available |
| 02 | Not Available | Hoover Gasket | 13267 | Not Available |
| 03 | Not Available | Hoover Wheel-S2087 S3207 | 169239AG | Not Available |
| 03 | Not Available | Hoover Wheel | 169239JR | Not Available |
| 03 | Not Available | Hoover Rug & Floor Nozzle - S3299 | 38615156 | Not Available |
| 04 | Not Available | Hoover Litter Picker | 013259PH | Not Available |
| 04 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 05 | Not Available | Hoover Wheel Cover-S3001 | 169242 | Not Available |
| 05 | Not Available | Hoover Spring-S3013 | 015963FW | Not Available |
| 06 | Not Available | Hoover Rib Shoe | 13261AY | Not Available |
| 06 | Not Available | Hoover Nozzle Body-Jm-S3187 | 38615161 | Not Available |
| 07 |  | Separator Neutral Bissell repair part number: 1616184 | 1616184 | $23.73Read more |
| 07 | Not Available | Hoover Seal Foam-S3001 | 34112001 | Not Available |
| 08 | Not Available | Hoover Retainer | 161413 | Not Available |
| 08 | Not Available | Hoover Seal-Felt-S3001 | 34223002 | Not Available |
| 09 | Not Available | Hoover Roller Shaft-S3185 | 31524005 | Not Available |
| 09 | Not Available | Hoover Brush Housing | 169250AG | Not Available |
| 10 | Not Available | Hoover Rib Shoe-S3001 | 169253AY | Not Available |
| 10 | Not Available | Hoover Bottom Plate-Edge Clean | 42246002 | Not Available |
| 11 | Not Available | Hoover Screw | 12955 | Not Available |
| 11 | Not Available | Hoover Brush Back Complete- | 169256 | Not Available |
| 12 | Not Available | Hoover Furniture Guard | 169247JR | Not Available |
| 12 | Not Available | Hoover Furniture Guard S3207, S3257 | 169247JM | Not Available |
| 12 | Not Available | Hoover Roller | 013157AG | Not Available |
| 13 | Not Available | Hoover Nozzle Tube | 166652JM | Not Available |
| 13 | Not Available | Hoover Gasket-S3001 | 169251 | Not Available |
| 13 | Not Available | Hoover Rug & Floor Nozzle (Replaced By 43414121) | 43414105 | Not Available |
| 14 | Not Available | Hoover Felt Gasket-2910 | 166651 | Not Available |
| 14 | Not Available | Hoover Bottom Plate Complete | 169538 | Not Available |
| 15 | Not Available | Hoover Exp-Nozzle & Lock Assembly | 43414089 | Not Available |
| 15 | Not Available | Hoover Screw-S3001 | 21481464 | Not Available |
| 16 | Not Available | Hoover Brush Retainer Clips | 166646 | Not Available |
| 16 | Not Available | Hoover Screw-S3001 | 21481465 | Not Available |
| 17 | Not Available | Hoover Connector Tube Clamp | 166650AY | Not Available |
| 17 | Not Available | Hoover Roller - S3003 | 169243AG | Not Available |
| 18 | Not Available | Hoover Washer-C2075 | 21312758 | Not Available |
| 18 | Not Available | Hoover Screw | 166648AW | Not Available |
| 19 | No Image | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.99Read more |
| 19 | Not Available | Hoover Roller Shaft-S3001 | 169244AW | Not Available |
| 20 | Not Available | Hoover Brush Back-409 | 166656 | Not Available |
| 20 | Not Available | Hoover Lock Ring-S3001 | 24735081 | Not Available |
| 21 | No Image | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.99Read more |
| 22 | Not Available | Hoover Seal Foam L.H.-S3001 | 34513001 | Not Available |
| 23 | Not Available | Hoover Seal Foam R.H-S3001 | 34513002 | Not Available |
| 24 | Not Available | Hoover Wheel Shaft - S3001 | 169240AY | Not Available |
| 25 | Not Available | Hoover Connecting Tube Assembly | 169249JM | Not Available |
| 26 | Not Available | Hoover Seal | 34122006 | Not Available |
| 27 | Not Available | Hoover Suction Control Knob | 169254JM | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Seal Foam-S3001 | 34113001 | Not Available |
| 01 | Not Available | Hoover Wheeled Rug & Floor Nozzle S3259, S3207, S3257 | 43414101 | Not Available |
| 01 | Not Available | Hoover Nozzle Connector Tube | 43463012 | Not Available |
| 01 | Not Available | Hoover Rug & Floor Nozzle S3205, S3299,S3299-031 (Replaced By 43414101) | 48476026 | Not Available |
| 01 | Not Available | Hoover R&F Nozzle-Jm-S3129 S3187, S3187-030 (Replaced By 4341410) | 48476064 | Not Available |
| 02 | Not Available | Hoover Washer-S3001 | 169241AW | Not Available |
| 02 | Not Available | Hoover Gasket | 13267 | Not Available |
| 03 | Not Available | Hoover Wheel-S2087 S3207 | 169239AG | Not Available |
| 03 | Not Available | Hoover Wheel | 169239JR | Not Available |
| 03 | Not Available | Hoover Rug & Floor Nozzle - S3299 | 38615156 | Not Available |
| 04 | Not Available | Hoover Litter Picker | 013259PH | Not Available |
| 04 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 05 | Not Available | Hoover Wheel Cover-S3001 | 169242 | Not Available |
| 05 | Not Available | Hoover Spring-S3013 | 015963FW | Not Available |
| 06 | Not Available | Hoover Rib Shoe | 13261AY | Not Available |
| 06 | Not Available | Hoover Nozzle Body-Jm-S3187 | 38615161 | Not Available |
| 07 | | Separator Neutral Bissell repair part number: 1616184 | 1616184 | $23.73Read more |
| 07 | Not Available | Hoover Seal Foam-S3001 | 34112001 | Not Available |
| 08 | Not Available | Hoover Retainer | 161413 | Not Available |
| 08 | Not Available | Hoover Seal-Felt-S3001 | 34223002 | Not Available |
| 09 | Not Available | Hoover Roller Shaft-S3185 | 31524005 | Not Available |
| 09 | Not Available | Hoover Brush Housing | 169250AG | Not Available |
| 10 | Not Available | Hoover Rib Shoe-S3001 | 169253AY | Not Available |
| 10 | Not Available | Hoover Bottom Plate-Edge Cl | 42246002 | Not Available |
| 11 | Not Available | Hoover Screw | 12955 | Not Available |
| 11 | Not Available | Hoover Brush Back Complete- | 169256 | Not Available |
| 12 | Not Available | Hoover Furniture Guard-S318 | 169247JR | Not Available |
| 12 | Not Available | Hoover Furniture Guard-Litt S3207, S3257 | 169247JM | Not Available |
| 12 | Not Available | Hoover Roller | 013157AG | Not Available |
| 13 | Not Available | Hoover Nozzle Tube | 166652JM | Not Available |
| 13 | Not Available | Hoover Gasket-S3001 | 169251 | Not Available |
| 13 | Not Available | Hoover Rug & Floor Nozzle-A S3183, 3203, S3215, S3241, S3247(Replaced By 43414121) | 43414105 | Not Available |
| 14 | Not Available | Hoover Felt Gasket-2910 | 166651 | Not Available |
| 14 | Not Available | Hoover Bottom Plate Complete | 169538 | Not Available |
| 15 | Not Available | Hoover Exp-Nozzle & Lock Assembly | 43414089 | Not Available |
| 15 | Not Available | Hoover Screw-S3001 | 21481464 | Not Available |
| 16 | Not Available | Hoover Brush Retainer Clips | 166646 | Not Available |
| 16 | Not Available | Hoover Screw-S3001 | 21481465 | Not Available |
| 17 | Not Available | Hoover Connector Tube Clamp | 166650AY | Not Available |
| 17 | Not Available | Hoover Roller - S3003 | 169243AG | Not Available |
| 18 | Not Available | Hoover Washer-C2075 | 21312758 | Not Available |
| 18 | Not Available | Hoover Screw | 166648AW | Not Available |
| 19 | No Image | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.99Read more |
| 19 | Not Available | Hoover Roller Shaft-S3001 | 169244AW | Not Available |
| 20 | Not Available | Hoover Brush Back-409 | 166656 | Not Available |
| 20 | Not Available | Hoover Lock Ring-S3001 | 24735081 | Not Available |
| 21 | No Image | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.99Read more |
| 22 | Not Available | Hoover Seal Foam L.H.-S3001 | 34513001 | Not Available |
| 23 | Not Available | Hoover Seal Foam R.H-S3001 | 34513002 | Not Available |
| 24 | Not Available | Hoover Wheel Shaft - S3001 | 169240AY | Not Available |
| 25 | Not Available | Hoover Connecting Tube Assembly | 169249JM | Not Available |
| 26 | Not Available | Hoover Seal | 34122006 | Not Available |
| 27 | Not Available | Hoover Suction Control Knob | 169254JM | Not Available |

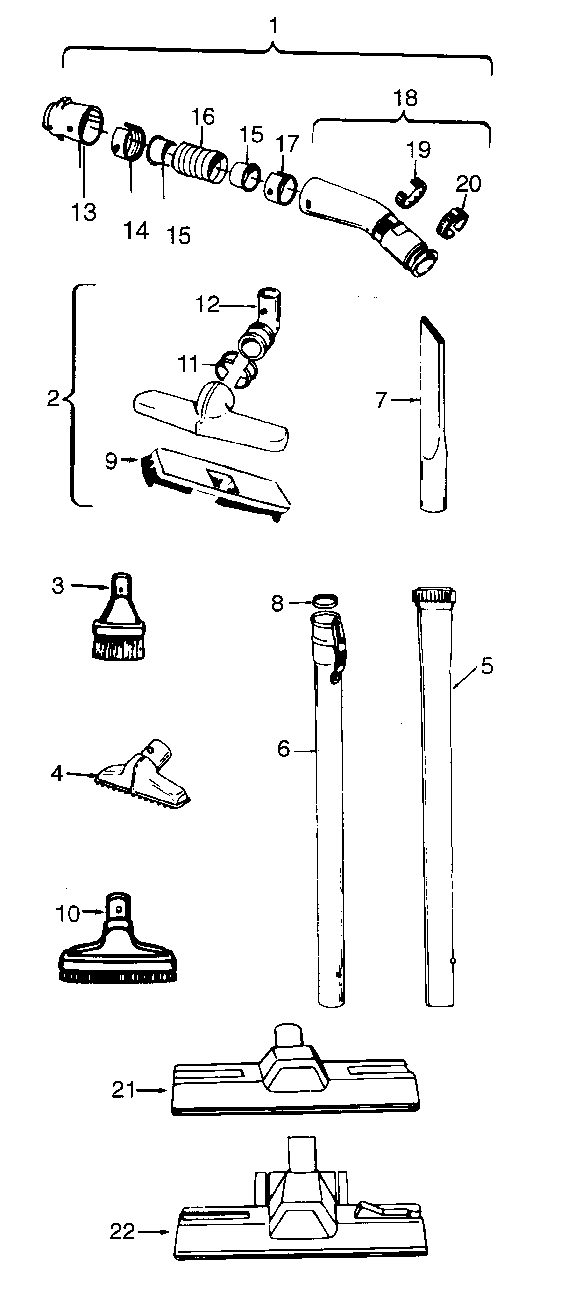

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Hose Assembly Stretch Hose (Not Pictured) | 43434013 | Not Available |
| 01 | Not Available | Hoover Hose-Ag/Abx-6' Molded | 43434233 | Not Available |
| 01 | Not Available | Hoover Hose 6'- Molded - Spirit | 43434231 | Not Available |
| 01 | Not Available | Hoover Hose Complete 6'Wire - Celebrity | 43434191 | Not Available |
| 01 | Not Available | Hoover Hose-Jm-S3203 6'Wire - Spirit | 43434155 | Not Available |
| 01 | Not Available | Hoover Hose 7.5'- Molded - Spirit | 43434131 | Not Available |
| 01 | Not Available | Hoover Hose 7.5'Molded - Spirit | 43434130 | Not Available |
| 01 | Not Available | Hoover Hose S/C- 6'- Molded - Spirit | 43434126 | Not Available |
| 01 | Not Available | Hoover Hose-S/C- 7'- Molded - Spirit | 43434125 | Not Available |
| 01 | Not Available | Hoover Hose-Jm | 43434065 | Not Available |
| 02 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 | Not Available | Hoover Floor Brush-Jm | 43414072 | Not Available |
| 03 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 04 | Not Available | Hoover Furniture Nozzle-S10 | 38614020 | Not Available |
| 04 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 | Not Available | Hoover Extension Tube-Poly | 43453037 | Not Available |
| 05 | No Image | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| 06 | Not Available | Hoover Extension Tube-20-Ax | 43453052 | Not Available |
| 07 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 08 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 09 | Not Available | Hoover Brush Back -S3273-S3 | 48447001 | Not Available |
| 10 | Not Available | Hoover Furniture Brush-Ag | 43414016 | Not Available |
| 10 | Not Available | Hoover Multi-Purpose Brush | 43414015 | Not Available |
| 11 | Not Available | Hoover Split Ring | 33712007 | Not Available |
| 12 | Not Available | Hoover Swivel Connector - A | 38644020 | Not Available |
| 12 | Not Available | Hoover Swivel Connector - A | 38644040 | Not Available |
| 13 | Not Available | Hoover Hose Connector-Ag-S3 Molded Hose | 38638039 | Not Available |
| 13 | Not Available | Hoover Hose Connector-Aap-S | 38638019 | Not Available |
| 13 | Not Available | Hoover Hose Connector-Aap Molded Hose | 38638017 | Not Available |
| 13 | Not Available | Hoover Hose Connector-Ag | 32855003 | Not Available |
| 14 |  | Collar, White Connects Hose Coupling Part Number: 012615BZ for Hoover | 012615BZ | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Hoover Hose Connector Colla | 38671011 | Not Available |
| 15 | Not Available | Hoover Hose Sleeve - Bz | 32156010 | Not Available |
| 16 | Not Available | Hoover Hose-Abx-S3393-040 6'- Abx - Molded | 38671033 | Not Available |
| 16 | Not Available | Hoover Hose - Aav 6'- Aav - Molded | 38671029 | Not Available |
| 17 | Not Available | Hoover Hose Connector Colla (All Wire Hoses) | 36116006 | Not Available |
| 17 | Not Available | Hoover Hose Connector Colla (Molded Hose) | 36171025 | Not Available |
| 18 | Not Available | Hoover Hose Grip-Ag-S1315 | 43466066 | Not Available |
| 18 | Not Available | Hoover Hose Grip W/Sc-Ag-S1 | 43466068 | Not Available |
| 19 | Not Available | Hoover Suction Control Ring | 38711014 | Not Available |
| 19 | Not Available | Hoover Suction Control Ring | 38711007 | Not Available |
| 20 | Not Available | Hoover Latch Ring-Ag-S3273 | 36153009 | Not Available |
| 21 | Not Available | Hoover Rug & Floor Nozzle | 0M114169 | Not Available |
| 21 | Not Available | Hoover Rug & Floor Nozzle | 43414139 | Not Available |
| 22 | Not Available | Hoover Wheeled Rug & Floor Nozzle | 43414101 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Screw | 21447041 | Not Available |
| 02 | Not Available | Hoover Motor Cover-Aag-S320 | 37195044 | Not Available |
| 03 | Not Available | Hoover Diffuser | 34163003 | Not Available |
| 04 | Not Available | Hoover Speed Nut-S3129 | 21366004 | Not Available |
| 05 | Not Available | Hoover Seal-S3203 | 34133007 | Not Available |
| 06 | Not Available | Hoover Pad | 34132006 | Not Available |
| 07 | Not Available | Hoover Seal-S3203 | 34143002 | Not Available |
| 08 | Not Available | Hoover Motor-S3203 Motor - (P-1 1 1) | 43577109 | Not Available |
| 09 | Not Available | Hoover Wire Nut | 48969 | Not Available |
| 10 | Not Available | Hoover Cord - Aap 16 Ft | 46363039 | Not Available |
| 11 | Not Available | Hoover Strain Relief | 27482301 | Not Available |
| 12 | Not Available | Hoover Wheel Bearing | 38511015 | Not Available |
| 13 | Not Available | Hoover Wheel - Ag | 38522061 | Not Available |
| 15 | Not Available | Hoover Wheel Carrier | 41432040 | Not Available |
| 17 | Not Available | Hoover Main Body | 37231025 | Not Available |
| 18 | Not Available | Hoover Latch | 36151015 | Not Available |
| 19 | Not Available | Hoover Filter | 31114010 | Not Available |
| 20 | Not Available | Hoover Filter Support-S3203 | 36426012 | Not Available |
| 21 | Not Available | Hoover Motor Retainer | 36321011 | Not Available |
| 22 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 24 | Not Available | Hoover Switch | 28162004 | Not Available |
| 25 | Not Available | Hoover Control Panel | 37214066 | Not Available |
| 29 | Not Available | Hoover Lid Seal | 38781010 | Not Available |
| 30 | Not Available | Hoover Bag Housing Lid | 42212045 | Not Available |
| 32 | Not Available | Hoover Rear Support-Poly-S3 | 58461020 | Not Available |
| 32 | Not Available | Hoover Front Support-S3243 | 58364013 | Not Available |
| 32 | Not Available | Hoover Bottom Support-S3243 | 58353007 | Not Available |
| 32 | Not Available | Hoover Owner Manual-S3203/4 | 56513208 | Not Available |
| 32 |  | Paper Bag, Micro Lined Type K Canister Spirit 3 Pk Part Number: 4010028K for Hoover | 4010028K | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | Hoover Rug & Floor Nozzle Aap -(P-94/188) | 0M114169 | Not Available |
| 33 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 33 | No Image | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| 33 | Not Available | Hoover Furniture Brush-Ag | 43414016 | Not Available |
| 33 | Not Available | Hoover Hose Assembly | 43434013 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Nut-S3005 | 33426001 | Not Available |
| 02 | Not Available | Hoover Washer | 21312701 | Not Available |
| 03 | Not Available | Hoover Screw | 21434224 | Not Available |
| 04 | Not Available | Hoover Outerstage Housing | 37191016 | Not Available |
| 05 | Not Available | Hoover Fan | 43566017 | Not Available |
| 06 | Not Available | Hoover Interstage Assembly | 43551005 | Not Available |
| 07 | Not Available | Hoover Fan Spacer-S1015-075 | 31742010 | Not Available |
| 08 | Not Available | Hoover Screw S3057-59-61 | 21429406 | Not Available |
| 09 | Not Available | Hoover Brush Housing-Only-S | 167696AG | Not Available |
| 10 |  | Hoover Conquest, Spirit, PowerMax Vacuum Carbon Brush W/Carrier, Spring 47318008 | 47318008 | $12.99Read more |
| 11 | Not Available | Hoover Spring U3101/3 U4201 | 38353004 | Not Available |
| 12 | Not Available | Hoover Carbon Brush & Term- | 167681 | Not Available |
| 13 | Not Available | Hoover Motor Housing-Upper | 42937003 | Not Available |
| 14 | Not Available | Hoover Wire Protect Bushing | 169702BZ | Not Available |
| 15 | Not Available | Hoover Field Lamination | 33421004 | Not Available |
| 16 | Not Available | Hoover Insulator | 31195002 | Not Available |
| 17 | Not Available | Hoover Field Assembly Comp-S101 | 45311035 | Not Available |
| 18 | Not Available | Hoover Spring-S3005 | 167721FW | Not Available |
| 19 | Not Available | Hoover Arm Assm Comp-S1015- | 44765171 | Not Available |
| 20 | Not Available | Hoover Motor Housing Assembly-Lower | 37191085 | Not Available |
| 21 | Not Available | Hoover Spacer | 31148002 | Not Available |
| 22 | Not Available | Hoover Interstage Mounting Plate | 36322002 | Not Available |
| 23 | Not Available | Hoover Nut - Special S3005 | 167695EF | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Rug & Floor Nozzle | 0M114169 | Not Available |
| 01 | Not Available | Hoover Rug & Floor Nozzle | 43414121 | Not Available |
| 01 | Not Available | Hoover Rug & Floor Nozzle | 43414139 | Not Available |
| 01 | Not Available | Hoover Rug & Floor Nozzle | 43414140 | Not Available |
| 01 | Not Available | Hoover Rug & Floor Nozzle | 43414170 | Not Available |
| 02 | Not Available | Hoover Nozzle Tube-Ag-S1221 | 38646039 | Not Available |
| 03 | Not Available | Hoover Rug & Floor Nozzle S3393-020, S3521, S1339 | 38615182 | Not Available |
| 03 | Not Available | Hoover Rug & Floor Nozzle (Use 43414180 Rug And Floor Nozzle) | 38615153 | Not Available |
| 04 | Not Available | Hoover Roller - S2095 | 38521018 | Not Available |
| 05 | Not Available | Hoover Roller Axle - S2095 | 31511004 | Not Available |
| 06 | Not Available | Hoover Brush Housing-Abr-S1 S1221, S1315, S1337 | 36414018 | Not Available |
| 07 | Not Available | Hoover Spring-2910 | 166649 | Not Available |
| 08 | Not Available | Hoover Brush Back Assembly | 48443004 | Not Available |
| 09 | Not Available | Hoover Screw-S2095/97/99 | 21447203 | Not Available |
| 10 | Not Available | Hoover Brush Back Lever S3393-020, S3521, S1221, S1339, S3547 | 38454006 | Not Available |
| 10 | Not Available | Hoover Brush Back Lever | 38454004 | Not Available |
| 11 | Not Available | Hoover Washer-Felt-S2095/97 | 21329105 | Not Available |
| 12 | Not Available | Hoover Wheeled Rug & Floor Nozzle | 43414101 | Not Available |
| 13 | Not Available | Hoover Nozzle Connector | 38646045 | Not Available |
| 14 | Not Available | Hoover Wheel/Axle Assembly | 43244043 | Not Available |
| 15 | Not Available | Hoover Wheel Bearing-Aat-S2 | 38511016 | Not Available |
| 16 | Not Available | Hoover Rug & Floor Nozzle | 43414117 | Not Available |
| 17 | Not Available | Hoover Roller - S2095 | 38521018 | Not Available |
| 18 | Not Available | Hoover Roller Axle - S2095 | 31511004 | Not Available |
| 19 | Not Available | Hoover Slider - Ag - S2099 | 38451008 | Not Available |
| 20 | Not Available | Hoover Brush Housing | 36414013 | Not Available |
| 21 | No Image | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.99Read more |
| 22 | Not Available | Hoover Brush Back Assembly | 48443004 | Not Available |
| 23 | Not Available | Hoover Screw-S2095/97/99 | 21447203 | Not Available |
| 24 | Not Available | Hoover Seal - S2099 | 34122013 | Not Available |
| 25 | Not Available | Hoover Pedal - Mv- S2099 | 38434015 | Not Available |
