Schematic and parts list for: Hoover Model: S2515
This is a list of parts and a diagram and schematic for: Hoover Model: S2515
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

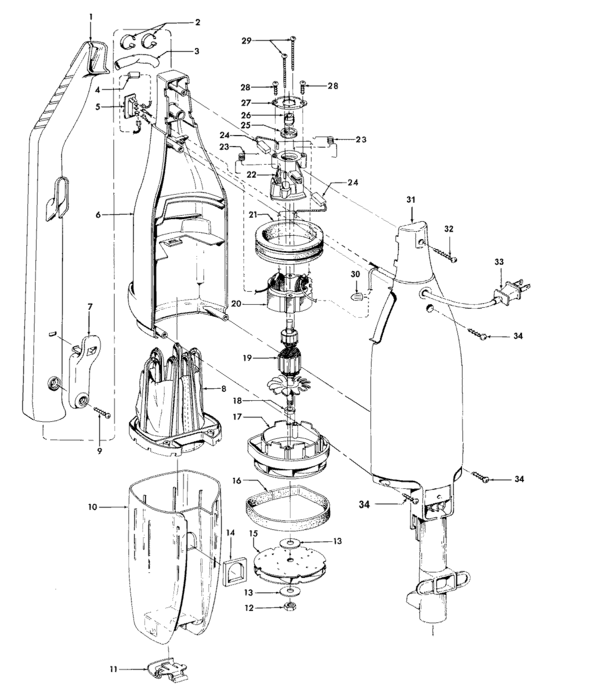

Parts for: Canister
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Handle-S2531/41/51/6 | 39454061 | Not Available |
| 2 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 3 | Not Available | Hoover Tubing - S2515/51/61 | 66655405 | Not Available |
| 4 | Not Available | Hoover Diode-S2515/51/61 | 47831008 | Not Available |
| 5 | Not Available | Hoover Switch-S2515/51/61 | 28164280 | Not Available |
| 6 | Not Available | Hoover Front Housing-S2515 | 37222008 | Not Available |
| 7 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 8 | Not Available | Hoover Filter-Sprint | 43615073 | Not Available |
| 8 | Not Available | Hoover Fltr/Separator Assy | 43615087 | Not Available |
| 9 | Not Available | Hoover Screw - Cord Clip Extension | 21447236 | Not Available |
| 10 | Not Available | Hoover Dirt Cup-Sprint | 43645046 | Not Available |
| 10 | Not Available | Hoover Dirt Cup-Stick Clnr | 43645047 | Not Available |
| 11 | Not Available | Hoover Latch-S2531 | 36153004 | Not Available |
| 12 | Not Available | Hoover Nut-F5411 | 21642021 | Not Available |
| 13 | Not Available | Hoover Washer-F5411 | 21312818 | Not Available |
| 14 | Not Available | Hoover Seal-S2515 | 38783022 | Not Available |
| 15 | Not Available | Hoover Fan Assembly-F5411 | 43566019 | Not Available |
| 16 | Not Available | Hoover Motor Support Seal-S | 34123048 | Not Available |
| 17 | Not Available | Hoover Motor Housing Assm-S | 42193024 | Not Available |
| 18 | Not Available | Hoover Bearing Spacer | 31148011 | Not Available |
| 19 | Not Available | Hoover Armature Assem.-Spri | 44731085 | Not Available |
| 20 | Not Available | Hoover Field Assem-Sprint | 45312047 | Not Available |
| 21 | Not Available | Hoover Motor Mount Insulato | 31195005 | Not Available |
| 22 | Not Available | Hoover Motor Brush Housing | 37193026 | Not Available |
| 23 | Not Available | Hoover Spring-F5411 | 38353014 | Not Available |
| 24 | Not Available | Hoover Motor Brush Kit-S256 | 47313010 | Not Available |
| 25 | Not Available | Hoover Felt Washer-F5411 | 21329108 | Not Available |
| 26 | Not Available | Hoover Sleeve Bearing - F54 | 24118214 | Not Available |
| 27 | Not Available | Hoover Sleeve Bearing Retai | 36134006 | Not Available |
| 28 | Not Available | Hoover Screw-Self Tapping-5/8 | 214793DA | Not Available |
| 29 | Not Available | Hoover Screw | 21479443 | Not Available |
| 30 | Not Available | Hoover Wire Connector | 27618508 | Not Available |
| 31 | Not Available | Hoover Rear Housing-S2505/1 | 37222013 | Not Available |
| 32 | Not Available | Hoover Screw - Cord Clip Extension | 21447236 | Not Available |
| 33 | Not Available | Hoover Cord | 46363110 | Not Available |
| 34 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 35 | Not Available | Hoover Cleaner Support - Sp | 58364018 | Not Available |
| 35 | Not Available | Hoover Secondary Filter | 38765021 | Not Available |
| 35 | Not Available | Hoover Owner Manual-Sprint | 56512176 | Not Available |
| 35 | Not Available | Hoover Nozzle Support-Sprin | 58242008 | Not Available |
| 35 | Not Available | Hoover Rug & Floor Nozzle | 43414180 | Not Available |

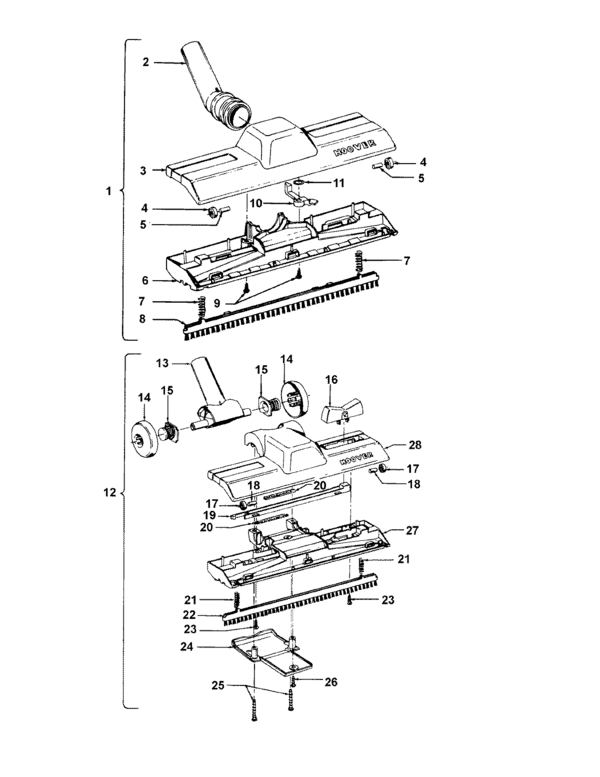

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Rug & Floor Nozzle | 43414180 | Not Available |
| 2 | Not Available | Hoover Nozzle Tube | 38646078 | Not Available |
| 3 | Not Available | Hoover Rug & Floor Noz-Abe | 38615182 | Not Available |
| 4 | Not Available | Hoover Roller - S2095 | 38521018 | Not Available |
| 5 | Not Available | Hoover Roller Axle - S2095 | 31511004 | Not Available |
| 6 | Not Available | Hoover Brush Housing-Abr-S1 | 36414018 | Not Available |
| 7 | No Image | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.99Read more |
| 8 | Not Available | Hoover Brush Back Assm-S209 | 48443004 | Not Available |
| 9 | Not Available | Hoover Screw-S2095/97/99 | 21447203 | Not Available |
| 10 | Not Available | Hoover Brush Back Lever - S | 38454004 | Not Available |
| 12 | Not Available | Hoover Rug & Floor Nozzle | 43414180 | Not Available |
| 12 | Not Available | Hoover Rug & Fl Noz Assm | 43414182 | Not Available |
| 13 | Not Available | Hoover Noz Con-Ag-S2571 | 38646082 | Not Available |
| 14 | Not Available | Hoover Wheel/Axle Assembly | 43244043 | Not Available |
| 15 | Not Available | Hoover 0 Not Required Part Or See Note Turbine Complete | W1012435 | Not Available |
| 16 | Not Available | Hoover Pedal-Ag-S2571 | 38434022 | Not Available |
| 16 | Not Available | Hoover Pedal-Abm-S2155 | 38434019 | Not Available |
| 17 | Not Available | Hoover Roller - S2095 | 38521018 | Not Available |
| 18 | Not Available | Hoover Roller Axle - S2095 | 31511004 | Not Available |
| 19 | Not Available | Hoover Slider - Ag - S2099 | 38451008 | Not Available |
| 20 | Not Available | Hoover Seal - S2099 | 34122013 | Not Available |
| 21 | No Image | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.99Read more |
| 22 | Not Available | Hoover Brush Back Assm-S209 | 48443004 | Not Available |
| 23 | Not Available | Hoover Screw-S2095/97/99 | 21447203 | Not Available |
| 24 | Not Available | Hoover Skid Plate-Ag-S2571 | 36434006 | Not Available |
| 24 | Not Available | Hoover Skid Plate-Abr-S2155 | 36434005 | Not Available |
| 25 | Not Available | Hoover Screw | 21447020 | Not Available |
| 25 | Not Available | Hoover Screw-S2095/97/99 | 21447203 | Not Available |
| 26 | Not Available | Hoover Brush Housing-Abr-S2 | 36414019 | Not Available |
| 26 | Not Available | Hoover Brush Hsg-Ag-S2571 | 36414023 | Not Available |
| 27 | Not Available | Hoover Rug & Floor Nozzle-A | 43414157 | Not Available |
| 27 | Not Available | Hoover Rug & Fl Noz-Adj | 43414185 | Not Available |
