Schematic and parts list for: Hoover Model: S2505
This is a list of parts and a diagram and schematic for: Hoover Model: S2505
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

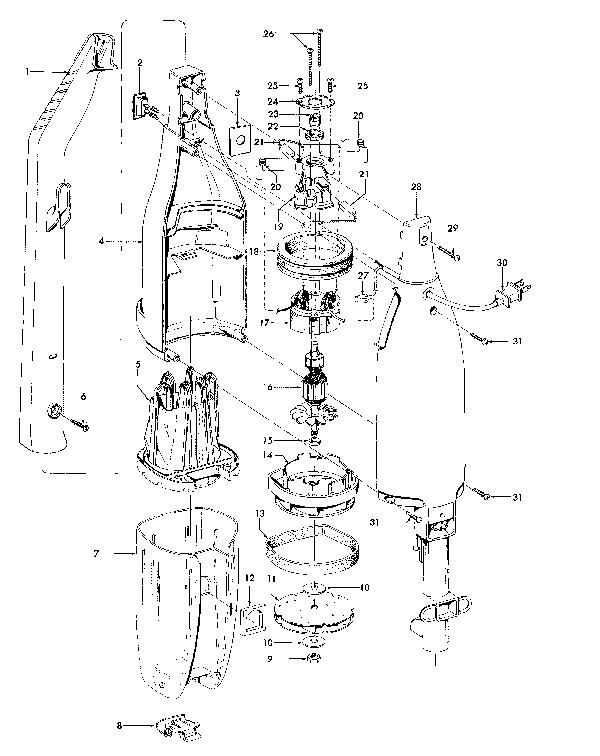

Parts for: Canister
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Handle | 39454061 | Not Available |
| 02 | Not Available | Hoover Switch | 28161063 | Not Available |
| 03 | Not Available | Hoover Insulator | 34144009 | Not Available |
| 04 | Not Available | Hoover Front Housing S2505 | 37222004 | Not Available |
| 05 | Not Available | Hoover Filter/Separator Assembly With Post - Cyclonic Style | 43615087 | Not Available |
| 05 | Not Available | Hoover Filter-Sprint Early Models Without Post | 43615073 | Not Available |
| 06 | Not Available | Hoover Screw | 21447236 | Not Available |
| 07 | Not Available | Hoover Dirt Cup-Sprint (Incl. It. 8) Used With Filter Without Post | 43645046 | Not Available |
| 07 | Not Available | Hoover Dirt Cup-Stick Cleaner With Slot ( Incl. Item 8) Used With Filter With Post | 43645047 | Not Available |
| 08 | Not Available | Hoover Latch | 36153004 | Not Available |
| 09 | Not Available | Hoover Nut | 21642021 | Not Available |
| 10 | Not Available | Hoover Washer | 21312818 | Not Available |
| 11 | Not Available | Hoover Fan Assembly | 43566019 | Not Available |
| 12 | Not Available | Hoover Seal | 38783022 | Not Available |
| 13 | Not Available | Hoover Motor Support Seal | 34123048 | Not Available |
| 14 | Not Available | Hoover Motor Housing Assembly | 42193024 | Not Available |
| 15 | Not Available | Hoover Bearing Spacer | 31148011 | Not Available |
| 16 | Not Available | Hoover Armature Assembly | 44731085 | Not Available |
| 17 | Not Available | Hoover Field Assembly-Sprint (Incl. It. 21) | 45312047 | Not Available |
| 18 | Not Available | Hoover Motor Mount Insulation | 31195005 | Not Available |
| 19 | Not Available | Hoover Motor Brush Housing | 37193026 | Not Available |
| 20 | Not Available | Hoover Spring | 38353014 | Not Available |
| 21 | Not Available | Hoover Motor Brush Kit (Includes Two Brushes And Two Crimps) | 47313010 | Not Available |
| 22 | Not Available | Hoover Felt Washer | 21329108 | Not Available |
| 23 | Not Available | Hoover Sleeve Bearing | 24118214 | Not Available |
| 24 | Not Available | Hoover Sleeve Bearing Retainer | 36134006 | Not Available |
| 25 | Not Available | Hoover Screw-Self Tapping-5/8" | 214793DA | Not Available |
| 26 | Not Available | Hoover Screw | 21479443 | Not Available |
| 27 | Not Available | Hoover Wire Connector | 27618508 | Not Available |
| 28 | Not Available | Hoover Rear Housing | 37222013 | Not Available |
| 29 | Not Available | Hoover Screw | 21447236 | Not Available |
| 30 | Not Available | Hoover Cord-Sprint 20' | 46363110 | Not Available |
| 31 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 32 | Not Available | Hoover Rug & Floor Nozzle | 43414036 | Not Available |
| 32 | Not Available | Hoover Owner Manual-Sprint | 56512176 | Not Available |
| 32 | Not Available | Hoover Nozzle Support | 58242008 | Not Available |
| 32 | Not Available | Hoover Cleaner Support | 58364018 | Not Available |
| 32 | Not Available | Hoover Secondary Filter | 38765021 | Not Available |

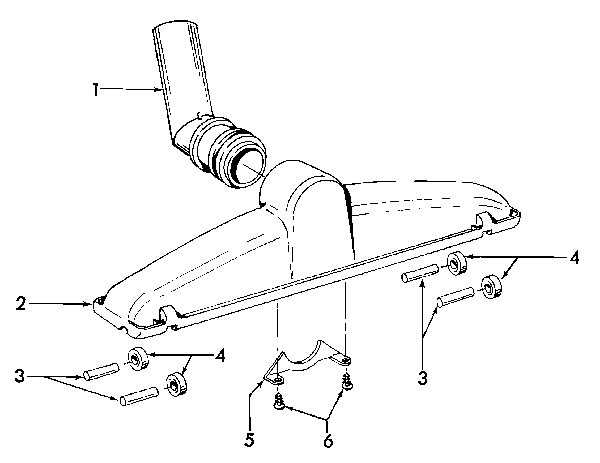

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Nozzle Tube | 38615024 | Not Available |
| 02 | Not Available | Hoover Hard Floor Br-14 In St | 43414189 | Not Available |
| 03 | Not Available | Hoover Roller Axle | 31511004 | Not Available |
| 04 | Not Available | Hoover Roller | 38521018 | Not Available |
| 05 | Not Available | Hoover Connector Tube Clamp | 166650AY | Not Available |
| 06 | Not Available | Hoover Screw | 166648AW | Not Available |
