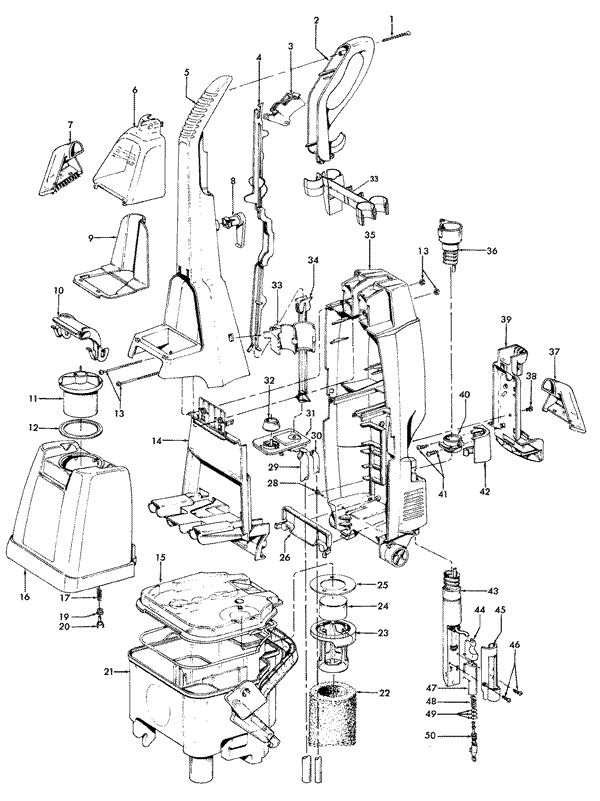

Schematic and parts list for: Hoover Model: F5907
This is a list of parts and a diagram and schematic for: Hoover Model: F5907
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SteamVac
| # | Part image | Description | SKU | Price |
| xx | Not Available | Hoover Carpet Cleaning Solution 16Oz | 57333016 | Not Available |
| xx | Not Available | Hoover Nozzle Clean Out Too F5875-900 | 39514001 | Not Available |
| xx | Not Available | Hoover Pre-Cleaner-16Oz(12) F5873-900 | AH30610 | Not Available |
| xx | Not Available | Hoover Bare Floor-32Oz Bare Floor Solution - 32 Oz. - F5871-900, F5873-900 | 40303032 | Not Available |
| xx | Not Available | Hoover Sprayer - F5825 F5873-900 | 43412003 | Not Available |
| xx | Not Available | Hoover Bare Floor Cleaning | 440007192 | Not Available |
| xx | No Image | Hoover 302598001 Upholstery Tool, Air Driven Extactor | 302598001 | $32.99Read more |
| 01 | Not Available | Hoover Screw-Self Tapping-S | 21447248 | Not Available |
| 02 | Not Available | Hoover Handle Lever Guard-S | 39458006 | Not Available |
| 03 | Not Available | Hoover Control Lever-Sv Iii | 38434028 | Not Available |
| 04 | Not Available | Hoover Upper Control Rod-Sv | 38458037 | Not Available |
| 05 | Not Available | Hoover Upper Handle-Kit ( Inc. Items 1, 2, 3, 4, 8) | 40309038 | Not Available |
| 05 | Not Available | Hoover Upper Handle-Sv-12A Inc. Items 1, 2, 3, 4, 8) F5872-900, F5878-900, F5907-900 | 39466049 | Not Available |
| 06 | Not Available | Hoover Tool Cover-F5871-900 | 37276011 | Not Available |
| 07 |  | Hoover Upholstery Tool for Shampooers | WP11565 | $9.99Add to cart |
| 08 | Not Available | Hoover Cord Wrap | 39442041 | Not Available |
| 09 | Not Available | Hoover Tool Holder - F5871- F5871-900, F5872-900, F5878-900, F5907-900 | 36433127 | Not Available |
| 10 | Not Available | Hoover Solution Tank Handle | 39457016 | Not Available |
| 11 | Not Available | Hoover Solution Tank Cap | 42272002 | Not Available |
| 12 |  | Gasket, :( Circular Tank SteamVac/Uprights Part Number: 38784062 for Hoover | 38784062 | $1.57Read more |
| 13 |  | Nut & Bolt, Handle Hardware SteamVac F6020 2Pk Part Number: 40201245 for Hoover | 40201245 | $5.12Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | | Nut & Bolt, Handle Hardware SteamVac F6020 2Pk Part Number: 40201245 for Hoover | 40201245 | $5.12Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Hoover Handle Cover-Sv Iii | 37276002 | Not Available |
| 15 | Not Available | Hoover Recovery Tank Lid As (Incl. It. 22,23,24,25) | 42272120 | Not Available |
| 16 | Not Available | Hoover Solution Tank (Incl. It 10,11,12,17,18,19,20) | 440007358 | Not Available |
| 17 | Not Available | Hoover Spring | 38312014 | Not Available |
| 19 |  | Gasket, Tank Valve Seal FloorMate/SteamVac Part Number: 440013804 for Hoover | 440013804 | $4.81Read more |
| 20 | Not Available | Hoover Valve Stem | 440009753 | Not Available |
| 21 | Not Available | Hoover Recovery Tank-F58629 Models With No Tank Filter. Screen In Tank (Includes Item 15) | 38777070 | Not Available |
| 21 | Not Available | Hoover Recovery Tank-Sv (Inc. It. 15) | 38777065 | Not Available |
| 22 | Not Available | Hoover Tank Filter | 43611041 | Not Available |
| 23 |  | Retainer, Float SteamVac/Extractor FH50025/F5809 Part Number: 38719027 for Hoover | 38719027 | $4.52Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | Hoover Float Assembly | 43538001 | Not Available |
| 25 | Not Available | Hoover Seal-Fl. Ret.-Steam | 38784070 | Not Available |
| 26 | Not Available | Hoover Solution Tube Cover- | 37276010 | Not Available |
| 28 | No Image | SCREW, LOWER HAND SVIII Part Number: 21447244 for Hoover | 21447244 | $1.03Read more |
| 29 | No Image | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 40309002 | $25.00Read more |
| 30 | No Image | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 40309002 | $25.00Read more |
| 31 | Not Available | Hoover Reservoir Assembly-F581 (Inc. Item 32) | 43516008 | Not Available |
| 32 | Not Available | Hoover Solution Tank Seal | 38784060 | Not Available |
| 33 | Not Available | Hoover Hose/Noz Holder-Sv | 36433129 | Not Available |
| 33 | Not Available | Hoover Hose/Nozzle Holder-S | 36172005 | Not Available |
| 34 | Not Available | Hoover Control Rod - Lower | 38458033 | Not Available |
| 35 | Not Available | Hoover Lower Handle-Sv Iii | 39466037 | Not Available |
| 36 | Not Available | Hoover Hose Assembly (Incl. It 43 Thru 50 | 43436011 | Not Available |
| 36 | Not Available | Hoover Hose-Sv-8 Ft. (Incl. It. 43 Thru 50) F5872-900, F5878-900, F5907-900 | 43436016 | Not Available |
| 37 | Not Available | Hoover Nozzle Body-F5871/73 | 38613028 | Not Available |
| 38 | Not Available | Hoover Screw | 21447041 | Not Available |
| 39 | Not Available | Hoover Tool Rack-Lower-Stm | 36433131 | Not Available |
| 40 | Not Available | Hoover Hose Clamp-Sv Iii'S | 36171032 | Not Available |
| 41 | Not Available | Hoover Screw-Self-Tapping (2required) | 21447228 | Not Available |
| 42 | Not Available | Hoover Hose Cover-Sv Iii | 36131097 | Not Available |
| 43 | Not Available | Hoover Hose Assembly (Incl. It. 43 Thru 50) | 43436011 | Not Available |
| 43 | Not Available | Hoover Hose-Sv-8 Ft. (Incl. It. 43 Thru 50) F5872-900, F5878-900, F5907-900 | 43436016 | Not Available |
| 44 |  | Trigger, Black SteamVac FH50044 Part Number: 38433074 for Hoover | 38433074 | $1.96Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | Not Available | Hoover Wand Cover-Sv Iii | 37276006 | Not Available |
| 46 | Not Available | Hoover Screw | 21447239 | Not Available |
| 47 | Not Available | Hoover Wand Valve Assembly-Sv | 43513011 | Not Available |
| 48 | Not Available | Hoover Spring | 38312019 | Not Available |
| 50 | Not Available | Hoover Nozzle/Valve Assembly | 43412007 | Not Available |
| # | Part image | Description | SKU | Price |
| xx | Not Available | Hoover Hood Assembly-Sviii (Inc. Items 11, 17) F5870-900, F5875-900, F5876-900 | 37271064 | Not Available |
| 01 | Not Available | Hoover Screw | 21447003 | Not Available |
| 02 | No Image | SCREW, SVIII Part Number: 21447247 for Hoover | 21447247 | $1.99Read more |
| 03 | Not Available | Hoover Screw-Self Tapping | 23149002 | Not Available |
| 04 | No Image | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 40309002 | $25.00Read more |
| 05 | No Image | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 40309002 | $25.00Read more |
| 06 | Not Available | Hoover Duct-Sv Iii | 43466071 | Not Available |
| 07 | Not Available | Hoover On/Off Label - Steam | 51865024 | Not Available |
| 08 | Not Available | Hoover Handle Rel Label-Steam | 51638055 | Not Available |
| 09 | Not Available | Hoover Lead Wire-Purple-Sv | 49811080 | Not Available |
| 09 | Not Available | Hoover Exhaust Duct Cv-Mn Bdy F5907-900 (Main Body) | 38769028 | Not Available |
| 09 | Not Available | Hoover Indicator Knob-F5851 | 38421093 | Not Available |
| 09 | Not Available | Hoover Mn Body-Sv-W/Vt-F590 F5907-900 (Includes Exhaust Duct) | 42274006 | Not Available |
| 09 | Not Available | Hoover Hood-Afs-F5907-900 F5907-900 | 37271107 | Not Available |
| 10 | Not Available | Hoover Nameplate-Tool Mode- | 51438006 | Not Available |
| 11 | Not Available | Hoover Lens | 39383106 | Not Available |
| 12 | Not Available | Hoover Hood-Aes-F5897-900 (Incl. It. 11, 17) - F5881-900 | 37271080 | Not Available |
| 12 | Not Available | Hoover Hood-Adg-F5866-900 (Incl. It. 11, 17) - F5864-900, F5867-900 | 37271073 | Not Available |
| 12 | Not Available | Hoover Hood Assembly-F5873- (Incl. It. 11, 17) - F5865-900 | 37271055 | Not Available |
| 12 | Not Available | Hoover Hood Assembly-F5869- Hood - | 37271052 | Not Available |
| 12 | Not Available | Hoover Hood-Ag-F5862-900 (Incl. It. 11, 17) - F5875-900, F5870-900, F5871-900 | 37271078 | Not Available |
| 12 | Not Available | Hoover Hood - (Incl. It. 11, 17) - F5 F5885-980 | 37271050 | Not Available |
| 12 | Not Available | Hoover Hood Assembly-F5868- (Incl. It. 11, 17) - F5868-900 | 37271051 | Not Available |
| 12 | Not Available | Hoover Hood Assembly-F5883- (Incl. It. 11, 17) - F5883-900 | 37271043 | Not Available |
| 12 | Not Available | Hoover Hood Assembly-F5837- Aby - (Incl. It. 11, 17) - F5837-900 | 37271045 | Not Available |
| 12 | Not Available | Hoover Hood Assembly-F5839- (Incl. It. 11, 17) - F5873-900, F5839-900 | 37271046 | Not Available |
| 12 | Not Available | Hoover Hood Assembly-F5884- (Incl. It. 11, 17) - F5884-900 | 37271048 | Not Available |
| 13 | Not Available | Hoover Label, Brush/Speed | 51639192 | Not Available |
| 14 | Not Available | Hoover Screw-Self Tapping | 21447217 | Not Available |
| 15 | Not Available | Hoover Motor Cover/Valve-Sv F5837-900, F5839-900 | 42191005 | Not Available |
| 15 | Not Available | Hoover Motor Cover/Valve-Sv | 42191007 | Not Available |
| 16 | Not Available | Hoover Valve Crank Arm-Sv I | 36439001 | Not Available |
| 17 | Not Available | Hoover Screen Assembly | 43613009 | Not Available |
| 19 | Not Available | Hoover Indicator Label-Stm | 51611008 | Not Available |
| 20 | Not Available | Hoover Turbine Actuator Arm All Models Except F5837-900, F5839-900 | 38458024 | Not Available |
| 20 | Not Available | Hoover Turbine Actuator Arm F5837-900, F5839-900 | 38458050 | Not Available |
| 21 | Not Available | Hoover Over Center Spring-S | 36132003 | Not Available |
| 22 | Not Available | Hoover Handle Release Lever | 38458042 | Not Available |
| 23 | Not Available | Hoover Spring- Turbine-F586 | 38356013 | Not Available |
| 24 | Not Available | Hoover Spring | 38333009 | Not Available |
| 25 | Not Available | Hoover Turbine Assembly-Sv Models With Five Rotating Brushes (Incl. It. 18, 23, 24) | 43191003 | Not Available |
| 26 | No Image | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 40309002 | $25.00Read more |
| 27 | Not Available | Hoover Rear Axle (2 required) | 32434007 | Not Available |
| 28 | Not Available | Hoover Rear Wheel (2 required) | 38522076 | Not Available |
| 29 | Not Available | Hoover Standpipe Seal | 38784063 | Not Available |
| 30 | Not Available | Hoover Lock Ring | 160017 | Not Available |
| 31 | Not Available | Hoover Pump Assembly-Sv Iii | 43582005 | Not Available |
| 32 | No Image | 5-brush brush for hoover steamvac models F5851 F5855 F5859 F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 48437022 | $25.00Read more |
| 33 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 34 | Not Available | Hoover Screw (2 required) | 21479438 | Not Available |
| 35 | Not Available | Hoover Mn Body-Sv-W/Vt-5 Br All Models Except F5837-900, F5839-900 | 42274005 | Not Available |
| 35 | Not Available | Hoover Main Body F5837-900, F5839-900 | 37272095 | Not Available |
| 36 | Not Available | Hoover Cord Retainer | 36172054 | Not Available |
| 37 | Not Available | Hoover Switch-F5805/15/25 | 28218048 | Not Available |
| 38 | Not Available | Hoover Trunion Cover - Lh | 36131086 | Not Available |
| 39 | Not Available | Hoover Switch Actuator Lever | 38434025 | Not Available |
| 40 | Not Available | Hoover Trunion Cover - Rh | 36131085 | Not Available |
| 41 | Not Available | Hoover Motor Base Seal | 38781048 | Not Available |
| 42 | No Image | CORD, 31' STEAMER WHITE WIRE STRIPPED Part Number: 46583012 for Hoover | 46583012 | $28.91Read more |
| 42 | Not Available | Hoover Cord-Steam Vac-33' Cord (Use With Hoover Motor) | 46583125 | Not Available |
| 43 | Not Available | Hoover Brush Holder Assembly | 41311016 | Not Available |
| 43 | No Image | Hoover SteamVac SpinScrub Carpet Cleaner F5915900 -Ametek motor E47185 122082-0 440005480 | 440005480 | $59.99Read more |
| 43 | Not Available | Hoover Motor Kit-Wv F5837-900, F5839-900 (Units With Gs Motor). | 40309009 | Not Available |
| 44 | Not Available | Hoover Motor Seal | 34113004 | Not Available |
| 45 | Not Available | Hoover Hose/Noz Kit-Sviii_E (W/O Release Tab On Nozzle) | 40309032 | Not Available |
| 45 | Not Available | Hoover Hose Assembly (W/ Release Tab On Nozzle) | 43436011 | Not Available |
| 46 | Not Available | Hoover O Ring-All Sv Iii | 25156518 | Not Available |
| 47 | Not Available | Hoover Screw-Sv 3.125" | 21447246 | Not Available |
| 48 | Not Available | Hoover Valve Tank Seal-Sv I | 38783023 | Not Available |
| 49 | Not Available | Hoover O Ring-All Sv Iii | 25156517 | Not Available |
| 50 | Not Available | Hoover Solution Hose Couple | 38719039 | Not Available |
| 51 | Not Available | Hoover Valve Duct Seal-Sv I | 38783024 | Not Available |
| 52 | Not Available | Hoover Latch Lock-Lh-Sv Iii | 36151021 | Not Available |
| 53 | Not Available | Hoover Speed Nut-S6529/43/4 (Early Models) | 21364107 | Not Available |
| 54 | Not Available | Hoover Latch Lock-Rh-Sv Iii | 36151020 | Not Available |
| 55 | Not Available | Hoover Screw-Self Tapping-F (2 required) | 21447232 | Not Available |
| 56 |  | Hoover HOOVER 48447002 STATIONARY BRUSH for models F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 48447002 | $10.00Read more |
| 56 | Not Available | Hoover Lead Wire-Black-C382 (Front Of Motor To Switch) | 49811039 | Not Available |
| 60 | | Hoover HOOVER 48447002 STATIONARY BRUSH for models F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 48447002 | $10.00Read more |
