Schematic and parts list for: Hoover Model: F5863

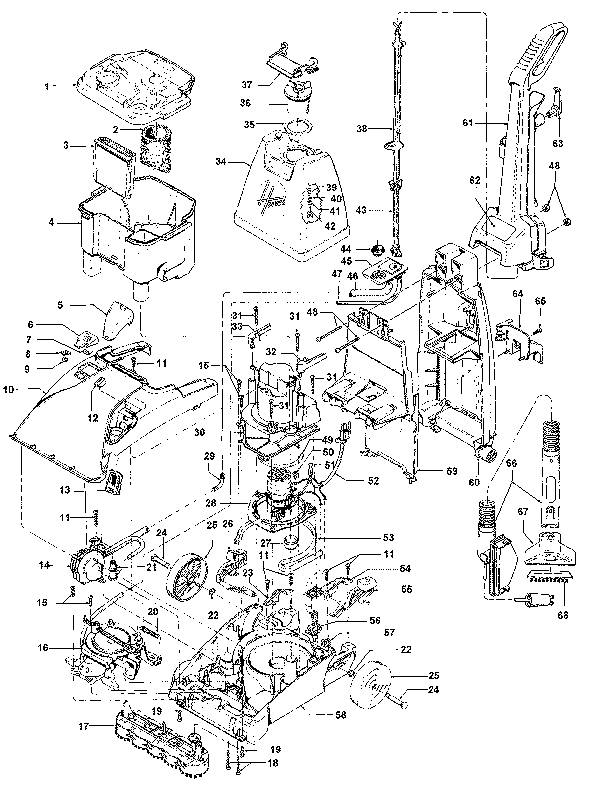

This is a list of parts and a diagram and schematic for: Hoover Model: F5863
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SteamVac
| # | Part image | Description | SKU | Price |
| xx |  | Retainer, Float SteamVac/Extractor FH50025/F5809 Part Number: 38719027 for Hoover | 38719027 | $4.52Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | Hoover Carpet Deter-64Oz(6) F5860-990, F5861-990, F5863-990 | 40301064 | Not Available |
| xx | Not Available | Hoover Pre-Cleaner-16Oz(12) F5857-900, F5857-990, F5858-900, F5860-990,F5861-900 , F5861-990 (2), F5863-900, F5863-990 | AH30610 | Not Available |
| xx | Not Available | Hoover Bare Floor-32Oz Bare Floor Cleaner - 32 Oz. | 40303032 | Not Available |
| xx | Not Available | Hoover Carpet Clng Solution 16Oz F5843-900, F5853-900, F5857-900, F5858-900, F5858-910, F5860-900 | 57333016 | Not Available |
| xx | Not Available | Hoover Motor-Sv-12 Amp 12 Amp Ametek - F5858-910 (Use Hoover Motor) | 27212051 | Not Available |
| xx | Not Available | Hoover Door-Afc-F5858-910 (Incl. It. 8,9) F5858-910 | 37257279 | Not Available |
| xx | Not Available | Hoover Hood-Afc-F5858-910 (Incl. It. 6, 7, 8 ,9) - F5858-910, F5900-900 | 37271072 | Not Available |
| xx | Not Available | Hoover Hood-Abw-F5843-900 (Incl. Items 6, 7, 8, 9) - F5843-900, F5858-900 After 11/02 | 37271100 | Not Available |
| xx | Not Available | Hoover Mn Body-Sv-W/Vt-F590 F5843-900, F5858-910, F5886-900 | 42274006 | Not Available |
| xx | Not Available | Hoover On/Off Label - Steam | 51865024 | Not Available |
| xx | Not Available | Hoover Agitator Speed Label F5858-900 | 51855032 | Not Available |
| xx | Not Available | Hoover Seal-Fl. Ret.-Steam | 38784070 | Not Available |
| xx | Not Available | Hoover Nozzle Clean Out Too All Models Except F5858-910, F5906-900 | 39514001 | Not Available |
| xx | Not Available | Hoover Sprayer - F5825 F5857-900, F5860-990 | 43412003 | Not Available |
| xx | Not Available | Hoover Bare Floor Cleaning All Models Except F5886-900, F5906-900 | 440007192 | Not Available |
| xx | Not Available | Hoover Handle Relaese Label F5858-900 | 51638054 | Not Available |
| xx | Not Available | Hoover Hdl Rel Label-Steam | 51638055 | Not Available |
| xx | Not Available | Hoover Door Label F5843-900, F5858-900, F5858-910, F5906-900 | 51639117 | Not Available |
| xx | Not Available | Hoover Label-Door-Steam Vac | 51639124 | Not Available |
| xx | Not Available | Hoover Label, Brush/Speed | 51639192 | Not Available |
| xx | No Image | Hoover SteamVac SpinScrub Carpet Cleaner F5915900 -Ametek motor E47185 122082-0 440005480 | 440005480 | $59.99Read more |
| xx | Not Available | Hoover Cord-Wp-30 Ft-12 Amp | 46583056 | Not Available |
| xx | Not Available | Hoover Door-Ag F5886-900 F5886-900 | 37257297 | Not Available |
| xx | Not Available | Hoover Front/Rear Support | 58461019 | Not Available |
| xx | Not Available | Hoover Door Assem - F5815 (Incl. It. 8, 9) - F5843-900 After 11/02 | 37257102 | Not Available |
| xx | Not Available | Hoover Mid Support-F5851/55 | 58364017 | Not Available |
| xx | Not Available | Hoover Bottom Rear Support | 58332024 | Not Available |
| xx | Not Available | Hoover Rear Support | 58315006 | Not Available |
| xx | Not Available | Hoover Float Assembly | 43538001 | Not Available |
| xx | Not Available | Hoover Hood-Ag F5886-900 F5886-900 | 37271096 | Not Available |
| xx | No Image | Hoover 302598001 Upholstery Tool, Air Driven Extactor | 302598001 | $32.99Read more |
| xx | Not Available | Hoover Handle Protector-F58 | 58313006 | Not Available |
| 01 | Not Available | Hoover Recovery Tank Lid (Incl. It. 2) | 42272111 | Not Available |
| 02 | Not Available | Hoover Tank Filter | 43611041 | Not Available |
| 03 | Not Available | Hoover Duct | 38661003 | Not Available |
| 04 | Not Available | Hoover Recovery Tank-Service ( Inc. Items 1,3 ) | 38777081 | Not Available |
| 05 | Not Available | Hoover Lens | 39383106 | Not Available |
| 06 | Not Available | Hoover Door-F5855 (Incl. Lt. 8, 9) - F5857-900, -990 | 37257105 | Not Available |
| 06 | Not Available | Hoover Door-F5851 (Incl. It. 8, 9) - F5853-900, F5860-900 | 37257106 | Not Available |
| 06 | Not Available | Hoover Door-F5859 (Incl. It. 8, 9) - F5861-900, -990 | 37257205 | Not Available |
| 06 | Not Available | Hoover Door-F5863-900 (Incl. It. 8, 9) - F5863-900, -990 | 37257208 | Not Available |
| 06 | Not Available | Hoover Door-F5858-900 (Incl. It. 8, 9) - F5858-900 Before 11/02 | 37257209 | Not Available |
| 07 | Not Available | Hoover Spring -Access Door | 38351017 | Not Available |
| 08 | Not Available | Hoover Seal | 38783021 | Not Available |
| 09 | Not Available | Hoover Speed Nut | 21362006 | Not Available |
| 10 | Not Available | Hoover Hood - F5858-900 (Incl. 6, 7, 8, 9) - F5858-900 Before 11/02 | 37271065 | Not Available |
| 10 | Not Available | Hoover Hood-Afc-F5858-910 (Incl. It. 6, 7, 8, 9) - F5861-900, F5861-990 | 37271072 | Not Available |
| 10 | Not Available | Hoover Hood-F5863-900 Acf (Incl. 6, 7, 8, 9) - F5863-900, F5863-990 | 37271041 | Not Available |
| 10 | Not Available | Hoover Hood-Abm (Incl. 6, 7, 8, 9) - F5853-900, F5860-900, F5860-990 | 37271088 | Not Available |
| 11 | Not Available | Hoover Screw | 21447020 | Not Available |
| 12 | Not Available | Hoover Indicator Knob-F5851 | 38421093 | Not Available |
| 13 | Not Available | Hoover Screen Asy | 43613009 | Not Available |
| 14 | Not Available | Hoover Pump Assembly Complete (Incl. It. 21) | 43582003 | Not Available |
| 15 | Not Available | Hoover Screw-Self Tapping | 21447217 | Not Available |
| 16 | Not Available | Hoover Turbine & Gear-F5851 (Incl. Lt. 20) | 43191001 | Not Available |
| 17 | No Image | 5-brush brush for hoover steamvac models F5851 F5855 F5859 F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 48437022 | $25.00Read more |
| 18 | Not Available | Hoover Screw | 21479438 | Not Available |
| 19 | Not Available | Hoover Hood-Agd F5906-900 | 37271121 | Not Available |
| 19 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 19 | Not Available | Hoover Door-Agd F5906-900 | 37257313 | Not Available |
| 20 | Not Available | Hoover Spring | 38333009 | Not Available |
| 21 | Not Available | Hoover Quick Disconnect Asy Serv | 43523004 | Not Available |
| 22 | Not Available | Hoover Lock Ring | 160017 | Not Available |
| 23 | Not Available | Hoover Trunion Cover - Rh | 36131085 | Not Available |
| 24 | Not Available | Hoover Rear Axle | 32434007 | Not Available |
| 25 | Not Available | Hoover Rear Wheel | 38522076 | Not Available |
| 26 | Not Available | Hoover Handle Release Lever | 38458042 | Not Available |
| 27 | Not Available | Hoover Standpipe Seal | 38784063 | Not Available |
| 28 | Not Available | Hoover Motor Kit-Sv Includes Hoover Motor, Motor Cover And Lead Wire. Replaces Gs Motor 43576163 | 40309008 | Not Available |
| 28 | Not Available | Hoover Brush Holder Assembl | 41311016 | Not Available |
| 28 | Not Available | Hoover Motor Assem-F5853 Motor - Hoover Motor | 27212049 | Not Available |
| 29 | Not Available | Hoover Elbow Connector | 33241001 | Not Available |
| 30 | Not Available | Hoover Service Kit-Mtr Cover | 40309006 | Not Available |
| 31 | Not Available | Hoover Screw-Self Tapping-F | 21447232 | Not Available |
| 32 | Not Available | Hoover Tank Release Latch-L | 36151029 | Not Available |
| 33 | Not Available | Hoover Tank Release Latch-R | 36151019 | Not Available |
| 34 | Not Available | Hoover Solution Tank (Incl. It. 35, 36, 37, 39, 40,41,42) | 440007358 | Not Available |
| 35 |  | Gasket, :( Circular Tank SteamVac/Uprights Part Number: 38784062 for Hoover | 38784062 | $1.57Read more |
| 36 | Not Available | Hoover Solution Tank Cap | 42272002 | Not Available |
| 37 | Not Available | Hoover Solution Tank Handle | 39457016 | Not Available |
| 38 | Not Available | Hoover Control Rod - Upper | 38458031 | Not Available |
| 39 | Not Available | Hoover Spring | 38312014 | Not Available |
| 40 | Not Available | Hoover Washer-Brass (Used On Early Models Produced Prior To 12/97) Service Bulletin 6-97 | 21312518 | Not Available |
| 41 |  | Gasket, Tank Valve Seal FloorMate/SteamVac Part Number: 440013804 for Hoover | 440013804 | $4.81Read more |
| 42 | Not Available | Hoover Valve Stem | 440009753 | Not Available |
| 43 | Not Available | Hoover Control Rod - Lower | 38458033 | Not Available |
| 44 | Not Available | Hoover Solution Tank Seal | 38784060 | Not Available |
| 45 | Not Available | Hoover Reservoir Assem-F581 (Incl. It. 44) | 43516008 | Not Available |
| 46 | No Image | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 40309002 | $25.00Read more |
| 47 | No Image | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 40309002 | $25.00Read more |
| 48 | Not Available | Hoover Handle Hardware Assem | 40201149 | Not Available |
| 49 | Not Available | Hoover Motor Seal | 34113004 | Not Available |
| 50 | Not Available | Hoover Screw-Tapping | 21447240 | Not Available |
| 51 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 52 | Not Available | Hoover Cord-Steam Vac-33' Cord - 33' - (Use With Hoover Motor) | 46583125 | Not Available |
| 52 | No Image | CORD, 31' STEAMER WHITE WIRE STRIPPED Part Number: 46583012 for Hoover | 46583012 | $28.91Read more |
| 53 | Not Available | Hoover Motor Base Seal | 38781048 | Not Available |
| 54 | Not Available | Hoover Trunion Cover - Lh | 36131086 | Not Available |
| 55 | Not Available | Hoover Switch Actuator Lever | 38434025 | Not Available |
| 56 | Not Available | Hoover Switch-F5805/15/25 Push On/Off Switch | 28218048 | Not Available |
| 57 | Not Available | Hoover Cord Retainer | 36172054 | Not Available |
| 58 | Not Available | Hoover Mn Body-Sv-W/Vt-5 Br | 42274005 | Not Available |
| 59 | Not Available | Hoover Handle Cover | 37276001 | Not Available |
| 60 | Not Available | Hoover Lower Handle | 39466033 | Not Available |
| 61 | Not Available | Hoover Upper Handle-F5833-9 Incl. It. 38, 63) | 48663181 | Not Available |
| 63 | Not Available | Hoover Cord Wrap-F5853-900 | 39442039 | Not Available |
| 64 | Not Available | Hoover Lower Rack Assem.-F5 (Includes Item 65) | 41426030 | Not Available |
| 65 | Not Available | Hoover Screw | 21447003 | Not Available |
| 66 | Not Available | Hoover Hose Assembly Comp.-F5 (Incl. It. 64, 70) (W/ Release Tab). Use 40309007 | 43491008 | Not Available |
| 66 | Not Available | Hoover Hose Assembly (Incl. It. 64, 70) (W/O Release Tab) | 40309007 | Not Available |
| 67 | Not Available | Hoover Nozzle Body-F5833-90 (W/O Release Tab) | 38613033 | Not Available |
| 67 |  | Hoover Upholstery Tool for Shampooers | WP11565 | $9.99Add to cart |
| 68 | Not Available | Hoover Brush Back Assembly- | 48445003 | Not Available |
| 69 | Not Available | Hoover Handle Lever Guard-Abu | 39458005 | Not Available |
| 70 | Not Available | Hoover Connector Coupler Sl | 43513010 | Not Available |
