Schematic and parts list for: Hoover Model: F58429RM

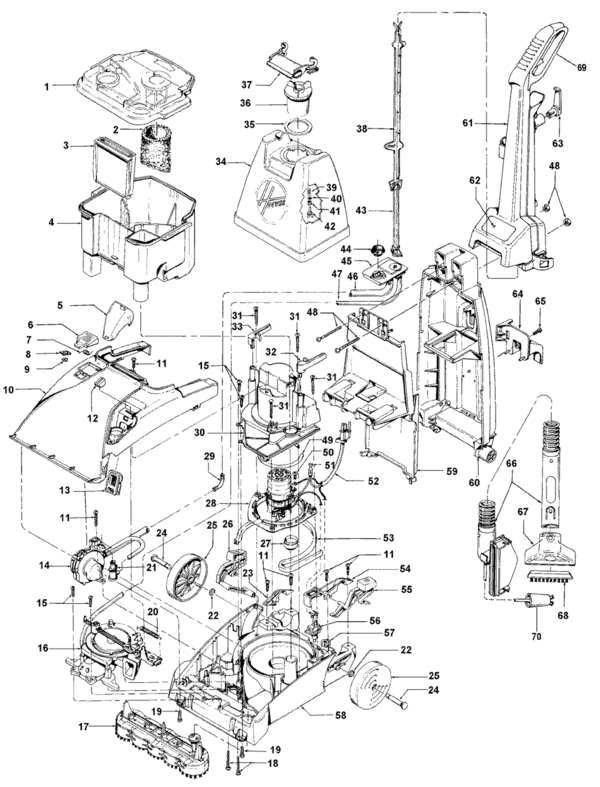

This is a list of parts and a diagram and schematic for: Hoover Model: F58429RM
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SteamVac
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Recovery Tank Lid | 42272111 | Not Available |
| 2 | Not Available | Hoover Tank Filter Replaced By 38762014 | 43611041 | Not Available |
| 3 | Not Available | Hoover Duct | 38661003 | Not Available |
| 4 | Not Available | Hoover Recovery Tank Complete With Lid Assembly - Revised Duct / Translucent Frost | 38777081 | Not Available |
| 5 | Not Available | Hoover Lens | 39383106 | Not Available |
| 6 | Not Available | Hoover Door Assem. - F5827 | 37257140 | Not Available |
| 7 | Not Available | Hoover Spring -Access Door | 38351017 | Not Available |
| 8 | Not Available | Hoover Seal | 38783021 | Not Available |
| 9 | Not Available | Hoover Speed Nut | 21362006 | Not Available |
| 10 | Not Available | Hoover Hood-Afc-F5858-910 | 37271072 | Not Available |
| 12 | Not Available | Hoover Indicator Knob-F5851 | 38421093 | Not Available |
| 13 | Not Available | Hoover Screen Asy | 43613009 | Not Available |
| 14 | Not Available | Hoover Pump Assembly Complete | 43582003 | Not Available |
| 15 | Not Available | Hoover Screw-Self Tapping | 21447217 | Not Available |
| 16 | Not Available | Hoover Turbine And Gear Assembly - 5 Brush Replaced By 43191019 | 43191001 | Not Available |
| 17 | No Image | 5-brush brush for hoover steamvac models F5851 F5855 F5859 F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 48437022 | $25.00Read more |
| 18 | Not Available | Hoover Screw | 21479438 | Not Available |
| 19 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 20 | Not Available | Hoover Spring | 38333009 | Not Available |
| 21 | Not Available | Hoover Quick Disconnect Assembly | 43523004 | Not Available |
| 22 | Not Available | Hoover E-Clip / Lock Ring | 160017- | Not Available |
| 23 | Not Available | Hoover Trunion Cover - Rh | 36131085 | Not Available |
| 24 | Not Available | Hoover Rear Axle | 32434007 | Not Available |
| 25 | Not Available | Hoover Rear Wheel | 38522076 | Not Available |
| 26 | Not Available | Hoover Handle Release Lever - Black | 38458042 | Not Available |
| 27 | Not Available | Hoover Standpipe Seal | 38784063 | Not Available |
| 28 | Not Available | Hoover Motor Assem-F5853 | 27212049 | Not Available |
| 28 | Not Available | Hoover Motor Kit-Sv | 40309008 | Not Available |
| 29 | Not Available | Hoover Elbow Connector | 33241001 | Not Available |
| 30 | Not Available | Hoover Service Kit-Mtr Cover | 40309006 | Not Available |
| 31 | Not Available | Hoover Screw-Self Tapping-F | 21447232 | Not Available |
| 32 | Not Available | Hoover Tank Release Latch-L | 36151029 | Not Available |
| 33 | Not Available | Hoover Tank Release Latch-R | 36151019 | Not Available |
| 34 | Not Available | Hoover Solution Tank And Cap Assembly Frost Translucent | 440007358 | Not Available |
| 35 |  | Gasket, :( Circular Tank SteamVac/Uprights Part Number: 38784062 for Hoover | 38784062 | $1.57Read more |
| 36 | Not Available | Hoover Solution Tank Cap | 42272002 | Not Available |
| 37 | Not Available | Hoover Solution Tank Handle | 39457016 | Not Available |
| 38 | Not Available | Hoover Control Rod - Upper | 38458031 | Not Available |
| 39 | Not Available | Hoover Valve Spring - Clean Water Solution Tank | 38312014 | Not Available |
| 40 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 41 | Not Available | Hoover Valve Seal - Clean Water Solution Tank - Order 563226001 | 38784061 | Not Available |
| 42 | Not Available | Hoover Valve Stem - Black / Clean Water Solution Tank | 440009753 | Not Available |
| 43 | Not Available | Hoover Control Rod - Lower | 38458033 | Not Available |
| 44 | Not Available | Hoover Seal - Solution Tank | 38784060 | Not Available |
| 45 | Not Available | Hoover Reservoir Assem-F581 | 43516008 | Not Available |
| 46 | No Image | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 40309002 | $25.00Read more |
| 47 | No Image | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 40309002 | $25.00Read more |
| 48 | Not Available | Hoover Handle Hardware Assembly / 2 - Screws 3-15/16" - 3 Nuts | 40201149 | Not Available |
| 49 | Not Available | Hoover Motor Seal | 34113004 | Not Available |
| 50 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 51 | Not Available | Hoover Terminals-0513 | 012227- | Not Available |
| 52 | Not Available | Hoover Cord | 46583125 | Not Available |
| 52 | No Image | CORD, 31' STEAMER WHITE WIRE STRIPPED Part Number: 46583012 for Hoover | 46583012 | $28.91Read more |
| 53 | Not Available | Hoover Motor Base Seal | 38781048 | Not Available |
| 54 | Not Available | Hoover Trunion Cover - Lh | 36131086 | Not Available |
| 55 | Not Available | Hoover Switch Actuator Lever - Black | 38434025 | Not Available |
| 56 | Not Available | Hoover Switch-F5805/15/25 | 28218048 | Not Available |
| 57 | Not Available | Hoover Cord Retainer | 36172016 | Not Available |
| 58 | Not Available | Hoover Main Body / Nozzle Base - 5 Brush Magnesium Gray | 42274005 | Not Available |
| 59 | Not Available | Hoover Handle Cover | 37276001 | Not Available |
| 60 | Not Available | Hoover Lower Handle | 39466033 | Not Available |
| 61 | Not Available | Hoover Upper Handle-F5833-9 | 48663181 | Not Available |
| 63 | Not Available | Hoover Cord Wrap | 39442039 | Not Available |
| 64 | Not Available | Hoover Lower Rack Assem.-F5 | 41426030 | Not Available |
| 65 | Not Available | Hoover Screw | 21447003 | Not Available |
| 66 | Not Available | Hoover Hose Assembly Complete Replaced By 43491074 | 40309007 | Not Available |
| 67 |  | Hoover Upholstery Tool for Shampooers | WP11565 | $9.99Add to cart |
| 68 | Not Available | Hoover Brush Back Assembly- | 48445003 | Not Available |
| 69 | Not Available | Hoover Bare Floor Cleaning | 440007192 | Not Available |
| 69 | Not Available | Hoover Connector Coupler Sl | 43513010 | Not Available |
| 69 | Not Available | Hoover Nozzle Clean Out Too | 39514001 | Not Available |
| 69 | Not Available | Hoover Float Assembly | 43538001 | Not Available |
| 69 |  | Retainer, Float SteamVac/Extractor FH50025/F5809 Part Number: 38719027 for Hoover | 38719027 | $4.52Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 69 | Not Available | Hoover Sprayer - F5825 | 43412003 | Not Available |
| 69 | Not Available | Hoover Label-Door-Steam Vac | 51639124 | Not Available |
| 69 | Not Available | Hoover Agitator Speed Label | 51855028 | Not Available |
| 69 | Not Available | Hoover Seal-Fl. Ret.-Steam | 38784070 | Not Available |
| 69 | Not Available | Hoover On/Off Label - Steam | 51865024 | Not Available |
| 69 | Not Available | Hoover Hdl Rel Label-Steam | 51638055 | Not Available |
