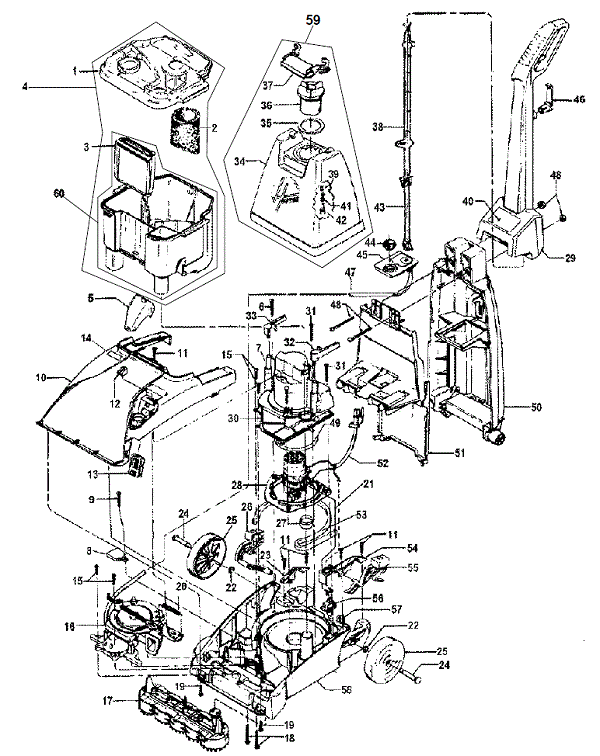

This is a list of parts and a diagram and schematic for: Hoover Model: C3820
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Steamvac
| # | Part image | Description | SKU | Price |
| 1 |  | Retainer, Float SteamVac/Extractor FH50025/F5809 Part Number: 38719027 for Hoover | 38719027 | $4.97Read more |
| 2 | Not Available | Hoover Tank Filter | 38762014 | Not Available |
| 3 | Not Available | Hoover Duct | 38777106 | Not Available |
| 5 |  | Lens Hoover F5853 Steam Vac For: hoover | 39383106 | $2.85Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Hoover Screw | 21447246 | Not Available |
| 8 | Not Available | Hoover Inlet Cap - Black | 37911083 | Not Available |
| 9 | Not Available | Hoover Screw - Self Tapping | 21447217 | Not Available |
| 10 | Not Available | Hoover Hood / Nozzle Assembly - Black | 37271057 | Not Available |
| 11 | Not Available | Hoover Screw | 21447020 | Not Available |
| 13 | Not Available | Hoover Screen Assembly - Black | 43613009 | Not Available |
| 14 | Not Available | Hoover Hood / Nozzle Name Plate | 51669080 | Not Available |
| 15 | Not Available | Hoover Screw - Self Tapping | 21447217 | Not Available |
| 16 | Not Available | Hoover Turbine And Gear - 5 Brush | 440007474 | Not Available |
| 17 |  | NO LONGER AVAILABLE 5-brush brush for hoover steamvac models F5851 F5855 F5859 F5837-900 F5837-96... | 48437022 | $27.50Read more |
| 18 | Not Available | Hoover Screw | 21479438 | Not Available |
| 19 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 20 | Not Available | Hoover Spring | 38333009 | Not Available |
| 21 | Not Available | Hoover Lead Wire - Black | 49811039 | Not Available |
| 22 | Not Available | Hoover Lock Ring | 160017-- | Not Available |
| 23 | Not Available | Hoover Trunion Cover - Right Magnesium Gray | 36131124 | Not Available |
| 24 | Not Available | Hoover Rear Axle | 32434007 | Not Available |
| 27 | Not Available | Hoover Standpipe Seal | 38784063 | Not Available |
| 29 |  | Hoover SteamVac models FH50025 & FH50026 handle PN 48663237 new | 48663237 | $29.70Read more |
| 30 | Not Available | Hoover Motor Cover Assembly | 40309027 | Not Available |
| 31 | Not Available | Hoover Screw - Self Tapping | 21447232 | Not Available |
| 32 | Not Available | Hoover Tank Release Latch - Left Magsm Gray | 36151044 | Not Available |
| 32 |  | hoover model f5905-900 left tank release latch part number H-522194002 per essco | WP10825 | $10.50Read more |
| 33 | Not Available | Hoover Tank Release Latch - Right Magnsm Gray | 36151043 | Not Available |
| 33 |  | Latch, RH Recover Tank SteamVac FH50021/FH50025 Part Number: 440007360 for Hoover | 440007360 | $5.66Add to cart Special order: ships in 2 to 4 weeks |
| 34 | Not Available | Hoover Solution Tank Assembly Frost Translucent | 440007358 | Not Available |
| 35 |  | NO LONGER AVAILABLE Gasket, :( Circular Tank SteamVac/Uprights Part Number: 38784062 for Hoover | 38784062 | $1.73Read more |
| 36 | Not Available | Hoover Solution Tank Cap-Black | 42272158 | Not Available |
| 37 | Not Available | Hoover Solution Tank Handle - Magnesium Gray | 39457053 | Not Available |
| 37 | No Image | Handle, Satin Silver Plastic Solution Tank C3820 | H-522209001 | $14.29Read more |
| 38 | Not Available | Hoover Upper Control Rod - Black | 38458031 | Not Available |
| 39 | Not Available | Hoover Spring | 38312014 | Not Available |
| 41 |  | Gasket, Tank Valve Seal FloorMate/SteamVac Part Number: 440013804 for Hoover | 440013804 | $5.29Read more |
| 42 | Not Available | Hoover Valve Stem - Black | 440009753 | Not Available |
| 43 | Not Available | Hoover Lower Control Rod - Transparent | 38458033 | Not Available |
| 44 | Not Available | Hoover Solution Tank Seal | 38784060 | Not Available |
| 45 | Not Available | Hoover Reservoir Assembly With Seal Black / Magnesium Gray | 90001225 | Not Available |
| 46 | Not Available | Hoover Cord Wrap - Desert Sand | 39442041 | Not Available |
| 47 |  | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F... | 40309002 | $27.50Read more |
| 48 | Not Available | Hoover Hardware Kit Assembly | 40201145 | Not Available |
| 49 |  | Gasket-Hoover Steamer Motor Seal For: hoover | 34113004 | $1.96Read more |
| 50 | Not Available | Hoover Lower Handle - Magnesium Gray | 48669030 | Not Available |
| 51 | Not Available | Hoover Handle Cover | 37276001 | Not Available |
| 52 | Not Available | Hoover Power Cord - 35' / 3 Wire - Safety Orange | 46583048 | Not Available |
| 53 | Not Available | Hoover Motor Base Seal | 38781048 | Not Available |
| 54 | Not Available | Hoover Trunion Cover - Left Magnesium Gray | 36131125 | Not Available |
| 56 |  | Switch-On/Off-Hoover Elite Upright For: hoover | 28218061 | $11.07Add to cart Special order: ships in 2 to 4 weeks |
| 57 |  | Cord Retainer For: hoover | 36172054 | $1.63Add to cart Special order: ships in 2 to 4 weeks |
| 59 | Not Available | Hoover Solution Tank And Cap Assembly Frost Translucent | 440007358 | Not Available |
| 59 | No Image | ***USE H-440001251TANK, SOLUTION WITH CAP STORM G Part Number: 304040001 for Hoover | 304040001 | $43.59Read more |
| 60 | Not Available | Hoover Recovery Tank With Duct Only Revised | 38661004 | Not Available |
