Schematic and parts list for: Eureka Model: 8810AVZ
This is a list of parts and a diagram and schematic for: Eureka Model: 8810AVZ
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Capture Bagless Upright
Popular Supplies

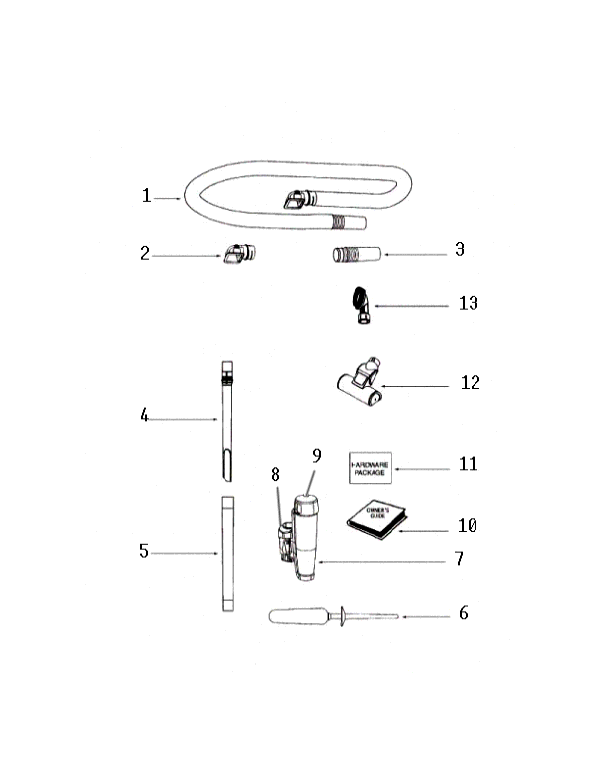

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Eureka Hose Assembly - Cartoned | 61865-15 | Not Available |
| 2 | Not Available | Eureka Elbow Assembly | 82166 | Not Available |
| 3 | Not Available | Eureka Hose Coupling (Overmolded | 78730 | Not Available |
| 4 | Not Available | Eureka Wand - Crevice | 78232-453N | Not Available |
| 5 | Not Available | Eureka Wand - Outer | 78231-355N | Not Available |
| 6 | Not Available | Eureka Electrostatic Dstr Handle | 77560-5 | Not Available |
| 7 | Not Available | Eureka No Description | FNLA | Not Available |
| 8 | Not Available | Eureka Duster Cup Assembly | 79699-11 | Not Available |
| 9 | Not Available | Eureka No Description | FNLA | Not Available |
| 10 | Not Available | Eureka Owners Guide | 82099 | Not Available |
| 11 | Not Available | Eureka Upper Handle Screw Packa (Nla) | 79023 | Not Available |
| 12 | Not Available | Eureka Turbo Nozzle Assembly | 77555-8 | Not Available |
| 13 |  | Cord Wrap Rewind Bissell repair part number: 1609903 | 1609903 | $53.78Add to cart Product is special order please allow 2-4 weeks for delivery. |

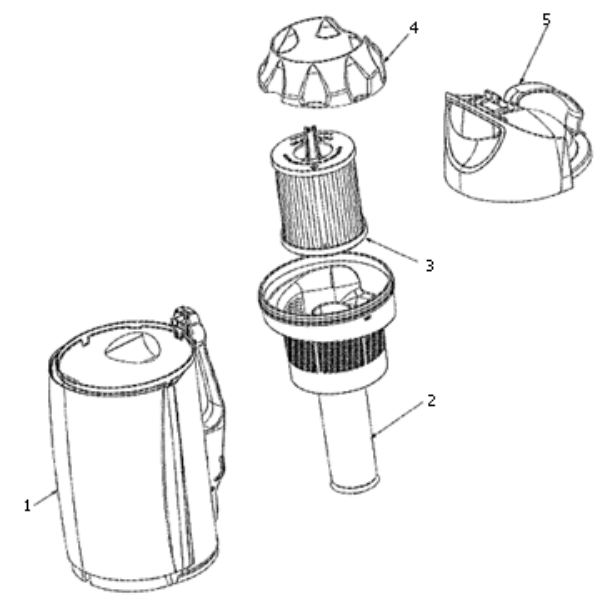

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Eureka Dustcup & Door Assembly | 81057-1 | Not Available |
| 2 | Not Available | Eureka Filter Basket & Tube Assy | 83986-1 | Not Available |
| 3 | Not Available | Eureka Filter Pkg - Eureka Dcf21 | 82366A-1 | Not Available |
| 4 | Not Available | Eureka Filter Shroud | 82401-333N | Not Available |
| 5 | Not Available | Eureka Dustcup Cover Assembly | 81025-1 | Not Available |

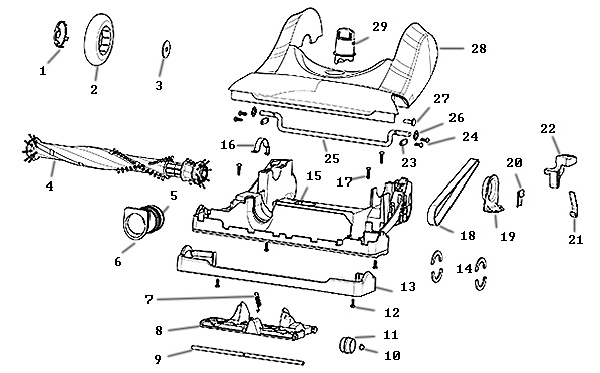

| # | Part image | Description | SKU | Price |
| 4 |  | BRUSHROLL, 8802AVZ 8803AVZ 8810AVZ 8806BVZ NLA | E623654 | $36.95Read more |
| 5 | Not Available | Eureka Base Hose Assembly | 82353 | Not Available |
| 6 | Not Available | Eureka Adapter - Base Hose | 78209-355N | Not Available |
| 7 | Not Available | Eureka Spring Package | 54943-1 | Not Available |
| 8 | Not Available | Eureka Wheel Carriage Assembly | 82354 | Not Available |
| 9 | Not Available | Eureka Axle - Wheel Carriage | 77651 | Not Available |
| 10 |  | Push Nut, Wheel Retaining 8806/8807/8852/8853 10Pk Part Number: 53121-1 for Eureka | 531211 | $11.03Read more |
| 11 | Not Available | Eureka Wheel Overmold Assembly | 77978-355N | Not Available |
| 12 | Not Available | Eureka Screw Package | 53238-8 | Not Available |
| 13 | Not Available | Eureka Guard - Furniture | 77664-355N | Not Available |
| 14 | Not Available | Eureka Felt - Base | 73114 | Not Available |
| 15 | No Image | BASE, NOZZLE 8802AVZ 8807AVZ 8810AVZ Part Number: 82355-1 for Eureka | 823551 | $65.42Read more |
| 16 | Not Available | Eureka Clamp - Motor | 74825 | Not Available |
| 17 | Not Available | Eureka Screw Package | 53238-27 | Not Available |
| 18 |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |
| 19 | Not Available | Eureka Clamp - Motor | 77656 | Not Available |
| 20 | Not Available | Eureka Guard - Belt | 74822 | Not Available |
| 28 | Not Available | Eureka Hood Assembly - Packaged | 65130-15 | Not Available |
| 29 | Not Available | Eureka Knob - Height Adjustment | 82708-453N | Not Available |

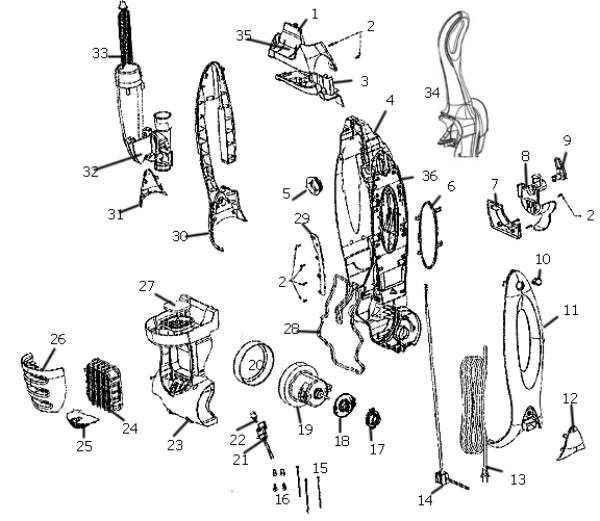

| # | Part image | Description | SKU | Price |
| xx | Not Available | Eureka Screw Package | 62082 | Not Available |
| xx | Not Available | Eureka Cord Hook | 82365-355N | Not Available |
| 1 | Not Available | Eureka Cover - Turbo | 81078-333N | Not Available |
| 2 |  | SCREW, 10 PK STAR DRIVE Part Number: 63310 for Eureka | 63310 | $6.66Read more |
| 3 | Not Available | Eureka Wiring Cover | 81056-355N | Not Available |
| 4 | Not Available | Eureka No Description | 77628-1 | Not Available |
| 5 | Not Available | Eureka Seal- Cup Intake | 82519-355N | Not Available |
| 6 | Not Available | Eureka Cover - Ear | 78165-662N | Not Available |
| 7 | Not Available | Eureka Plate - Cover | 78150-355N | Not Available |
| 8 | Not Available | Eureka Retainer - Hose (Lower) | 77647A-355N | Not Available |
| 9 | Not Available | Eureka Release Cord | 72756-355N | Not Available |
| 10 | Not Available | Eureka Switch - 2 Position (Roun | 76621-1 | Not Available |
| 11 | Not Available | Eureka Ear Left-Switch Only(8806Avz) | 77632-489N | Not Available |
| 12 | Not Available | Eureka Pod - Left | 77969-333N | Not Available |
| 13 | Not Available | Eureka Supply Cord Assembly | 78411 | Not Available |
| 14 | Not Available | Eureka Jumper Cord Assy | 78410 | Not Available |
| 15 | Not Available | Eureka Tie - Cable (Purchased) | 46713-3 | Not Available |
| 16 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| 17 | Not Available | Eureka Bushing-Motor (Nla) | 77624-119N | Not Available |
| 18 | Not Available | Eureka Ring - Motor Adjustment (Nla) | 78792-119N | Not Available |
| 19 | Not Available | Eureka Motor Assembly - Packaged | 62568-2 | Not Available |
| 20 | Not Available | Eureka Gasket - Motor Can | 82175-119N | Not Available |
| 21 | Not Available | Eureka Headlight Assy Overmolded | 78195 | Not Available |
| 22 | Not Available | Eureka Lamp - Headlight | 57940-3 | Not Available |
| 23 | Not Available | Eureka Motor Cover Assy - Packag | 65131-17 | Not Available |
| 24 | Not Available | Eureka Filter Assy | 77973 | Not Available |
| 25 | Not Available | Eureka Lens - Headlight | 77707-313N | Not Available |
| 26 | Not Available | Eureka Exhaust Grill - Packaged | 65133-8 | Not Available |
| 27 | Not Available | Eureka Filter- Pre-Motor | 81257 | Not Available |
| 28 | Not Available | Eureka Gasket | 81482-1 | Not Available |
| 29 | Not Available | Eureka Shield - Jumper Cord | 78399-355N | Not Available |
| 30 | Not Available | Eureka Ear Right | 77631-489N | Not Available |
| 31 | Not Available | Eureka Pod - Right | 77970-333N | Not Available |
| 32 | Not Available | Eureka Duster Cup Assembly | 79699-10 | Not Available |
| 33 | Not Available | Eureka Electrostatic Dstr Handle | 77560-4 | Not Available |
| 34 | Not Available | Eureka Handle Assembly | 78459-9 | Not Available |
| 35 | Not Available | Eureka Clip - Turbo | 77554-355N | Not Available |
| 36 | Not Available | Eureka Handle - Carry | 81079-355N | Not Available |
