Schematic and parts list for: Eureka Model: 5505
This is a list of parts and a diagram and schematic for: Eureka Model: 5505
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
Popular Supplies

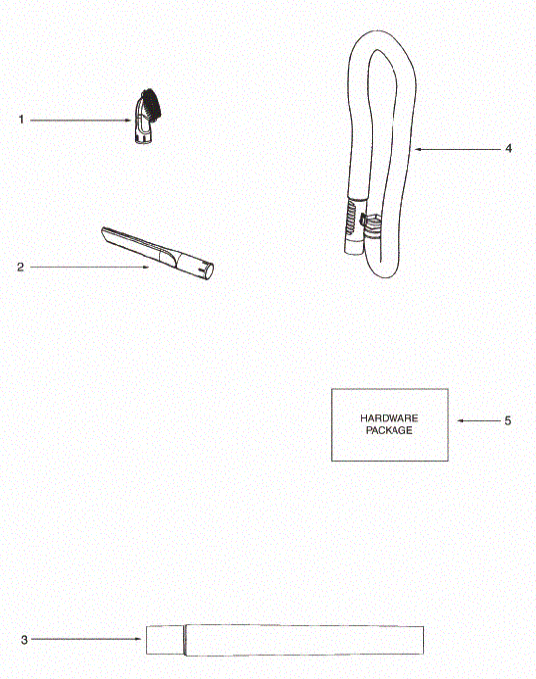

| # | Part image | Description | SKU | Price |
| xx | Not Available | Eureka Motor Filter (Ge) | 61455-1 | Not Available |
| xx | Not Available | Eureka Paper Bag Package-Style G | 61983 | Not Available |
| 01 |  | Cord Wrap Rewind Bissell repair part number: 1609903 | 1609903 | $53.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 | Not Available | Eureka Nozzle - Crevice | 28497-355N | Not Available |
| 03 | Not Available | Eureka Extension Tubes Assembly | 71119-1 | Not Available |
| 04 | Not Available | Eureka Hose Assembly - Cartoned | 61440-5 | Not Available |
| 05 | Not Available | Eureka Package - Hardware | 71118A | Not Available |

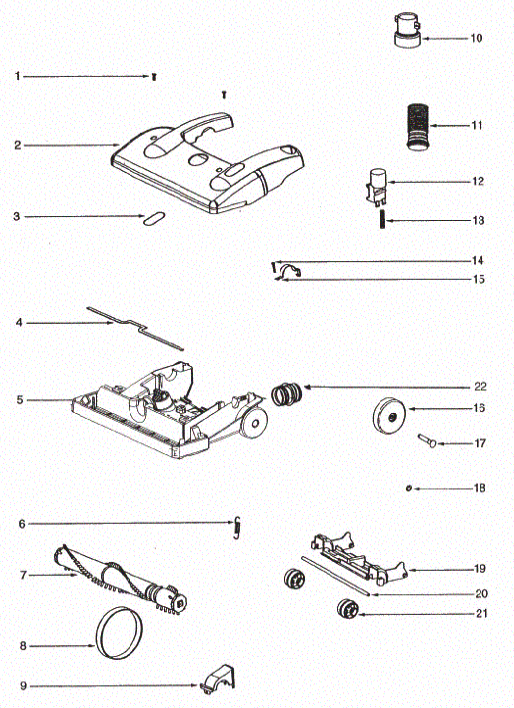

| # | Part image | Description | SKU | Price |
| xx | Not Available | Eureka Operator - Height Adjustm | 28467A-355N | Not Available |
| xx | Not Available | Eureka Bushing - Axle | 73432 | Not Available |
| 01 |  | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $7.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 | No Image | HOOD, HP5505 Part Number: 63136-4 for Eureka | 631364 | $18.44Read more |
| 03 | Not Available | Eureka Lens - Belt View | 28469-313N | Not Available |
| 04 | Not Available | Eureka Gasket | 58506-1 | Not Available |
| 05 | Not Available | Eureka Base Assembly - Packaged | 63137-2 | Not Available |
| 06 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 07 |  | Brushroll, 12 In Wood Upright 4700 Reverse Helix | E-60844-5 | $37.95Read more |
| 08 |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |
| 09 | Not Available | Eureka Belt Cap & Gasket - Package | 54376-2 | Not Available |
| 10 | Not Available | Eureka Cuff- Hose | 28496-119N | Not Available |
| 11 | Not Available | Eureka Hose - Compression | 38479-4 | Not Available |
| 12 | Not Available | Eureka Release - Handle | 28468-355N | Not Available |
| 13 | Not Available | Eureka Compression Spring - Pack | 60133-1 | Not Available |
| 14 | Not Available | Eureka Screw Package | 53238-27 | Not Available |
| 15 | Not Available | Eureka Clamp | 38420-2 | Not Available |
| 16 | Not Available | Eureka Wheel/Bushing Package | 61875 | Not Available |
| 17 |  | Axle, Rear 4458A/4468A/4499A/2903A/2905A Part Number: 38590A for Eureka | 38590A | $8.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Eureka Carriage - Wheel | 14993C-119N | Not Available |
| 20 | Not Available | Eureka Axle - Wheel | 71551-1 | Not Available |
| 21 |  | Wheel, Front 5191/5847AV Part Number: 39173A119N for Eureka | 39173A119N | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Eureka Adapter - Base | 28243A-316N | Not Available |

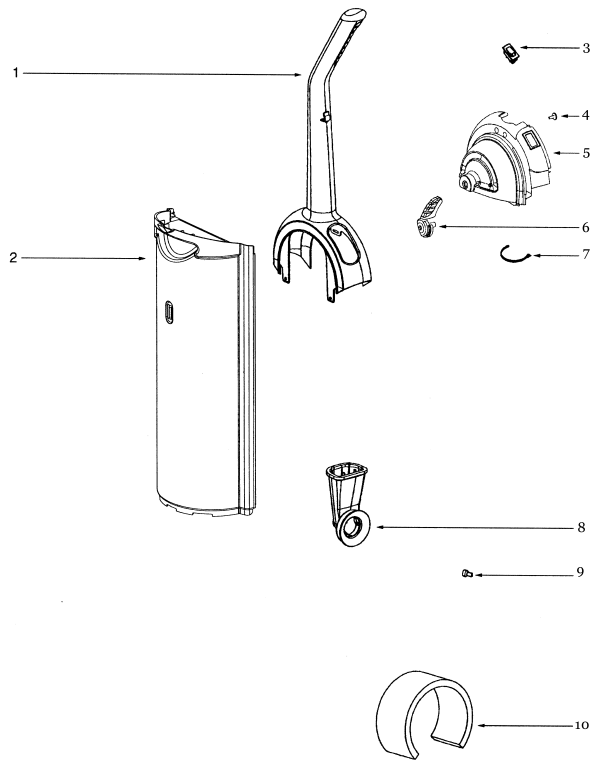

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Handle Assembly | 39435-1 | Not Available |
| 02 | Not Available | Eureka Bag Cover Assembly - Pkgd | 63162 | Not Available |
| 03 | Not Available | Eureka Switch - Rocker | 39455-1 | Not Available |
| 04 | Not Available | Eureka Screw Package 10 | 60160 | Not Available |
| 05 | Not Available | Eureka Top Housing Assembly | 71116-4 | Not Available |
| 06 | Not Available | Eureka Latch | 39357-355N | Not Available |
| 07 | No Image | TIES, CABLE Part Number: 467135 for Eureka | 467135 | $4.29Read more |
| 08 | Not Available | Eureka Air Duct Assembly | 71114-1 | Not Available |
| 09 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| 10 | No Image | FOAM, SOUND Part Number: 722241 for Eureka | 722241 | $4.63Read more |
| 11 | Not Available | Eureka Gasket - Bag Cover | 70726-1 | Not Available |

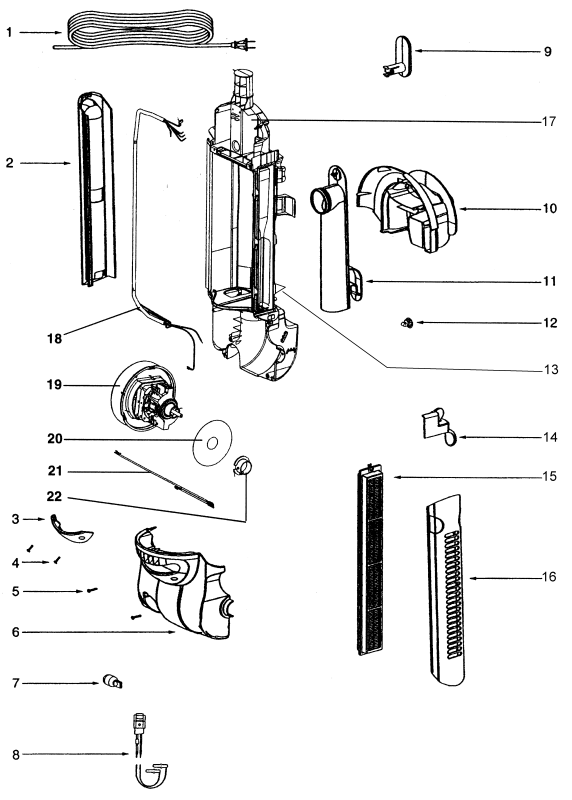

| # | Part image | Description | SKU | Price |
| xx | Not Available | Eureka Clip - Adapter | 71569-119N | Not Available |
| xx | Not Available | Eureka Motor Support - Rubber | 73699 | Not Available |
| xx | Not Available | Eureka Clip - Tool | 39356A-119N | Not Available |
| 01 | Not Available | Eureka Supply Cord & Terminal As | 39585-4 | Not Available |
| 02 | Not Available | Eureka Housing - Extension Tube | 15692-357N | Not Available |
| 03 | Not Available | Eureka Lens - Motor Cover | 28466A-396P | Not Available |
| 04 | Not Available | Eureka Screw Package | 53238-8 | Not Available |
| 05 | Not Available | Eureka Screw Package | 53238-27 | Not Available |
| 06 | Not Available | Eureka Motor Cover Assembly - Package | 63138-1 | Not Available |
| 07 | Not Available | Eureka Lamp - Headlight | 57940-3 | Not Available |
| 08 | Not Available | Eureka Headlight Assembly | 38828B-4 | Not Available |
| 09 | Not Available | Eureka Hook - Cord | 70864A-119N | Not Available |
| 10 | Not Available | Eureka Carry Handle Assembly | 71113A-1 | Not Available |
| 11 | Not Available | Eureka Rear Air Tube Assembly-Ge106 | 28478-2 | Not Available |
| 12 | Not Available | Eureka Fastener Package | 61448-1 | Not Available |
| 14 | Not Available | Eureka Retainer - Hose | 71278-119N | Not Available |
| 15 | Not Available | Eureka Hepa Filter - Style Ge-1 | 61984 | Not Available |
| 16 | Not Available | Eureka Filter Cover-Ge106575 | 71587-1 | Not Available |
| 17 | Not Available | Eureka Body | 71094B-2 | Not Available |
| 18 | Not Available | Eureka Upper Cord Assembly | 71237-2 | Not Available |
| 19 | No Image | Motor, 3670G/5550/5813/5851/HP5505/HP5555 Canister Part Number: 62376-1 for Eureka | 623761 | $65.86Read more |
| 20 |  | Cover, Black Plastic Rear Handle Fork 2HD-Legend Part Number: 174584 for Kirby | 174584 | $36.05Read more |
| 21 | Not Available | Eureka Thermostat & Terminal Assembly | 39252-9 | Not Available |
| 22 | Not Available | Eureka Grommet | 27552B | Not Available |
