Schematic and parts list for: Eureka Model: 4776AZ
This is a list of parts and a diagram and schematic for: Eureka Model: 4776AZ
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Opti-Power
| # | Part image | Description | SKU | Price |

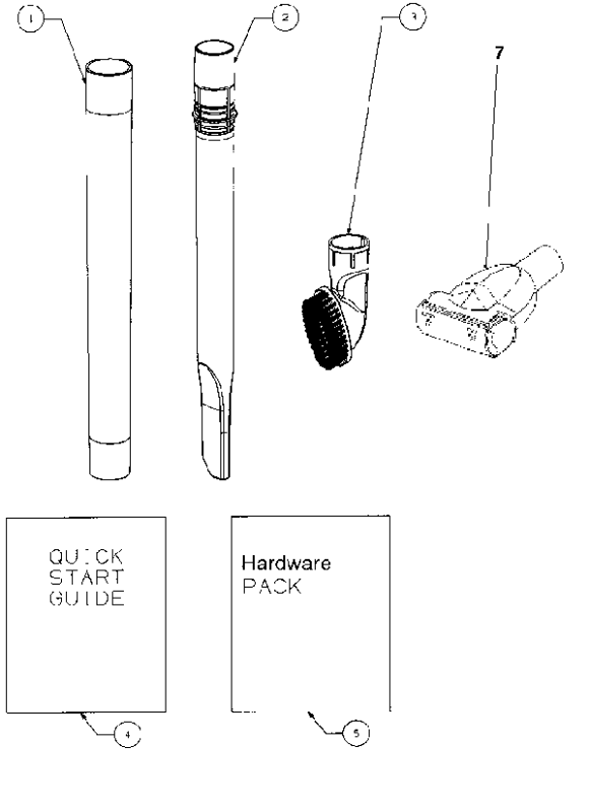

| 1 | Not Available | Eureka Wand - Outer | 77507-119N | Not Available |
| 2 | Not Available | Eureka Wand - Crevice | 77506-119N | Not Available |
| 3 | Not Available | Eureka Combination Brsh Brstld-C | 39379-1 | Not Available |
| 4 | Not Available | Eureka Owners Guide | 84289A | Not Available |
| 5 | Not Available | Eureka Package - Hardware | 75193-2 | Not Available |
| 6 |  | CREVICE TOOL, GE5500/5550/106575/10658 Part Number: 7750522 for Eureka | 7750522 | $12.36Read more |
| 7 | Not Available | Eureka Turbo Nozzle Assembly | 75391-16 | Not Available |
| # | Part image | Description | SKU | Price |

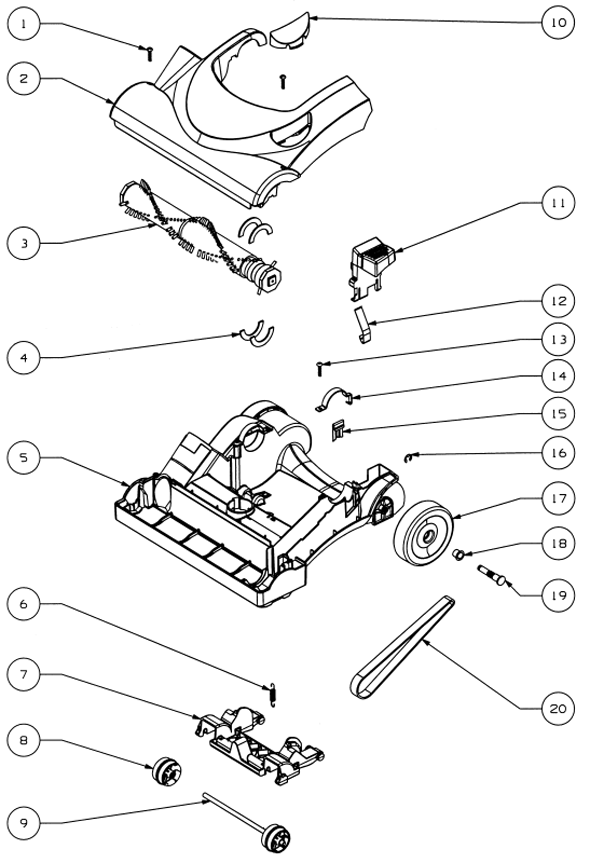

| XX | Not Available | Eureka Dampener - End Cap | 82674-119N | Not Available |
| 1 | Not Available | Eureka Package - Hardware | 74846-1 | Not Available |
| 2 | Not Available | Eureka Hood Assembly - Packaged | 63342-63 | Not Available |
| 3 | Not Available | Eureka 12" Disturbulator Assy - | 60844-10 | Not Available |
| 4 | Not Available | Eureka Nozzle Felt | 74824 | Not Available |
| 5 | Not Available | Eureka Base | 74815A-1-119N | Not Available |
| 6 | Not Available | Eureka Spring Package | 54943-1 | Not Available |
| 7 | Not Available | Eureka Carriage - Wheel | 74817-119N | Not Available |
| 8 | Not Available | Eureka Wheel - Front | 74818A-119N | Not Available |
| 9 | Not Available | Eureka Axle - Front | 71478-2 | Not Available |
| 10 | Not Available | Eureka Window - Belt View | 75092-313N | Not Available |
| 11 | Not Available | Eureka Release - Handle | 74820-355N | Not Available |
| 12 |  | SPRING, HANDLE RELEASE 2903 Part Number: 71574 for Eureka | 71574 | $5.30Read more |
| 13 | Not Available | Eureka Screw Package | EW312-8T12ZP | Not Available |
| 14 | Not Available | Eureka Clamp - Motor | 74825 | Not Available |
| 15 |  | Axle, Rear 68C7 Upright/12B1 PowerForce Helix Part Number: 203-8063 for Bissell | 2038063 | $4.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Eureka Wheel - Rear | 74816A-119N | Not Available |
| 18 | Not Available | Eureka Bushing - Axle | 75097A | Not Available |
| 19 | Not Available | Eureka Axle - Rear | 75095 | Not Available |
| 20 | Not Available | Eureka Belt - Drive (Long Life) | 83797 | Not Available |
| # | Part image | Description | SKU | Price |

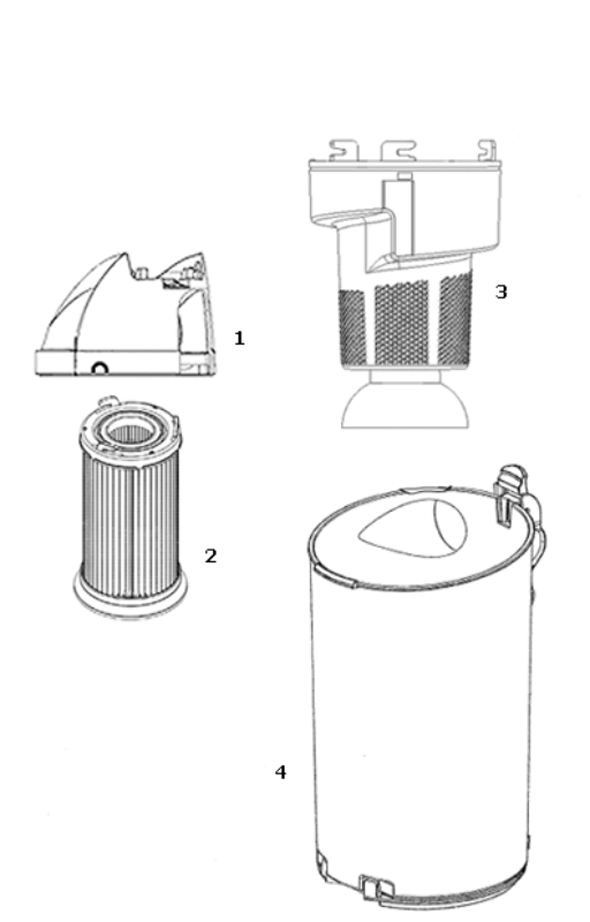

| 1 | Not Available | Eureka Cover & Graphics Assembly | 75188-45 | Not Available |
| 2 | Not Available | Eureka Filter Eureka Dcf18 | 63073B | Not Available |
| 3 | Not Available | Eureka Filter Basket & Graphics | 84575-2 | Not Available |
| 4 | Not Available | Eureka Dust Cup Assembly | 84351-1 | Not Available |
| # | Part image | Description | SKU | Price |
| xx | Not Available | Eureka | FNLA | Not Available |
| XX | Not Available | Eureka Filter-Pre Motor | 76087 | Not Available |
| XX | Not Available | Eureka Gasket-Dustcup | 83374-119n | Not Available |
| XX | Not Available | Eureka Pedal-Switch | 74844-359n | Not Available |
| XX | Not Available | Eureka Switch (Rocktek) | 74843-1 | Not Available |
| 1 |  | Handle, Black Plastic Upper Bagless Upright 4773AZ Part Number: 83314-2 for Eureka | 833142 | $15.67Read more |
| 3 | Not Available | Eureka Tool Caddy | 75958-119N | Not Available |
| 4 | Not Available | Eureka Package - Hardware | 74846-1 | Not Available |
| 5 | Not Available | Eureka Backbone | 83373-119N | Not Available |
| 8 | Not Available | Eureka Washer Package | 63202 | Not Available |
| 9 | No Image | GASKET, MOTOR COVER 4773 Part Number: 71027 for Eureka | 71027 | $6.66Read more |
| 11 | Not Available | Eureka Cover - Motor (Front) | 83754-119N | Not Available |
| 16 | Not Available | Eureka Gasket - Motor Can | 85704A | Not Available |
| 17 | Not Available | Eureka Motor Assembly - Ctnd | 62075-8 | Not Available |
| 18A | Not Available | Eureka Bushing - Motor | 83860 | Not Available |
| 18B | Not Available | Eureka Motor Adjustment Ring | 85828-119N | Not Available |
| 19 | Not Available | Eureka Motor Cover & Graphics As | 77503-99 | Not Available |
| 23 | Not Available | Eureka Screw - Pan Ph Plascrew | 74846-2 | Not Available |
| 24 | Not Available | Eureka Coupling - Hose | 74855A-119N | Not Available |
| 25 | Not Available | Eureka Hose Assembly - Cartoned | 62293-31 | Not Available |
| 26 | Not Available | Eureka Adaptor - Hose | 83510-313N | Not Available |
| 27 | Not Available | Eureka Lower Hose Retainer Assem | 75195-17 | Not Available |
| 29 | Not Available | Eureka Package - Hardware | 74846-1 | Not Available |
| 30 | Not Available | Eureka Supply Cord & Terminal As | 83947-12 | Not Available |
