Schematic and parts list for: Eureka Model: 4773
This is a list of parts and a diagram and schematic for: Eureka Model: 4773
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright Bagless
Popular Supplies
| # | Part image | Description | SKU | Price |

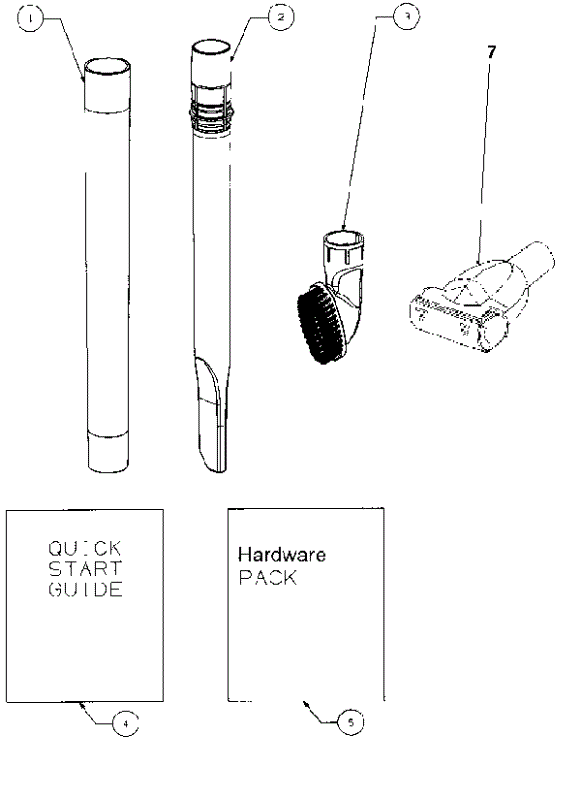

| 01 | Not Available | Eureka Wand - Outer | 77507-119N | Not Available |
| 02 | Not Available | Eureka Wand - Crevice | 77506-119N | Not Available |
| 03 |  | Cord Wrap Rewind Bissell repair part number: 1609903 | 1609903 | $53.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 04 | Not Available | Eureka Owners Guide | 84289 | Not Available |
| 05 | Not Available | Eureka Package - Hardware | 75193-2 | Not Available |
| 06 |  | CREVICE TOOL, GE5500/5550/106575/10658 Part Number: 7750522 for Eureka | 7750522 | $12.36Read more |
| 07 | Not Available | Eureka Turbo Nozzle Assembly | 75391-16 | Not Available |
| # | Part image | Description | SKU | Price |

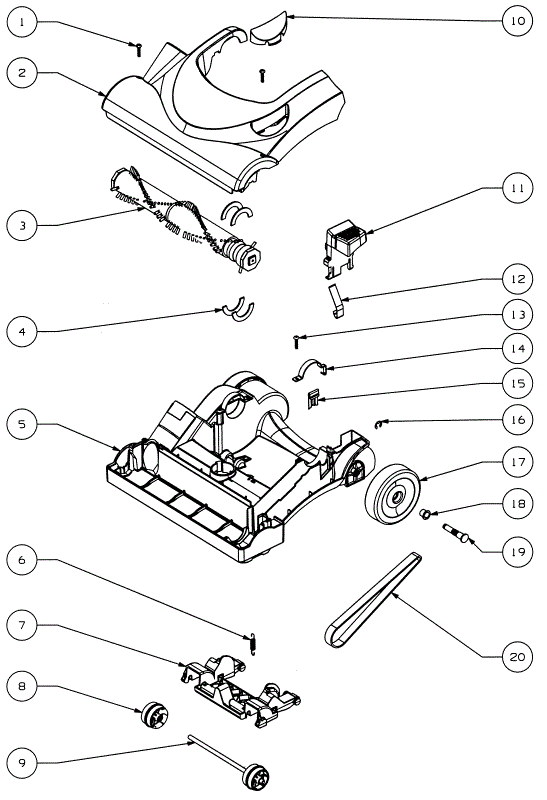

| xx | Not Available | Eureka Dampener - End Cap | 82674-119N | Not Available |
| 01 | Not Available | Eureka Screw - Pan Hd Plascrew | 74846-1 | Not Available |
| 02 | Not Available | Eureka Hood Assembly - Packaged | 63612-13 | Not Available |
| 03 | Not Available | Eureka Brushroll Assembly - Cart | 62228-3 | Not Available |
| 04 | Not Available | Eureka Nozzle Felt | 74824 | Not Available |
| 05 | No Image | BASE, 4773AZ Part Number: 62072-19 for Eureka | 6207219 | $34.27Read more |
| 06 | Not Available | Eureka Spring Package | 54943-1 | Not Available |
| 07 | Not Available | Eureka Carriage - Wheel | 74817-119N | Not Available |
| 08 | Not Available | Eureka Wheel - Front | 74818A-119N | Not Available |
| 09 | Not Available | Eureka Axle - Front | 71478-2 | Not Available |
| 10 | Not Available | Eureka Window - Belt View | 75092-313N | Not Available |
| 11 | Not Available | Eureka Release - Handle | 74820-355N | Not Available |
| 12 | Not Available | Eureka Handle Release Plate | 74821 | Not Available |
| 13 | Not Available | Eureka Screw Package | EW312-8T12ZP | Not Available |
| 14 | Not Available | Eureka Clamp - Motor | 74825 | Not Available |
| 15 | Not Available | Eureka Guard - Belt | 74822 | Not Available |
| 16 | No Image | HOOD ASS'Y, LIGHTNING POWER NOZZLE Part Number: 75096 for Fantom | 75096 | $26.21Read more |
| 17 | Not Available | Eureka Wheel - Rear | 74816A-119N | Not Available |
| 18 | Not Available | Eureka Bushing - Axle | 75097A | Not Available |
| 19 | Not Available | Eureka Axle - Rear | 75095 | Not Available |
| 20 |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |
| # | Part image | Description | SKU | Price |

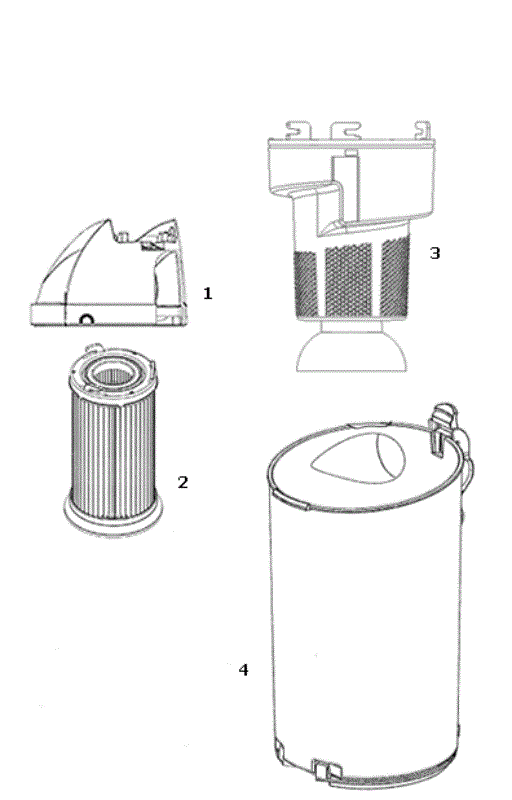

| 01 | Not Available | Eureka Cover & Graphics Assembly | 75188-39 | Not Available |
| 02 | Not Available | Eureka Filter Package Eureka Dcf | 63073B | Not Available |
| 03 | Not Available | Eureka Filter Basket & Graphics | 84575-1 | Not Available |
| 04 | Not Available | Eureka Dust Cup Assembly | 84351-1 | Not Available |
| # | Part image | Description | SKU | Price |

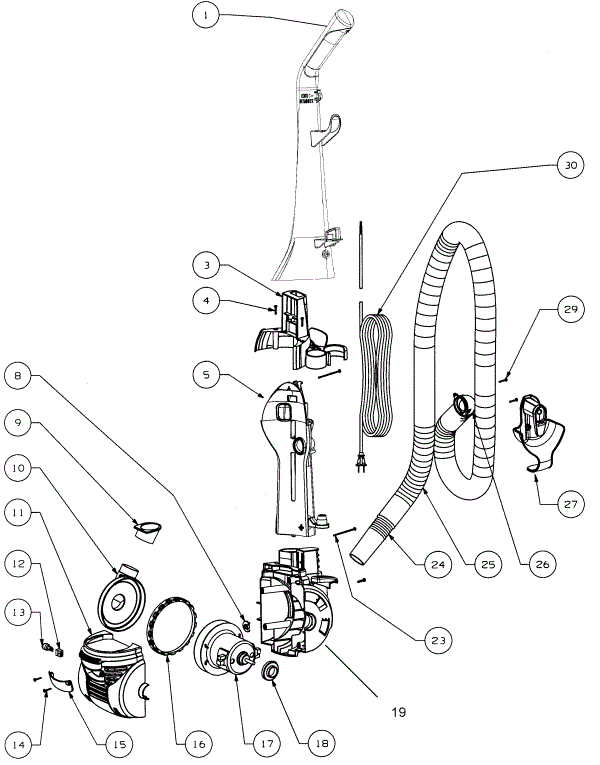

| xx | Not Available | Eureka Gasket - Dustcup | 83374-119N | Not Available |
| xx | Not Available | Eureka Pedal - Switch | 74844-359N | Not Available |
| xx | Not Available | Eureka Switch (Rocktek) | 74843-1 | Not Available |
| 01 |  | Handle, Black Plastic Upper Bagless Upright 4773AZ Part Number: 83314-2 for Eureka | 833142 | $15.67Read more |
| 03 | Not Available | Eureka Tool Caddy | 75958-119N | Not Available |
| 04 | Not Available | Eureka Screw - Pan Hd Plascrew | 74846-1 | Not Available |
| 05 | Not Available | Eureka Backbone | 83373-119N | Not Available |
| 08 | Not Available | Eureka Washer Package | 63202 | Not Available |
| 09 | No Image | GASKET, MOTOR COVER 4773 Part Number: 71027 for Eureka | 71027 | $6.66Read more |
| 11 | Not Available | Eureka Cover - Motor (Front) | 83754-119N | Not Available |
| 16 | Not Available | Eureka Gasket - Motor Can | 83858 | Not Available |
| 17 | Not Available | Eureka Motor Assembly - Packaged | 62568-2 | Not Available |
| 18B | Not Available | Eureka Motor Adjustment Ring | 83859-119N | Not Available |
| 18A | Not Available | Eureka Bushing - Motor | 83860 | Not Available |
| 19 | No Image | COVER, MOTOR & GRAPHICS 4773AZ Part Number: 77503-97 for Eureka | 7750397 | $12.75Read more |
| 23 | Not Available | Eureka Screw - Pan Hd Plascrew | 74846-2 | Not Available |
| 24 | Not Available | Eureka Coupling - Hose | 74855A-119N | Not Available |
| 25 | Not Available | Eureka Hose, Wand & Adapter Assembly Includes Items 24-26 | 62293-25 | Not Available |
| 26 | Not Available | Eureka Adaptor - Hose | 83510-313N | Not Available |
| 27 | Not Available | Eureka Lower Hose Retainer Assembly | 75195-17 | Not Available |
| 29 | Not Available | Eureka Screw - Pan Hd Plascrew | 74846-1 | Not Available |
| 30 | Not Available | Eureka Supply Cord & Terminal | 83947-4 | Not Available |
| 32 | Not Available | Eureka Filter - Pre-Motor | 76087 | Not Available |
