Schematic and parts list for: Eureka Model: 4716
This is a list of parts and a diagram and schematic for: Eureka Model: 4716
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright Bagless
Popular Supplies
| # | Part image | Description | SKU | Price |
| xx | Not Available | Eureka Pet Turbo Nozzle Assembly | 80002-2 | Not Available |
| 01 | Not Available | Eureka Hose Assembly - Cartoned | 62293-17 | Not Available |
| 02 | Not Available | Eureka Adaptor - Hose | 74856-313N | Not Available |
| 03 |  | **USE E-28497-119N WAND, TELESCOPIC 4716AVZ 4716 Part Number: 77505-19 for Eureka | 7750519 | $11.50Read more |
| 04 | Not Available | Eureka Wand - Crevice | 77506-366N | Not Available |
| 05 | Not Available | Eureka Wand - Outer | 77507-366N | Not Available |
| 06 | Not Available | Eureka Wand - Long | 81169-355N | Not Available |
| 07 | Not Available | Eureka Brush - Overmolded W/Bris | 80014-1 | Not Available |
| 08 |  | SCREW KIT, HANDLE 4704A Part Number: 75193 for Eureka | 75193 | $6.57Read more |
| 09 | Not Available | Eureka Owners Guide | 81492A | Not Available |
| 10 | Not Available | Eureka Electrostatic Dusting Brush Holder (does not come with #11) | 75628A-9 | Not Available |
| 11 | Not Available | Eureka Electrostatic Dstr Handle | 77560-3 | Not Available |

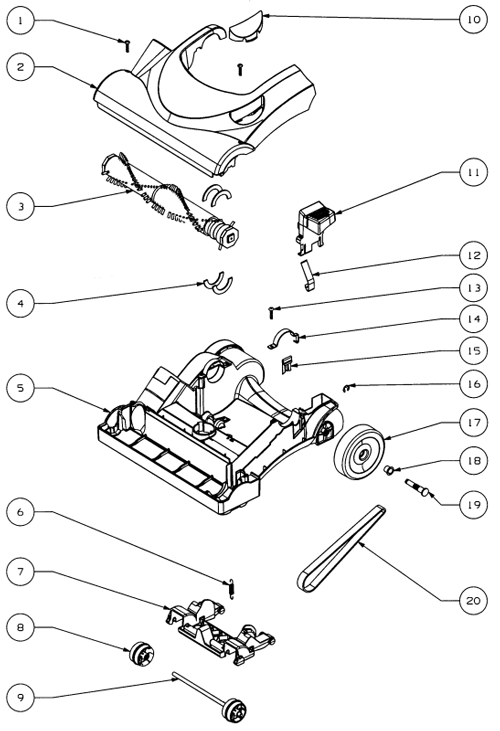

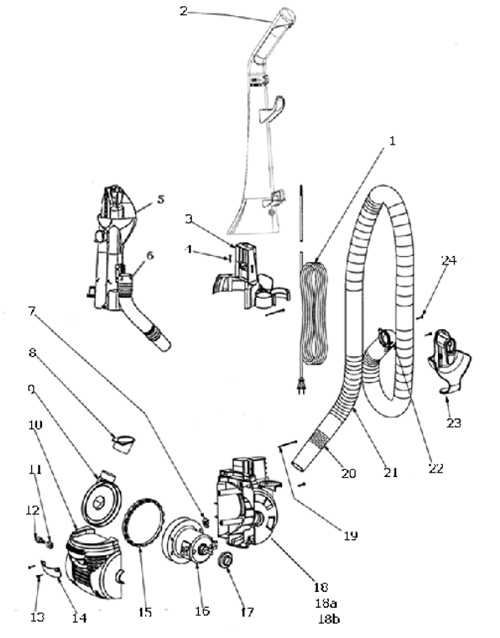

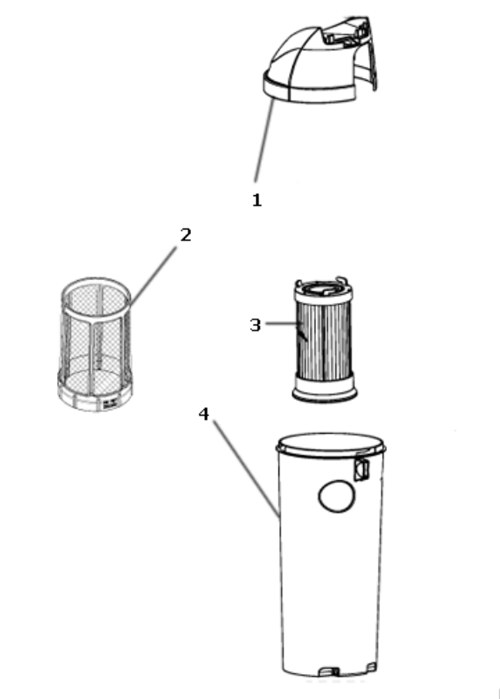

| # | Part image | Description | SKU | Price |
| xx | Not Available | Eureka Knob - Height Adjustment | 72472-355N | Not Available |
| xx | Not Available | Eureka Dampener - End Cap | 82674-119N | Not Available |
| 01 | Not Available | Eureka Screw - Pan Hd Plascrew | 74846-1 | Not Available |
| 02 | Not Available | Eureka Hood Assembly - Packaged | 63612-5 | Not Available |
| 03 | Not Available | Eureka Brushroll Assembly - Cart | 62228-3 | Not Available |
| 04 | Not Available | Eureka Nozzle Felt | 74824 | Not Available |
| 05 | Not Available | Eureka Base Assembly - Packaged Includes Items 4-9, 11,12, 15-19. | 62072-5 | Not Available |
| 06 | Not Available | Eureka Spring Package | 38698 | Not Available |
| 07 | Not Available | Eureka Carriage - Wheel | 74817-355N | Not Available |
| 08 | Not Available | Eureka Wheel - Front | 74818-355N | Not Available |
| 09 | Not Available | Eureka Axle - Front | 71478-2 | Not Available |
| 10 | Not Available | Eureka Window - Belt View | 75092-313N | Not Available |
| 11 | Not Available | Eureka Release - Handle | 74820-355N | Not Available |
| 12 | Not Available | Eureka Handle Release Plate | 74821 | Not Available |
| 13 | Not Available | Eureka Screw Package | EW312-8T12ZP | Not Available |
| 14 | Not Available | Eureka Clamp - Motor | 74825 | Not Available |
| 15 | Not Available | Eureka Guard - Belt | 74822 | Not Available |
| 16 | No Image | HOOD ASS'Y, LIGHTNING POWER NOZZLE Part Number: 75096 for Fantom | 75096 | $26.21Read more |
| 17 | Not Available | Eureka Wheel - Rear | 74816-355N | Not Available |
| 18 | Not Available | Eureka Bushing - Axle | 75097A | Not Available |
| 19 | Not Available | Eureka Axle - Rear | 75095 | Not Available |
| 20 |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Cover & Graphics Assembly | 75188-19 | Not Available |
| 02 | Not Available | Eureka Filter Screen Assembly | 81704-1 | Not Available |
| 03 | Not Available | Eureka Pleated Filter Assembly | 28608B-1 | Not Available |
| 04 | Not Available | Eureka Dust Cup Assy | 81776 | Not Available |
| # | Part image | Description | SKU | Price |
| xx | No Image | COVER, FILTER HEPA 116. 22312202 Part Number: 8175093 for Kenmore | 8175093 | $38.84Read more |
| 01 | Not Available | Eureka Supply Cord & Terminal As | 74838-1 | Not Available |
| 02 | Not Available | Eureka Upper Handle Assembly | 75956-1 | Not Available |
| 03 | Not Available | Eureka Tool Caddy | 75958-355N | Not Available |
| 04 | Not Available | Eureka Screw - Pan Hd Plascrew | 74846-1 | Not Available |
| 05 | Not Available | Eureka Backbone & Base Hose Assy | 81164 | Not Available |
| 06 | Not Available | Eureka Adapter - Duster Housing | 81165-355N | Not Available |
| 07 | Not Available | Eureka Washer Package | 63202 | Not Available |
| 08 | Not Available | Eureka Gasket - Motor Inlet | 74836 | Not Available |
| 09 | Not Available | Eureka Duct - Air | 74834-119N | Not Available |
| 10 | Not Available | Eureka Cover - Motor (Front) | 74829-501M | Not Available |
| 11 | Not Available | Eureka Headlamp Socket Assembly | 74832 | Not Available |
| 12 | Not Available | Eureka Lamp - Headlight | 57940-3 | Not Available |
| 13 | Not Available | Eureka Screw - Pan Hd Plascrew | 74846-1 | Not Available |
| 14 | Not Available | Eureka Lens | 74830-313N | Not Available |
| 15 | No Image | HOSE, 4 WIRE Part Number: 8174835 for Kenmore | 8174835 | $153.20Read more |
| 16 | Not Available | Eureka Motor Assembly - Packaged | 62568-1 | Not Available |
| 17 | Not Available | Eureka Bushing - Motor | 75094 | Not Available |
| 18 | Not Available | Eureka Rear Motor Cover Assembly | 62562-4 | Not Available |
| 18a | Not Available | Eureka Switch (Rocktek) | 74843-1 | Not Available |
| 18b | Not Available | Eureka Pedal - Switch | 74844-359N | Not Available |
| 19 | Not Available | Eureka Screw - Pan Hd Plascrew | 74846-2 | Not Available |
| 20 | Not Available | Eureka Wand - Long | 81169-355N | Not Available |
| 21 | Not Available | Eureka Hose Assembly - Cartoned | 62293-17 | Not Available |
| 22 | Not Available | Eureka Adaptor - Hose | 74856-313N | Not Available |
| 23 | Not Available | Eureka Lower Hose Retainer Assem | 75195-11 | Not Available |
| 24 | Not Available | Eureka Screw - Pan Hd Plascrew | 74846-1 | Not Available |
