Schematic and parts list for: Eureka Model: 4704
This is a list of parts and a diagram and schematic for: Eureka Model: 4704
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Maxima
Popular Supplies

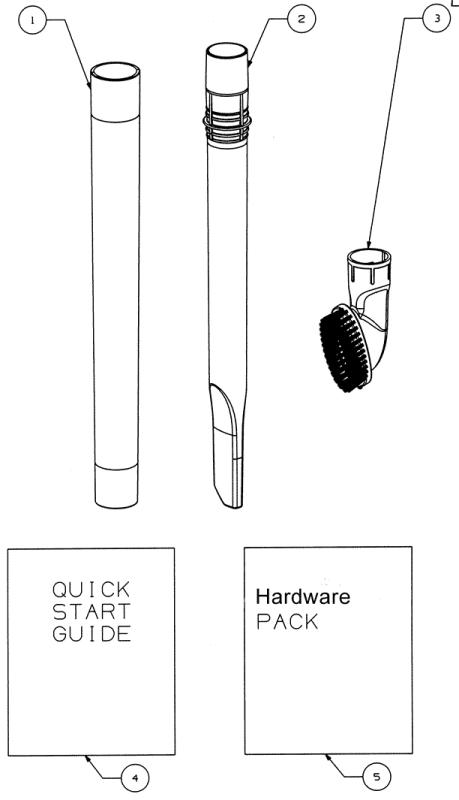

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Wand - Outer | 71973-119N | Not Available |
| 02 | Not Available | Eureka Wand-Crevice | 71956A-119N | Not Available |
| 03 | Not Available | Eureka Combination Brush - Brist | 78217-1 | Not Available |
| 05 |  | SCREW KIT, HANDLE 4704A Part Number: 75193 for Eureka | 75193 | $6.57Read more |
| 06 | Not Available | Eureka Nesting Wand Assembly Includes Items 1 And 2 | 71492A | Not Available |

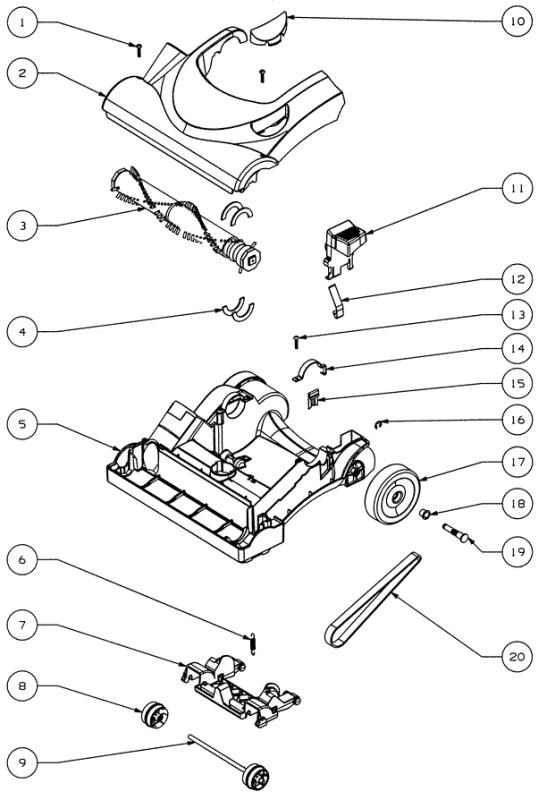

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Screw - Pan Hd Plascrew | 74846-1 | Not Available |
| 02 | Not Available | Eureka Hood Assembly - Packaged | 63342-13 | Not Available |
| 03 |  | Brushroll, 12 In Wood Upright 4700 Reverse Helix | E-60844-5 | $37.95Read more |
| 04 | Not Available | Eureka Nozzle Felt | 74824 | Not Available |
| 05 |  | BASE, 4700A Part Number: 62072-3 for Eureka | 620723 | $33.50Read more |
| 06 | Not Available | Eureka Spring Package | 38698 | Not Available |
| 07 | Not Available | Eureka Carriage - Wheel | 74817-355N | Not Available |
| 08 | Not Available | Eureka Wheel - Front | 74818-355N | Not Available |
| 09 |  | Axle, Front SC5713/SC5815/SC5845 Uprights Part Number: 71478 for Eureka | 71478 | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Eureka Window - Belt View | 75092-313N | Not Available |
| 11 | Not Available | Eureka Release - Handle | 74820-119N | Not Available |
| 12 | Not Available | Eureka Handle Release Plate | 74821 | Not Available |
| 13 | Not Available | Eureka Screw Package | EW312-8T12ZP | Not Available |
| 14 | Not Available | Eureka Clamp - Motor | 74825 | Not Available |
| 15 | Not Available | Eureka Guard - Belt | 74822 | Not Available |
| 16 | No Image | HOOD ASS'Y, LIGHTNING POWER NOZZLE Part Number: 75096 for Fantom | 75096 | $26.21Read more |
| 17 | Not Available | Eureka Wheel - Rear | 74816-355N | Not Available |
| 18 | Not Available | Eureka Bushing - Axle | 75097 | Not Available |
| 19 | Not Available | Eureka Axle - Rear | 75095 | Not Available |
| 20 |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |

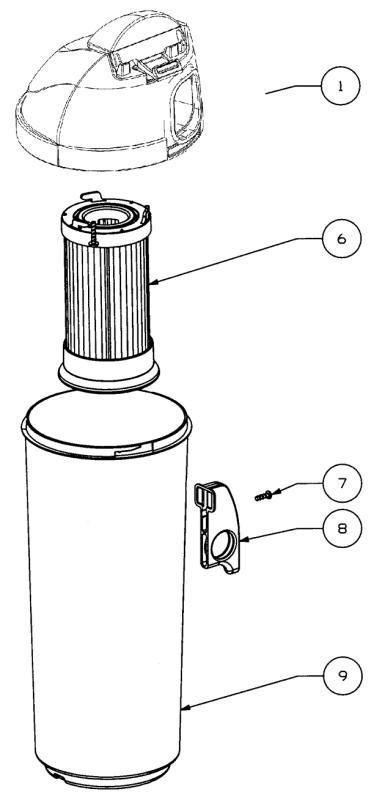

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Cover & Graphics Assembly | 75188-10 | Not Available |
| 06 | No Image | Eureka DCF4 DCF18 HEPA Filter | ER-18505 | $12.99Read more |
| 07 | Not Available | Eureka Screw - Pan Hd Plascrew | 74846-1 | Not Available |
| 08 | Not Available | Eureka Dust Cup Handle Assembly Includes Item 7 | 62560 | Not Available |
| 09 | No Image | DIRT CUP, 4704 MAXIMA Part Number: 74857-8 for Eureka | 748578 | $18.44Read more |

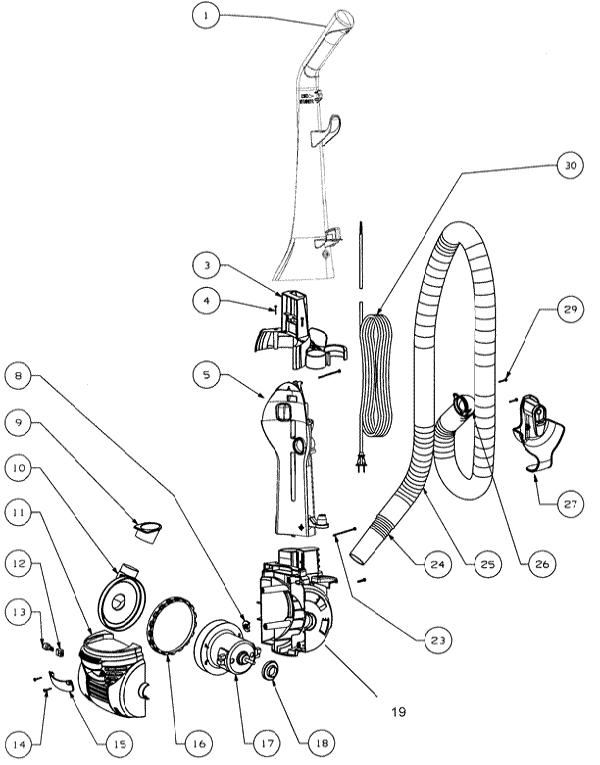

| # | Part image | Description | SKU | Price |
| xx | Not Available | Eureka Pedal - Switch | 74844-359N | Not Available |
| xx | Not Available | Eureka Switch | 74843-1 | Not Available |
| 01 | Not Available | Eureka Upper Handle Assembly | 74848-6 | Not Available |
| 03 | Not Available | Eureka Tool Caddy | 74852-119N | Not Available |
| 04 | Not Available | Eureka Screw - Pan Hd Plascrew | 74846-1 | Not Available |
| 05 | Not Available | Eureka Backbone Assembly | 62561-9 | Not Available |
| 08 | Not Available | Eureka Washer Package | 63202 | Not Available |
| 09 | Not Available | Eureka Gasket - Motor Inlet | 74836 | Not Available |
| 10 | Not Available | Eureka Duct - Air | 74834-119N | Not Available |
| 11 | Not Available | Eureka Cover - Motor (Front) | 74829-119N | Not Available |
| 14 | Not Available | Eureka Screw - Pan Hd Plascrew | 74846-1 | Not Available |
| 15 | Not Available | Eureka Lens | 75739-119N | Not Available |
| 16 | No Image | HOSE, 4 WIRE Part Number: 8174835 for Kenmore | 8174835 | $153.20Read more |
| 17 | Not Available | Eureka Motor Assembly - Packaged | 62568 | Not Available |
| 18 | Not Available | Eureka Bushing - Motor | 75094 | Not Available |
| 19 | Not Available | Eureka Rear Motor Cover Assembly Includes Pedal Switch. | 63346-11 | Not Available |
| 23 | Not Available | Eureka Screw - Pan Hd Plascrew | 74846-2 | Not Available |
| 24 | Not Available | Eureka Coupling - Hose | 74855A-119N | Not Available |
| 25 | Not Available | Eureka Hose - Blow Molded | 74854-119N | Not Available |
| 26 | Not Available | Eureka Adaptor - Hose | 74856-313N | Not Available |
| 27 | Not Available | Eureka Lower Hose Retainer Assem | 75195-7 | Not Available |
| 29 | Not Available | Eureka Screw - Pan Hd Plascrew | 74846-1 | Not Available |
| 30 | Not Available | Eureka Supply Cord & Terminal As | 74838-4 | Not Available |
| 31 | Not Available | Eureka Hose Assembly - Cartoned Includes Items 24-26. | 62293-13 | Not Available |
