This is a list of parts and a diagram and schematic for: Eureka Model: 4498AS
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Victory Whirlwind
Popular Supplies
| # | Part image | Description | SKU | Price |

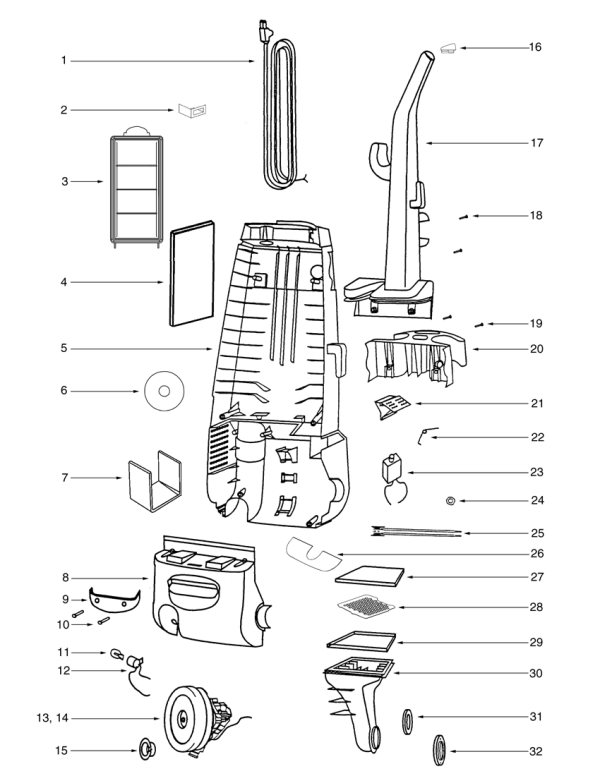

| 1 | No Image | ***USE E-39585-36CORD, POWER S3681 Part Number: 39585-10 for Eureka | 3958510 | $16.61Read more |
| 2 | Not Available | Eureka Shield Switch (Nla) | 71645 | Not Available |
| 3 | Not Available | Eureka Filter Frame & Graphics A | 28457-6 | Not Available |
| 4 |  | DUST BRUSH, 1-1/4" Round Black Part Number: 90615-00 for Shop Vac | 9061500 | $27.83Read more |
| 5 | Not Available | Eureka Housing - Rear | 71608-119N | Not Available |
| 6 | Not Available | Eureka Motor Shield | 38688A | Not Available |
| 7 |  | FOAM, SOUND Part Number: 722241 for Eureka | 722241 | $2.93Read more |
| 8 | Not Available | Eureka Motor Cover Assy W/O Lens | 61432-3 | Not Available |
| 9 | Not Available | Eureka Lens-Motor Cover (Nla) | 15072-313N | Not Available |
| 10 | Not Available | Eureka Screw/Pkg Light (60068- (Nla) | 60068-2 | Not Available |
| 11 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $5.07Read more |
| 12 | Not Available | Eureka Headlamp Sckt & Terminal | 38611-1 | Not Available |
| 13 | Not Available | Eureka Motor Assy. (Nla) | 60261-11 | Not Available |
| 14 | Not Available | Eureka Gasket | 27962A | Not Available |
| 15 | Not Available | Eureka Grommet | 27552B | Not Available |
| 16 | Not Available | Eureka Handle Cap (38482-119N) (Nla) | 38482A-119N | Not Available |
| 17 | Not Available | Eureka Handle & Cap Assembly | 71139-1 | Not Available |
| 18 |  | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $6.78Add to cart Special order: ships in 2 to 4 weeks |
| 19 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 20 | Not Available | Eureka Tool Caddy (Nla) | 15443B-119N | Not Available |
| 21 | Not Available | Eureka Switch-Button (27474B-288N) | 27474C-288N | Not Available |
| 22 | Not Available | Eureka Pkg.5 Springs (Nla) | 60134 | Not Available |
| 23 |  | Switch, Red Push Button Mighty Mite 3684/3690/3695 mpn: 28304A2 for Eureka Mighty Mite 3684, 369... | E-15376-5 | $9.41Add to cart |
| 24 | Not Available | Eureka Retaining Ring Pkg | 60165-1 | Not Available |
| 25 | Not Available | Eureka Thermostat (Nla) | 39252-2 | Not Available |
| 26 | Not Available | Eureka Shield - Light | 38696 | Not Available |
| 27 | Not Available | Eureka Motor Filter Package | 61333 | Not Available |
| 28 | Not Available | Eureka Metal Grill | 28425 | Not Available |
| 29 | Not Available | Eureka Gasket-Air Duck (Nla) | 59297SV | Not Available |
| 30 | Not Available | Eureka Air Duct | 15536A-119N | Not Available |
| 31 |  | GASKET, FAN COVER BRAVO ALL MODELS Part Number: 27171A for Eureka | 27171A | $3.17Read more |
| 32 | Not Available | Eureka Flange/Motor Intake (Nla) | 39023 | Not Available |
| # | Part image | Description | SKU | Price |

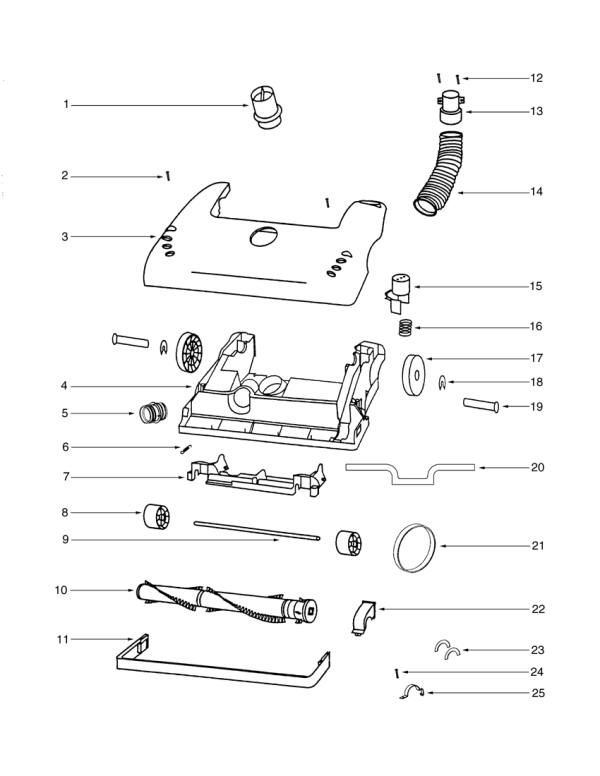

| 1 |  | KNOB, HIEGHT ADJUSTMENT VICTORY UPRIGHT Part Number: 27462E-288N for Eureka | 27462E288N | $4.73Read more |
| 2 | | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $6.78Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | HOOD, 4498 Part Number: 60069-78 for Eureka | 6006978 | $13.92Read more |
| 4 |  | BASE, :( 4473 VICTORY Part Number: 60701-11 for Eureka | 6070111 | $48.22Read more |
| 5 | Not Available | Eureka Adapter - Base | 28243A-316N | Not Available |
| 6 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | Eureka Carriage - Wheel | 14993C-119N | Not Available |
| 8 |  | Wheel, Front 5191/5847AV Part Number: 39173A119N for Eureka | 39173A119N | $5.24Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Eureka Axle - Wheel | 71551 | Not Available |
| 10 | Not Available | Eureka Brushroll Assembly - Cart | 61308-2 | Not Available |
| 11 | No Image | BUMPER, S4170 Part Number: 15591A-288N for Eureka | 15591A288N | $26.29Read more |
| 13 |  | CUFF, HOSE NOZZLE HSG VICTORY SERIES Part Number: 27468D-119N for Eureka | 27468D119N | $5.87Read more |
| 14 | Not Available | Eureka Hose - Compression (Purch | 38479-4 | Not Available |
| 15 | Not Available | Eureka Release - Handle | 27467A-288N | Not Available |
| 16 |  | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $3.14Read more |
| 17 |  | Wheel, Rear 4458/4459/4463/4467/4468/4488 Upright Part Number: 27493A-119N for Eureka | 27493A119N | $4.71Read more |
| 18 | Not Available | Eureka Retaining Ring | 54432-1 | Not Available |
| 19 |  | Axle, Rear 4458A/4468A/4499A/2903A/2905A Part Number: 38590A for Eureka | 38590A | $7.73Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Eureka Gasket (Nla) | 58506-4 | Not Available |
| 21 |  | Eureka Extended U belt aftermarket 2 pack pn: 61120F | 20310801 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Compatible alternateEureka Ext U Royal/Dirt Devil Style 20 Belt, Bravo Worldvac Powerline Eureka Type U Flat Royal di... More Product Details | 1JZ0900000 | $6.00Add to cart |
| 22 | Not Available | Eureka Belt Cap & Gasket - Packa | 54376-2 | Not Available |
| 23 |  | GASKET, FELT VICTORY Part Number: 57569 for Eureka | 57569 | $3.33Read more |
| 24 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 25 | Not Available | Eureka Clamp | 38420-2 | Not Available |
| # | Part image | Description | SKU | Price |

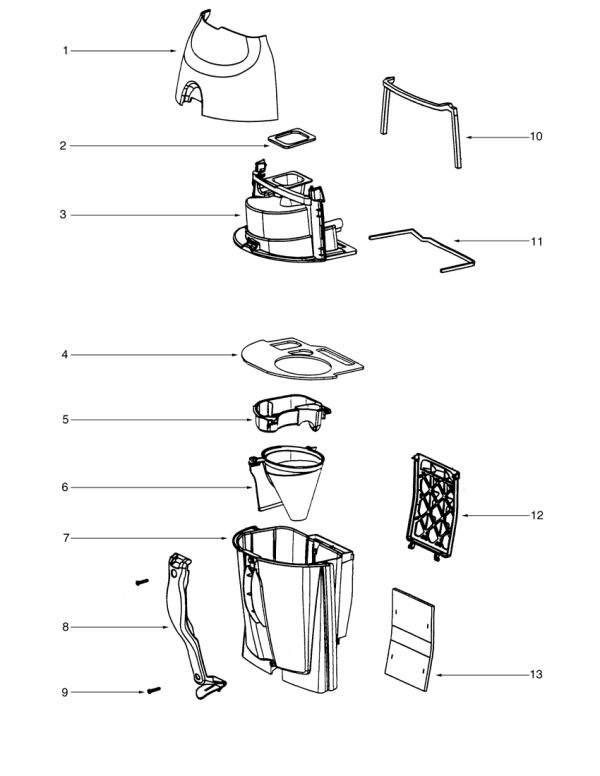

| xx | Not Available | Eureka Filter - Dirt Cup | 28453-1 | Not Available |
| 1 | Not Available | Eureka Front Cover Assembly - Pk | 60704-41 | Not Available |
| 2 | Not Available | Eureka Upper Cyclone Assy - Pkgd | 60705-5 | Not Available |
| 3 | Not Available | Eureka Cyclone Gasket Sheet | 39219B-1 | Not Available |
| 4 | Not Available | Eureka Filter - Screen | 28099B-119N | Not Available |
| 5 | Not Available | Eureka Funnel-Cyclone(02311A-333N) | 71568-1 | Not Available |
| 6 | Not Available | Eureka Cyclonic Cass.Assy.(6070 (Nla) | 60706-3 | Not Available |
| 7 | Not Available | Eureka Grip - Dirt Cup | 28131-288N | Not Available |
| 8 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 9 | Not Available | Eureka Gasket - Cyclone | 59595-1 | Not Available |
| 10 | Not Available | Eureka Gasket - Cyclone | 59595-1 | Not Available |
| 11 | Not Available | Eureka Frame - Filter | 28114-119N | Not Available |
| 12 | Not Available | Eureka Filter Package | 60696 | Not Available |
| # | Part image | Description | SKU | Price |

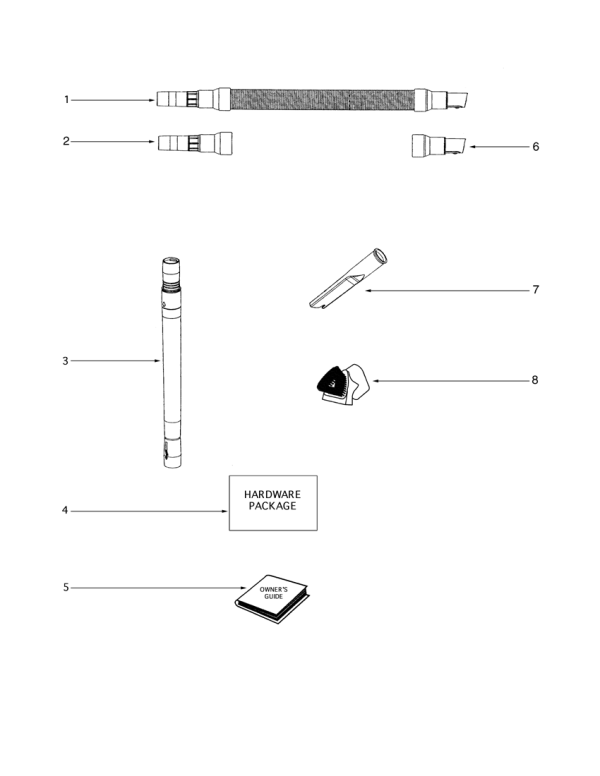

| 1 | Not Available | Eureka Hose Assembly - Cartoned | 61028-1 | Not Available |
| 2 | Not Available | Eureka Coupling - Hose | 37057B-3 | Not Available |
| 3 | Not Available | Eureka Nesting Wand Assembly | 58728B | Not Available |
| 4 | Not Available | Eureka Hardware Package (Nla) | 59930B | Not Available |
| 5 | Not Available | Eureka Owners Guide | 70239B | Not Available |
| 6 |  | ADAPTOR, HOSE VICTORY UPRIGHT Part Number: 27461B-119N for Eureka | 27461B119N | $4.76Read more |
| 7 |  | Crevice Tool, 4467 Part Number: 272373 for Eureka | 272373 | $7.04Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Eureka Combination Tool - Packag | 61037 | Not Available |
