This is a list of parts and a diagram and schematic for: Eureka Model: 4496
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Victory Upright
Popular Supplies

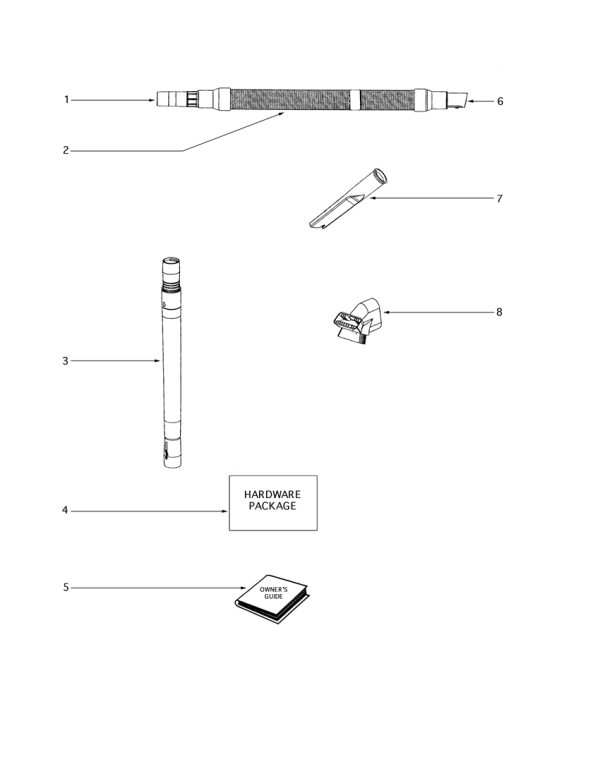

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Coupling - Hose | 37057A-3 | Not Available |
| 02 | Not Available | Eureka Hose Assembly | 61028-1 | Not Available |
| 03 | Not Available | Eureka Nesting Wand Assembly | 58728B | Not Available |
| 04 | Not Available | Eureka Package - Hardware | 59930A | Not Available |
| 05 | Not Available | Eureka Owners Guide | 70239B | Not Available |
| 06 |  | ADAPTOR, HOSE VICTORY UPRIGHT Part Number: 27461B-119N for Eureka | 27461B119N | $4.76Read more |
| 07 |  | Crevice Tool, 4467 Part Number: 272373 for Eureka | 272373 | $7.04Add to cart Special order: ships in 2 to 4 weeks |
| 08 | Not Available | Eureka Combination Tool | 61037 | Not Available |

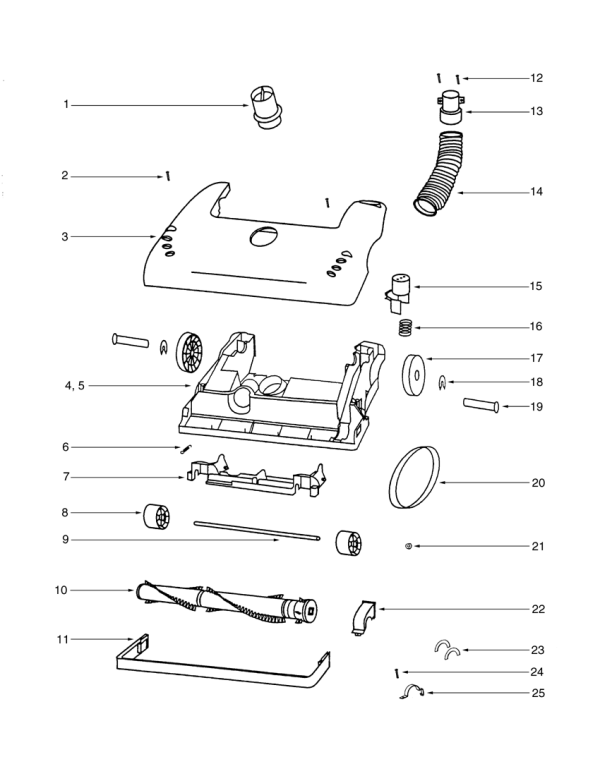

| # | Part image | Description | SKU | Price |
| 01 |  | KNOB, HIEGHT ADJUSTMENT VICTORY UPRIGHT Part Number: 27462E-288N for Eureka | 27462E288N | $4.73Read more |
| 02 |  | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $6.78Add to cart Special order: ships in 2 to 4 weeks |
| 03 | Not Available | Eureka Hood Assembly | 60069-66 | Not Available |
| 04 |  | BASE, :( 4473 VICTORY Part Number: 60701-11 for Eureka | 6070111 | $48.22Read more |
| 05 | Not Available | Eureka Gasket | 58506-4 | Not Available |
| 06 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Special order: ships in 2 to 4 weeks |
| 07 | Not Available | Eureka Carriage - Wheel | 14993C-119N | Not Available |
| 08 |  | Wheel, Front 5191/5847AV Part Number: 39173A119N for Eureka | 39173A119N | $5.24Add to cart Special order: ships in 2 to 4 weeks |
| 09 | Not Available | Eureka Wheel Axle | 71551 | Not Available |
| 10 | Not Available | Eureka Brushroll Assembly | 61308-2 | Not Available |
| 11 | No Image | BUMPER, S4170 Part Number: 15591A-288N for Eureka | 15591A288N | $26.29Read more |
| 12 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 13 |  | CUFF, HOSE NOZZLE HSG VICTORY SERIES Part Number: 27468D-119N for Eureka | 27468D119N | $5.87Read more |
| 14 | Not Available | Eureka Hose - Compression | 38479-4 | Not Available |
| 15 | Not Available | Eureka Release - Handle | 27467A-288N | Not Available |
| 16 |  | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $3.14Read more |
| 17 |  | Wheel, Rear 4458/4459/4463/4467/4468/4488 Upright Part Number: 27493A-119N for Eureka | 27493A119N | $4.71Read more |
| 18 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.33Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Axle, Rear 4458A/4468A/4499A/2903A/2905A Part Number: 38590A for Eureka | 38590A | $7.73Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Eureka Extended U belt aftermarket 2 pack pn: 61120F | 20310801 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Compatible alternateEureka Ext U Royal/Dirt Devil Style 20 Belt, Bravo Worldvac Powerline Eureka Type U Flat Royal di... More Product Details | 1JZ0900000 | $6.00Add to cart |
| 21 | Not Available | Eureka Push On Nut Pkg | 60613 | Not Available |
| 22 | Not Available | Eureka Belt Cap & Gasket | 54376-2 | Not Available |
| 23 |  | GASKET, FELT VICTORY Part Number: 57569 for Eureka | 57569 | $3.33Read more |
| 24 | Not Available | Eureka Clamp | 38420-2 | Not Available |

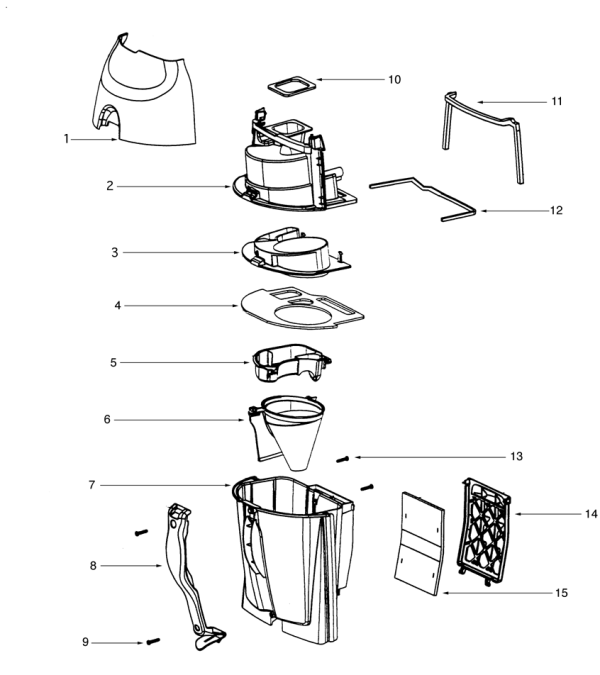

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Front Cover Assembly | 60704-36 | Not Available |
| 02 | Not Available | Eureka Upper Cyclone Assembly | 60705-5 | Not Available |
| 03 | Not Available | Eureka Upper Cyclone Assembly | 60705-5 | Not Available |
| 04 | Not Available | Eureka Cyclone Gasket Sheet | 39219B-1 | Not Available |
| 05 | Not Available | Eureka Filter - Screen | 28099B-333N | Not Available |
| 06 | Not Available | Eureka Funnel-Cyclone | 71568 | Not Available |
| 07 | Not Available | Eureka Cyclonic Assembly | FNLA | Not Available |
| 08 | Not Available | Eureka Grip - Dirt Cup | 28131-288N | Not Available |
| 09 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 10 | No Image | GASKET, CYLCONE 2 PACK Part Number: 39219B-2 for Eureka | 39219B2 | $7.77Read more |
| 11 | Not Available | Eureka Gasket - Cyclone | 59595-1 | Not Available |
| 12 | Not Available | Eureka Gasket - Air Duct | 59297-2SV | Not Available |
| 13 | Not Available | Eureka Frame - Filter | 28114-119N | Not Available |
| 14 | Not Available | Eureka Victory Whirlwind Filter | 60696 | Not Available |

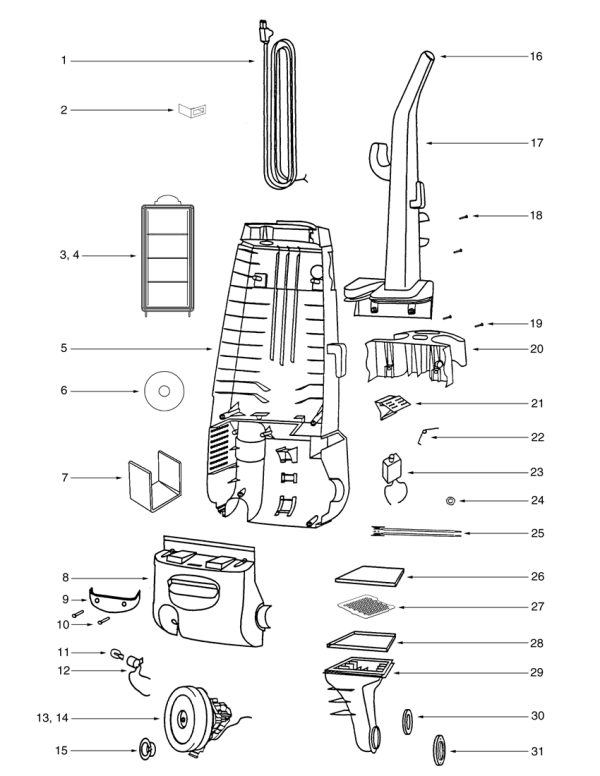

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Supply Cord & Terminal Assembly | 38680-16 | Not Available |
| 02 | Not Available | Eureka Shield Switch | FNLA | Not Available |
| 03 | Not Available | Eureka Filter Frame & Graphics Assembly | 28456-4 | Not Available |
| 04 |  | DUST BRUSH, 1-1/4" Round Black Part Number: 90615-00 for Shop Vac | 9061500 | $27.83Read more |
| 05 | No Image | HOUSING, REAR 4640 Part Number: 71608A-119N for Eureka | 71608A119N | $25.45Read more |
| 06 | Not Available | Eureka Motor Shield | FNLA | Not Available |
| 07 | Not Available | Eureka Foam - Sound | 38661 | Not Available |
| 08 |  | COVER, MOTOR WHIRLWIND 4380 Part Number: 61432-1 for Eureka | 614321 | $18.59Read more |
| 09 | Not Available | Eureka Lens - Motor Cover | 15072-313N | Not Available |
| 10 | Not Available | Eureka Screw Package | 60068-2 | Not Available |
| 11 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $5.07Read more |
| 12 | Not Available | Eureka Light Socket | FNLA | Not Available |
| 13 | Not Available | Eureka Motor Assembly | FNLA | Not Available |
| 14 | Not Available | Eureka Gasket | FNLA | Not Available |
| 15 | Not Available | Eureka Grommet | 27552B | Not Available |
| 16 | Not Available | Eureka Cap - Handle | 38482A-119N | Not Available |
| 17 | Not Available | Eureka Handle & Cap Assembly | 71139-1 | Not Available |
| 18 | Not Available | Eureka Screw Package | 54669-4 | Not Available |
| 19 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 20 | Not Available | Eureka Tool Caddy | 15443B-119N | Not Available |
| 21 | Not Available | Eureka Switch - Button | 27474C-288N | Not Available |
| 22 | Not Available | Eureka Tors Spring | 60134 | Not Available |
| 23 |  | Switch, Red Push Button Mighty Mite 3684/3690/3695 mpn: 28304A2 for Eureka Mighty Mite 3684, 369... | E-15376-5 | $9.41Add to cart |
| 24 | Not Available | Eureka Retaining Ring | 60165-1 | Not Available |
| 25 | Not Available | Eureka Thermostat & Terminal Assembly | 39252-2 | Not Available |
| 26 | Not Available | Eureka Motor Filter Package | 61333 | Not Available |
| 27 | Not Available | Eureka Grille - Air Duct | 28425 | Not Available |
| 28 | Not Available | Eureka Gasket - Air Duct | 59297SV | Not Available |
| 29 | Not Available | Eureka Air Duct | 15536A-119N | Not Available |
| 30 |  | GASKET, FAN COVER BRAVO ALL MODELS Part Number: 27171A for Eureka | 27171A | $3.17Read more |
| 31 | Not Available | Eureka Flange - Motor Intake | 39023 | Not Available |
