Schematic and parts book for Riccar r17, r17.2, r172 R17. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
Helpful Repair Videos

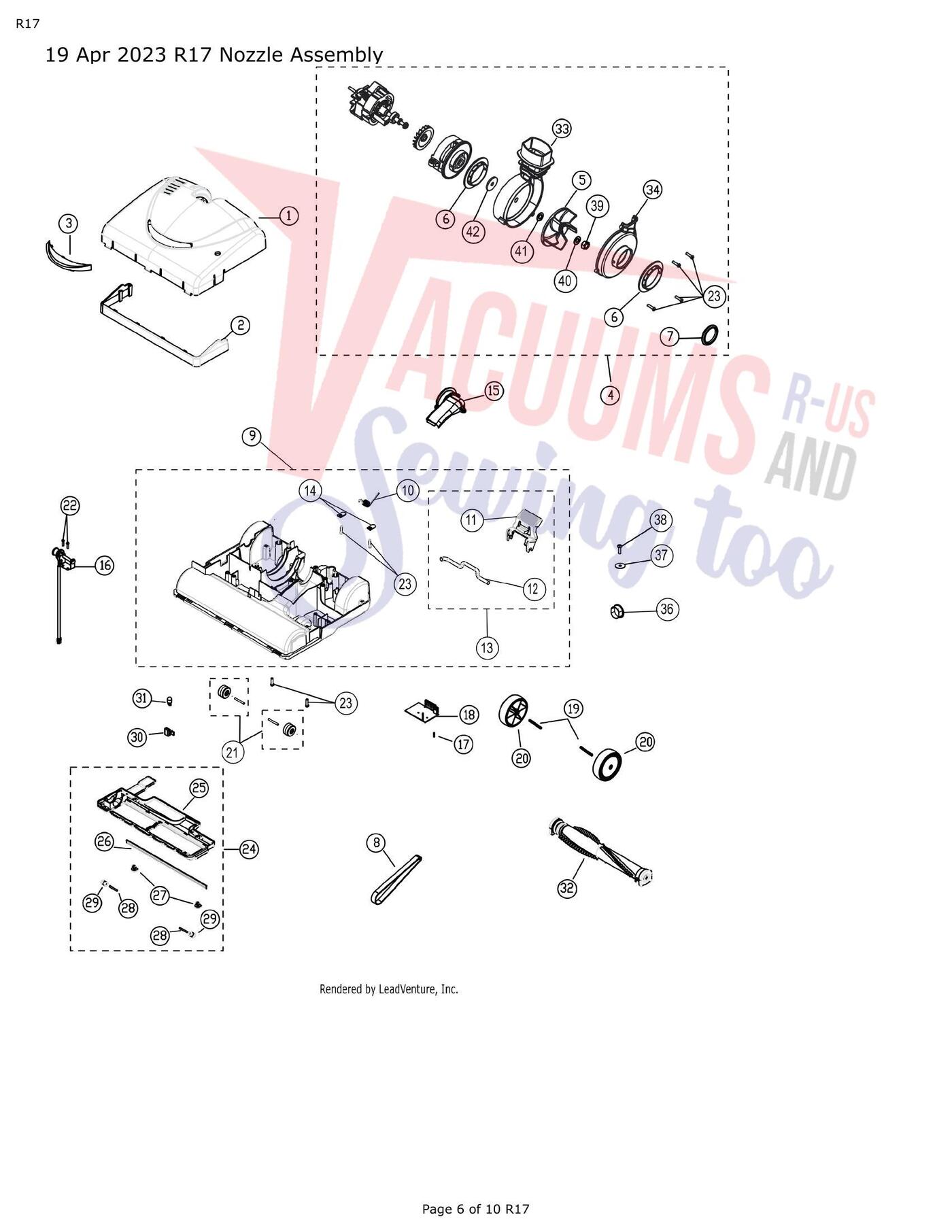

| # | Part image | Description | SKU | Price |
| 1 |  | Handle Grip Assembly Part Number C220-3514 for Maytag and Riccar Models M500,R10S, R10D, R10P, R10SAND, R17 | C2203514 | $25.99Add to cart |
| 2 |  | s10s r10s screw hi lo | WP10362 | $2.99Add to cart |
| 3 |  | Strain Relief Part Number B333-3014B for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,M500,R10S, R... | B3333014B | $2.99Add to cart |
| 4 |  | Riccar and Simplicity 2 Speed Round Switch for Supralites | A3281700 | $4.39Add to cart |
| 5 |  | Screw HI-LO #8 x 7/16” Part Number A732-8414 for Simplicity and Maytag and Riccar Models 7250, 7350, 7450, 7750, 7850, 7950,7200, 7250, 7300, 7350, 7400, 7450, 7700, 7750, 7850, 7900, 7950,6100, 63... | A7328414 | $2.99Add to cart |
| 6 |  | Nylon Washer Part Number B017-2500 for Simplicity and Maytag and Riccar Models 6100, 6370, 6400, 6470, 6550, 6570, 6600, 6670, 6700, 6770, 6770T, 6-5AE, 6800, 6870, 6900, 6970,M500,M700,R10S, R10D,... | B0172500 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Handle Tube Part Number B220-3400 for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND, R17,S10CV S10CV.2 S10CV.4 | B2203400 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Handle Back Cover Part Number B220-3114 for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND, R17,S10CV S10CV.2 S10CV.4 | B2203114 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Screws #10 Handle Bolts S10E r10E | A432-0705 | $2.99Add to cart |
| 10 |  | Upper Cord Hook Washer Hardened | A430-0405 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Swivel Cord Hook Part Number B220-3314 for Maytag and Riccar Models M500,R10S, R10D, R10P, R10SAND, R17 | B2203314 | $2.99Add to cart |
| 12 |  | Upper Cork Hook Spring | B430-0200 | $2.99Add to cart |
| 13 | No Image | s10s r10s Back Neck Coupling | WP10361 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | | Wire Harness For Hall Sensor (R10P, R10SAND R17) Part Number A434-4143 for Riccar Models R10S, R10D, R10P, R10SAND, R17 | A4344143 | $20.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Hex Nut #10-32 Nylon Part Number A432-0805 for Simplicity and Maytag and Riccar Models F3100, F3300, F3300C, S10E,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,R10CV, R10CV.2, R10CV.4... | A4320805 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Neck Coupling Front Black | WP10347 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | Handle Duct Part Number B220-3014C for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND, R17,S10CV S10CV.2 S10CV.4 | B2203014C | $38.49Read more |
| 18 |  | Bag Mount Assembly Part Number D484-2282 for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND, R17,S10CV S10CV.2 S10CV.4 | D4842282 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Bag Mount Seal Part Number B220-3900 for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND, R17,S10CV S10CV.2 S10CV.4 | B2203900 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Riccar R10S R10D R10P R17 hard cloth body external bag assy | D2205100 | $79.99Add to cart |
| 21d |  | Aftermarket Riccar Type L HEPA Vacuum Bags - 6pk | TACONYLBAG | $20.89Add to cart |
| 21c |  | Riccar HEPA Vacuum Bags Charcoal Infused Type L for R10S R10P R10CV and R17 - 6pk green dock | RLH6 | $32.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21b |  | Charcoal/HEPA Bag (Bulk Single) Part Number B220-5382D for Riccar and Simplicity Models R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND, R17,S10CV S10CV.2 S10CV.4 | B2205382D | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21a | | HEPA Bag (Bulk Single) Part Number B220-5382C for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND, R17,S10CV S10CV.2 S10CV.4 | B2205382C | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | POWER CORD ASSEMBLY ULW 40' S10P R10P S10SAND R10SAND | D4344343 | $49.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | | Polyurethane Handle Spacer Part Number B388-5900 for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND, R17,S10CV S10CV.2 S10CV.4 | B3885900 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Carry Handle Part Number B220-6214 for Maytag and Riccar Models M500,R10S, R10D, R10P, R10SAND, R17 | B2206214 | $5.99Add to cart |
| 25 | | Handle Assembly (R10P, R10SAND R17) Part Number D220-3300 for Riccar Models R10S, R10D, R10P, R10SAND, R17 | D2203300 | $136.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Riccar R17 Nozzle assembly part D220-2471 Nozzle Cover Riccar Ultra Lightweight Upright R17 Black Molded w/ | WP11175 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Black Furniture Bumper for Riccar Simplicity CleanMax R10 S10 R17 ZM500 ZM700 ZM800 | WP11778 | $5.99Add to cart |
| 3 |  | Lens Part Number B018-0415 for Maytag and Riccar Models M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RS... | B0180415 | $2.99Add to cart |
| 4 |  | Riccar Simplicity Direct Air Motor Assembly ULW with Pulley R10P S10P SAND R10 S10 | D2204100 | $142.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | DIRECT AIR MOTOR FAN 5 BLADE DC M500 R10 S10 ULW | B2204314 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Pivot Bushing for Riccar Vacuums | WP10773 | $2.99Add to cart |
| 7 |  | Direct Air Motor Inlet Seal ULW | WP10774 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Poly V Belt ULW R10P S10P RSL5/C F3700/C ZM-600 S10SAND R10SAND riccar and simplicity | B0141200 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Basetray Assembly M500 S10 R10 | D220-0114 | $52.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Foot spring for riccar r10 and simplicity s10 freedom supralights | B2200900 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Foot pedal for Riccar R10 SupraLight and Simplicity S10 Freedom | B2200714 | $2.99Add to cart |
| 12 | No Image | Upright Stop Pedal Pivot for Riccar R10 and Simplicity S10 | B2200800 | $3.99Add to cart |
| 13 |  | UPRIGHT STOP PEDAL ASSEMBLY WITH PIVOT DC M500 R10 S10 | D2200714 | $13.99Add to cart |
| 15 |  | Inlet Duct Cover Part Number B220-0214 for Maytag and Riccar and Simplicity Models M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND,S10CV S10CV.2 S10CV.... | B2200214 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Idler and Hall Sensor Assy for ULW F3700 ZM600 | D3751400 | $45.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | | Plastic Dowel Pin(F3700/ F3700.SAND/F3700C) Part Number A018-1300 for Simplicity and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C | A0181300 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | ULW HALL SENSOR BOARD KIT W IMPROVED MOLEX CONNECTOR | B3171000BK | $66.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Large Wheel Axis for Riccar and Simplicity Machines | WP11836 | $2.99Add to cart |
| 20 |  | Rear Wheel Part Number C220-0531C for Maytag and Riccar and Simplicity Models M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND,S10CV S10CV.2 S10CV.4,WON... | C2200531C | $4.99Add to cart |
| 21 |  | Front Wheel Assembly and Axle for UltraLightWeights | WP11198 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | | Screw HI-LO #8 x 7/16” Part Number A732-8414 for Simplicity and Maytag and Riccar Models 7250, 7350, 7450, 7750, 7850, 7950,7200, 7250, 7300, 7350, 7400, 7450, 7700, 7750, 7850, 7900, 7950,6100, 63... | A7328414 | $2.99Add to cart |
| 23 | | s10s r10s screw hi lo | WP10362 | $2.99Add to cart |
| 24 |  | Standard Base Plate for Riccar R10S, R10D, R10P, R10SAND, the Simplicity S10S, S10D, S10P, S10SAND and the Maytag M500 | D2200414 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24a |  | ULW Baseplate Assembly for Soft Carpet | D220-1414 | $29.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 |  | Baseplate Squeegee Part Number B015-3000B for Simplicity and Maytag and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV... | B0153000B | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26a |  | Squeegee (Soft Carpet Baseplate) Part Number B015-3200 for Maytag and Riccar Models M500,R10S, R10D, R10P, R10SAND | B0153200 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Base Plate Cover Screw Black for R10 and S10 | B2200414 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 |  | Base Plate Axle Part Number B370-1700B for Simplicity and Maytag and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10... | B3701700B | $2.99Add to cart |
| 29 |  | Base Plate Wheel Part Number B370-1843 for Simplicity and Maytag and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.4,... | B3701843 | $2.99Add to cart |
| 30 | | Light Socket Part Number A018-0900 for Simplicity and Maytag and Riccar Models F3100, F3300, F3300C, S10E,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,R10S, R10D, R10P, R10SAND,RSL1,... | A0180900 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 |  | Prolite Light Bulb 12v Xenon for Tornado Uprights Riccar Supralites Simplicity Freedom vacuums all R10 and S10 | WP11393 | $3.29Add to cart |
| 32 |  | Brushroll Agitator for ULW Uprights | D0130500 | $79.99Add to cart |
| 33 |  | Scroll Housing RH Black DC 10 Series riccar R10 simplicity S10 maytag M500 D220-4014 | B220-4014 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Scroll Housing Lefthand Fan Cover for Riccar R10 and Simplicity S10 | B220-4114 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 |  | Plug For Circuit Breaker Hole (F3700, F3700.
SAND, F3700C) Part Number A018-1414 for Simplicity and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,R10CV, R10CV.2, R10CV.4, R10... | A0181414 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 |  | Strain Relief Washer Part Number B034-0100 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M12... | B0340100 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 |  | Combination Screw M4x12Combination Screw M4x12 Part Number A732-2500 for Simplicity and Maytag and Riccar Models 7300, 7350, 7850,7200, 7250, 7400, 7450, 7700, 7750, 7900, 7950,6100, 6370, 6400, 64... | A7322500 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 |  | HANDLE BOLT NUT 4000 & 6000 1/4-20 for R10 and other Motors | WP10349 | $2.99Add to cart |
| 40 |  | Washer (TEK Motor) Part Number A733-2200 for Simplicity and Maytag and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.... | A7332200 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 |  | Behind Fan Washer (TEK Motor) Part Number A733-3300 for Simplicity and Maytag and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10C... | A7333300 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 |  | Felt Seal Part Number B220-4500 for Maytag and Riccar and Simplicity Models M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND,S10CV S10CV.2 S10CV.4,WONDE... | B2204500 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 2 |  | Metal End Cap Part Number B013-1600 for Simplicity and Riccar Models F3700, F3700.SAND, F3700C,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV.6,R10S, R10D, R10P, R10SAND,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RS... | B0131600 | $7.99Add to cart |
| 3 | | Screw 80mm Part Number A733-1810 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,F3700, F3700.SAND, F3700C,M1200,PRIMAP.FSN, R50FSN,PRIMAP.TAD, PRIMA... | A7331810 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Retainer Ring for Metal Brush Rolls Simplicity Freedom and Riccar SupraLites | WP11570 | $2.99Add to cart |
| 5 |  | Felt Seal for ULW Metal Brush Rollers | WP11569 | $3.99Add to cart |
| 6 | Not Available | Bearing | A735-0200 | Not Available |
| 7 |  | Pulley Clamping Design for Poly V Belt Part Number B013-1400 for Simplicity and Riccar Models F3700, F3700.SAND, F3700C,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10S, R10D, R10P, R10SAND,RSL3, RSL3C, RSL4, RS... | B0131400 | $8.99Add to cart |
| 8c |  | Riccar and Simplicity Natural Brush Strips for ULW Vacuums | WP11867 | $3.99Add to cart |
| 8b |  | Short Brush Strip White Part Number B013-0301B for Simplicity and Riccar Models F3700, F3700.SAND, F3700C,R10CV.6,R10S, R10D, R10P, R10SAND,S10CV S10CV.2 S10CV.4 | B0130301B | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8a |  | Short nylon brush strip short metal agitator RSL5 F3700 ZM600 ULW | B0131000 | $6.99Add to cart |
| 9a |  | Long Nylon Brush Strip R30P R30D R30PET BRLD BRLS | B4750400B | $5.99Add to cart |
| 9b |  | Long Brush Strip White Part Number B013-0401B for Simplicity and Riccar Models F3700, F3700.SAND, F3700C,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV.6,R10S, R10D, R10P, R10SAND,S10CV S10CV.2 S10CV.4 | B0130401B | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9c |  | Riccar and Simplicity Long Natural Brush Strips for ULW Vacuums | WP11868 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Agitator Bearing Holder With Edge Brushes Clamping Design Part Number B013-1500 for Simplicity and Riccar Models F3700, F3700.SAND, F3700C,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV.6,R10S, R10D, R10P, R1... | B0131500 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | | Screw 44mm Part Number A733-1800 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,F3700, F3700.SAND, F3700C,M1200,PRIMAP.FSN, R50FSN,R10CV.6,R10S, R10... | A7331800 | $2.19Read more |
| 12 | | Brushroll Agitator for ULW Uprights | D0130500 | $79.99Add to cart |
