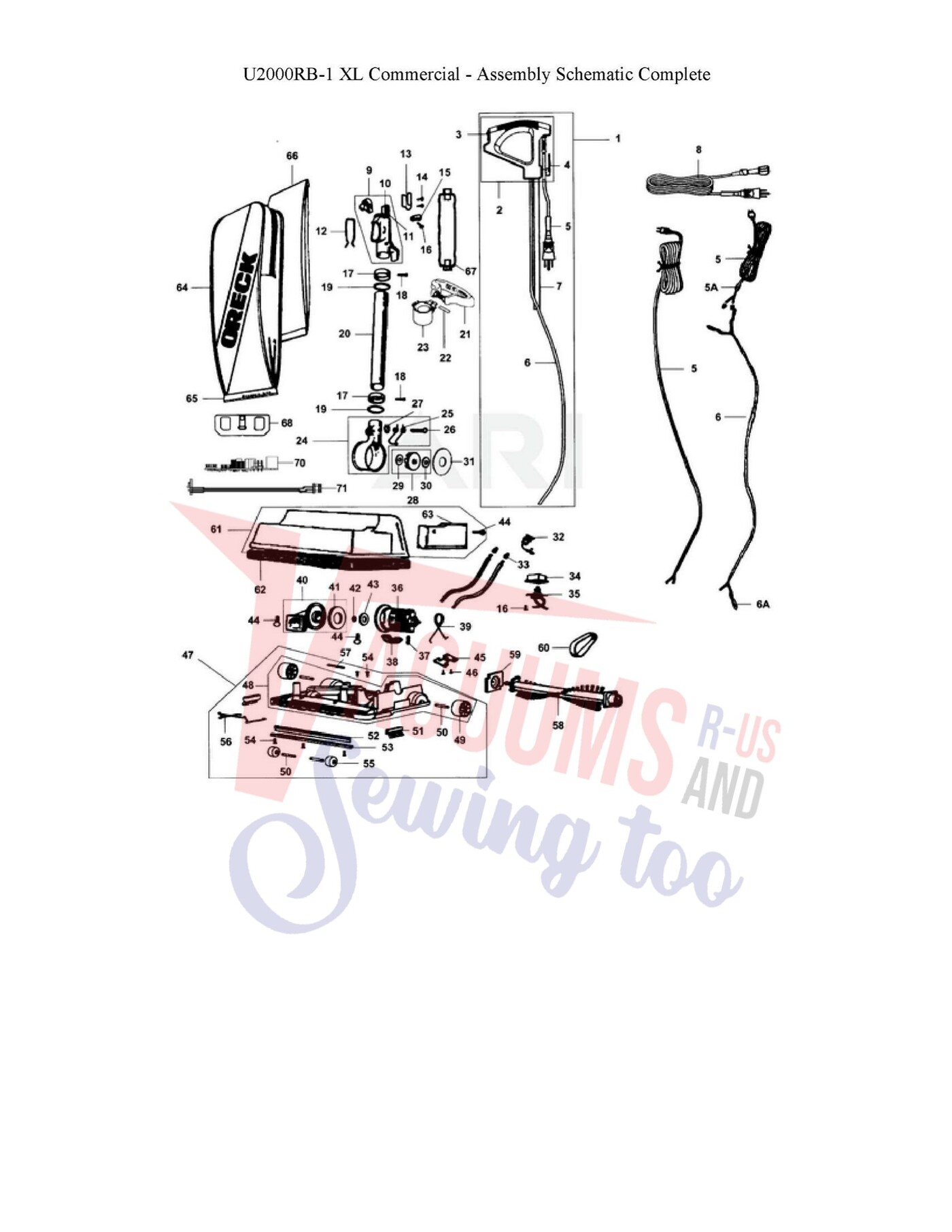

Schematic and parts book for Oreck U2000R-1, U2000R1 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HARDWIRE HANDLE | 09-75562-09 | Not Available |
| 1 | Not Available | ASSEMBLY - D STYLE | 09-75562-89 | Not Available |
| 1 | Not Available | KIT RETRO HARDWIRE | 09-75612-01 | Not Available |
| 1 | Not Available | HANDLE ASSY | 430000600 | Not Available |
| 2 | Not Available | GRIPS RED SET | 09-75576-08 | Not Available |
| 2 | Not Available | SCREW #8 - 6 X | 03-00456-01 | Not Available |
| 3 | Not Available | SWITCH SINGLE | 75559-01 | Not Available |
| 3 | Not Available | SWITCH 2-SPD | 75585-02 | Not Available |
| 4 | Not Available | ASSY CORD WRAP | 09-75185-07 | Not Available |
| 4 | Not Available | SCREW 10 X 1/2 | 03-00450-01 | Not Available |
| 5 | Not Available | CORD 120V JST RED | 75558-04-441 | Not Available |
| 5 |  | Cord - Oreck 3 Wire Commercial - Red For: oreck | 7555802441 | $51.94Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | CORD RED 120 | 75957-01-441 | Not Available |
| 5A |  | Strain Relief, Cord U4080/U4090/XL2320 Part Number: 03-00600-01 for Oreck | 030060001 | $5.15Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | HARNESS WIRE | 75877-01-441 | Not Available |
| 6 | Not Available | HARNESS 3-COND | 75557-03-441 | Not Available |
| 6A | Not Available | INSULATOR - JST | 75679-01M | Not Available |
| 7 |  | Handle, Upper Metal U2000/XL2100RHS Part Number: 430000905 for Oreck | 430000905 | $23.84Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Available ReconditionedPre owned Oreck chrome/black handle for classic style orecks. Square silver or metal handle More Product Details | 7519007R | $14.99Add to cart |
| 7 |  | Screw, #8-32 x .440 W/Nylon Washer Part Number: 03-00478-02 for Oreck | 030047802 | $1.10Read more |
| 7 | Not Available | SCREW #8 X .811 | 03-00608-01 | Not Available |
| 8 | Not Available | CORD RED EXT 120 | 75956-01-441 | Not Available |
| 9 | Not Available | HANDLE CONNECTOR | 09-75308-57 | Not Available |
| 9 |  | Connector, Bag/Handle W/Screws XL2000 Seri Part Number: 430001178 for Oreck | 430001178 | $27.42Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Available ReconditionedReconditioned Connector, Bag/Handle for classic XL style screw in type and modern commercial Oreck More Product Details | 430001178R | $24.99Add to cart |
| 10 | Not Available | INSERT CONNECTOR | 75619-01 | Not Available |
| 11 |  | Square Nut, Handle Brace 2000RH Part Number: 03-00606-01M for Oreck | 030060601M | $2.01Add to cart |
| 12 |  | Outer Bag Retainer Spring U-Clip for Oreck XL Vacuums. | 7503502 | $7.27Add to cart |
| 13 | Not Available | BRACE HANDLE | 75432-01 | Not Available |
| 13 |  | Oreck handle brace with screws for classic XL type and commercial oreck pn: 75435-01 | 7543501 | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Available ReconditionedCertified Reconditioned Oreck handle brace with screws for classic XL type and commercial oreck p... More Product Details | 7543501R | $7.99Add to cart |
| 14 | Not Available | Nla Screw 8-32 Nylok | 03-00504-02 | Not Available |
| 14 | Not Available | Wbd Screw #8-32 X | 03-00605-01 | Not Available |
| 15 | Not Available | WBD CLAMP CORD | 03-00619-01 | Not Available |
| 15 | Not Available | CORD CLAMP | 03-00613-01M | Not Available |
| 16 | Not Available | SCREW #8 x .5 | 03752-01 | Not Available |
| 17 |  | Plastic collar for Oreck XL type vacuums | 75309020327 | $14.99Read more |
| 17 | Not Available | SRA 75199-03-0327 | 75199-02-0327 | Not Available |
| 18 | Not Available | SCREW #6 - 20 x | 03-00482-01 | Not Available |
| 19 | Not Available | O'RING COLLAR | 75191-02 | Not Available |
| 20 | Not Available | LOWER HANDLE | 75198-05 | Not Available |
| 21 | Not Available | WBD HANDLE GRAY | 77014-04-0384 | Not Available |
| 22 |  | Oreck Detent Carry Handle for XL21 | 7706601 | $6.52Add to cart |
| 23 | Not Available | CLAMP | 75954-01-0327 | Not Available |
| 24 | Not Available | ASSY FAN HOUSING | 09-75343-03 | Not Available |
| 24 | Not Available | ASSEMBLY WITH | 09-75221-12 | Not Available |
| 25 | Not Available | SPRING BAG | 75015-01 | Not Available |
| 26 | No Image | Rivet, 3/16 x 1.41 Master Pack XLPlatin Part Number: 03-00453-01M for Oreck | 030045301M | $39.33Read more |
| 27 | Not Available | PUSHNUT 3/16" | 03-00636-01M | Not Available |
| 28 |  | Fan (Plastic)-Oreck Upt 5300/888/8300/100/9100 For: oreck | 097530001 | $13.76Add to cart Special order: ships in 2 to 4 weeks |
| 29 | Not Available | WASHER LOCK | 03-00480-01 | Not Available |
| 29 | Not Available | LOWER | U2000EB | Not Available |
| 29 | Not Available | PACK | U2000RB-1100 | Not Available |
| 30 |  | Washer, :( Fan Thrush Part Number: 030047901M for Oreck | 030047901M | $0.30Read more |
| 31 | Not Available | SEAL FAN | 75012-01 | Not Available |
| 32 | Not Available | STRAIN RELIEF | 03-00494-01 | Not Available |
| 32 | Not Available | STRAIN RELIEF | 03-00455-01 | Not Available |
| 33 | Not Available | WIRE NUT TAN 71B | 03-00599-01 | Not Available |
| 34 | Not Available | ASSY COVER SWITCH | 09-75266-01 | Not Available |
| 35 | Not Available | ASSEMBLY WITH | 75084-05 | Not Available |
| 36 |  | Oreck Motor Assembly for XL Upright Vacuums W/ Serpentine Belts U2000EB/RB | O-097550502 | $115.83Add to cart |
| 36 | Not Available | KIT MOTOR UPRIGHT | 09-75505-01 | Not Available |
| 36 |  | Oreck Mtr Assy Less Fan-xl100/9100/9200-oreck Oem | 430000620 | $87.16Add to cart Special order: ships in 2 to 4 weeks |
| 37 | Not Available | KKIITT BBRRUUSSHH//SSPPRRIINNGG | 09-75514-01 | Not Available |
| 38 | Not Available | SEAL MOTOR | 75095-01 | Not Available |
| 39 | Not Available | WBD SPRING MOTOR | 75283-01 | Not Available |
| 40 | Not Available | ASSEMBLY INTAKE | 09-75066-02 | Not Available |
| 41 |  | Cover Frame Tayberry Red Of 3 Parking | 7506501 | $100.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | Nut-Oreck Fan-Upright For: douglas | 030044801 | $0.72Read more |
| 43 |  | Gasket, Felt Motor Seal XL Platinum Pilot Ea Part Number: 75117-01M for Oreck | 7511701M | $2.06Read more |
| 44 | Not Available | Wbd 03-00677-01M | 03-00476-01 | Not Available |
| 45 | Not Available | SPRING DETENT | 75299-01 | Not Available |
| 46 | Not Available | SCREW #7 X 3/8 | 03-00475-01 | Not Available |
| 47 | Not Available | ASSY BASEPLATE | 09-75715-05 | Not Available |
| 47 |  | Bottom Plate-Oreck Uprights - 8300 - 9200 - 2600
Grey - Alt Item Is Black For: oreck | 097571503 | $56.91Add to cart Special order: ships in 2 to 4 weeks |
| 47 |  | Available ReconditionedCertified Reconditioned Bottom Plate-Oreck Uprights for classic oreck XL style and modern commerc... More Product Details | WP11433R | $34.99Add to cart |
| 48 | Not Available | ASSY BASEPLATE | 09-75900-03 | Not Available |
| 49 | Not Available | REAR WHEEL | 75187-02-0327 | Not Available |
| 50 |  | NLA Axle, :( Front & Rear Wheel XL100C Part Number: 03-00630-01 for Oreck | 030063001 | $2.45Read more |
| 51 | Not Available | BRUSH STANDARD | 75766-04 | Not Available |
| 51 | Not Available | BRUSH HORSEHAIR | 75766-03 | Not Available |
| 51 |  | Wheel Pin Oreck Xl Upright For: oreck | 030047401 | $0.63Read more |
| 52 | Not Available | SQUEEGEE LOW | 75700-02 | Not Available |
| 53 | Not Available | CHANNEL W/SCREW | 75701-01 | Not Available |
| 54 |  | Screw, Edge Brush XL21 Part Number: 03-00626-01M for Oreck | 030062601M | $39.14Read more |
| 55 | Not Available | FRONT WHEEL | 75709-01 | Not Available |
| 56 | Not Available | WIREFORM | 75698-01 | Not Available |
| 56 | Not Available | NLA WIRE FORM | 75194-03 | Not Available |
| 56 | Not Available | RETAINER CLIP | 03528 | Not Available |
| 57 | Not Available | SEAL BASE | 75008-01 | Not Available |
| 58 | Not Available | BRUSHROLL CWP | 76218-01 | Not Available |
| 58 | Not Available | BRUSHROLL PLASTIC | 75202-01 | Not Available |
| 59 | Not Available | CARD CLASSIC | 013-4623 | Not Available |
| 60 | Not Available | BELT PERMANENT | 75855-01 | Not Available |
| 60 | Not Available | BELT (GRAND RIVER: | 75024-01 | Not Available |
| 60 |  | Belt-Oreck - 3Pk - Upright - All Models For: oreck | 0300604 | $22.28Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Compatible alternateOreck Upright Vacuum Flat Stretch Belt More Product Details | OR-1000 | $5.99Add to cart |
| 60 |  | Compatible alternateBelt, Oreck Upright Replacement DVC 2Pk More Product Details | OR-1010 | $10.99Add to cart |
| 61 | No Image | Housing, W/Belt Door Assy U2000EB/U2000RB Part Number: 09-75430-19 for Oreck | 097543019 | $51.02Read more |
| 61 |  | No longer available Nozzle Housing - Oreck 9300 - Red
Switch In Handle - No Headlight For: oreck | 097543003 | $42.94Read more |
| 61 | Not Available | TOP CVR SQ HEYCO | 09-75430-20 | Not Available |
| 62 | Not Available | BUMPER BAND CLEAR | 75181-04 | Not Available |
| 63 | Not Available | DOOR RED VENTED | 75894-01-441 | Not Available |
| 63 | Not Available | WBD DOOR RED | 76002-01-441 | Not Available |
| 63 | Not Available | BELT DOOR TOP | 75057-01-441 | Not Available |
| 64 | Not Available | BAG EXPRESS | 75246-30 | Not Available |
| 64 | Not Available | TYPE 1 - 6 | U2000EB | Not Available |
| 64 | Not Available | WIREFORM | U2000EB | Not Available |
| 64 | Not Available | GGRRAANNDD RRIIVVEERR | UU22000000RR | Not Available |
| 64 | Not Available | 3 PACK | U2000R | Not Available |
| 64 | Not Available | BASEPLATE | U2000RB | Not Available |
| 64 |  | Vac, Upright Commercial Single W/Pigtail Red Part Number: U2000R-1 for Oreck | U2000R1 | $251.93Add to cart Special order: ships in 2 to 4 weeks |
| 64 | Not Available | OUTER BAG | 75246-16 | Not Available |
| 64 | Not Available | BAG U2000 REGULAR | 75645-42 | Not Available |
| 65 | Not Available | NLA 09-75078-03 ASSY | 09-75078-08 | Not Available |
| 65 | Not Available | ASSY BAG CLIP | 09-75078-0706 | Not Available |
| 66 |  | Aftermarket Oreck Type CC HEPA Bags - 9pk | OR-1473A | $32.99Add to cart |
| 66 |  | Compatible alternatePaper Bag, CC Purple Superior Filtration 6Pk More Product Details | O-AK1CC6H | $62.50Add to cart Special order: ships in 2 to 4 weeks |
| 66 |  | Compatible alternatePaper Bag, DVC Oreck CC Upright after market DVC or envirocare 8Pk More Product Details | OR-1473 | $17.05Add to cart Special order: ships in 2 to 4 weeks |
| 66 |  | Paper Bag, Old Style W/O Bag Docking 9 Pk Part Number: PK80009DW for Oreck | PK80009DW | $51.48Add to cart Special order: ships in 2 to 4 weeks |
| 66 | Not Available | STANDARD DUST | PK800025 | Not Available |
| 66 |  | Paper Bag, Old Style Hypo-Allergenic 25 Pk Part Number: PK800025DW for Oreck | PK800025DW | $58.17Add to cart Special order: ships in 2 to 4 weeks |
| 67 | Not Available | COMMERCIAL CORD | 76224-01-0327 | Not Available |
| 67 | Not Available | CORD LOCK HOUSING | 75955-01 | Not Available |
| 67 | Not Available | CORD LOCK INSERT | 75978-01 | Not Available |
| 68 | Not Available | STIFFENER LOWER | 76061-01-0327 | Not Available |
| 69 | Not Available | PCB/FOOTSWITCH | 75880-01-0327 | Not Available |
| 70 | Not Available | PCB COMMERCIAL | 75879-02 | Not Available |
| 70 |  | Main Circuit Board U2000RB | 75993-01 | $65.36Read more |
| 71 | Not Available | HARNESS | 75878-02 | Not Available |
| 71 |  | Oreck Hall Effect Sensor | 75927-01 | $31.62Add to cart Special order: ships in 2 to 4 weeks |
| 71 | Not Available | PACK / | U2000RB-112 | Not Available |
| 71 | Not Available | / PACK | U2000RB-125 | Not Available |
| 71 | Not Available | / PACK | U2000RB-125 | Not Available |
