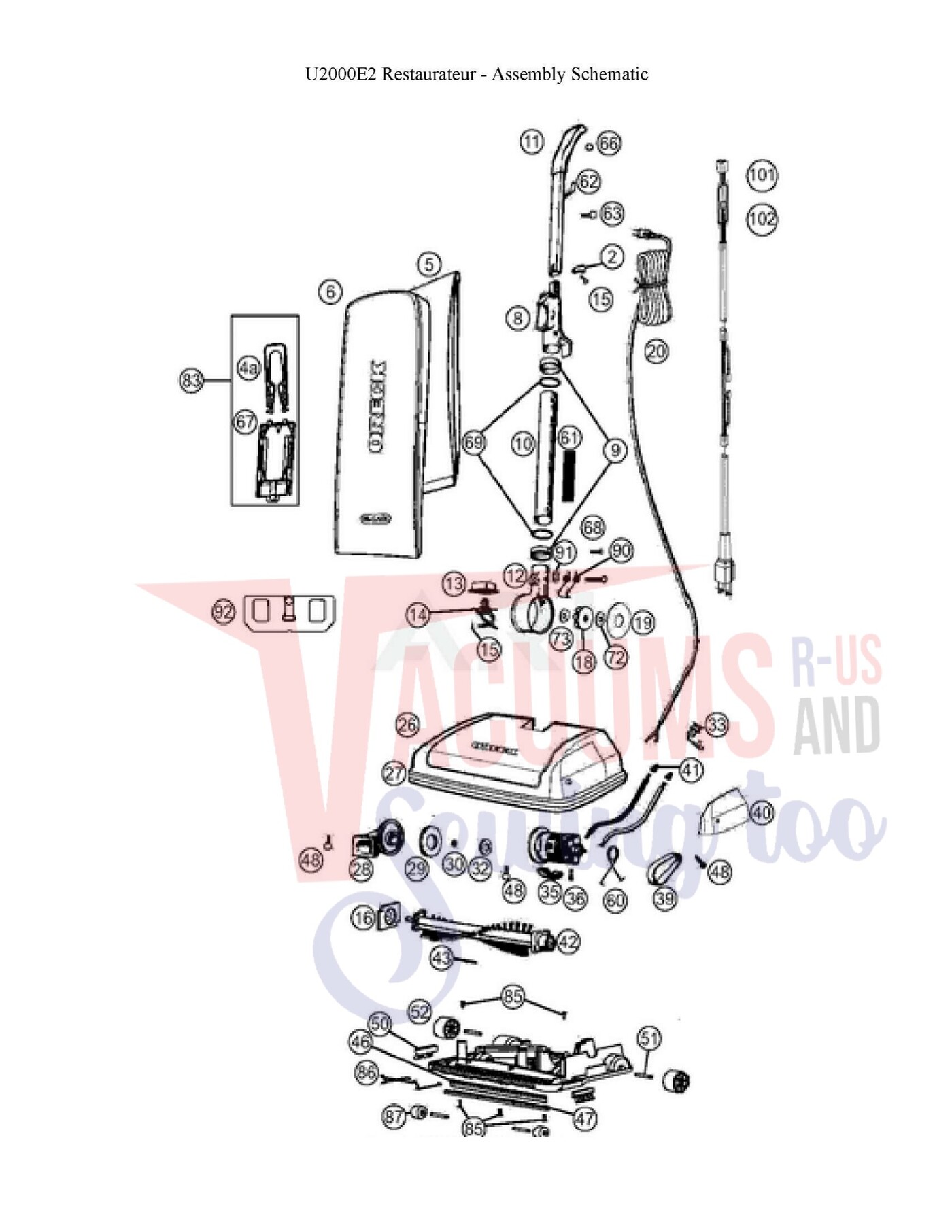

Schematic and parts book for oreck u2000e2 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Cord Clamp | 03-00613-01M | Not Available |
| 2 | Not Available | Cord Clamp | 03-00613-01M | Not Available |
| 3 | Not Available | WBD SCREW 8-32 X | 03-00478-02M | Not Available |
| 3 | Not Available | WBD SCREW 8-32 X | 03-00478-02M | Not Available |
| 4 |  | Outer Bag Retainer Spring U-Clip for Oreck XL Vacuums. | 7503502 | $7.27Add to cart |
| 4 | | Outer Bag Retainer Spring U-Clip for Oreck XL Vacuums. | 7503502 | $7.27Add to cart |
| 5 |  | Paper Bag, Old Style W/O Bag Docking 9 Pk Part Number: PK80009DW for Oreck | PK80009DW | $51.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Compatible alternatePaper Bag, CC Purple Superior Filtration 6Pk More Product Details | O-AK1CC6H | $62.50Add to cart Special order — allow 2-4 weeks. |
| 5 |  | Compatible alternatePaper Bag, DVC Oreck CC Upright after market DVC or envirocare 8Pk More Product Details | OR-1473 | $17.05Add to cart Special order — allow 2-4 weeks. |
| 5 |  | Compatible alternateAftermarket Oreck Type CC HEPA Bags - 9pk More Product Details | OR-1473A | $32.99Add to cart |
| 5 | | Paper Bag, Old Style W/O Bag Docking 9 Pk Part Number: PK80009DW for Oreck | PK80009DW | $51.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Paper Bag, Old Style Hypo-Allergenic 25 Pk Part Number: PK800025DW for Oreck | PK800025DW | $58.17Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | | Paper Bag, Old Style Hypo-Allergenic 25 Pk Part Number: PK800025DW for Oreck | PK800025DW | $58.17Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | BAG EXPRESS | 75246-30 | Not Available |
| 6 | Not Available | OUTER BAG | 75246-16 | Not Available |
| 8 | Not Available | HANDLE CONNECTOR | 09-75308-57 | Not Available |
| 8 | Not Available | HANDLE CONNECTOR | 09-75308-57 | Not Available |
| 9 | Not Available | SRA 75199-03-0327 | 75199-02-0327 | Not Available |
| 9 | Not Available | SRA 75199-03-0327 | 75199-02-0327 | Not Available |
| 10 | Not Available | Tube Assembly | 75198-05 | Not Available |
| 10 | Not Available | Tube Assembly | 75198-05 | Not Available |
| 12 | Not Available | ASSY FAN HOUSING | 09-75343-03 | Not Available |
| 12 | Not Available | ASSY FAN HOUSING | 09-75343-03 | Not Available |
| 13 | Not Available | ASSY COVER SWITCH | 09-75266-01 | Not Available |
| 14 |  | Switch, Metal Push Button W/3 Leads 5300 Uprights Part Number: 7508407 for Oreck | 7508407 | $29.74Read more |
| 15 | No Image | SCREW, :( HEADLIGHT LENS 100PK Part Number: 03752-01M for Oreck | 0375201M | $30.26Read more |
| 15 | No Image | SCREW, :( HEADLIGHT LENS 100PK Part Number: 03752-01M for Oreck | 0375201M | $30.26Read more |
| 16 | Not Available | W/RIVET/SPR | 013-4623 | Not Available |
| 16 | Not Available | End Cap | 013-4623 | Not Available |
| 18 |  | Fan (Plastic)-Oreck Upt 5300/888/8300/100/9100 For: oreck | 097530001 | $13.76Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | | Fan (Plastic)-Oreck Upt 5300/888/8300/100/9100 For: oreck | 097530001 | $13.76Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | SEAL FAN | 75012-01 | Not Available |
| 19 | Not Available | SEAL FAN | 75012-01 | Not Available |
| 20 | Not Available | CORD 120 V JST RED | 75558-04-441 | Not Available |
| 20 | Not Available | CORD 3-COND RED | 75080-05-441 | Not Available |
| 26 |  | No longer available Nozzle Housing - Oreck 9300 - Red
Switch In Handle - No Headlight For: oreck | 097543003 | $42.94Read more |
| 26 | Not Available | ASSY TOP CVR/BELT | 09-76031-03 | Not Available |
| 27 | Not Available | BUMPER BAND CLEAR | 75181-04 | Not Available |
| 27 | Not Available | BUMPER BAND CLEAR | 75181-04 | Not Available |
| 28 | Not Available | ASSEMBLY INTAKE | 09-75066-02 | Not Available |
| 28 | Not Available | ASSEMBLY INTAKE | 09-75066-02 | Not Available |
| 29 |  | Cover Frame Tayberry Red Of 3 Parking | 7506501 | $100.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | | Cover Frame Tayberry Red Of 3 Parking | 7506501 | $100.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | CHROME MC | 03-00448-01M | Not Available |
| 30 | Not Available | CHROME MC | 03-00448-01M | Not Available |
| 32 |  | Gasket, Felt Motor Seal XL Platinum Pilot Ea Part Number: 75117-01M for Oreck | 7511701M | $2.06Read more |
| 32 | | Gasket, Felt Motor Seal XL Platinum Pilot Ea Part Number: 75117-01M for Oreck | 7511701M | $2.06Read more |
| 33 | Not Available | STRAIN RELIEF | 03-00494-01 | Not Available |
| 33 | Not Available | STRAIN RELIEF | 03-00494-01 | Not Available |
| 34 | Not Available | KIT MOTOR UPRIGHT | 09-75505-01 | Not Available |
| 34 | Not Available | KIT MOTOR UPRIGHT | 09-75505-01 | Not Available |
| 35 | Not Available | SEAL MOTOR | 75095-01 | Not Available |
| 35 | Not Available | SEAL MOTOR | 75095-01 | Not Available |
| 36 | Not Available | KIT BRUSH/SPRING | 09-75514-01 | Not Available |
| 36 | Not Available | KIT BRUSH/SPRING | 09-75514-01 | Not Available |
| 38 | No Image | SCREW, SMALL HEAD D HDLE 2800 100PK Part Number: 030045601M for Oreck | 030045601M | $18.25Read more |
| 38 | Not Available | Screw #8 x .75 | 03-00476-01M | Not Available |
| 38 | No Image | SCREW, SMALL HEAD D HDLE 2800 100PK Part Number: 030045601M for Oreck | 030045601M | $18.25Read more |
| 38 | Not Available | Screw #8 x .75 | 03-00476-01M | Not Available |
| 39 |  | Belt-Oreck - 3Pk - Upright - All Models For: oreck | 0300604 | $22.28Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 |  | Compatible alternateOreck Upright Vacuum Flat Stretch Belt More Product Details | OR-1000 | $5.99Add to cart |
| 39 |  | Compatible alternateBelt, Oreck Upright Replacement DVC 2Pk More Product Details | OR-1010 | $10.99Add to cart |
| 39 | | Belt-Oreck - 3Pk - Upright - All Models For: oreck | 0300604 | $22.28Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | WBD DOOR RED BELT | 76002-01-441 | Not Available |
| 40 | Not Available | WBD DOOR RED BELT | 76002-01-441 | Not Available |
| 41 | Not Available | WIRE NUT TAN 71B | 03-00599-01M | Not Available |
| 41 | Not Available | WIRE NUT TAN 71B | 03-00599-01M | Not Available |
| 42 | Not Available | Brush Roll Assembly | 75104-02 | Not Available |
| 42 | Not Available | Brush Roll Assembly | 75104-02 | Not Available |
| 43 | Not Available | SEAL BASE | 75008-01 | Not Available |
| 43 | Not Available | SEAL BASE | 75008-01 | Not Available |
| 44 | Not Available | SPRING DETENT | 75299-01 | Not Available |
| 44 | Not Available | SPRING DETENT | 75299-01 | Not Available |
| 45 |  | Bottom Plate-Oreck Uprights - 8300 - 9200 - 2600
Grey - Alt Item Is Black For: oreck | 097571503 | $56.91Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 |  | Available ReconditionedCertified Reconditioned Bottom Plate-Oreck Uprights for classic oreck XL style and modern commerc... More Product Details | WP11433R | $34.99Add to cart |
| 45 | | Bottom Plate-Oreck Uprights - 8300 - 9200 - 2600
Grey - Alt Item Is Black For: oreck | 097571503 | $56.91Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | Not Available | SQUEEGEE LOW | 75700-02 | Not Available |
| 46 | Not Available | SQUEEGEE LOW | 75700-02 | Not Available |
| 47 | Not Available | CHANNEL W/SCREW | 75701-01 | Not Available |
| 47 | Not Available | CHANNEL W/SCREW | 75701-01 | Not Available |
| 48 | Not Available | Screw #8 x .75 Phillips | 03-00476-01M | Not Available |
| 48 | Not Available | Screw #8 x .75 Phillips | 03-00476-01M | Not Available |
| 49 | Not Available | SCREW #8 X .38 | 03-00475-01M | Not Available |
| 49 | Not Available | SCREW #8 X .38 | 03-00475-01M | Not Available |
| 50 | Not Available | BRUSH HORSEHAIR | 75766-03 | Not Available |
| 50 | Not Available | BRUSH HORSEHAIR | 75766-03 | Not Available |
| 51 | Not Available | AXLE BASEPLATE | 03-00630-01M | Not Available |
| 51 | Not Available | AXLE BASEPLATE | 03-00630-01M | Not Available |
| 52 | Not Available | Soft Rear Wheel Black | 75187-02-0327 | Not Available |
| 52 | Not Available | Soft Rear Wheel Black | 75187-02-0327 | Not Available |
| 54 | Not Available | SWITCH SINGLE | 75559-01 | Not Available |
| 55 | Not Available | GRIPS RED SET | 09-75576-08 | Not Available |
| 55 | Not Available | Grips - Set w/o Switch | 09-75301-25 | Not Available |
| 60 | Not Available | WBD SPRING MOTOR | 75283-01 | Not Available |
| 60 | Not Available | WBD SPRING MOTOR | 75283-01 | Not Available |
| 61 | Not Available | Tube Label | 75087-05 | Not Available |
| 61 | Not Available | Tube Label | 75087-05 | Not Available |
| 63 | Not Available | WBD SCREW CORD | 03-00450-01M | Not Available |
| 63 | Not Available | WBD SCREW CORD | 03-00450-01M | Not Available |
| 65 | Not Available | U2000E2: Mylar Label | 75599-12 | Not Available |
| 68 | Not Available | WBD COLLAR SCREW | 03-00482-01M | Not Available |
| 68 | Not Available | WBD COLLAR SCREW | 03-00482-01M | Not Available |
| 69 | Not Available | COLLAR O-RING | 75191-02M | Not Available |
| 69 | Not Available | COLLAR O-RING | 75191-02M | Not Available |
| 72 |  | Washer, :( Fan Thrush Part Number: 030047901M for Oreck | 030047901M | $0.30Read more |
| 72 | | Washer, :( Fan Thrush Part Number: 030047901M for Oreck | 030047901M | $0.30Read more |
| 73 | Not Available | WASHER LOCK EXT | 03-00480-01M | Not Available |
| 73 | Not Available | WASHER LOCK EXT | 03-00480-01M | Not Available |
| 74 | Not Available | 1" x 3" Loop Fastener | 75304-01M | Not Available |
| 74 | Not Available | 1" x 3" Loop Fastener | 75304-01M | Not Available |
| 75 | Not Available | 1" x 1" Hook Fastener | 75303-01M | Not Available |
| 75 | Not Available | 1" x 1" Hook Fastener | 75303-01M | Not Available |
| 76 | Not Available | BRACE HANDLE | 75432-01 | Not Available |
| 76 | Not Available | BRACE HANDLE | 75432-01 | Not Available |
| 77 | Not Available | WBD RETAINER CLIP | 03528M | Not Available |
| 77 | Not Available | WBD RETAINER CLIP | 03528M | Not Available |
| 78 | Not Available | Wireform | 75194-03M | Not Available |
| 78 | Not Available | Wireform | 75194-03M | Not Available |
| 79 | Not Available | Stiffener (uses same length | 75189-02 | Not Available |
| 79 | Not Available | Stiffener (uses same length | 75189-02 | Not Available |
| 81 |  | Strain Relief, Cord U4080/U4090/XL2320 Part Number: 03-00600-01 for Oreck | 030060001 | $5.15Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 81 | | Strain Relief, Cord U4080/U4090/XL2320 Part Number: 03-00600-01 for Oreck | 030060001 | $5.15Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 82 | Not Available | WBD STEEL BUSHING | 03-00598-01M | Not Available |
| 82 | Not Available | WBD STEEL BUSHING | 03-00598-01M | Not Available |
| 84 |  | Square Nut, Handle Brace 2000RH Part Number: 03-00606-01M for Oreck | 030060601M | $2.01Add to cart |
| 84 | | Square Nut, Handle Brace 2000RH Part Number: 03-00606-01M for Oreck | 030060601M | $2.01Add to cart |
| 85 |  | Screw, Edge Brush XL21 Part Number: 03-00626-01M for Oreck | 030062601M | $39.14Read more |
| 85 | | Screw, Edge Brush XL21 Part Number: 03-00626-01M for Oreck | 030062601M | $39.14Read more |
| 86 | Not Available | WIREFORM 1 PC | 75698-01 | Not Available |
| 86 | Not Available | WIREFORM 1 PC | 75698-01 | Not Available |
| 87 | Not Available | FRONT WHEEL | 75709-01 | Not Available |
| 87 | Not Available | FRONT WHEEL | 75709-01 | Not Available |
| 88 | Not Available | INSULATOR - JST | 75679-01M | Not Available |
| 88 | Not Available | INSULATOR - JST | 75679-01M | Not Available |
| 89 | No Image | Rivet, 3/16 x 1.41 Master Pack XLPlatin Part Number: 03-00453-01M for Oreck | 030045301M | $39.33Read more |
| 89 | No Image | Rivet, 3/16 x 1.41 Master Pack XLPlatin Part Number: 03-00453-01M for Oreck | 030045301M | $39.33Read more |
| 90 | Not Available | WBD BAG SPRING | 75015-01M | Not Available |
| 90 | Not Available | WBD BAG SPRING | 75015-01M | Not Available |
| 91 | Not Available | PUSHNUT 3/16" | 03-00636-01M | Not Available |
| 91 | Not Available | PUSHNUT 3/16" | 03-00636-01M | Not Available |
| 92 | Not Available | STIFFENER LOWER | 76061-01-0327 | Not Available |
| 92 | Not Available | STIFFENER LOWER | 76061-01-0327 | Not Available |
