Schematic and parts book for Hoover U8120-900;U8122-900;U8126-900;U8130-900;U8134-900;U8140-900;U8142-900;U8146-900;U8148-900 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

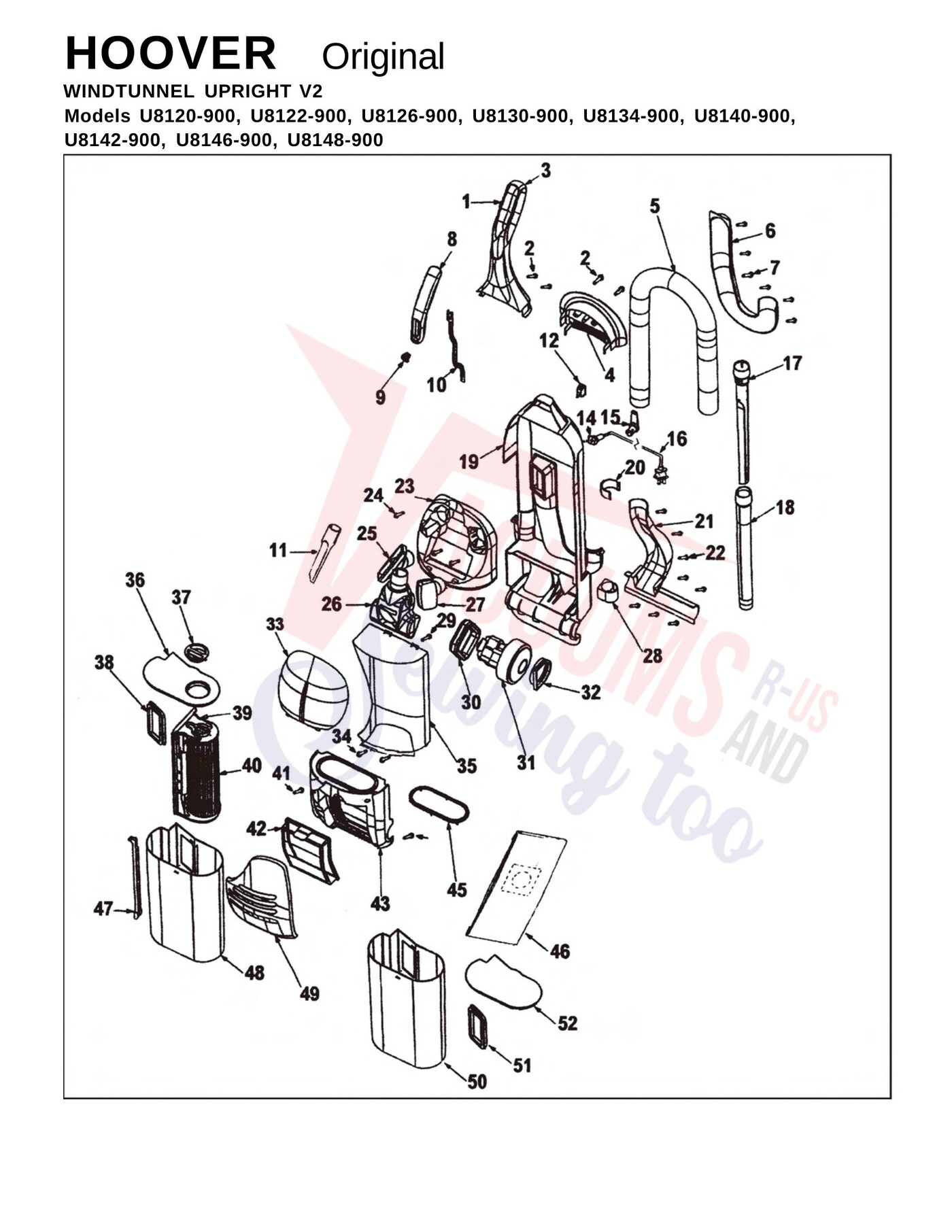

| # | Part image | Description | SKU | Price |
| XX | Not Available | Gasket for Trunnion Cover (Not Shown) U8120-900 U8122-900 U8148-900 | 38781064 | Not Available |
| 1 | Not Available | Handle Ass'y | 39466056 | Not Available |
| 2 | Not Available | Screw U8134-900 U8140-900 U8142-900 | 214472ED | Not Available |
| 3 | Not Available | Screw U8146-900 U8148-900 | 21447236 | Not Available |
| 4 | Not Available | Hose Holder - Upper | 36433164 | Not Available |
| 5 | Not Available | Hose Assembly U8130-900 U8134-900 U8140-900 | 43431223 | Not Available |
| 6 | Not Available | Dirt Duct Cover With Lower Cord Hook U8142-900 U8146-900 U8148-900 | 38646084 | Not Available |
| 7 | Not Available | Screw | 21447242 | Not Available |
| 8 | Not Available | Handle Grip - AEF U8134-900 U8140-900 U8142-900 | 39454078 | Not Available |
| 9 | Not Available | Switch Button U8146-900 U8148-900 | 38421103 | Not Available |
| 10 | Not Available | Switch Rod | 38458064 | Not Available |
| 11 | Not Available | Crevice Tool U8130-900 U8134-900 U8140-900 | 38617027 | Not Available |
| 12 | Not Available | Switch U8142-900 U8146-900 U8148-900 | 28161067 | Not Available |
| 14 | Not Available | Cord Protector | 36215028 | Not Available |
| 15 | Not Available | Cord Wrap U8130-900 U8134-900 U8140-900 | 3944201P | Not Available |
| 16 | Not Available | Cord Assembly - 30' U8142-900 U8146-900 U8148-900 | 46383342 | Not Available |
| 17 | Not Available | Crevice Tool | 38617029 | Not Available |
| 18 | Not Available | Extension Tube | 38634078 | Not Available |
| 19 | No Image | HOUSING, UPPER U8120 U8122 U8126 U8132 U8141 GRAY Part Number: 37259011 for Hoover | 37259011 | $36.10Read more |
| 20 | Not Available | Wand Holder - Upper U8146-900 U8148-900 | 36433165 | Not Available |
| 21 | Not Available | Trunnion Duct - ABE | 38683016 | Not Available |
| 22 | Not Available | Screw | 21447242 | Not Available |
| 23 | Not Available | Tool Holder - AFJ - U8120-900 | 36433163 | Not Available |
| 23 | Not Available | Tool Holder - ADM - U8126-900 | 36433179 | Not Available |
| 23 | Not Available | Tool Holder - AG - U8122-900 | 36433180 | Not Available |
| 23 | Not Available | Tool Holder - ACF - U8134-900 | 36433177 | Not Available |
| 23 | Not Available | Tool Holder - AFS - U8130-900 | 36433170 | Not Available |
| 23 | Not Available | Tool Holder - AFM - U8140-900 | 36433162 | Not Available |
| 23 | Not Available | Tool Holder - AG - U8146-900 | 36433178 | Not Available |
| 23 | Not Available | Tool Holder - ABR - U8142-900 | 36433175 | Not Available |
| 23 | Not Available | Tool Holder - WW - U8148-900 | 36433174 | Not Available |
| 24 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 25 | Not Available | Furniture Nozzle | 3861401E | Not Available |
| 26 | Not Available | Turbine Hand Tool - AFN - U8134-900 U8140-900 U8142-900 | 49129015 | Not Available |
| 27 | Not Available | Dusting Brush Assembly U8134-900 U8140-900 U8142-900 | 43414174 | Not Available |
| 28 | Not Available | Wand Holder - Lower U8146-900 U8148-900 | 36433166 | Not Available |
| 29 | Not Available | Screw | 21447242 | Not Available |
| 30 | Not Available | Motor Mount - Middle | 36322036 | Not Available |
| 31 | Not Available | Motor Assembly - U8120-900 U8122-900 U8148-900 | 27212053 | Not Available |
| 32 | Not Available | Motor Face Seal | 38785018 | Not Available |
| 33 | Not Available | Tool Door U8148-900 | 37257281 | Not Available |
| 34 | Not Available | Screw | 21447242 | Not Available |
| 35 | Not Available | Front Panel - AFJ - U8120- | 37249022 | Not Available |
| 35 | Not Available | Front Panel - ADM - U8126-900 | 37249034 | Not Available |
| 35 | Not Available | Front Panel - AG - U8122-900 | 37249036 | Not Available |
| 35 | Not Available | Front Panel - ACF - U8134- | 37249032 | Not Available |
| 35 | Not Available | Front Panel - AFS - U8130-900 | 37249023 | Not Available |
| 35 | Not Available | Front Panel - AFM - U8140-900 | 37249024 | Not Available |
| 35 | Not Available | Front Panel - AG - U8146-900 | 37249033 | Not Available |
| 35 | Not Available | Front Panel - ABR - U8142-900 | 37249031 | Not Available |
| 35 | Not Available | Front Panel - WW - U8148-900 | 37249026 | Not Available |
| 36 | Not Available | Dirt Cup Lid - U8126-900 U8130-900 | 37249035 | Not Available |
| 37 | Not Available | Knob - Cartridge Filter - U8126-900 | 38411010 | Not Available |
| 38 | Not Available | Inlet Seal - U8126-900 U8130-900 | 38783029 | Not Available |
| 39 | Not Available | Pre Filter (Inc. item 47) - U8126-900 | 36426051 | Not Available |
| 40 | Not Available | HEPA Cartridge Filter - U8126-900 | 43611042 | Not Available |
| 41 | Not Available | Screw | 21447230 | Not Available |
| 42 | Not Available | Final Filter - U8126-900 U8130-900 | 38766028 | Not Available |
| 42 | Not Available | Final Filter - HEPA - | 43613024 | Not Available |
| 43 | Not Available | MotorCover - AFS U8120-900U8130-900 | 37196163 | Not Available |
| 43 | Not Available | Motor Cover - ADM - U8126 | 37196170 | Not Available |
| 43 | Not Available | Motor Cover - AFM - U8140-900 | 37196164 | Not Available |
| 43 | Not Available | Motor Cover - AG - U8122-900 U8146-900 | 37196169 | Not Available |
| 43 | Not Available | Motor Cover - ACF - U8134 | 37196168 | Not Available |
| 43 | Not Available | Motor Cover - ABR - U8142-900 | 37196166 | Not Available |
| 43 | Not Available | Motor Cover - WW - U8148-900 | 37196165 | Not Available |
| 44 | Not Available | Screw | 21447230 | Not Available |
| 45 | Not Available | Exhaust Seal | 38785017 | Not Available |
| 46 |  | Paper Bags-Hoover - Y - 3Pk - Allergen - Windtunnel - Upt For: hoover | 4010100Y | $16.94Add to cart Special order: ships in 2 to 4 weeks |
| 47 | Not Available | Expulsion Blade - U8126-900 U8130-900 | 39512020 | Not Available |
| 48 | Not Available | Dirt Cup - U8126-900 U8130-900 | 38775094 | Not Available |
| 49 | Not Available | Final Filter Door - CP | 38769017 | Not Available |
| 50 | Not Available | Bag Container - ACW (Inc. item 46 51 52) | 37256003 | Not Available |
| 51 | No Image | GASKET, INLET DIRT CUP U8120/22/48 Part Number: 38783031 for Hoover | 38783031 | $3.96Read more |
| 52 | Not Available | Bag Container Lid - U8120-900 | 37249041 | Not Available |

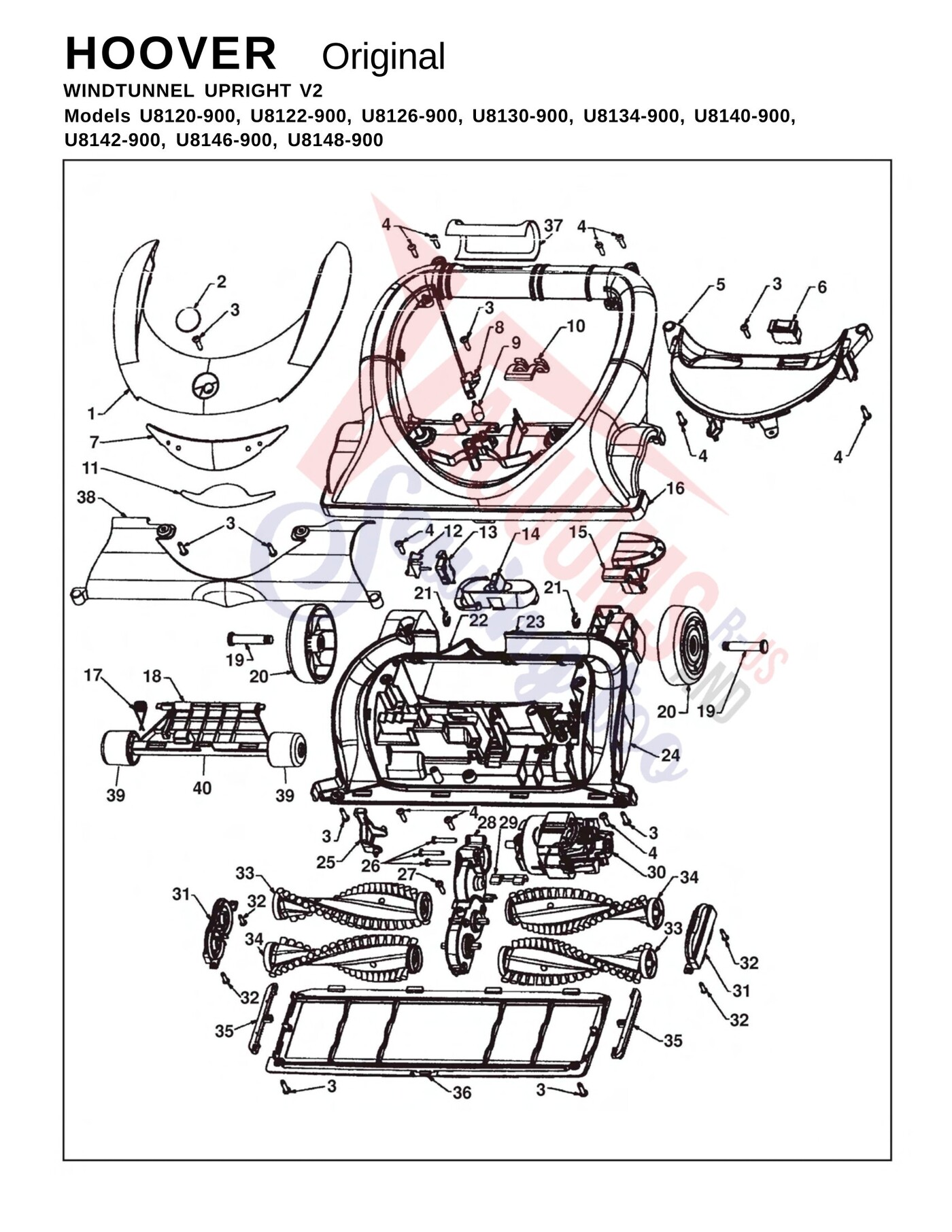

| # | Part image | Description | SKU | Price |
| XX | Not Available | Gear Housing/Motor Assembly | 42915022 | Not Available |
| XX | No Image | CORD, U8148 Part Number: 46512004 for Hoover | 46512004 | $11.10Add to cart Special order: ships in 2 to 4 weeks |
| XX | Not Available | Wheel Carriage Only Before 06/03 HH--4466551122000033 PTO Cord - Used with 3 prong switch | 36432044 | Not Available |
| 03 | No Image | CORD, PTO U8148 V2 3 WIRE Part Number: 46512003 for Hoover | 46512003 | $13.67Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | SEAL, TRUNNION V2 U8120/ 30/40/42/48 Part Number: 38783030 for Hoover | 38783030 | $2.56Read more |
| 11 | No Image | HOOD, U8120-900 Part Number: 37251001 for Hoover | 37251001 | $6.91Read more |
| 11 | No Image | HOOD, U8126-900 Part Number: 37251008 for Hoover | 37251008 | $7.58Read more |
| 11 | Not Available | Hood -- ACF -- U8134-900 | 37251006 | Not Available |
| 11 | Not Available | Hood -- AFS -- U8130-900 | 37251002 | Not Available |
| 11 | Not Available | Hood -- AFM -- U8140-900 | 37251003 | Not Available |
| 11 | No Image | HOOD, U8134-900 Part Number: 37251007 for Hoover | 37251007 | $8.30Read more |
| 11 | Not Available | Hood -- ABR -- U8142-900 | 37251005 | Not Available |
| 11 | No Image | HOOD, U8148-900 Part Number: 37251004 for Hoover | 37251004 | $8.30Read more |
| 11 | Not Available | Reflector | 39385008 | Not Available |
| 12 | Not Available | Switch Bracket | 36913031 | Not Available |
| 13 | Not Available | Micro Switch | 28218050 | Not Available |
| 14 | Not Available | Actuator Knob | 38421077 | Not Available |
| 15 | Not Available | Handle Release Lever | 38434026 | Not Available |
| 16 | Not Available | Agitator Housing W/Furniture Guard -- CP | 37243037 | Not Available |
| 17 | Not Available | Torsion Spring | 38355010 | Not Available |
| 18 | Not Available | Wheel Carriage Assembly | NLA | Not Available |
| 19 | Not Available | Wheel Carriage Only 06/03 And After | 43248067 | Not Available |
| 19 | Not Available | Rear Axle | 32434008 | Not Available |
| 20 | Not Available | Rear Wheel Assembly | 38522082 | Not Available |
| 21 | Not Available | Retaining Ring | 160017 | Not Available |
| 22 | Not Available | Gasket - 27" | 38781065 | Not Available |
| 22 | Not Available | Medallion | 51661020 | Not Available |
| 23 | Not Available | Gasket - 32" | 38781066 | Not Available |
| 24 | Not Available | Main Body Before 06/03 | 37241167 | Not Available |
| 24 | Not Available | Main Body 06/03 And After | 31241169 | Not Available |
| 25 |  | Lever-Hoover U8130 Height Adjustment - V-2 Series For: hoover | 38458063 | $3.48Add to cart Special order: ships in 2 to 4 weeks |
| 25 | Not Available | Height Adjustment Lever 06/03 And After | 38458072 | Not Available |
| 26 | No Image | SCREW, GEAR BOX V2 U8126 12 PK Part Number: 21445827 for Hoover | 21445827 | $1.81Read more |
| 27 | Not Available | Screw | 214793DA | Not Available |
| 28 | Not Available | Gear Housing (Order H-42915022) | NLA | Not Available |
| 29 | | SEAL, TRUNNION V2 U8120/ 30/40/42/48 Part Number: 38783030 for Hoover | 38783030 | $2.56Read more |
| 30 | Not Available | Motor Ass'y (Order H-42915022) | NLA | Not Available |
| 31 | Not Available | Agitator End Cap Assembly (2) | 41435026 | Not Available |
| 32 | Not Available | Screw | 21479446 | Not Available |
| 33 | Not Available | Screw | 017001FW | Not Available |
| 33 | Not Available | Agitator Assembly (R) Right Rear Left Front | 48414125 | Not Available |
| 34 | Not Available | Agitator Assembly (L) Left Rear Right Front | 48414126 | Not Available |
| 35 | Not Available | Litter Picker (2) | 39511009 | Not Available |
| 36 | Not Available | Bottom Plate | 37245102 | Not Available |
| 37 | | SEAL, TRUNNION V2 U8120/ 30/40/42/48 Part Number: 38783030 for Hoover | 38783030 | $2.56Read more |
| 38 | Not Available | Nozzle Liner - CP | 37243036 | Not Available |
| 39 | Not Available | Wheel | 38521009 | Not Available |
| 40 |  | Wheel Shaft Hoover Upright For: hoover | 32541007 | $7.10Add to cart Special order: ships in 2 to 4 weeks |
| 44 | Not Available | Screw | 21447242 | Not Available |
| 55 | Not Available | Control Panel -- AEF | 37246140 | Not Available |
| 66 | Not Available | Rocker Switch W/Circuit Breaker -- 33 Prong | NLA | Not Available |
| 66 | Not Available | Rocker Switch W/Circuit Breaker -- 22 Prong | 27854030 | Not Available |
| 77 | Not Available | Lens -- CP (Inc. Items 28 30) | 39383113 | Not Available |
| 88 | Not Available | Lamp Socket | 47173037 | Not Available |
| 99 | Not Available | Dirt Finder Lamp | 27313107 | Not Available |
| 114 | Not Available | Actuator Knob 06/03 And After | 38421110 | Not Available |
