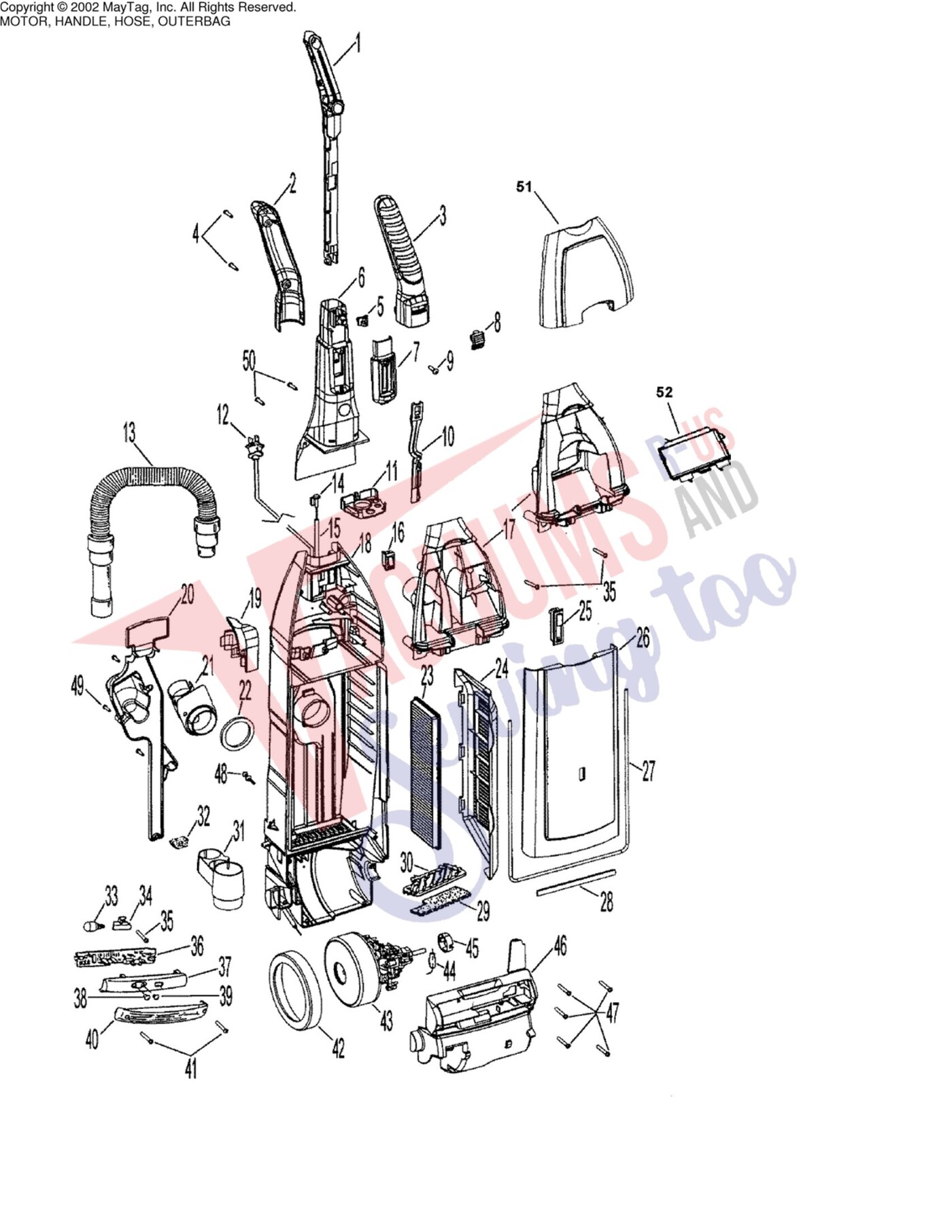

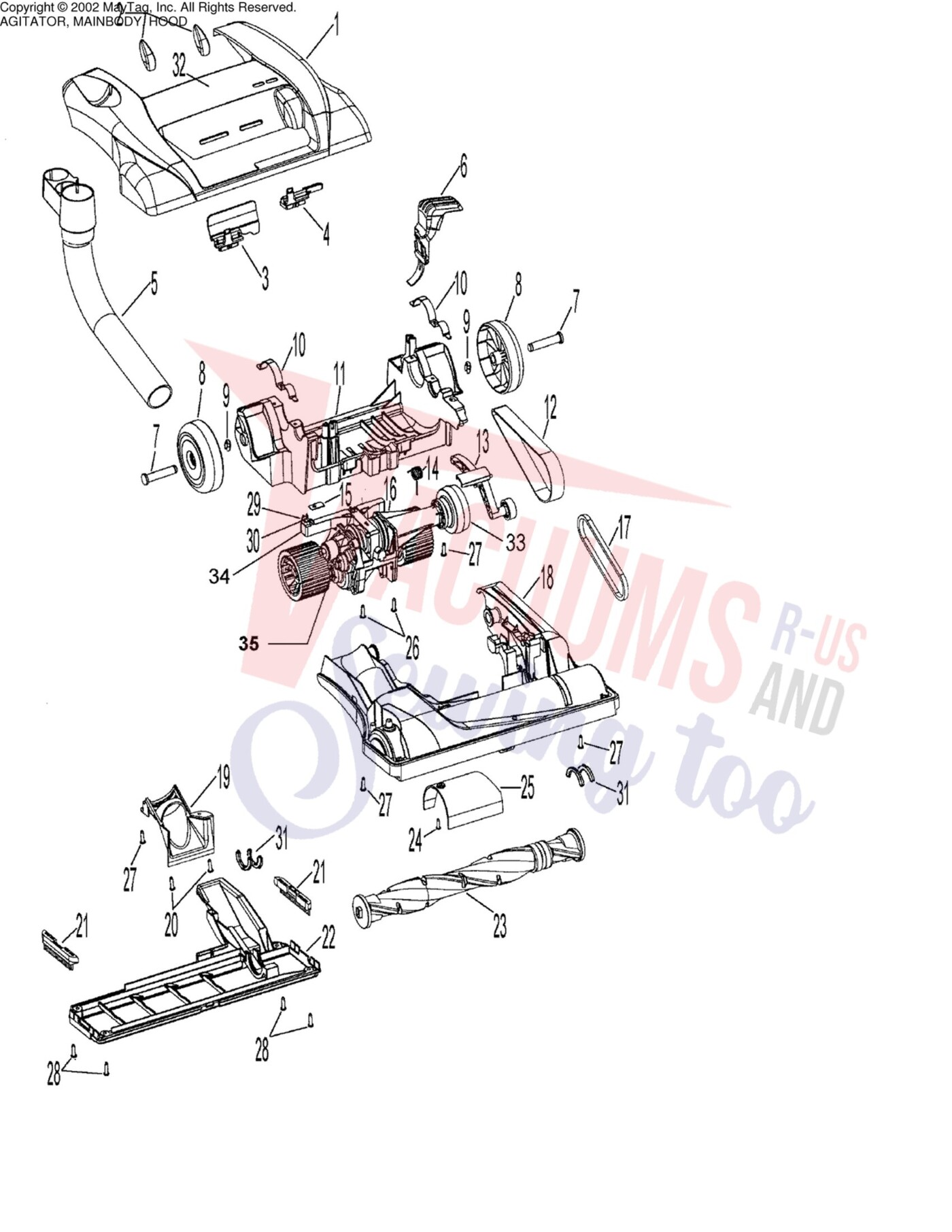

Schematic and parts book for Hoover U6474900, U6474-900 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | GRIP ROD-AG | 38512001 | Not Available |
| 2 | Not Available | HANDLE GRIP-BACK | 39454068 | Not Available |
| 3 | Not Available | HANDLE GRIB-FRONT | 39454071 | Not Available |
| 4 | Not Available | SCREW-SELF-TAPPING | 21447228 | Not Available |
| 5 | Not Available | DRIVE CONTROL PIN | 36142004 | Not Available |
| 6 | Not Available | UPPER HANDLE | 39466040 | Not Available |
| 7 | Not Available | SWITCH ROD POCKET-ABE | 37258119 | Not Available |
| 8 | Not Available | SWITCH BUTTON-ABR | 38421098 | Not Available |
| 9 | Not Available | SCREW-SELF TAPPING | 21447242 | Not Available |
| 10 | Not Available | SWITCH ROD-ABE | 38458051 | Not Available |
| 11 | Not Available | ROD GUIDE-ABE | 36923003 | Not Available |
| 12 | Not Available | CORD-35' | 46383331 | Not Available |
| 13 | Not Available | HOSE ASSEMBLY COMP | 43434031 | Not Available |
| 14 | Not Available | CONTROL CABLE-PUSH PULL | 43211019 | Not Available |
| 15 | Not Available | CONTROL CABLE TUBE | 66661205 | Not Available |
| 16 | Not Available | SWITCH KIT-SERVICE | 40309033 | Not Available |
| 16 | Not Available | SWITCH-WT-.025 TERM | 28161067 | Not Available |
| 17 | Not Available | TOOL HOLDER-ABE | 36433153 | Not Available |
| 18 | Not Available | BAG HOUSING-ABE | 37255025 | Not Available |
| 19 | Not Available | HOSE/WAND HOLDER-UPPER | 36433136 | Not Available |
| 20 |  | COVER, PANEL WITH CORD HOOK U6425/45- Part Number: 37255010 for Hoover | 37255010 | $7.51Read more |
| 21 | Not Available | DIRT DUCT-ABE | 38641008 | Not Available |
| 22 | Not Available | HOSE CONNECTOR GASKET | 31178017 | Not Available |
| 23 | Not Available | FINAL FILTER PK (12) | 40110001 | Not Available |
| 24 | Not Available | FINAL FILTER GRILLE-ABE | 38769004 | Not Available |
| 25 | Not Available | BAG INDICATOR | 51151010 | Not Available |
| 26 | Not Available | BAG DOOR-ADM | 37254249 | Not Available |
| 27 | Not Available | BAG DOOR GSKT 34.5" | 38781057 | Not Available |
| 28 | Not Available | BAG DOOR GASKET-BOTTOM | 34123050 | Not Available |
| 29 |  | Secondary Filter for Hoover Windtunnel | 38765019 | $5.42Read more |
| 30 |  | Frame, :( Filter WindTunnel Upright Part Number: 36426034 for Hoover | 36426034 | $2.46Add to cart Special order: ships in 2 to 4 weeks |
| 31 | Not Available | WAND/HOSE HOLDER-SERVICE | 41426150 | Not Available |
| 32 | Not Available | WIRE OPENING SEAL-U6 | 34131005 | Not Available |
| 33 | Not Available | LAMP | 27313101 | Not Available |
| 34 | Not Available | WIRING HARNESS-ASSEM | 47173016 | Not Available |
| 34 | Not Available | 1 | 37255028 | Not Available |
| 35 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Key Part Number | 37253A47 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | LOCK RING | 35013759 | Not Available |
| 34 |  | Hoover actuator arm for Hoovers with power drive actuates transmission | 43143046 | $19.49Read more |
| 36 |  | Control Cable Support-Hoover ''Windtunnel'' Pwr Driv For: hoover | 36131101 | $4.30Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

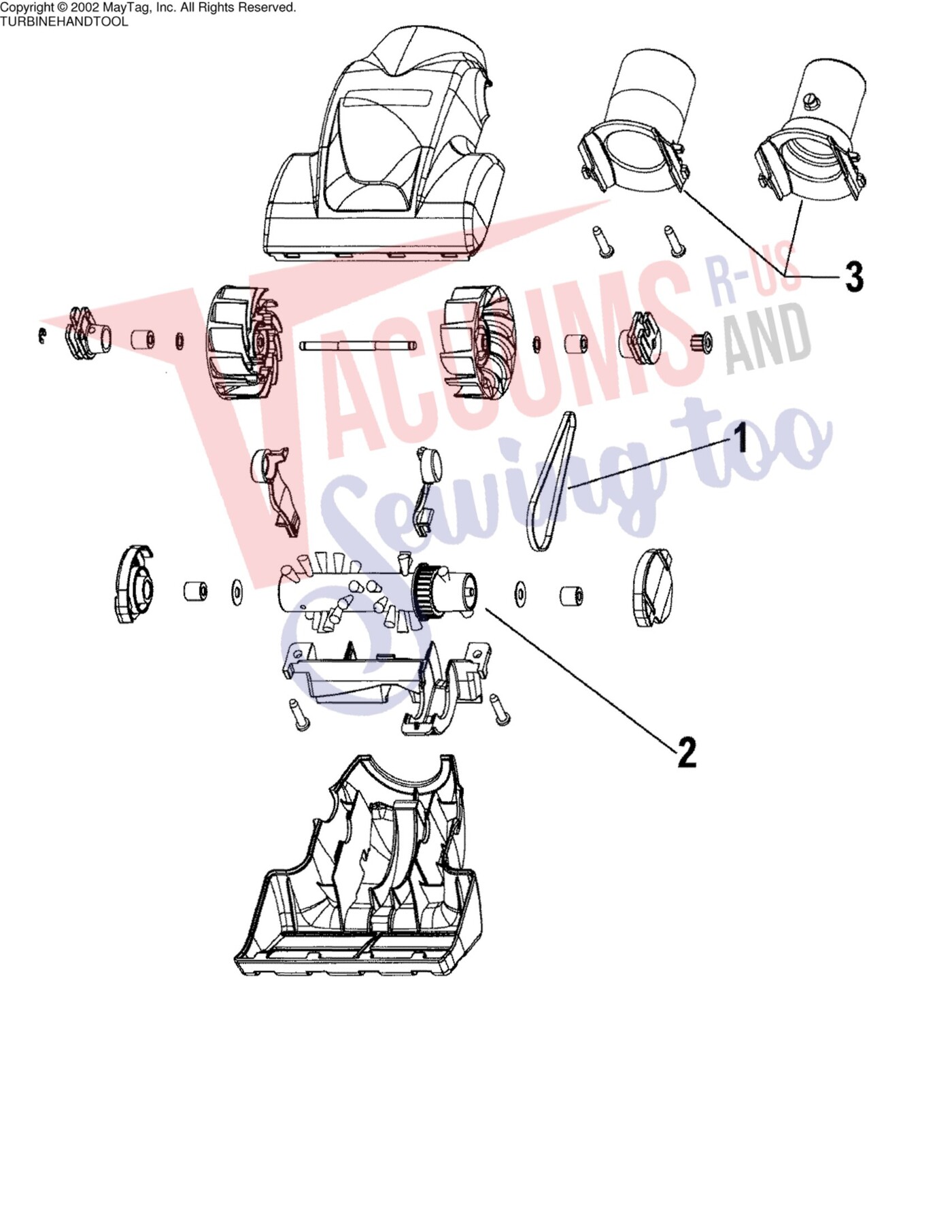

| 1 | Not Available | TURBINE HAND TOOL | 49129027 | Not Available |
| 1 | Not Available | BELT-TURBINE HAND TL | 38528037 | Not Available |
| 2 | Not Available | AGITATOR-TUR HD TOOL | 48414088 | Not Available |
| 3 | Not Available | CONNECTOR-TUR HD TOOL | 38632011 | Not Available |
