Schematic and parts book for Hoover U6453-900 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

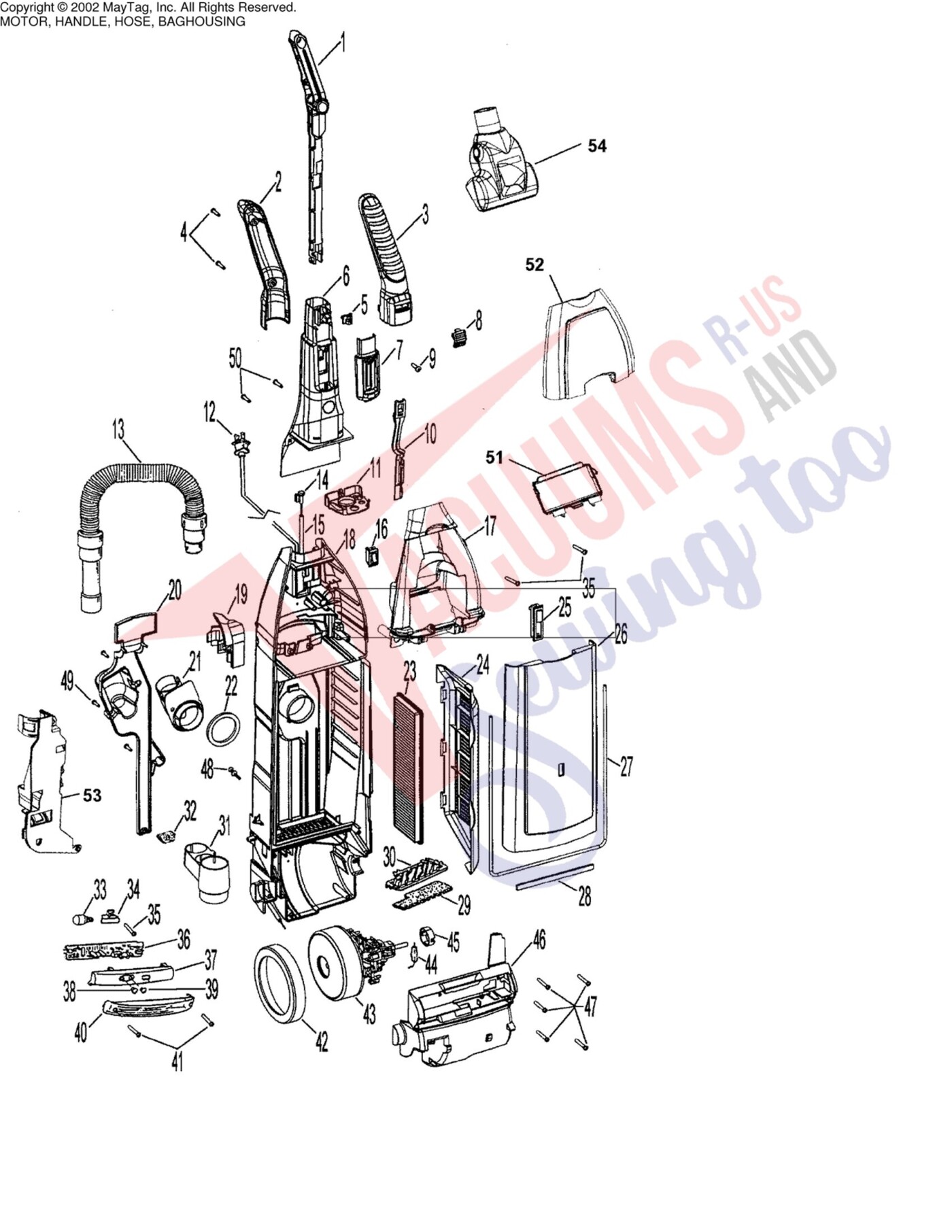

| # | Part image | Description | SKU | Price |
| 1 | Not Available | GRIP ROD-AG | 38512001 | Not Available |
| 2 | Not Available | HANDLE GRIP-BACK | 39454068 | Not Available |
| 3 | Not Available | HANDLE GRIP-FRONT 92001246 | 39454062 | Not Available |
| 4 | Not Available | SCREW-SELF-TAPPING | 21447228 | Not Available |
| 5 | Not Available | DRIVE CONTROL PIN | 92001081 | Not Available |
| 6 | Not Available | UPPER HANDLE | 39466040 | Not Available |
| 7 | Not Available | SWITCH ROD POCKET-ABE | 37258119 | Not Available |
| 8 | Not Available | SWITCH BUTTON-AGR | 92001082 | Not Available |
| 9 | Not Available | SCREW-SELF TAPPING | 21447242 | Not Available |
| 10 | Not Available | SWITCH ROD-ABE | 38458051 | Not Available |
| 11 | Not Available | ROD GUIDE-ABE | 36923003 | Not Available |
| 12 | Not Available | CORD-35' | 46383331 | Not Available |
| 13 | Not Available | HOSE ASSEMBLY COMP | 43434031 | Not Available |
| 14 | Not Available | CONTROL CABLE-PUSH PULL | 43211019 | Not Available |
| 15 | Not Available | CONTROL CABLE TUBE | 66661205 | Not Available |
| 16 | Not Available | SWITCH-WT-.025 TERM | 28161067 | Not Available |
| 17 | Not Available | TOOL HOL DER-ABE | 36433153 | Not Available |
| 18 | Not Available | BAG HOUS ING-ABE | 37255028 | Not Available |
| 19 | Not Available | HOSE/WAND HOLDER-UPPER | 36433136 | Not Available |
| 20 |  | COVER, PANEL WITH CORD HOOK U6425/45- Part Number: 37255010 for Hoover | 37255010 | $7.51Read more |
| 21 | Not Available | EDF MICRO/DUCT ASSEM | 47823004 | Not Available |
| 22 | Not Available | HOSE CONNECTOR GASKET | 31178017 | Not Available |
| 23 | Not Available | HEPA FINAL FILTER | 40120101 | Not Available |
| 24 | Not Available | FINAL FILTER GRILLE-ABE | 38769004 | Not Available |
| 25 | Not Available | BAG INDICATOR | 51151010 | Not Available |
| 26 | Not Available | BAG DOOR-ACX | 37254188 | Not Available |
| 27 | Not Available | BAG DOOR GASKET | 38781057 | Not Available |
| 28 | Not Available | BAG DOOR GASKET-BOTTOM | 34123050 | Not Available |
| 29 |  | Secondary Filter for Hoover Windtunnel | 38765019 | $5.42Read more |
| 30 |  | Frame, :( Filter WindTunnel Upright Part Number: 36426034 for Hoover | 36426034 | $2.46Add to cart Special order: ships in 2 to 4 weeks |
| 31 | Not Available | WAND/HOSE HOLDER-SERVICE | 41426150 | Not Available |
| 32 | Not Available | WIRE OPENING SEAL-U6 | 34131005 | Not Available |
| 33 | Not Available | LAMP | 27313101 | Not Available |
| 34 | Not Available | WIRING HARNESS | 47173024 | Not Available |
| 35 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 36 | Not Available | EDF PRINTED CIRCUIT BOARD | 46851031 | Not Available |
| 37 | No Image | COVER, EDF HOOVER EMBEDDED DIRT FINDER Part Number: 37944011 for Hoover | 37944011 | $9.06Read more |
| 38 | Not Available | SNAP IN LENS-GREEN | 27352031 | Not Available |
| 39 | Not Available | SNAP IN LENS-RED | 27352030 | Not Available |
| 40 |  | Lens-Cp For: hoover | 39383100 | $4.89Add to cart Special order: ships in 2 to 4 weeks |
| 41 | Not Available | SCREW-SELF-TAPPING | 21447228 | Not Available |
| 42 | Not Available | MOTOR MOUNT-LRG 36322037 | 36322035 | Not Available |
| 43 | Not Available | FAN ASSEMBLY | 90001206 | Not Available |
| 43 | Not Available | MOTOR ASSEMBLY | 43576191 | Not Available |
| 43 | Not Available | MOTOR BRUSH | 41311017 | Not Available |
| 44 | Not Available | THERMAL PROTECTOR-WT | 28382093 | Not Available |
| 45 | Not Available | MOTOR MOUNT-SMALL | 36322030 | Not Available |
| 46 | Not Available | MOTOR COVER-ABE | 37195107 | Not Available |
| 47 | Not Available | SCREW-SELF TAPPING-F | 21447230 | Not Available |
| 48 | Not Available | TAPPING SCREW & WASH | 23149001 | Not Available |
| 49 | Not Available | SCREW-SELF TAPPING | 21447242 | Not Available |
| 50 | | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 51 | Not Available | TOOL HOLDER-CAP-ABE | 36433155 | Not Available |
| 52 | Not Available | TOOL DOOR-HE | 37257250 | Not Available |
| 53 | Not Available | TOOL RAC K-ABE | 36433154 | Not Available |
| 54 | Not Available | TURBINE H AND TOOL | 40200013 | Not Available |
| 55 | Not Available | CORD PROTECTOR-WTBGL | 36215028 | Not Available |
| 55 | Not Available | HANDLE SLEEVE | 36436014 | Not Available |
| 56 | Not Available | CORD WRAP | 3944201P | Not Available |
| 56 |  | Paper Bags-Hoover - Y - 3Pk - Allergen - Windtunnel - Upt For: hoover | 4010100Y | $16.94Add to cart Special order: ships in 2 to 4 weeks |
| 57 | Not Available | FURNITURE NOZZLE-AGR | 38614044 | Not Available |
| 57 | Not Available | CREVICE TOOL-ABR | 38617032 | Not Available |
| 58 | Not Available | EXTENSION TUBE-AG | 38634078 | Not Available |
| 59 | Not Available | DUSTING BRUSH ASSEMBLY-AGR | 43414195 | Not Available |
| 60 | Not Available | OWNER MANUAL | 56511B22 | Not Available |

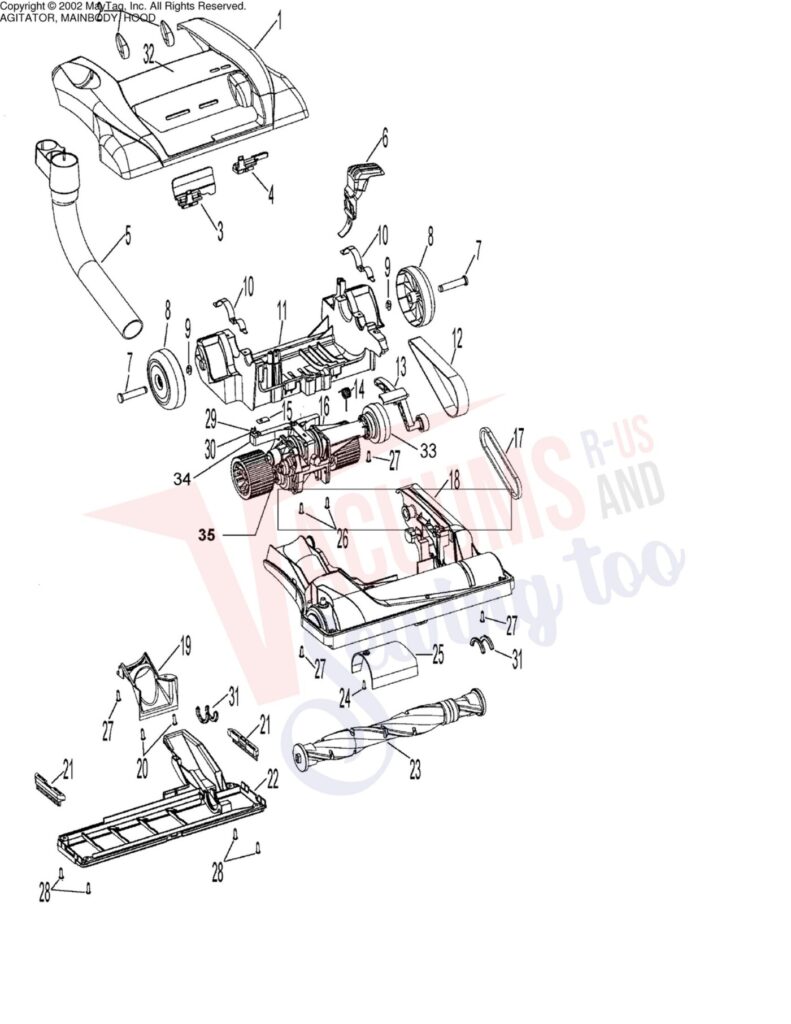

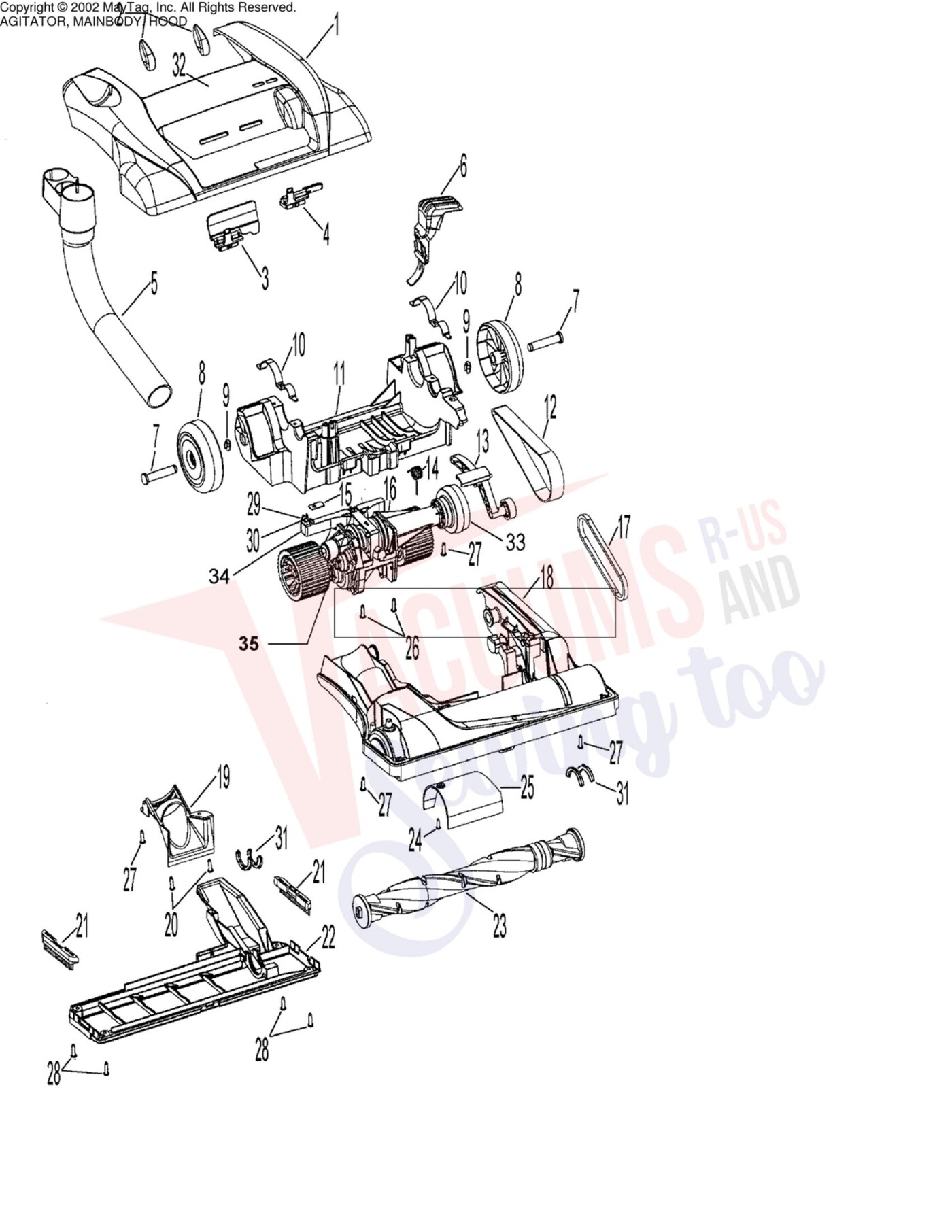

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HOOD-AHM | 92001250 | Not Available |
| 2 | Not Available | ADJUSTMENT KNOB-ABE | 38421094 | Not Available |
| 3 | Not Available | NOZZLE ADJ. CAM-AG | 38563026 | Not Available |
| 4 |  | Hoover locking device for power drives | 36143004 | $14.99Read more |
| 5 | Not Available | WAND/HOSE HOLDER-SERVICE | 41426150 | Not Available |
| 6 |  | Pedal, Handle Release WindTunnel W/Power Drive Part Number: 38434023 for Hoover | 38434023 | $4.81Read more |
| 7 | Not Available | REAR AXLE | 32434007 | Not Available |
| 8 | Not Available | REAR WHEEL | 38522077 | Not Available |
| 10 | Not Available | TRUNNION COVER-AY/FW | 36131096 | Not Available |
| 11 | Not Available | MAIN BODY-ABE | 37241161 | Not Available |
| 12 |  | Belt-Hoover - Flat - Transmission - Pwr Drive Windtunnel For: hoover | 38528035 | $6.00Add to cart |
| 13 |  | Hoover idler arm with bearing for self propelled hoover | 43241004 | $21.99Read more |
| 13 | Not Available | IDLER PULLEY & BEARING ASSY | 43241006 | Not Available |
| 14 | Not Available | TORSION SPRING | 38356014 | Not Available |
| 15 | Not Available | RETAINER-CONTROL CAB | 34125004 | Not Available |
| 15 | Not Available | SCREW-SE LF TAPPING | 21447242 | Not Available |
| 16 |  | Hoover actuator arm for Hoovers with power drive actuates transmission | 43143046 | $19.49Read more |
| 16 |  | Power Drive, Assembly WindTunnel Self Propelled Part Number: 43124016 for Hoover | 43124016 | $246.80Read more |
| 17 |  | NLA USE SKU 38-3305-04 Hoover Wind Tunnel Self Propelled Belt | 38528034 | $10.99Read more |
| 18 | Not Available | AGIT HSNG W/FURN GUARD | 37243014 | Not Available |
| 19 | Not Available | HOSE CLAMP | 36172007 | Not Available |
| 20 | Not Available | SCREW-SELF TAPPING | 21479448 | Not Available |
| 21 | Not Available | LITTER PICKER | 39511004 | Not Available |
| 22 |  | hoover bottom plate for power drive models U6439-900, U6454-900, U6485-900, UH50000, UH50005B, U6... | 42245030 | Original price was: $27.50.$16.50Current price is: $16.50.Read more |
| 23 |  | 14 1/4" Wooden Brush Roller for Hoover WindTunnel Self Propelled PN: 48414069 | 48414069 | $27.69Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | SCREW-SELF TAP | 21479446 | Not Available |
| 25 | Not Available | DUCT COVER-NOZZLE-AAN | 37243013 | Not Available |
| 26 | Not Available | SCREW-SELF TAPPING | 21447242 | Not Available |
| 27 | Not Available | SCREW-SELF-TAPPING | 21447228 | Not Available |
| 28 | Not Available | SCREW | 21447121 | Not Available |
| 29 | No Image | Screw - Control Cable Tube/ Hoover U6451-900 Windt For: hoover | 21751010 | $0.27Add to cart Special order: ships in 2 to 4 weeks |
| 30 | Not Available | WASHER | 36128002 | Not Available |
| 31 |  | Seal-Agitator Pulley-Hoover U5445 For: hoover | 38781053 | $1.44Add to cart |
| 32 | Not Available | HOOD NAME PLATE | 91001077 | Not Available |
| 33 | Not Available | DRIVE PULLEY | 38537013 | Not Available |
| 34 | | Hoover actuator arm for Hoovers with power drive actuates transmission | 43143046 | $19.49Read more |
| 35 |  | Control Cable Support-Hoover ''Windtunnel'' Pwr Driv For: hoover | 36131101 | $4.30Add to cart Special order: ships in 2 to 4 weeks |
| 36 | Not Available | NOZZLE SPRING | 38313037 | Not Available |

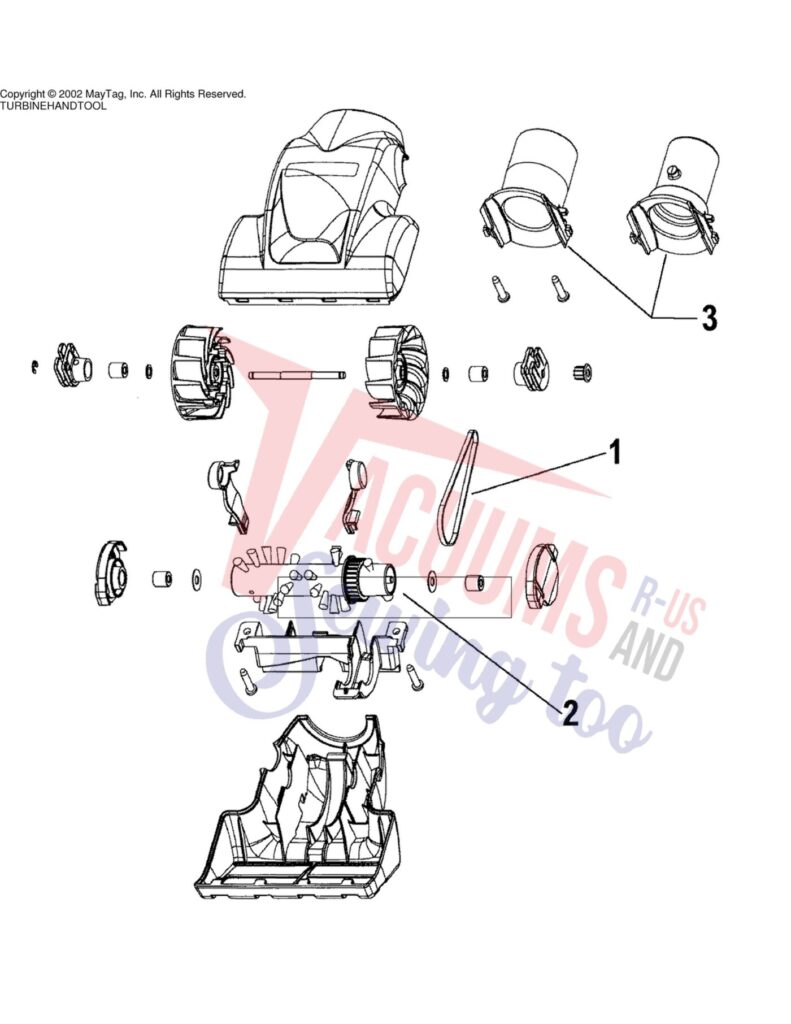

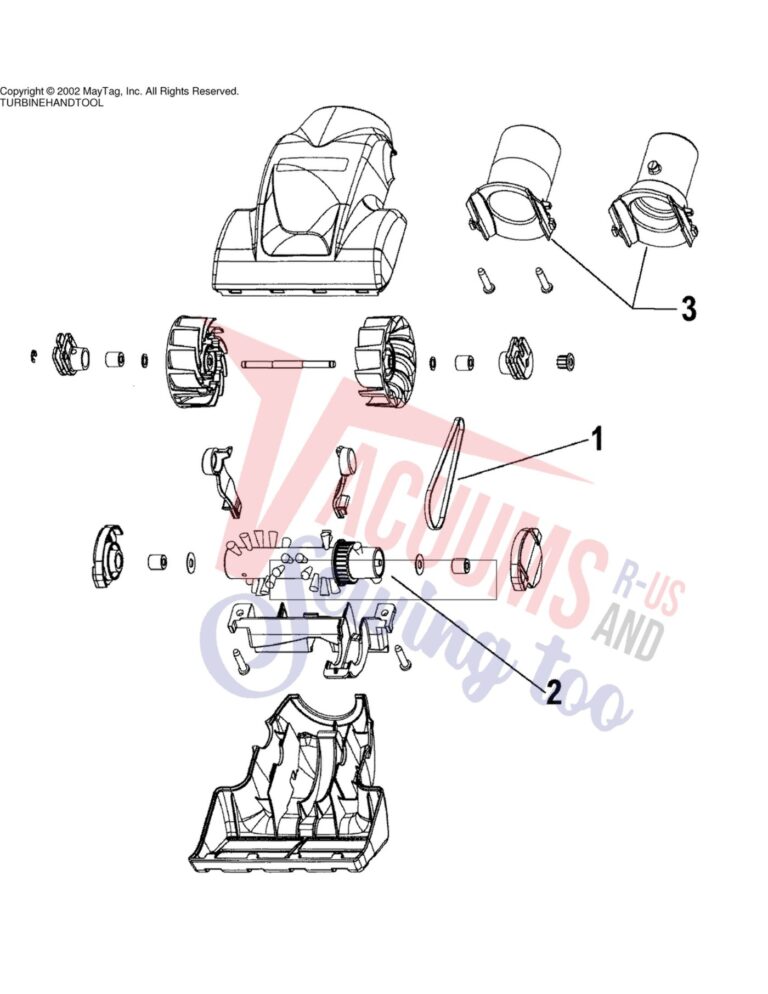

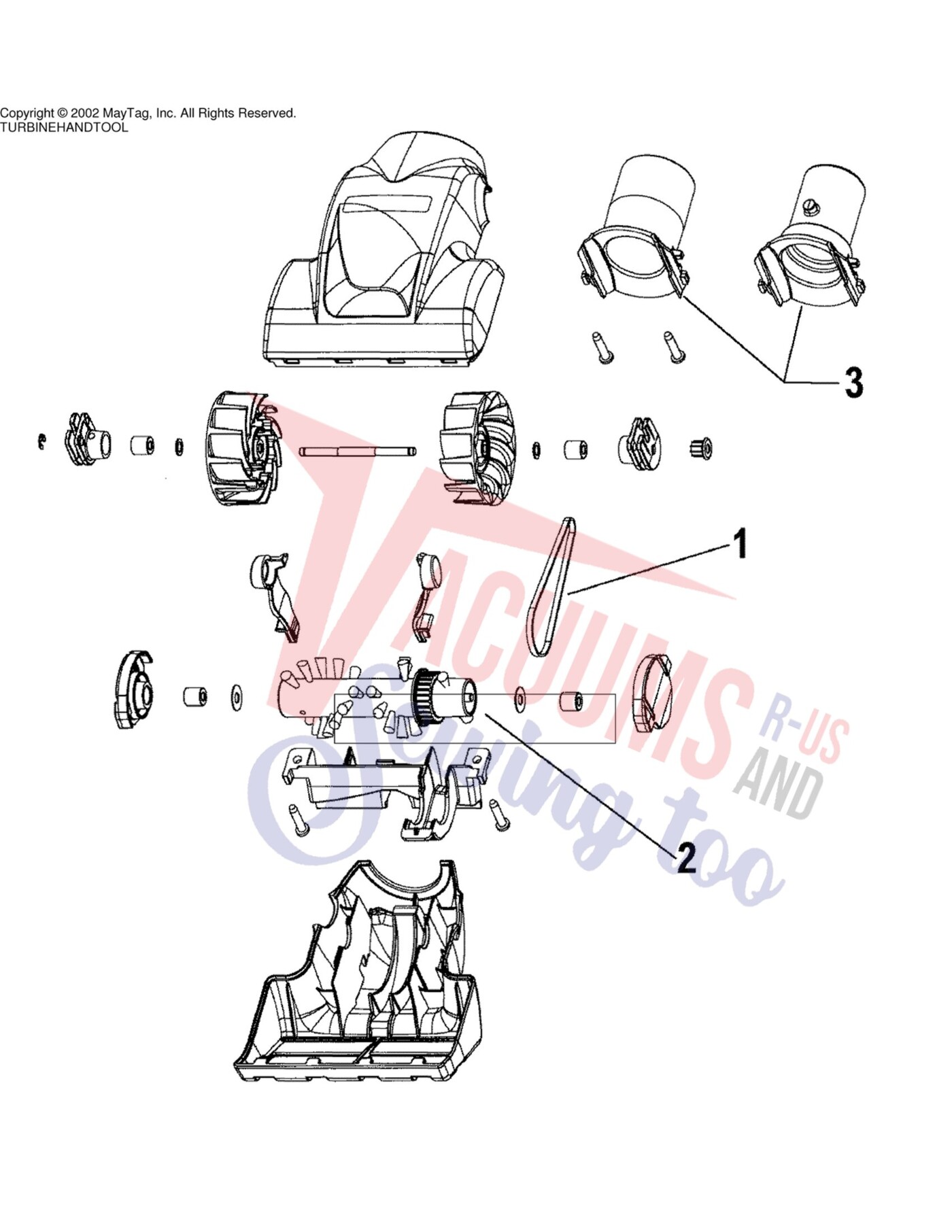

| # | Part image | Description | SKU | Price |
| 1 | Not Available | TURBINE HAND TOOL | 49129027 | Not Available |
| 1 | Not Available | BELT-TURBINE HAND TL | 38528037 | Not Available |
| 2 | Not Available | AGITATOR-TUR HD TOOL | 48414088 | Not Available |
| 3 | Not Available | CONNECTOR-TUR HD TOOL | 38632011 | Not Available |
