Schematic and parts book for hoover U6331-930 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Tool Door-MN | 37257171 | Not Available |
| 2 |  | SPRING, BAG COVER LATCH LEGACY II 5079 Part Number: 38355008 for Hoover | 38355008 | $2.56Read more |
| 3 | Not Available | Latch - Bag Door - ABE | 36151013 | Not Available |
| 4 | Not Available | Bag Housing Door - ABM | 37257199 | Not Available |
| 4 | Not Available | Bag Housing Door - AG | 37257055 | Not Available |
| 6 | Not Available | Cable Retainer Bracket - AY | 36131088 | Not Available |
| 7 | Not Available | Actuator Bar Assem. - AG | 43143045 | Not Available |
| 8 | Not Available | Pivot Bearing - AG | 38511027 | Not Available |
| 8 | Not Available | Screw- Self Tapping - FW (4) | 21447230 | Not Available |
| 10 | Not Available | Control Cable | 43211009 | Not Available |
| 11 | Not Available | Control Cable Tube - AG | 66661203 | Not Available |
| 12 | Not Available | Actuator Access Cover - ABE | 37196006 | Not Available |
| 13 | No Image | Pivot Brng-Front Housing Concept I For: hoover | 38511002 | $2.82Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | COVER, MOTOR U6323-930 Part Number: 37195103 for Hoover | 37195103 | $27.13Read more |
| 15 | Not Available | Motor Cover Sea[ | 38781042 | Not Available |
| 16 | No Image | Rubber Pump Mount Bracket | 19555 | $0.00Read more |
| 17 | Not Available | Tapping Screw and Washer Assem | 23187200 | Not Available |
| 18 | Not Available | Power Drive Belt | 160147AG | Not Available |
| 19 |  | No available as a single belt order two pack 40201030 Hoover 38528008 Concept Vacuum Cleaner Belt | 38528008 | $6.59Read more |
| 19 |  | Compatible alternateBelt, Hoover Brushroll Concept 2 Pk More Product Details | 40201030 | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Agitator Assembly Complete (p.- 282) | 48414013 | Not Available |
| 22 | Not Available | Bag Housing Seal | 38781041 | Not Available |
| 23 | Not Available | Fan Chamber Seal - AG | 38784012 | Not Available |
| 24 | Not Available | Motor Assembly Complete (p.- 297 | 43576102 | Not Available |
| 25 | Not Available | Motor End Cap Seal | 34123043 | Not Available |
| 26 | Not Available | Dirt Finder Lead Assem. | 46328002 | Not Available |
| 27 | Not Available | Nut Special | 33423007 | Not Available |
| 28 | Not Available | Attachment Cord | 46388027 | Not Available |
| 29 | Not Available | Dirt Duct - AG | 38656029 | Not Available |
| 30 | Not Available | Screw - Self Tapping - AY | 21447003 | Not Available |
| 31 | Not Available | Switch Rod - Lower - AG | 38458039 | Not Available |
| 32 |  | Paper Bag, Style Z Power Drive 3 Pk Part Number: 4010075Z for Hoover | 4010075Z | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 34 | Not Available | Tool Holder-ABE | 36433106 | Not Available |
| 35 | Not Available | Furniture Nozzle - ABR | 38614036 | Not Available |
| 35 | Not Available | Furniture Nozzle -AG | 38614029 | Not Available |
| 36 | Not Available | Dusting Brush - ABR | 43414146 | Not Available |
| 36 | Not Available | Dusting Brush -AG | 43414145 | Not Available |
| 37 | Not Available | Crevice Tool - ABR | 38617026 | Not Available |
| 37 | Not Available | Crevice Tool - AG | 38617024 | Not Available |
| 38 | Not Available | Tapping Screw and Washer Assem. | 23149001 | Not Available |
| 39 | Not Available | Bag Housing -ABE (Incl. It. 46) | 37255023 | Not Available |
| 40 | Not Available | Drive Control Pin - ABN | 36142002 | Not Available |
| 41 | Not Available | Handle Grip - Upper - ABE | 39458045 | Not Available |
| 42 | Not Available | Handle Sleeve | 31754002 | Not Available |
| 43 |  | Handle Grip-Lower-Hoover 6311/17/23/29 For: hoover | 39458010 | $5.91Read more |
| 44 | Not Available | Screw- Self Tapping | 21447041 | Not Available |
| 45 | Not Available | Upper Handle ABE | 39466008 | Not Available |
| 46 | Not Available | Lower Hose Support - ABE | 36433103 | Not Available |
| 47 | Not Available | Extension Tube - AG | 38634078 | Not Available |
| 48 | Not Available | Cleaning Tool Hose - ABX | 43434096 | Not Available |
| 49 | Not Available | Hose Connector Collar - AG (2) | 36116013 | Not Available |
| 50 | Not Available | Hose Connector - AG | 38638058 | Not Available |
| 51 | Not Available | Hose Adapter - Long - AG | 32286025 | Not Available |
| 52 | Not Available | Bag Check Diaphragm | 38733002 | Not Available |
| 53 | Not Available | Indicator Flag - BZ | 51151004 | Not Available |
| 54 | Not Available | Scent Tablet Drawer - AG | 35111004 | Not Available |
| 55 | Not Available | Battery Cover | 37248010 | Not Available |
| 56 | Not Available | Volt Battery | N/A | Not Available |
| 57 | Not Available | Lead Wire Tie | 27479307 | Not Available |
| 58 | Not Available | Battery Connector Assem. | 46515011 | Not Available |
| 59 | Not Available | Switch | 28161063 | Not Available |
| 60 | Not Available | Housing - ABE | 37943020 | Not Available |
| 61 | Not Available | Printed Circuit Board Assem. | 46851029 | Not Available |
| 62 | Not Available | Screw | 21447217 | Not Available |
| 63 | Not Available | Switch Bracket | 34663004 | Not Available |
| 64 | Not Available | Microphone Connector Assem. | 47823001 | Not Available |
| 64 | Not Available | Air Freshener Tablet -1 pack | 57363002 | Not Available |
| 64 | Not Available | Floor Brush -AG - U6335-930 | 43414142 | Not Available |

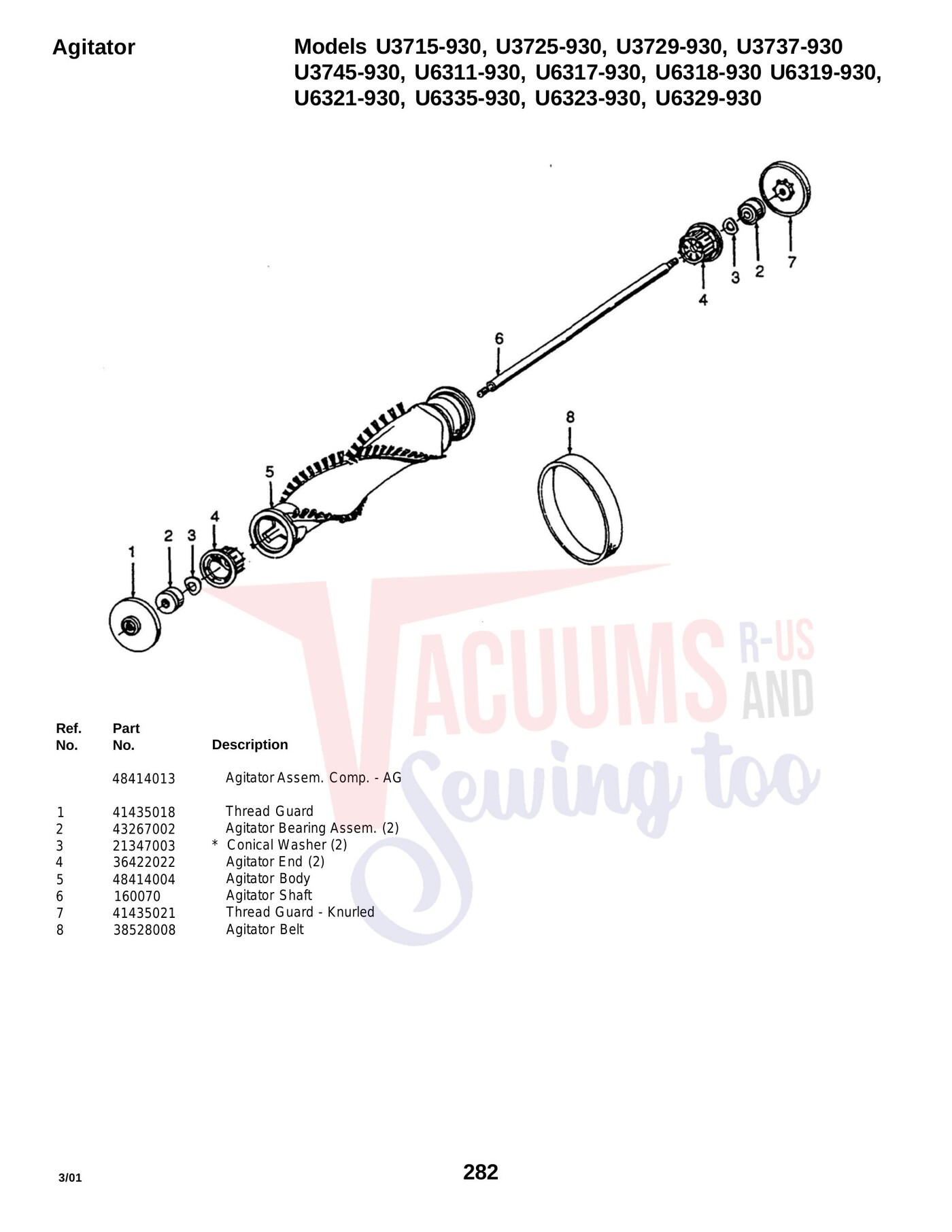

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Thread Guard | 41435018 | Not Available |
| 2 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for ... | 43267002 | $4.81Read more |
| 3 | Not Available | Conical Washer (2) | 21347003 | Not Available |
| 4 | Not Available | Agitator End (2) | 36422022 | Not Available |
| 5 | Not Available | Agitator Body | 48414004 | Not Available |
| 6 | Not Available | Agitator Shaft | 160070 | Not Available |
| 7 | Not Available | Thread Guard - Knurled | 41435021 | Not Available |
| 8 | | No available as a single belt order two pack 40201030 Hoover 38528008 Concept Vacuum Cleaner Belt | 38528008 | $6.59Read more |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dirt Finder Lens | 39383092 | Not Available |
| 2 | Not Available | Belt Indicator Panel - ABR | 37246005 | Not Available |
| 2 | Not Available | Belt Indicator Panel - AAY | 37246004 | Not Available |
| 2 | Not Available | Belt Indicator Panel - MB (U6319-930) | 37246007 | Not Available |
| 2 | Not Available | Belt Indicator Lens - BZ (U6321-930) | 39382008 | Not Available |
| 3 | Not Available | Hood Assem. - ABR (U6311-930) | 42252362 | Not Available |
| 3 | Not Available | Hood Assem. - AAY (U6317-930) | 42252365 | Not Available |
| 3 | Not Available | Hood Assem. - ABM (U6331-930) | 42252386 | Not Available |
| 3 | Not Available | Hood Assem. - AG U6318-930 | 42252A21 | Not Available |
| 4 | Not Available | Furniture Guard - ABE | 36235087 | Not Available |
| 5 | Not Available | Screw - Self - Tapping - AY (4) | 21447003 | Not Available |
| 6 | Not Available | Dirt Finder Lamp | 27313101 | Not Available |
| 7 | Not Available | Dirt Finder Lead Assem. | 46328002 | Not Available |
| 8 | Not Available | Lead Wire Tie | 27479307 | Not Available |
| 9 | Not Available | Dirt Finder Bracket - AG | 36912006 | Not Available |
| 10 | Not Available | Screw - Self Tapping - AY (2) | 21447203 | Not Available |
| 11 | Not Available | Agitator Housing Bracket - L.H. | 35476016 | Not Available |
| 12 | Not Available | Agitator Housing Assem. | 42246134 | Not Available |
| 12 | Not Available | (Incl. It. 10 11) | U6319-930 | Not Available |
| 12 | Not Available | Agitator Housing Assem. U6321-930 | 42246135 | Not Available |
| 12 | Not Available | U6329-930 U6331-930 | U6323-930 | Not Available |
| 12 | Not Available | (Incl. It. 1011) | U6335-930 | Not Available |
| 13 | Not Available | Screw - Self Tapping (4) | 21447014 | Not Available |
| 14 | Not Available | Roller | 31142014 | Not Available |
| 15 | Not Available | Retaining Ring | 163699 | Not Available |
| 16 | Not Available | Wheel | 32761003 | Not Available |
| 17 | Not Available | Self Tapping Screw | 21479782 | Not Available |
| 18 | Not Available | Nut (PD. Unit/Pulley) (2) | 160031 | Not Available |
| 19 | Not Available | Lifter - L.H. | 38562010 | Not Available |
| 20 | Not Available | Frame - L.H. - AG | 35476012 | Not Available |
| 21 | Not Available | FW * Screw - Self Tapping (5) | 17001 | Not Available |
| 22 | Not Available | Bearing (2) | 32155004 | Not Available |
| 23 | Not Available | Handle Release Lever - L.H. - AG | 38452071 | Not Available |
| 24 | Not Available | Spring (2) | 38335014 | Not Available |
| 25 |  | Rear Wheel Washer All Convertibles For: hoover | 21312772 | $0.78Add to cart Special order: ships in 2 to 4 weeks |
| 26 | Not Available | Wheel Cover (2) | 37912013 | Not Available |
| 27 | Not Available | Lock Ring (4) | 13730 | Not Available |
| 28 | Not Available | Rear Wheel-ABE (2) | 38522032 | Not Available |
| 29 | Not Available | Bottom Plate - ABE | 37245087 | Not Available |
| 30 | Not Available | Bottom Plate Duct Seal | 34122019 | Not Available |
| 31 | Not Available | Rear Axle - AY | 32547002 | Not Available |
| 32 |  | Transmission Pulley-Oem Hoover Concept For: hoover | 38537001 | $8.02Add to cart Special order: ships in 2 to 4 weeks |
| 33 | Not Available | Power Drive Unit - (Inc. items 14 15 | 43124013 | Not Available |
| 34 | Not Available | Drive Wheel Assembly | 163340AG | Not Available |
| 35 | Not Available | Key Lock | 160040AY | Not Available |
| 36 | Not Available | Retaining Ring | 160014 | Not Available |
| 37 | Not Available | Frame Assembly - AG. - R.H. | 41967004 | Not Available |
| 38 | Not Available | Handle Release Lever - AG. - R.H. | 38452059 | Not Available |
| 39 | Not Available | Agitator Clip (2 req'd) | 34788001 | Not Available |
| 40 | Not Available | Lifter - AG - R.H. | 38562013 | Not Available |
| 41 | Not Available | Pin - HE (2 req'd) | 31522016 | Not Available |
| 42 | Not Available | Duct Assembly | 43486005 | Not Available |
| 43 | Not Available | Duct Seal | 34123003 | Not Available |
| 44 | Not Available | Agitator Housing Bracket - ABD - | 35476027 | Not Available |
| 45 | Not Available | Screw - Self Tapping - AY | 21447203 | Not Available |
| 46 | Not Available | Detent Spring | 34751002 | Not Available |
| 47 | Not Available | Cam - HE | 38563018 | Not Available |
| 48 | Not Available | Speed Nut | 21362006 | Not Available |
| 49 | No Image | SPRING, P/N INTAKE DOOR U6311/17/23/29 Part Number: 38351016 for Hoover | 38351016 | $1.96Read more |
| 50 | Not Available | Air Intake Door Assembly - ABR | 37257191 | Not Available |
| 50 | Not Available | Air Intake Door Assembly - AAY | 37257190 | Not Available |
| 50 | Not Available | Air Intake Door Assembly - ABB | 37257193 | Not Available |
| 50 | Not Available | Air Intake Door Assembly - MB | 37257192 | Not Available |
| 50 | Not Available | Air Intake Door Assembly - ABM | 37257194 | Not Available |
| 50 | Not Available | Air Intake Door Assem. - AG | 37257202 | Not Available |
| 51 | Not Available | Seal - AG | 38784057 | Not Available |
| 51 | Not Available | Hood Nameplate (U6317-930) | 52115200 | Not Available |
| 51 | Not Available | Hood Nameplate (U6323-930) | 52115202 | Not Available |
| 51 | Not Available | Hood Nameplate (U6321-930) | 52115205 | Not Available |
| 53 | Not Available | Nozzle Adjustment Lever - ABE | 38421086 | Not Available |
| 54 | Not Available | Belt Indicator Label (U6323-930) | 51619004 | Not Available |
| 55 | Not Available | Belt Indicator - BZ (U6323-930) | 32373001 | Not Available |
| 56 | Not Available | Handle Release - AG | 38452053 | Not Available |

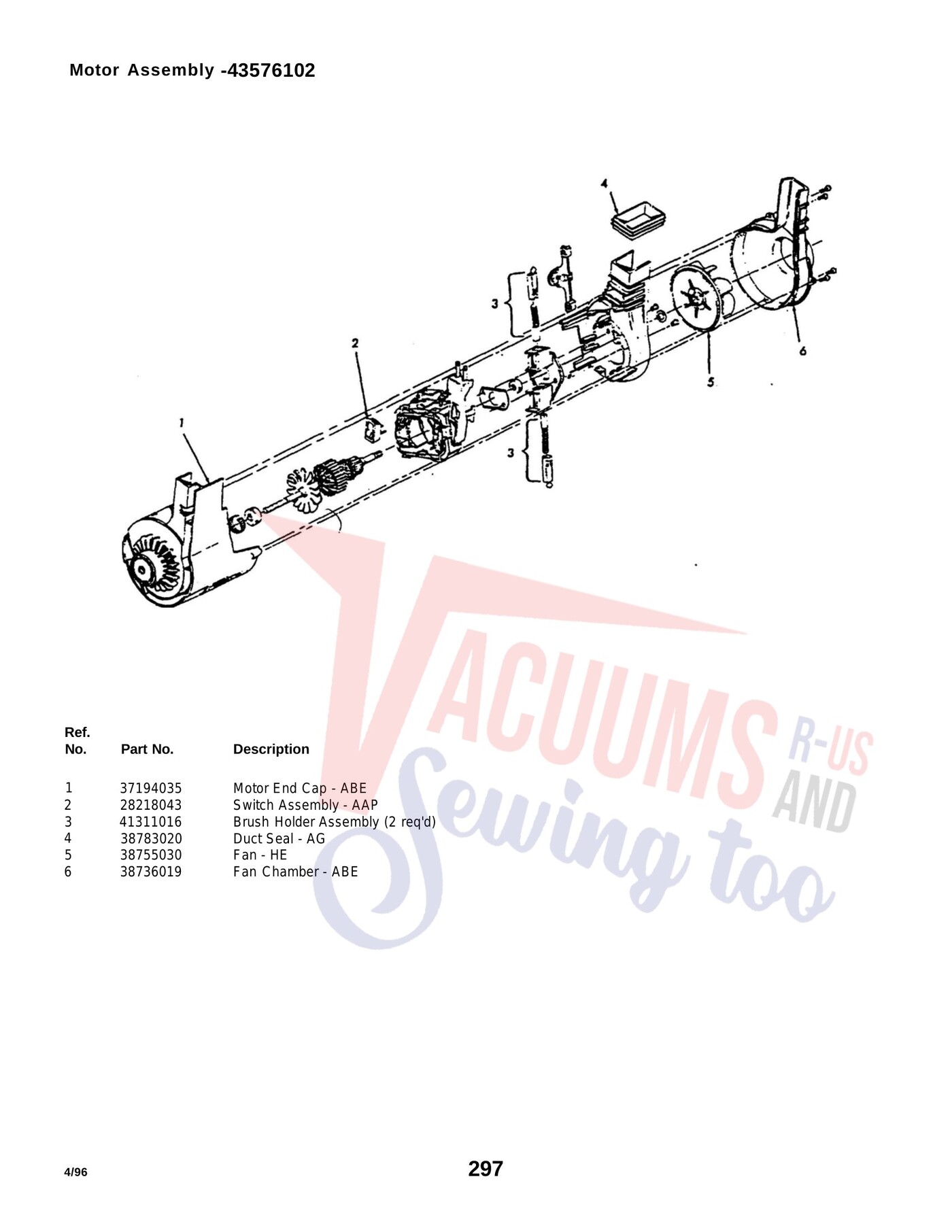

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Motor End Cap - ABE | 37194035 | Not Available |
| 2 | Not Available | Switch Assembly - AAP | 28218043 | Not Available |
| 3 | Not Available | Brush Holder Assembly (2 req'd) | 41311016 | Not Available |
| 4 | Not Available | Duct Seal - AG | 38783020 | Not Available |
| 5 | Not Available | Fan - HE | 38755030 | Not Available |
| 6 | Not Available | Fan Chamber - ABE | 38736019 | Not Available |
