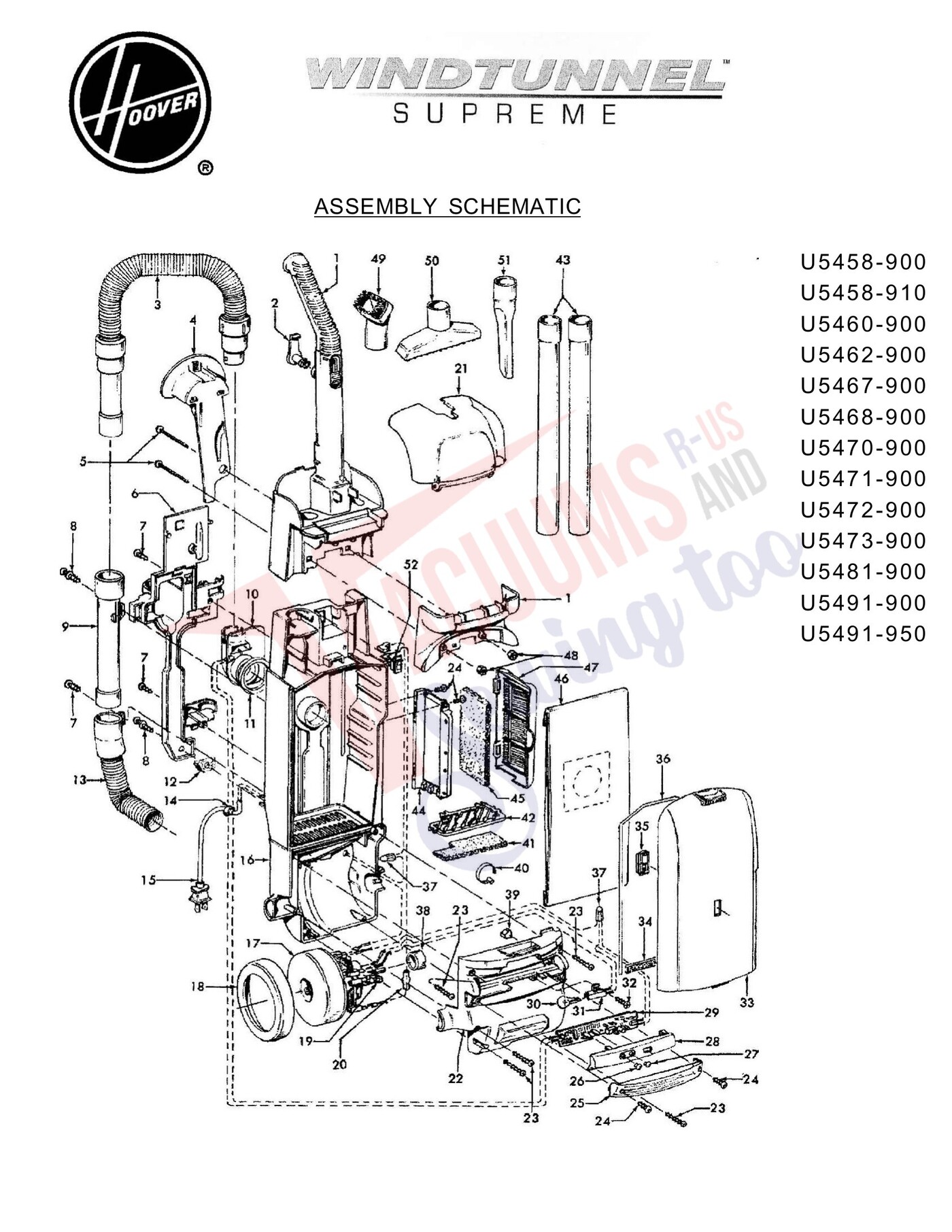

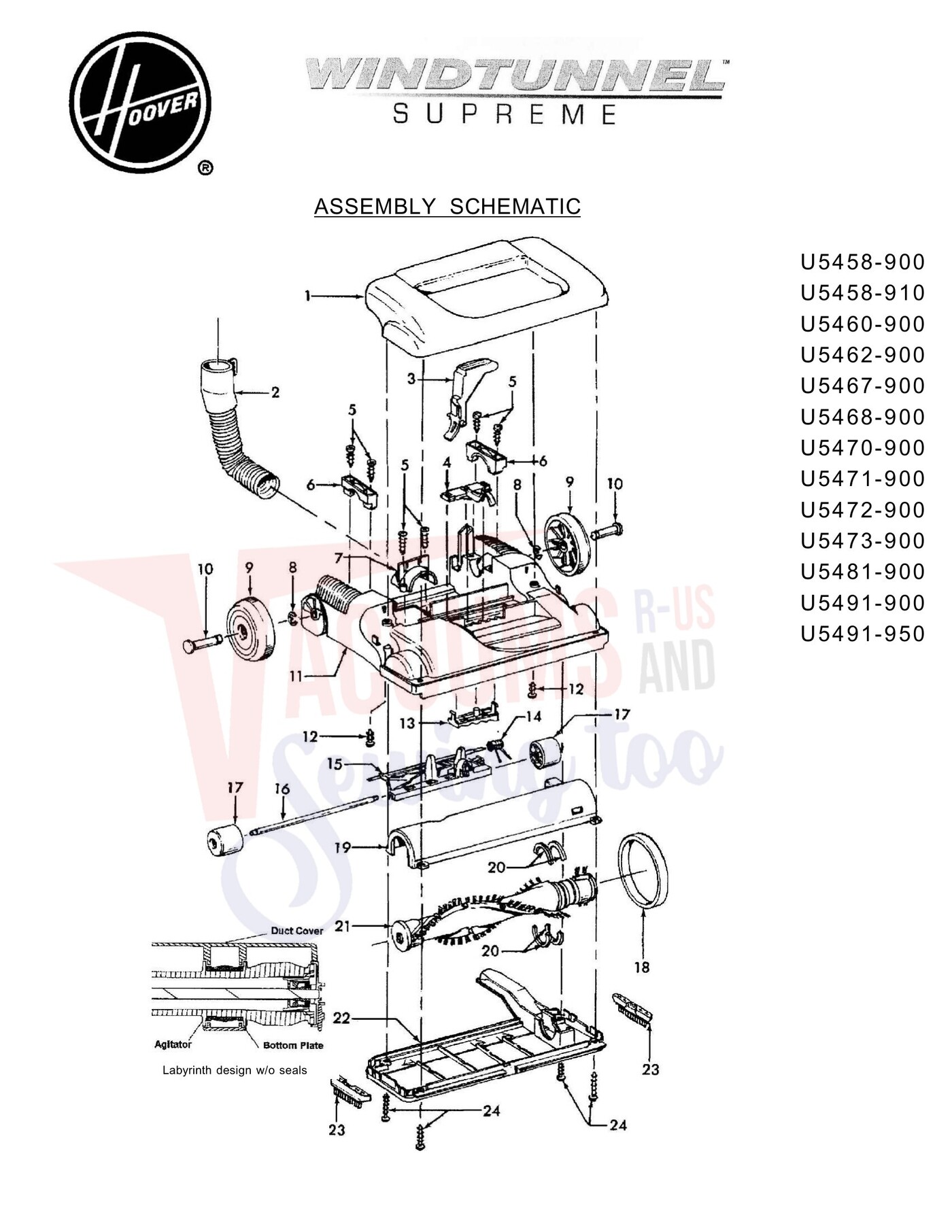

Schematic and parts book for Hoover U5458-900;U5458-910;U5460-900;U5462-900;U5467-900;U5468-900;U5470-900;U5471-900;U5472-900;U5473-900;U5481-900;U5491-900;U5491-950 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE CAP / DELUXE - DARK CHARCOAL GRAY | 37911080 | Not Available |
| 1 | Not Available | UPPER HANDLE COMPLETE - DARK CHARCOAL GRAY | 48663205 | Not Available |
| 1 | Not Available | UPPER HANDLE COMPLETE - D - STYLE HANDL | 39466123 | Not Available |
| 2 |  | Cord Wrap-Hoover U6445 For: hoover | 39442048 | $22.78Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | CORD WRAP - BLACK | 39442056 | Not Available |
| 3 | Not Available | HOSE ASSEMBLY COMPLETE | 43434031 | Not Available |
| 4 |  | Hose Holder-Hoover 5465 Windtunnel For: hoover | 36433137 | $4.51Read more |
| 5 | Not Available | HANDLE HARDWARE ASSEMBLY | 40201149 | Not Available |
| 6 | Not Available | WAND/HOSE HOLDER - DARK CHARCOAL GRAY | 36433120 | Not Available |
| 7 | Not Available | SCREW - SELF TAPPING | 21447242 | Not Available |
| 8 |  | Screw-Hoover Windtunnel Cord Retainer For: hoover | 23149002 | $0.96Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | HOSE DOOR ASSEMBLY | 43457024 | Not Available |
| 10 | Not Available | EDF MICRO/DUCT ASSEMBLY | 47823003 | Not Available |
| 11 | Not Available | HOSE CONNECTOR GASKET | 31178017 | Not Available |
| 12 | Not Available | WIRE OPENING SEAL | 34311004 | Not Available |
| 13 | Not Available | HOSE DOOR ASSEMBLY | 43431005 | Not Available |
| 14 | Not Available | STRAIN RELIEF | 27482230 | Not Available |
| 15 | Not Available | CORD - 35' | 46383334 | Not Available |
| 16 | Not Available | BAG HOUSING DELUXE - DARK CHARCOAL GRAY | 92001023 | Not Available |
| 16 | Not Available | BAG HOUSING KIT - DLX INCL MOTOR HOUSING | 40309040 | Not Available |
| 17 | Not Available | MOTOR ASSEMBLY COMPLETE | 27212057 | Not Available |
| 17 | Not Available | NUT | 33426001 | Not Available |
| 17 | Not Available | FAN ASSEMBLY | 90001206 | Not Available |
| 18 |  | Motor Mount (Large) Hoover U5469 Windtunnel For: hoover | 36322037 | $4.36Add to cart Special order: ships in 2 to 4 weeks |
| 19 | Not Available | MOTOR BRUSH | 41311017 | Not Available |
| 20 | Not Available | THERMAL PROTECTOR - 3/16 | 47534027 | Not Available |
| 20 | Not Available | THERMAL PROTECTOR - .250 | 28382087 | Not Available |
| 21 | Not Available | TOOL DOOR | 37257260 | Not Available |
| 22 | Not Available | MOTOR COVER - BLACK | 37196009 | Not Available |
| 22 | Not Available | MOTOR COVER - DARK CHARCOAL GRAY | 37196158 | Not Available |
| 23 | Not Available | SCREW - SELF TAPPING | 21447230 | Not Available |
| 24 | Not Available | SCREW - SELF TAPPING | 21447228 | Not Available |
| 25 |  | Lens-Cp For: hoover | 39383107 | $4.36Add to cart Special order: ships in 2 to 4 weeks |
| 26 | Not Available | SNAP IN LENS - RED | 27352030 | Not Available |
| 27 | Not Available | SNAP IN LENS - GREEN | 27352031 | Not Available |
| 28 |  | COVER, ABE-EDF Part Number: 42258001 for Hoover | 42258001 | $9.91Read more |
| 28 | Not Available | EDF COVER / 2 LIGHTS | 42258003 | Not Available |
| 28 | Not Available | EDF COVER / 3 LIGHTS - DARK CHARCOAL GRAY | 42258002 | Not Available |
| 29 | Not Available | EDF PRINTED CIRCUIT BOARD / 2 LIGHTS | 46851083 | Not Available |
| 29 | Not Available | EDF PRINTED CIRCUIT BOARD / 3 LIGHTS | 46851032 | Not Available |
| 30 | Not Available | LAMP / LIGHT BULB | 27313101 | Not Available |
| 31 | Not Available | WIRING HARNESS - RIGHT FLAG TERMINAL | 47173028 | Not Available |
| 31 | Not Available | WIRING HARNESS - STRAIGHT TERMINAL | 47173027 | Not Available |
| 32 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 33 | Not Available | BAG HOUSING DOOR DELUXE INCL #34 & #36 - SAPPHIRE TRANSPARENT | N.A. | Not Available |
| 33 | Not Available | BAG HOUSING DOOR DELUXE INCL #34 & #36 - SILVER QUARTZ METALLIC | N.A. | Not Available |
| 33 | Not Available | BAG HOUSING DOOR DELUXE INCL #34 & #36 - DARK SPRUCE TRANSPARENT | N.A. | Not Available |
| 33 | Not Available | BAG HOUSING DOOR DELUXE INCL #34 & #36 - SAGE GREEN METALLIC | 92001091 | Not Available |
| 33 | Not Available | BAG HOUSING DOOR DELUXE INCL #34 & #36 - LEGACY PURPLE | 37254287 | Not Available |
| 33 | Not Available | BAG HOUSING DOOR DELUXE INCL #34 & #36 - SILVER QUARTZ METALLIC | 37254288 | Not Available |
| 33 | Not Available | BAG HOUSING DOOR DELUXE INCL #34 & #36 - CATALINA BLUE | 37254285 | Not Available |
| 33 | Not Available | BAG HOUSING DOOR DELUXE INCL #34 & #36 - TECHNO BLUE METALLIC | 37254283 | Not Available |
| 34 | Not Available | BAG DOOR GASKET - BOTTOM | 34123050 | Not Available |
| 35 | Not Available | BAG INDICATOR | 51151010 | Not Available |
| 36 | Not Available | BAG DOOR GASKET - 34.5" | 38781057 | Not Available |
| 37 | Not Available | WIRE CONNECTOR | 27618508 | Not Available |
| 38 | Not Available | MOTOR MOUNT - SMALL | 36322030 | Not Available |
| 39 |  | Wire Opening Plug For: hoover | 34131019 | $1.89Add to cart Special order: ships in 2 to 4 weeks |
| 40 | Not Available | CABLE TIE | 27479307 | Not Available |
| 41 |  | Secondary Filter for Hoover Windtunnel | 38765019 | $5.42Read more |
| 42 |  | Frame, :( Filter WindTunnel Upright Part Number: 36426034 for Hoover | 36426034 | $2.46Add to cart Special order: ships in 2 to 4 weeks |
| 43 | Not Available | EXTENSION TUBE - BLACK | 38634078 | Not Available |
| 44 | Not Available | FILTER HOLDER - DARK CHARCOAL GRAY | 36426033 | Not Available |
| 45 |  | NO LONGER AVAILABLE Hoover Filter without Power Drive for Windtunnels | 40110004 | $10.20Read more |
| 45 |  | Compatible alternateFilter, Aftermarket Hoover WindTunnel Final 2Pk Part Number: 471119 for Hoover Replacement More Product Details | 471119 | $8.19Add to cart Special order: ships in 2 to 4 weeks |
| 46 |  | Paper Bags-Hoover - Y - 3Pk - Allergen - Windtunnel - Upt For: hoover | 4010100Y | $16.94Add to cart Special order: ships in 2 to 4 weeks |
| 46 | Not Available | TYPE Y BAG / HEPA - 2 PACK | 4010801Y | Not Available |
| 47 | Not Available | FILTER GRILL - DARK CHARCOAL GRAY | 37257221 | Not Available |
| 47 | Not Available | FILTER GRILL ASSEMBLY | 37257323 | Not Available |
| 48 | Not Available | HANDLE HARDWARE ASSEMEMBLY | 40201149 | Not Available |
| 49 |  | Dust Brush, :( Black WindTunnel Upright Part Number: 43414197 for Hoover | 43414197 | $12.88Read more |
| 50 | Not Available | FURNITURE NOZZLE - GRAPHITE GRAY | 38614044 | Not Available |
| 50 | Not Available | FURNITURE NOZZLE - BLACK | 38614045 | Not Available |
| 51 | Not Available | CREVICE TOOL - SHORT BLACK | 38617033 | Not Available |
| 51 | Not Available | CREVICE TOOL - LONG GRAPHITE GRAY | 38617031 | Not Available |
| 52 | Not Available | SWITCH - .025 TERMINAL | 28161067 | Not Available |
| 53 | Not Available | TURBINE HAND TOOL | 49129032 | Not Available |
| 53 | Not Available | TURBINE HAND TOOL | 49124044 | Not Available |
| 54 | Not Available | 12" FLOOR BRUSH ASSEMBLY - BLACK | 92001259 | Not Available |
| 54 | Not Available | EXTRA HOSE ASSEMBLY - OPTIONAL | 43434042 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HOOD - SAGE GREEN METALLIC | 92001090 | Not Available |
| 1 | Not Available | HOOD - LACQUER RED METALLIC | 91001069 | Not Available |
| 1 | No Image | HOOD, U5450-900 Part Number: 37253364 for Hoover | 37253364 | $40.24Read more |
| 1 | Not Available | HOOD - RUBY TRANSPARENT | 37253386 | Not Available |
| 1 | Not Available | HOOD - LEGACY PURPLE | 37253448 | Not Available |
| 1 | Not Available | HOOD - SILVER QUARTZ METALLIC | 37253A75 | Not Available |
| 1 | Not Available | HOOD - CATALINA BLUE | 37253A78 | Not Available |
| 1 | Not Available | HOOD - TECHNO BLUE METALLIC | 42252B75 | Not Available |
| 2 | Not Available | HOSE DOOR ASSEMBLY | 43431005 | Not Available |
| 3 | Not Available | HANDLE RELEASE LEVER - BLACK | 38458043 | Not Available |
| 3 | Not Available | HANDLE RELEASE LEVER - SONIC SILVER | 38434049 | Not Available |
| 4 | Not Available | NOZZLE ADJUST LEVER / CAM KIT | 40309004 | Not Available |
| 5 | | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 6 | Not Available | TRUNNION COVER - DARK CHARCOAL GRAY | 36131094 | Not Available |
| 7 |  | Hose Clamp Hoover U5421-9Rm Upright For: hoover | 36171044 | $1.89Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | LOCK RING | 160017 | Not Available |
| 9 | Not Available | REAR WHEEL | 38522077 | Not Available |
| 9 | Not Available | REAR WHEEL ASSEMBLY | 43247033 | Not Available |
| 10 | Not Available | REAR AXLE | 32434007 | Not Available |
| 11 | Not Available | MAIN BODY W / FURNITURE GUARD | 37242135 | Not Available |
| 11 | Not Available | MAIN BODY W / FURNITURE GUARD | 37242158 | Not Available |
| 12 | Not Available | SCREW - SELF TAPPING | 21447228 | Not Available |
| 13 | Not Available | NOZZLE ADJUST LEVER / CAM KIT | 40309004 | Not Available |
| 14 | Not Available | TORSION SPRING | 38355010 | Not Available |
| 15 | Not Available | FRONT WHEEL SUPPORT - CLEAR | 36432027 | Not Available |
| 15 | Not Available | FRONT WHEEL ASSEMBLY COMPLETE | 43248064 | Not Available |
| 15 | Not Available | FRONT WHEEL ASSEMBLY COMPLETE | 43248075 | Not Available |
| 16 | Not Available | WHEEL SHAFT - ZINC PLATE COATED | 32541003 | Not Available |
| 16 |  | Wheel Shaft Hoover Upright For: hoover | 32541007 | $7.10Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | FRONT WHEEL - BLACK | 38521009 | Not Available |
| 17 | Not Available | FRONT WHEEL - BLACK SOFT TREAD | 38522105 | Not Available |
| 18 | Not Available | BELT | 38528033 | Not Available |
| 18 | Not Available | BELT - 2 PACK | 40201160 | Not Available |
| 19 | Not Available | BOTTOM PLATE / DUCT 15" | 40309026 | Not Available |
| 20 |  | Seal-Agitator Pulley-Hoover U5445 For: hoover | 38781053 | $1.44Add to cart |
| 21 | Not Available | BRUSH ROLL / AGITATOR 15" | 48414132 | Not Available |
| 22 | Not Available | BOTTOM PLATE / DUCT 15" | 40309026 | Not Available |
| 23 | Not Available | LITTER PICKER / EDGE GROOMER | 39511004 | Not Available |
| 23 | Not Available | LITTER PICKER / EDGE GROOMER - BLACK | 39511018 | Not Available |
| 24 | Not Available | SCREW | 21447121 | Not Available |
