Schematic and parts book for Hoover U5445-900, U5465-900, U5465-960 WindTunnel. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| XX | Not Available | Switch Kit | 40309033 | Not Available |
| XX | Not Available | Floor Brush Ass’y - AG - U5465-960 | 43414142 | Not Available |
| XX | Not Available | Hose Ass’y Comp. - (Extra) | 43434250 | Not Available |
| XX | Not Available | Air Freshener Tab | 57363003 | Not Available |
| XX | Not Available | Filter Door Label | 51632003 | Not Available |
| XX | Not Available | Label Filter Door | 51639143 | Not Available |
| XX | Not Available | Warning Label | 51869050 | Not Available |
| 1 | Not Available | Upper Handle - ABE (Incl. Items 2 49) | 48663205 | Not Available |
| 2 | Not Available | Cord Wrap | 39442042 | Not Available |
| 3 | Not Available | Hose Ass’y Comp. | 43434247 | Not Available |
| 4 | Not Available | Hose Holder - ABE | 36433111 | Not Available |
| 5 | Not Available | Handle Hardware | 40201149 | Not Available |
| 6 | Not Available | Wand/Hose Holder - ABE | 36433120 | Not Available |
| 7 | Not Available | Screw Self Tapping | 21447242 | Not Available |
| 8 |  | Screw-Hoover Windtunnel Cord Retainer For: hoover | 23149002 | $0.96Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Wand With Door - U5465-900 | 38634007 | Not Available |
| 10 | Not Available | EDF Mic/Duct Ass’y | 47823003 | Not Available |
| 11 | Not Available | Hose Connector Gasket | 31178017 | Not Available |
| 12 | Not Available | Wire Opening Seal | 34311004 | Not Available |
| 13 | Not Available | Angled Hose Connection Ass’y | 43431215 | Not Available |
| 14 | Not Available | Strain Relief | 27482230 | Not Available |
| 15 | Not Available | Attachment Cord Ass’y - AG | 46383322 | Not Available |
| 16 | Not Available | Bag Housing - Deluxe - ABE | 37255011 | Not Available |
| 17 | Not Available | Motor Ass’y | 43576175 | Not Available |
| 18 | Not Available | Motor Mount - Large | 36322035 | Not Available |
| 19 | Not Available | Motor Brush Ass’y (2) | 41311017 | Not Available |
| 20 | Not Available | Thermal Protector Ass’y Comp. | 47534020 | Not Available |
| 21 | Not Available | Not Available | N/A | Not Available |
| 22 | Not Available | Motor Cover - ABE | 37196008 | Not Available |
| 23 | Not Available | Screw Self Tapping | 21447230 | Not Available |
| 24 | Not Available | Screw Self Tapping | 21447228 | Not Available |
| 25 |  | Lens-Cp For: hoover | 39383107 | $4.36Add to cart Special order: ships in 2 to 4 weeks |
| 26 | Not Available | Snap-ln Lens - Red | 27352030 | Not Available |
| 27 | Not Available | Snap-ln Lens - Green | 27352031 | Not Available |
| 28 |  | COVER, ABE-EDF Part Number: 42258001 for Hoover | 42258001 | $9.91Read more |
| 29 | Not Available | EDF Printed Circuit Board Ass’y | 46851031 | Not Available |
| 30 | Not Available | Dirt Finder Lamp | 27313101 | Not Available |
| 31 | Not Available | Wiring Harness Ass’y | 47173017 | Not Available |
| 32 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 33 | Not Available | Bag Housing Door - Deluxe | 37254098 | Not Available |
| 34 | Not Available | Bag Door Gasket | 38781054 | Not Available |
| 35 | Not Available | Indicator Ass’y | 51151010 | Not Available |
| 36 | Not Available | Bag Door Gasket | 38781054 | Not Available |
| 37 | Not Available | Wire Connector | 27618508 | Not Available |
| 38 | Not Available | Motor Mount - Small | 36322030 | Not Available |
| 39 |  | Wire Opening Plug For: hoover | 34131019 | $1.89Add to cart Special order: ships in 2 to 4 weeks |
| 40 | Not Available | Lead Wire Tie | 27479307 | Not Available |
| 41 |  | Secondary Filter for Hoover Windtunnel | 38765019 | $5.42Read more |
| 42 |  | Frame, :( Filter WindTunnel Upright Part Number: 36426034 for Hoover | 36426034 | $2.46Add to cart Special order: ships in 2 to 4 weeks |
| 43 | Not Available | Protector Tube | 66655409 | Not Available |
| 44 | Not Available | Filter Holder - ABE | 36426033 | Not Available |
| 45 | Not Available | Final Filter - U5445-900 | 38766007 | Not Available |
| 45 | Not Available | Final Filter - U5465-900 U5465-960 | 38766009 | Not Available |
| 46 |  | Paper Bags-Hoover - Y - 3Pk - Allergen - Windtunnel - Upt For: hoover | 4010100Y | $16.94Add to cart Special order: ships in 2 to 4 weeks |
| 47 | Not Available | Filter Grill - ABC | 37257221 | Not Available |
| 48 | Not Available | Handle Hardware | 40201149 | Not Available |
| 49 | Not Available | Not Available | N/A | Not Available |
| 50 | Not Available | Not Available | N/A | Not Available |
| 51 | Not Available | Not Available | N/A | Not Available |
| 52 | Not Available | Switch | 28161063 | Not Available |
| 53 | Not Available | Tool Door - MN | 37257176 | Not Available |
| 54 | Not Available | Extension Tube - AG | 38634078 | Not Available |
| 55 | Not Available | Crevice Tool - ABR | 38617027 | Not Available |
| 56 | Not Available | Furniture Nozzle - ABR | 38614037 | Not Available |
| 57 | Not Available | Dusting Brush - ABR | 43414162 | Not Available |

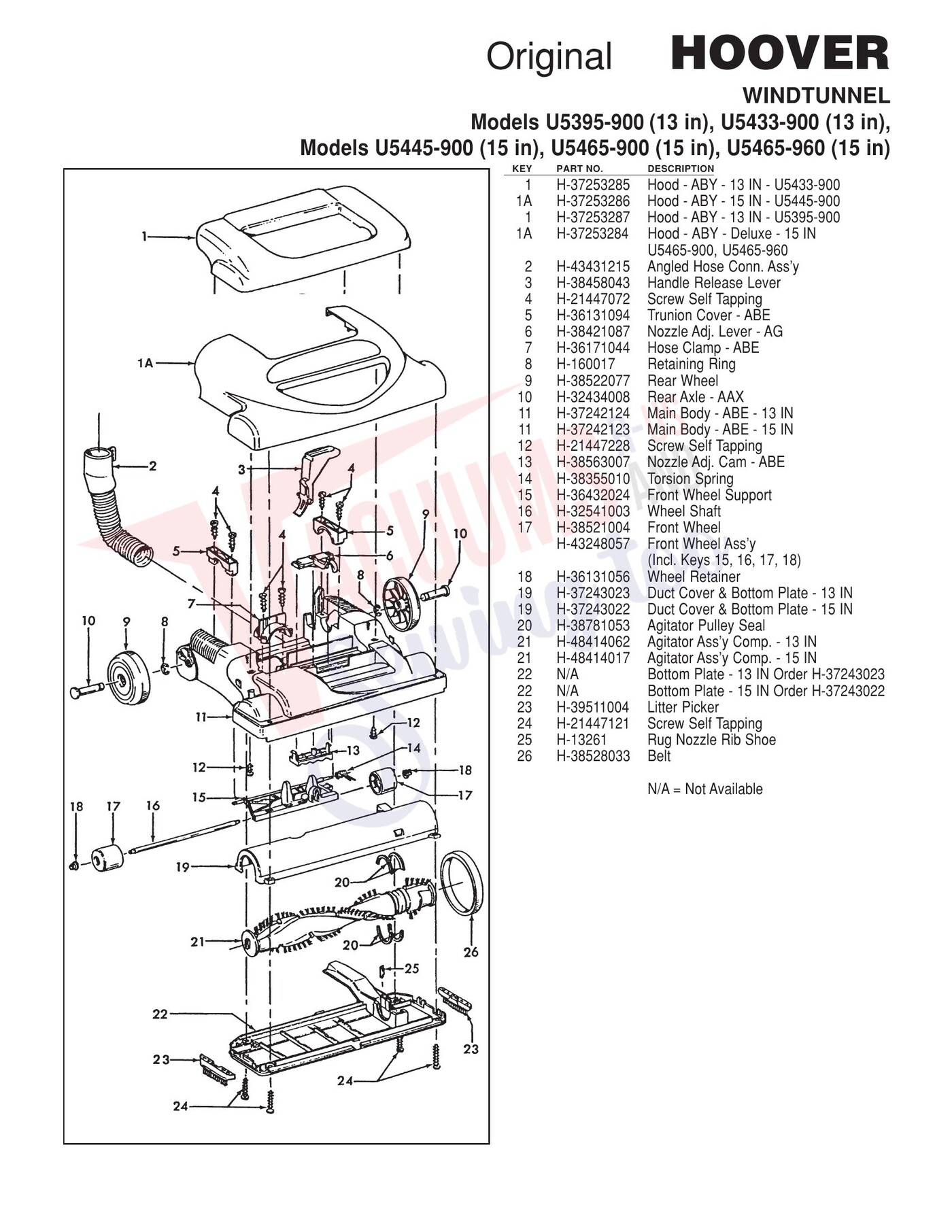

| # | Part image | Description | SKU | Price |
| XX | Not Available | Front Wheel Ass’y | 43248057 | Not Available |
| 1 | Not Available | Hood - ABY - 13 IN - U5433-900 | 37253285 | Not Available |
| 1 | Not Available | Hood - ABY - 13 IN - U5395-900 | 37253287 | Not Available |
| 1A | No Image | ***USE H-37253364 HOOD, U5445-900 Part Number: 37253286 for Hoover | 37253286 | $31.97Read more |
| 1A | Not Available | Hood - ABY - Deluxe - 15 IN | 37253284 | Not Available |
| 2 | Not Available | Angled Hose Conn. Ass’y | 43431215 | Not Available |
| 3 | Not Available | Handle Release Lever | 38458043 | Not Available |
| 4 | | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 5 | Not Available | Trunion Cover - ABE | 36131094 | Not Available |
| 6 | Not Available | Nozzle Adj. Lever - AG | 38421087 | Not Available |
| 7 |  | Hose Clamp Hoover U5421-9Rm Upright For: hoover | 36171044 | $1.89Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Retaining Ring | 160017 | Not Available |
| 9 | Not Available | Rear Wheel | 38522077 | Not Available |
| 10 | Not Available | Rear Axle - AAX | 32434008 | Not Available |
| 11 | Not Available | Main Body - ABE - 13 IN | 37242124 | Not Available |
| 11 | Not Available | Main Body - ABE - 15 IN | 37242123 | Not Available |
| 12 | Not Available | Screw Self Tapping | 21447228 | Not Available |
| 13 | Not Available | Nozzle Adj. Cam - ABE | 38563007 | Not Available |
| 14 | Not Available | Torsion Spring | 38355010 | Not Available |
| 15 | Not Available | Front Wheel Support | 36432024 | Not Available |
| 16 | Not Available | Wheel Shaft | 32541003 | Not Available |
| 17 | Not Available | Front Wheel | 38521004 | Not Available |
| 18 | Not Available | Wheel Retainer | 36131056 | Not Available |
| 19 | Not Available | Duct Cover & Bottom Plate - 13 IN | 37243023 | Not Available |
| 19 | Not Available | Duct Cover & Bottom Plate - 15 IN | 37243022 | Not Available |
| 20 |  | Seal-Agitator Pulley-Hoover U5445 For: hoover | 38781053 | $1.44Add to cart |
| 21 | Not Available | Agitator Ass’y Comp. - 13 IN | 48414062 | Not Available |
| 21 | Not Available | Agitator Ass’y Comp. - 15 IN | 48414017 | Not Available |
| 22 | Not Available | Bottom Plate - 13 IN Order H-37243023 | N/A | Not Available |
| 22 | Not Available | Bottom Plate - 15 IN Order H-37243022 | N/A | Not Available |
| 23 | Not Available | Litter Picker | 39511004 | Not Available |
| 24 | Not Available | Screw Self Tapping | 21447121 | Not Available |
| 25 | Not Available | Rug Nozzle Rib Shoe | 13261 | Not Available |
| 26 | Not Available | Belt | 38528033 | Not Available |
