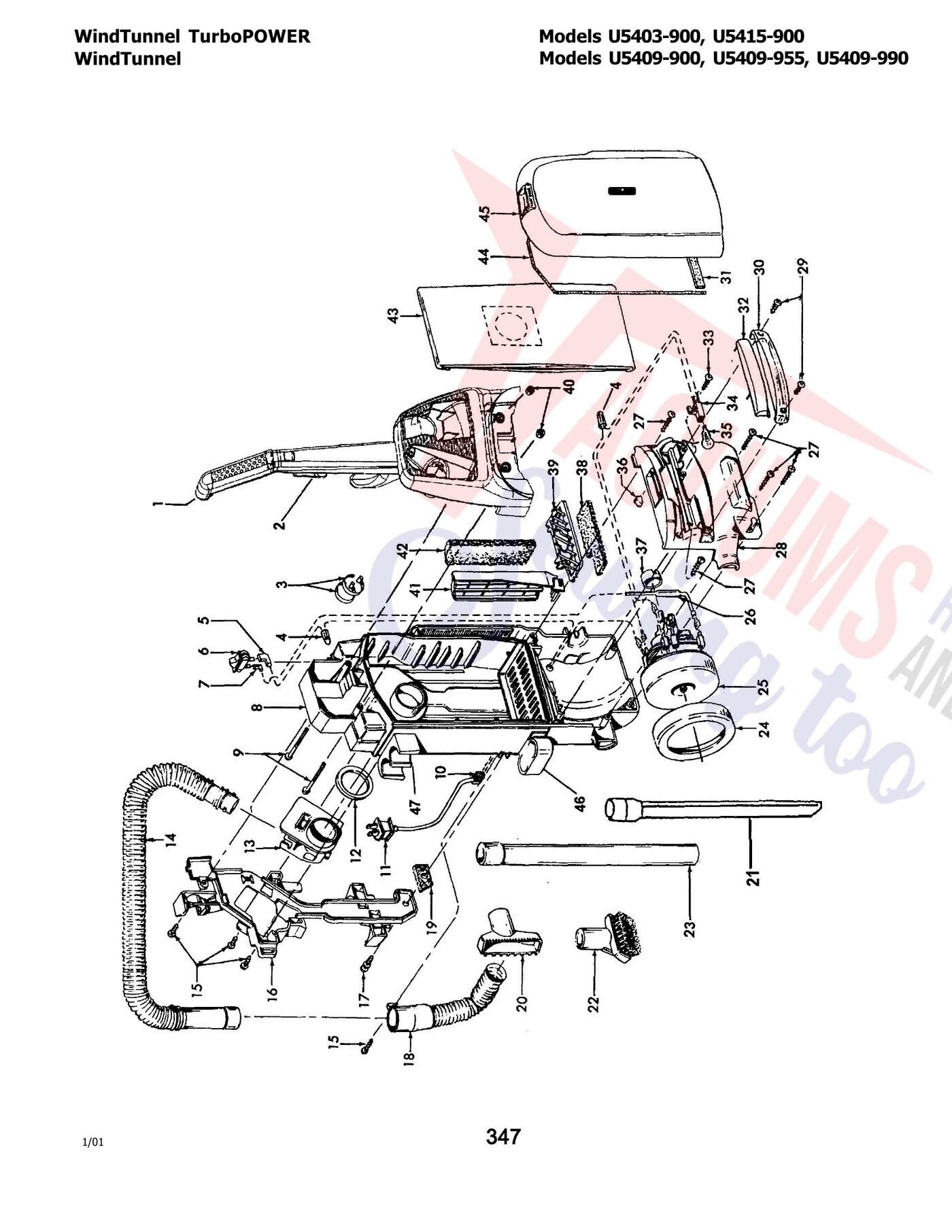

Schematic and parts book for hoover U5403-900, U5415-900, U5409-900, U5409-955, U5409-990 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Upper Handle Assem. (Incl. | 48663178 | Not Available |
| 2 | Not Available | Cord Wrap - ABE | 3944201P | Not Available |
| 3 | Not Available | Wire Tie | 27479307 | Not Available |
| 5 | Not Available | Terminal | N/A | Not Available |
| 6 | Not Available | Switch - 3/16" terminals(Use 40309033 | N/A | Not Available |
| 6 | Not Available | Switch -1/4" terminals (See note 1) | 28161067 | Not Available |
| 7 | Not Available | Terminal | N/A | Not Available |
| 8 | Not Available | Bag Housing - ABE | 37255013 | Not Available |
| 9 | Not Available | Handle Hdwe. (Incl. It 40) | 40201149 | Not Available |
| 10 | Not Available | Strain Relief - U5403-900 | 27482301 | Not Available |
| 10 | Not Available | Strain Relief - U5409-900 | 27482230 | Not Available |
| 11 | Not Available | Cord - 35 Ft. - 3/16" terminal | 46383322 | Not Available |
| 11 | Not Available | Cord - 35 Ft. -1/4" terminal (See note | 46383334 | Not Available |
| 12 | Not Available | Hose Connector Gasket | 31178017 | Not Available |
| 13 | Not Available | Hose Connector (also order | 38641005 | Not Available |
| 14 | Not Available | Hose Assembly | 43434248 | Not Available |
| 15 | Not Available | Screw (4) | 21447242 | Not Available |
| 16 | Not Available | Tool / Hose Holder - ABE | 36433112 | Not Available |
| 17 |  | Screw-Hoover Windtunnel Cord Retainer For: hoover | 23149002 | $0.96Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Angled Connector Assem. | 43431005 | Not Available |
| 19 | Not Available | Wire Opening Seal | 34311004 | Not Available |
| 20 | Not Available | Furniture Nozzle - ABR | 3861401E | Not Available |
| 21 | Not Available | Crevice Tool - ABR | 38617029 | Not Available |
| 22 | Not Available | Dusting Brush Assem.- ABR | 43414174 | Not Available |
| 23 | Not Available | Extension Tube - AG (2) | 38634078 | Not Available |
| 24 | Not Available | Motor Mount - Large | 36322035 | Not Available |
| 25 | Not Available | Motor Assembly | 43576188 | Not Available |
| 25 | Not Available | Motor Brushes (2) | 41311017 | Not Available |
| 25 | Not Available | Motor Fan Assembly | 43566016 | Not Available |
| 26 | Not Available | Thermal Protector - 3/16" terminal | 47534027 | Not Available |
| 26 | Not Available | Thermal Protector -1/4" terminal (See | 28382087 | Not Available |
| 26 | Not Available | Thermal Protector Label | 51873001 | Not Available |
| 27 | Not Available | Screw (5) | 21447230 | Not Available |
| 28 | Not Available | Motor Cover - ABE | 37196009 | Not Available |
| 29 | Not Available | Screw (2) | 21447228 | Not Available |
| 30 |  | Lens-Cp For: hoover | 39383107 | $4.36Add to cart Special order: ships in 2 to 4 weeks |
| 31 | Not Available | Bag Door Gasket - Bottom | 34123050 | Not Available |
| 32 |  | Cover-Abe For: hoover | 37944010 | $1.95Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 34 | Not Available | Wiring Harness - 3/16" terminal | 47173023 | Not Available |
| 34 | Not Available | Wiring Harness -1/4" terminal (See | 47173027 | Not Available |
| 35 | Not Available | Dirt Finder Lamp | 27313101 | Not Available |
| 36 |  | Wire Opening Plug For: hoover | 34131019 | $1.89Add to cart Special order: ships in 2 to 4 weeks |
| 37 | Not Available | Motor Mount - Small | 36322030 | Not Available |
| 38 |  | Secondary Filter for Hoover Windtunnel | 38765019 | $5.42Read more |
| 39 |  | Frame, :( Filter WindTunnel Upright Part Number: 36426034 for Hoover | 36426034 | $2.46Add to cart Special order: ships in 2 to 4 weeks |
| 40 | Not Available | Hex Nut (2) | 21641558 | Not Available |
| 41 | Not Available | Filter Holder - ABE | 36426038 | Not Available |
| 42 | Not Available | Final Filter | 38766008 | Not Available |
| 42 |  | NO LONGER AVAILABLE Hoover Filter without Power Drive for Windtunnels | 40110004 | $10.20Read more |
| 42 |  | Compatible alternateFilter, Aftermarket Hoover WindTunnel Final 2Pk Part Number: 471119 for Hoover Replacement More Product Details | 471119 | $8.19Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | Paper Bags-Hoover - Y - 3Pk - Allergen - Windtunnel - Upt For: hoover | 4010100Y | $16.94Add to cart Special order: ships in 2 to 4 weeks |
| 44 | Not Available | Bag Door Gasket | 38781057 | Not Available |
| 45 | Not Available | Bag Housing Door - ACM | 37254140 | Not Available |
| 45 | Not Available | Bag Hsg. Door - AG - U5415-900 | 42255094 | Not Available |
| 45 | Not Available | Bag Hsg. Door - ADX - | 42255093 | Not Available |
| 46 | Not Available | Lower Wand Holder | 36433116 | Not Available |
| 47 | Not Available | Upper Wand Holder | 36433117 | Not Available |
| 47 | Not Available | Owner Manual | 56511A66 | Not Available |
| 47 | Not Available | Carton - U5403-900 U5409-900 | 58185211 | Not Available |
| 47 | Not Available | Carton - U5415-900 | 58185224 | Not Available |
| 47 | Not Available | Carton - U5409-955 | 58645317 | Not Available |
| 47 | Not Available | Attach. Cord Clamp | 12910 | Not Available |
| 47 | Not Available | Indicator Assembly | 51151010 | Not Available |
| 47 | Not Available | Lead Wire - Red - 3/16" terminal | 49811059 | Not Available |
| 47 | Not Available | Lead Wire - Red -1/4" terminal (See | 49811073 | Not Available |
| 47 | Not Available | Hose Assem. - Extra - U5409-990 | 43434042 | Not Available |
| 47 | Not Available | (P. 325) | U5403-900 | Not Available |
| 47 | Not Available | (P. 325) | U5415-900 | Not Available |

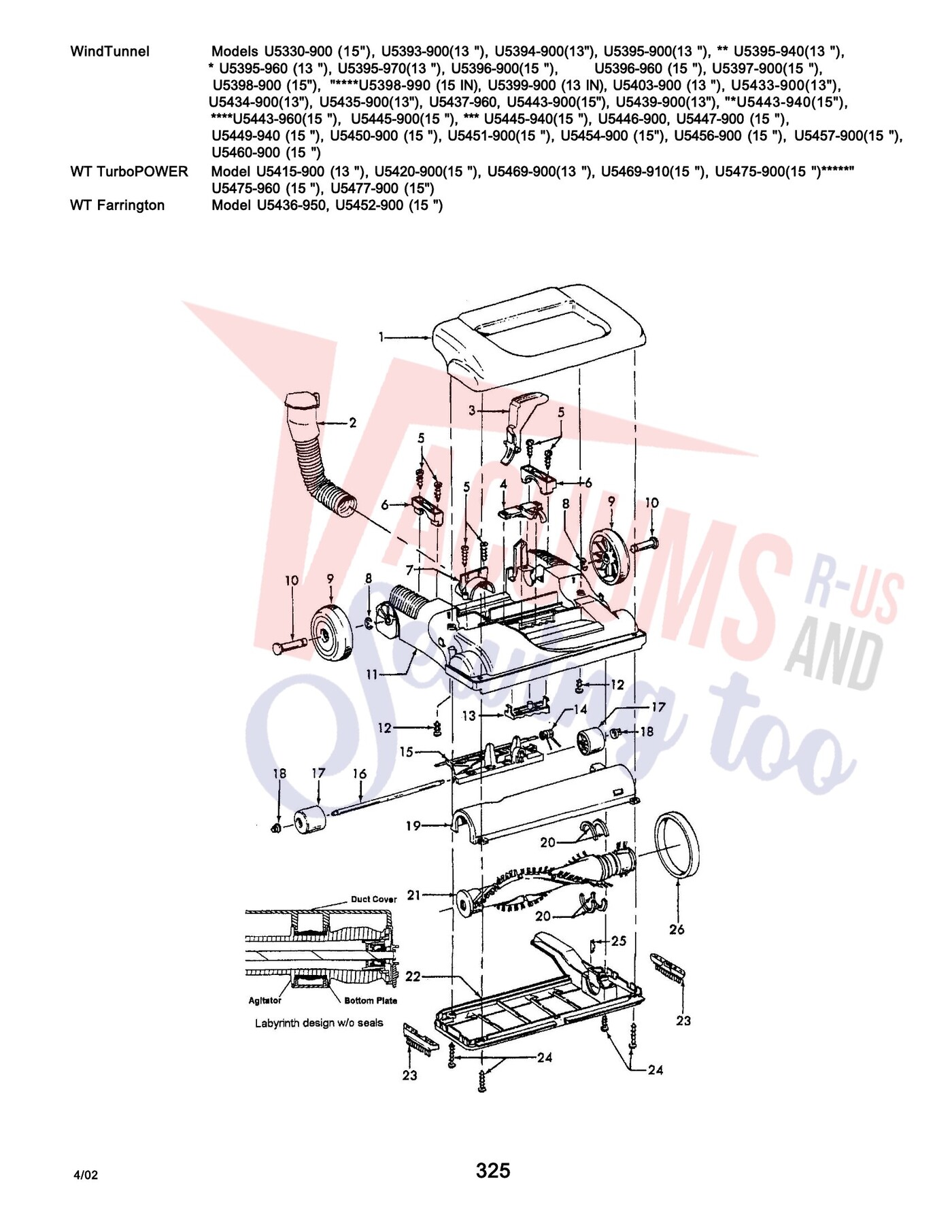

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hood - ABY -13 IN - U5433-900 | 37253285 | Not Available |
| 1 | Not Available | Hood - ABY -13 IN - U5395-900 | 37253287 | Not Available |
| 1 | No Image | HOOD, 13 INCH U5433-900 Part Number: 37253290 for Hoover | 37253290 | $31.91Read more |
| 1 | Not Available | Hood - ACM -13 IN - U5403-900 | 37253307 | Not Available |
| 1 | Not Available | Hood - AG -13 IN - U5393-900 | 37253315 | Not Available |
| 1 | Not Available | Hood - ADX -13 IN - U5434-900 | 37253342 | Not Available |
| 1 | Not Available | Hood - AG -13 IN - U5415-900 | 37253353 | Not Available |
| 1 | Not Available | Hood-AG-13 IN CP 25.0- | 37253389 | Not Available |
| 1 | Not Available | Hood - AAY -13 IN - U5436-950 | 37253361 | Not Available |
| 1 | Not Available | Hood - ADS -13 IN - U5439-900 | 37253373 | Not Available |
| 1 | Not Available | Hood - ACX -13" - U5330-900 | 37253381 | Not Available |
| 1 | Not Available | Hood - ACF -13" - U5394-900 | 37253395 | Not Available |
| 1 | Not Available | Hood - ABY -13 IN - U5399-900 | 37253396 | Not Available |
| 1 | No Image | ***USE H-37253364 HOOD, U5445-900 Part Number: 37253286 for Hoover | 37253286 | $31.97Read more |
| 1 | Not Available | Hood - AG -15 IN - U5475-900 - | 37253289 | Not Available |
| 1 | Not Available | Hood - AG -15 IN - U5475-900 - | 37253299 | Not Available |
| 1 | Not Available | Hood - ABY -15 IN - U5451-900 | 37253297 | Not Available |
| 1 | Not Available | Hood - AG -15 IN - U5469-910 | 37253298 | Not Available |
| 1 | Not Available | Hood - ACL -15 IN - U5397-900 | 37253305 | Not Available |
| 1 | Not Available | Hood - ACF -15 IN - U5449-940 | 37253313 | Not Available |
| 1 | Not Available | Hood - AG -15 IN - U5420-900 | 37253316 | Not Available |
| 1 | Not Available | Hood - ABR -15 IN - U5396-900 | 37253306 | Not Available |
| 1 | Not Available | Hood - MU -15 IN - U5447-900 | 37253319 | Not Available |
| 1 | No Image | HOOD, WINDTUNNEL U5450-900 Part Number: 37253343 for Hoover | 37253343 | $37.26Read more |
| 1 | Not Available | Hood - ADY -15 IN - U5457-900 | 37253360 | Not Available |
| 1 | Not Available | Hood - AFE -15 IN - U5452-900 | 37253383 | Not Available |
| 1 | Not Available | Hood - ACL -15 IN - U5435-900 | 37253363 | Not Available |
| 1 | Not Available | Hood - ABR -15 IN - U5398-900 | 37253387 | Not Available |
| 1 | No Image | HOOD, U5454900 UPRIGHT Part Number: 37253391 for Hoover | 37253391 | $20.79Read more |
| 1 | Not Available | Hood - AG -15 IN - U5477-900 | 37253388 | Not Available |
| 2 | Not Available | Angled Hose Conn. Assem. w/ | 43431005 | Not Available |
| 3 | Not Available | Handle Release Lever | 38458043 | Not Available |
| 4 | Not Available | Nozzle Adj. Lever / Cam Assembly | 40309004 | Not Available |
| 5 | | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 6 | Not Available | Trunnion Cover - ABE | 36131094 | Not Available |
| 7 |  | Hose Clamp Hoover U5421-9Rm Upright For: hoover | 36171044 | $1.89Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Retaining Ring | 160017 | Not Available |
| 9 | Not Available | Rear Wheel | 38522077 | Not Available |
| 9 | Not Available | Rear Wheel - U5452-900 | 43244005 | Not Available |
| 10 | Not Available | Rear Axle - AAX | 32434008 | Not Available |
| 10 | Not Available | (13 IN) U5403-900 (13 ") U5433-900(13") | U5399-900 | Not Available |
| 11 | Not Available | Main Body-ABE - 13 IN | 37242124 | Not Available |
| 11 | Not Available | Main Body - ABE - 15 IN | 37242123 | Not Available |
| 12 | Not Available | Screw Self Tapping | 21447228 | Not Available |
| 13 | Not Available | Nozzle Adj. Lever / Cam Assembly | 40309004 | Not Available |
| 14 | Not Available | Torsion Spring | 38355010 | Not Available |
| 15 | Not Available | Front Wheel Assem. (Inc items 15 | 43248057 | Not Available |
| 16 | Not Available | Wheel Shaft | 32541003 | Not Available |
| 17 | Not Available | Front Wheel | 38521004 | Not Available |
| 18 | Not Available | Wheel Retainer | 36131056 | Not Available |
| 19 | Not Available | Bottom Plate / Duct Cover -15 IN | 40309034 | Not Available |
| 19 | Not Available | Bottom Plate / Duct Cover -13 IN | 40309025 | Not Available |
| 19 | Not Available | Bottom Plate / Duct Cover -15 IN | 40309026 | Not Available |
| 20 |  | Seal-Agitator Pulley-Hoover U5445 For: hoover | 38781053 | $1.44Add to cart |
| 21 | Not Available | Agitator Assem. Comp. -15 IN | 48414115 | Not Available |
| 21 | Not Available | Agitator Assem. Comp. -13 IN | 48414110 | Not Available |
| 22 | Not Available | Bottom Plate / Duct Cover -15 IN | 40309034 | Not Available |
| 22 | Not Available | Bottom Plate / Duct Cover -13 IN | 40309025 | Not Available |
| 22 | Not Available | Bottom Plate / Duct Cover -15 IN | 40309026 | Not Available |
| 23 | Not Available | Litter Picker (2) | 39511004 | Not Available |
| 24 | Not Available | Screw Self Tapping | 21447121 | Not Available |
| 25 | Not Available | Rug Nozzle Rib Shoe | 13261AY | Not Available |
| 26 | Not Available | Belt | 38528033 | Not Available |
