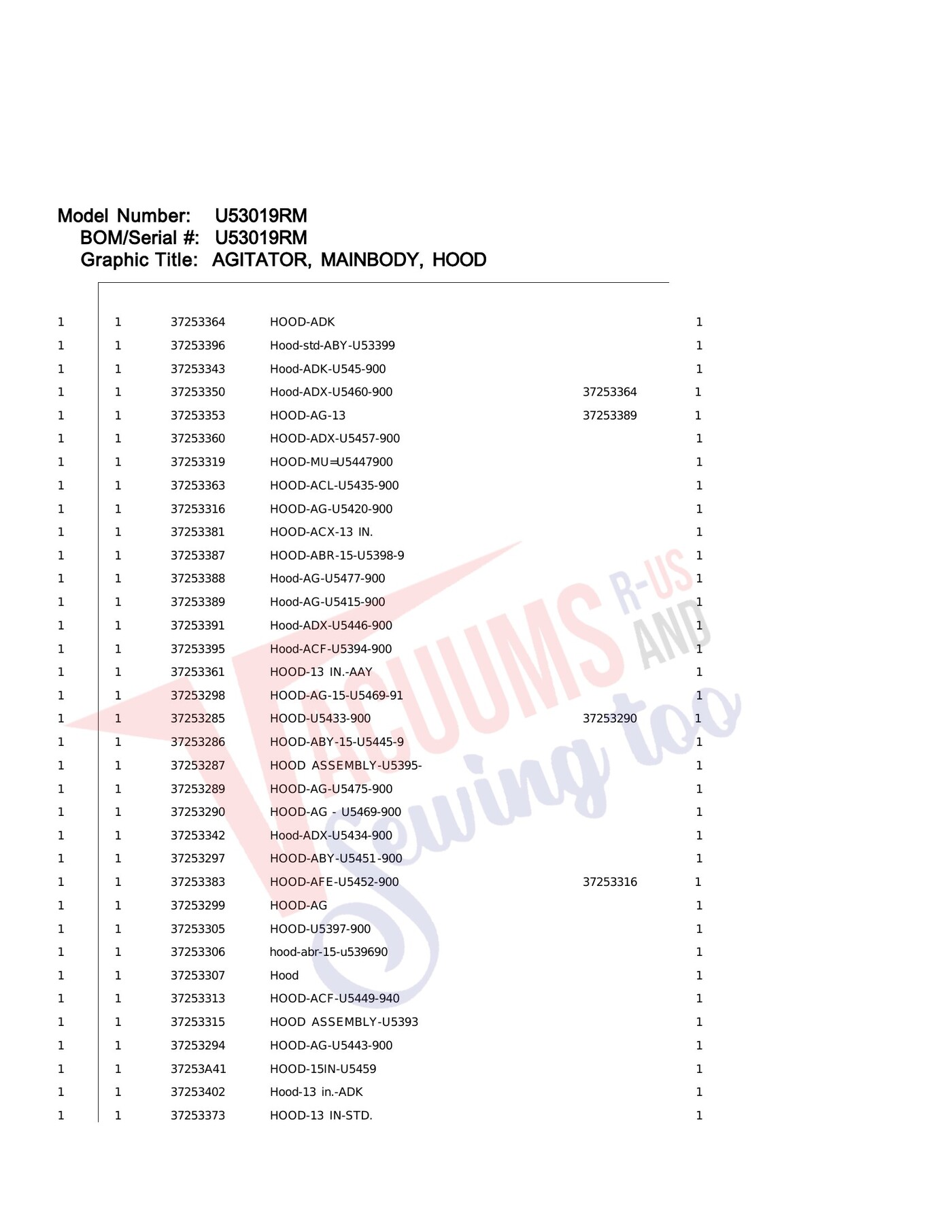

Schematic and parts book for hoover U53019RM . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hood-AFT-U5147-900 | 37253A42 | Not Available |
| 1 | Not Available | HOOD-13IN -U5142900 | 37253A40 | Not Available |
| 1 | Not Available | 160017-- LOCK RING | 8 | Not Available |
| 1 | Not Available | RIB SHOE 013261AY | 2513261AY | Not Available |
| 2 | Not Available | HOSE DOOR ASSEM-SERVICE | 43431005 | Not Available |
| 3 | Not Available | HANDLE RELEASE LEVER | 38458043 | Not Available |
| 4 | Not Available | NOZZLE ADJ LEVER & CAM KIT | 40309004 | Not Available |
| 5 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 6 | Not Available | TRUNNION COVER-ABE | 36131094 | Not Available |
| 7 |  | Hose Clamp Hoover U5421-9Rm Upright For: hoover | 36171044 | $1.89Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | REAR WHEEL | 38522077 | Not Available |
| 9 | Not Available | REAR WHEEL ASSM-U642 | 43244005 | Not Available |
| 10 | Not Available | REAR AXLE-AAX-U5433- | 32434008 | Not Available |
| 11 | Not Available | HOOD STD-AGF | 37253A27 | Not Available |
| 11 | Not Available | HOOD-ABM - U5432900 | 37253A06 | Not Available |
| 11 | Not Available | HOOD-U5402900 | 37253429 | Not Available |
| 11 | Not Available | HOOD-FALCOM JR 13 IN-AFS | 37253411 | Not Available |
| 11 | Not Available | FALCON JR HOOD-13 IN-AFS | 37253407 | Not Available |
| 11 | Not Available | MAIN BODY-ABEY | 37242123 | Not Available |
| 11 | Not Available | MAIN BODY-ABE-U5433- | 37242124 | Not Available |
| 11 | Not Available | MAIN BODY W/GUARD-13 IN-ABE | 37242140 | Not Available |
| 12 | Not Available | SCREW-SELF-TAPPING | 21447228 | Not Available |
| 13 | Not Available | NOZZLE ADJ LEVER & CAM KIT | 40309004 | Not Available |
| 14 | Not Available | TORSION SPRING | 38355010 | Not Available |
| 15 | Not Available | FRONT WHEEL SUPPORT-CP | 36432027 | Not Available |
| 15 | Not Available | FRONT WHEEL ASSEMBLY | 43248057 | Not Available |
| 16 | Not Available | WHEEL SHAFT | 32541003 | Not Available |
| 17 | Not Available | FRONT WHEEL | 38521004 | Not Available |
| 18 | Not Available | WHEEL RETAINER - BZ | 36131056 | Not Available |
| 19 | Not Available | BOTTOM PLATE/DUCT 13 SERVICE | 40309025 | Not Available |
| 19 | Not Available | BMT PLATE/DUCT COVER | 40309034 | Not Available |
| 19 | Not Available | BOTTOM PLATE/DUCT CO | 40309026 | Not Available |
| 20 |  | Seal-Agitator Pulley-Hoover U5445 For: hoover | 38781053 | $1.44Add to cart |
| 21 | Not Available | AGITATOR-13-SERVICE | 48414110 | Not Available |
| 21 | Not Available | AGITATOR-15-SERVICE | 48414115 | Not Available |
| 22 | Not Available | BMT PLATE/DUCT COVER | 40309034 | Not Available |
| 22 | Not Available | BOTTOM PLATE/DUCT CO | 40309026 | Not Available |
| 22 | Not Available | BOTTOM PLATE/DUCT 13 SERVICE | 40309025 | Not Available |
| 23 | Not Available | LITTER PICKER | 39511004 | Not Available |
| 24 | Not Available | SCREW | 21447121 | Not Available |
| 26 | Not Available | BELT | 38528033 | Not Available |
| 27 | Not Available | DUSTING BRUSH ASSEMBLY-AGR | 43414195 | Not Available |
| 27 | Not Available | FURNITURE NOZZLE-AGR | 38614044 | Not Available |
| 27 | Not Available | BAG HSG DOOR-U54029 | 37254257 | Not Available |
| 27 | Not Available | FURNITURE GUARD FILLER | 36235088 | Not Available |
| 27 | Not Available | CREVICE TOOL-ABR | 38617032 | Not Available |
