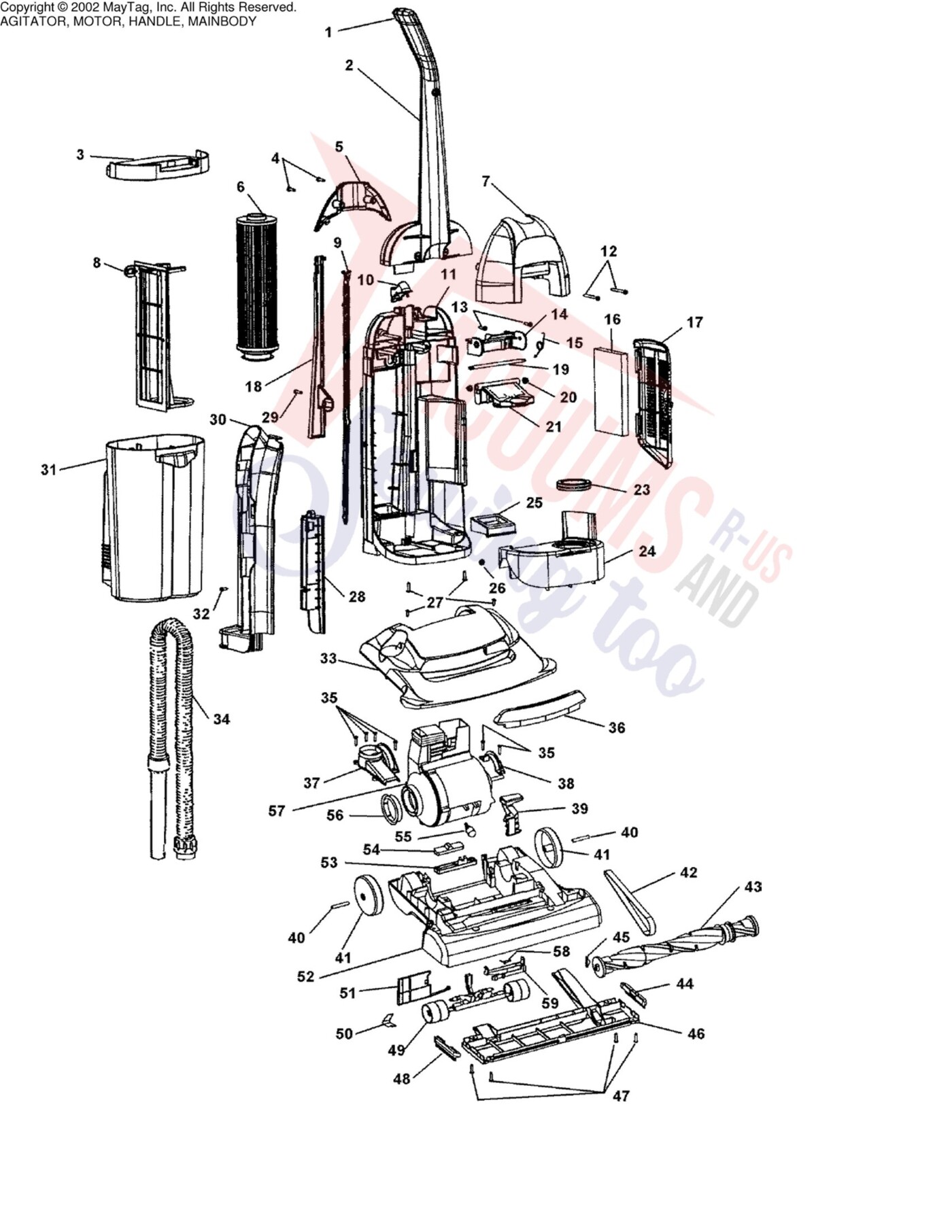

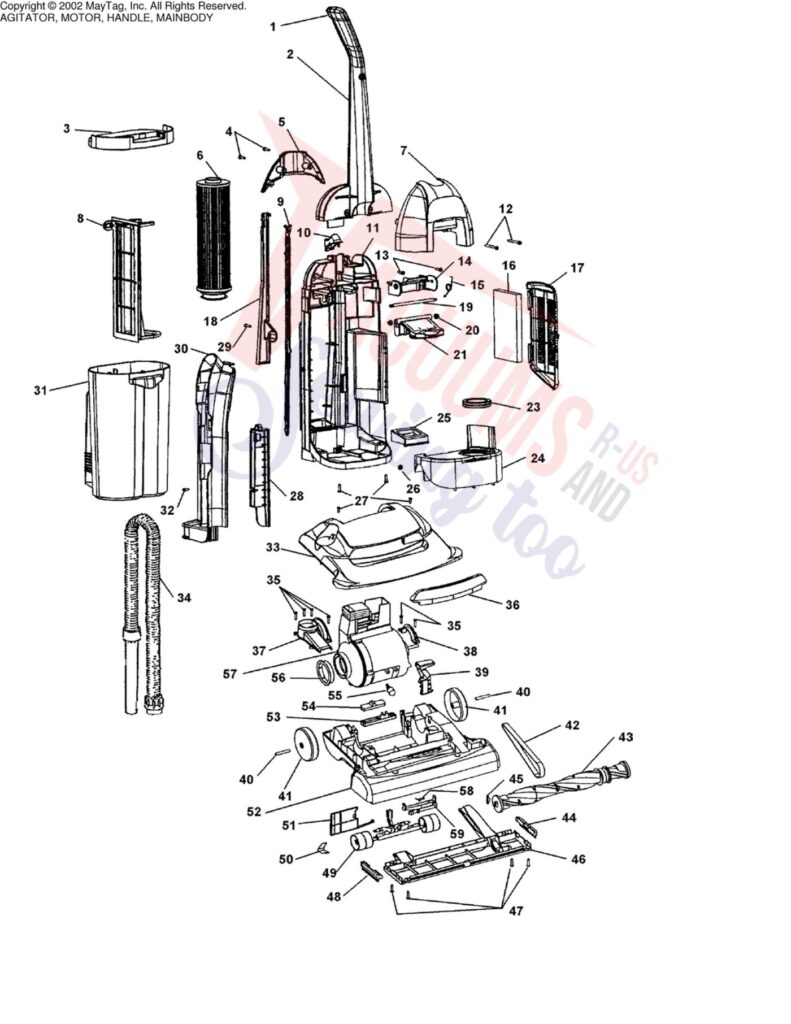

Schematic and parts book for Hoover U52729RM . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE CAP-ABE-U5209 | 37911078 | Not Available |
| 2 | Not Available | UPPER HANDLE-CADDY V | 39466041 | Not Available |
| 3 | Not Available | Dirt Cup Lid-U528090 | 42249005 | Not Available |
| 4 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 5 | Not Available | Handle Cover Rear | 37258132 | Not Available |
| 6 |  | Hepa Filter Hoover Dirt Cup Model For: hoover | 40140201 | $14.30Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | Handle Cover-ADK | 37258124 | Not Available |
| 7 | Not Available | HDL COVER-ADR-U52989 | 37258133 | Not Available |
| 7 | Not Available | HDL COVER-ADS-U52809 | 37258155 | Not Available |
| 7 | Not Available | Handle Cover-U5296-9 | 37258160 | Not Available |
| 7 | Not Available | Handle Cover-AEB | 37258123 | Not Available |
| 7 | Not Available | Handle Cover-ADN | 37258127 | Not Available |
| 8 | Not Available | Pre-Filter-U5280-900 | 36426043 | Not Available |
| 9 | Not Available | SWITCH ROD-CADDY VAC | 38458057 | Not Available |
| 10 | Not Available | SWITCH ROCKER-CADDY | 38433036 | Not Available |
| 11 | Not Available | Dirt Cup Hsg.-ABE | 37259001 | Not Available |
| 12 | Not Available | Hdle Hdwe Assem. | 40201189 | Not Available |
| 13 | | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 14 | Not Available | Latch Support-U52809 | 36153065 | Not Available |
| 15 | Not Available | Spring-u5280-900 | 38355013 | Not Available |
| 16 |  | NO LONGER AVAILABLE Hoover Filter without Power Drive for Windtunnels | 40110004 | $10.20Read more |
| 16 |  | Compatible alternateFilter, Aftermarket Hoover WindTunnel Final 2Pk Part Number: 471119 for Hoover Replacement More Product Details | 471119 | $8.19Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | Filter Grille | 37257261 | Not Available |
| 18 | Not Available | Rear Cover-ABE | 37258052 | Not Available |
| 19 | Not Available | Latch Shaft-U5280900 | 32541004 | Not Available |
| 20 | Not Available | WHEEL RETAINER - BZ | 36131056 | Not Available |
| 21 | Not Available | Latch Dirt Cup-U5280 | 36153064 | Not Available |
| 23 | Not Available | Exhaust Seal-U528090 | 38784079 | Not Available |
| 24 | Not Available | Front Cover-ADK | 37249006 | Not Available |
| 24 | No Image | COVER, FRONT DIRT CUP RECEPTACLE U5280 BLUE Part Number: 37249008 for Hoover | 37249008 | $19.82Read more |
| 24 | Not Available | Front Cover-AEB | 37249005 | Not Available |
| 24 | Not Available | FR COVER-ADR-U52989 | 37249017 | Not Available |
| 24 | Not Available | FR COVER-ADJ-U52809 | 37249018 | Not Available |
| 24 | Not Available | FR COVER-ADM-U52909 | 37249019 | Not Available |
| 24 | Not Available | Front Cover-ADN | 37249007 | Not Available |
| 25 | Not Available | Intake Seal-U5280900 | 38783026 | Not Available |
| 26 | Not Available | NUT-U7069/71 | 21641557 | Not Available |
| 27 | No Image | SCREW, HOOD SELF TAPPING C1710-900 Part Number: 21447218 for Hoover | 21447218 | $1.96Read more |
| 28 | Not Available | Tool Rack Guide | 36923011 | Not Available |
| 29 | Not Available | SCREW-SELF TAPPING | 21447242 | Not Available |
| 30 | Not Available | Tool Rack-U5280-900 | 36433145 | Not Available |
| 31 | Not Available | Dirt Cup-ADP 38775072 | 38775073 | Not Available |
| 31 |  | Dirt Cup, :( Comm Bagless/Bagless Uprt/Wind Part Number: 38775072 for Hoover | 38775072 | $55.02Read more |
| 32 | Not Available | Hdle Hdwe Assem. | 40201189 | Not Available |
| 33 | Not Available | HOOD-AG-U5296-900 | 42252A90 | Not Available |
| 33 | Not Available | Hood-AG-U5296-900 | 42252B45 | Not Available |
| 33 | Not Available | HOOD-ADR-U5298-900 | 42252B26 | Not Available |
| 33 | Not Available | HOOD-ADJ-U5280-940 | 42252B23 | Not Available |
| 33 | Not Available | Hood-ADP-U5288-900 | 42252A89 | Not Available |
| 33 | Not Available | Hood-ADJ-U5280-900 | 42252A88 | Not Available |
| 33 | Not Available | Hood-ADR-u5294-900 | 42252A87 | Not Available |
| 33 | Not Available | HOOD-ADM-U5290-900 | 42252B25 | Not Available |
| 34 | Not Available | HOSE-U5250/70-930 | 43434101 | Not Available |
| 35 | Not Available | SCREW-TRILOBULAR | 21447262 | Not Available |
| 36 | Not Available | LENS-U5250/70-930 | 39383108 | Not Available |
| 37 |  | Duct Cover Hoover U5270 Breatheasy Upright For: hoover | 38656033 | $5.56Add to cart Special order: ships in 2 to 4 weeks |
| 38 | Not Available | Mtr Retainer-Metal | 36131110 | Not Available |
| 38 | Not Available | MOTOR RETAINER | 36131090 | Not Available |
| 39 | Not Available | HANDLE RELEASE LEVER | 38458053 | Not Available |
| 40 | Not Available | REAR WHEEL SHAFT | 31523012 | Not Available |
| 41 | Not Available | AG BELT-12AMP BULK | 38528040 | Not Available |
| 41 | Not Available | WHEEL REAR - AG | 38522011 | Not Available |
| 42 | Not Available | BELT-ELITE 38528040 | 38528027 | Not Available |
| 43 | Not Available | AGITATOR-U5250/70-93 | 48414061 | Not Available |
| 44 | Not Available | LITTER PICKER | 39511004 | Not Available |
| 46 |  | BOTTOM PLATE, U5280-900 Part Number: 37245037 for Hoover | 37245037 | $29.49Read more |
| 47 | Not Available | SCREW-SELF TAPPING | 21447217 | Not Available |
| 48 | Not Available | LITTER PICKER | 39511004 | Not Available |
| 49 | Not Available | Front Wheel Assembly | 43248058 | Not Available |
| 50 | Not Available | CAM ACTUATOR SPRING- | 34572002 | Not Available |
| 51 | Not Available | VALVE GATE - U4581-9 | 38718005 | Not Available |
| 52 | Not Available | MAIN BODY-U5255-916 | 37241160 | Not Available |
| 53 | Not Available | CAM ACTUATOR-ABE-U52 | 38567027 | Not Available |
| 54 | Not Available | INDICATOR KNOB - U45 | 38567014 | Not Available |
| 55 | Not Available | LAMP | 27313101 | Not Available |
| 56 | Not Available | SEAL - U4455 | 38784016 | Not Available |
| 57 |  | Hoover Elite motor | 43576200 | $131.99Read more |
| 57 | Not Available | MOTOR-BREASY W/HL 43576215 | 43576204 | Not Available |
| 58 | Not Available | SPRING - U4581-910 | 38351012 | Not Available |
| 59 | Not Available | NOZZLE HEIGHT ADJ CA | 38563013 | Not Available |
| 60 | Not Available | Dirt Cup Warn Label | 51869058 | Not Available |
| 60 | No Image | CORD, ATTACHMENT U5288900 BAGLESS Part Number: 46388025 for Hoover | 46388025 | $44.92Read more |
| 60 | Not Available | Dirt Cup Rmvl Label | 51879031 | Not Available |
| 60 | Not Available | GASKET-MAIN BODY | 34123056 | Not Available |
| 60 | Not Available | ATTACH. CORD | 46388027 | Not Available |
| 60 | Not Available | CORD-30 FT-U5254/56 | 46388043 | Not Available |
| 60 | Not Available | CORD WRAP | 3944201P | Not Available |
| 60 | Not Available | LABEL - FILTER GRILL | 51632007 | Not Available |
| 70 | Not Available | FLOOR BRUSH ASSM-AG- | 43414142 | Not Available |
| 70 | Not Available | EXTENSION TUBE 38634078 | 38634077 | Not Available |
| 70 | Not Available | CREVICE TOOL-ABR | 38617029 | Not Available |
| 70 | Not Available | FURNITURE NOZZLE 38614044 | 3861401E | Not Available |
| 70 | Not Available | DUSTING BRUSH ASSEM- | 43414174 | Not Available |

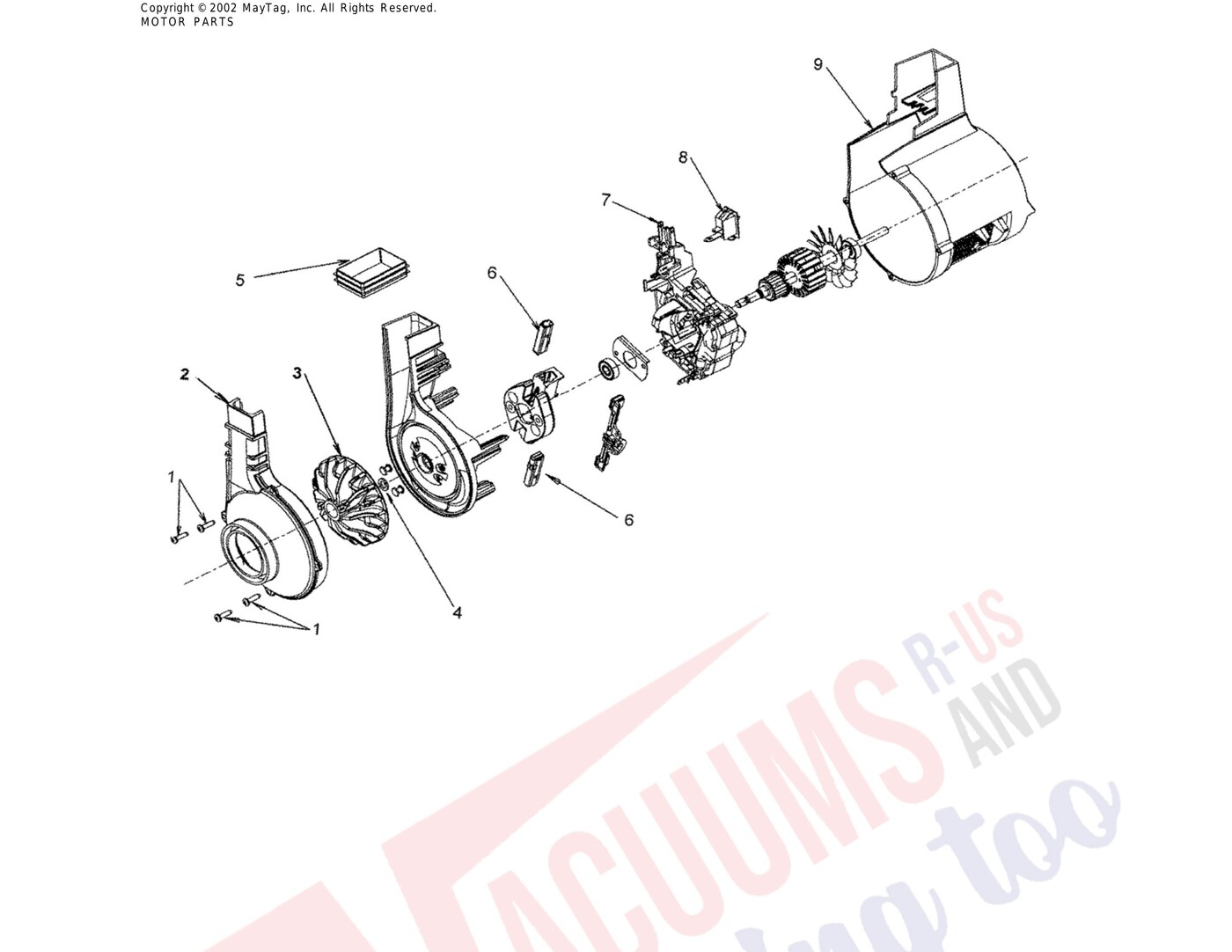

| # | Part image | Description | SKU | Price |
| 1 | Not Available | SCREW-SELF TAPPING-5/8" | 214793DA | Not Available |
| 2 | Not Available | FAN/NUT ASSEM 12 AMP | 43565006 | Not Available |
| 2 | Not Available | FAN CHAMBER | 38736033 | Not Available |
| 4 |  | Fan Washer-Hoover Elite Motor For: hoover | 21312793 | $1.11Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | DUCT SEAL-MOLDED | 38783020 | Not Available |
| 6 | Not Available | MOTOR BRUSH-SVW | 41311022 | Not Available |
| 7 | Not Available | SWITCH BUS BAR | 36914006 | Not Available |
| 8 | No Image | Switch Assem Hoover U5254 Caddy Vac For: hoover | 28161068 | $7.41Read more |
| 9 | Not Available | MOTOR END CAP W/HL | 37194049 | Not Available |
| 50 | Not Available | MOTOR-12 AMP-U4250 | 43576205 | Not Available |
| 50 | Not Available | MOTOR-BREASY W/HL | 43576204 | Not Available |
| 50 | | Hoover Elite motor | 43576200 | $131.99Read more |
| 50 | Not Available | MOTOR ASSEM. COMP. 12 AMP | 43576199 | Not Available |
| 50 | Not Available | FAN | 38755030 | Not Available |
| 50 |  | COVER, MOTOR U5272-9RM BAGLESS UPRIGHT W/HEADLT Part Number: 37194050 for Hoover | 37194050 | $21.18Read more |
