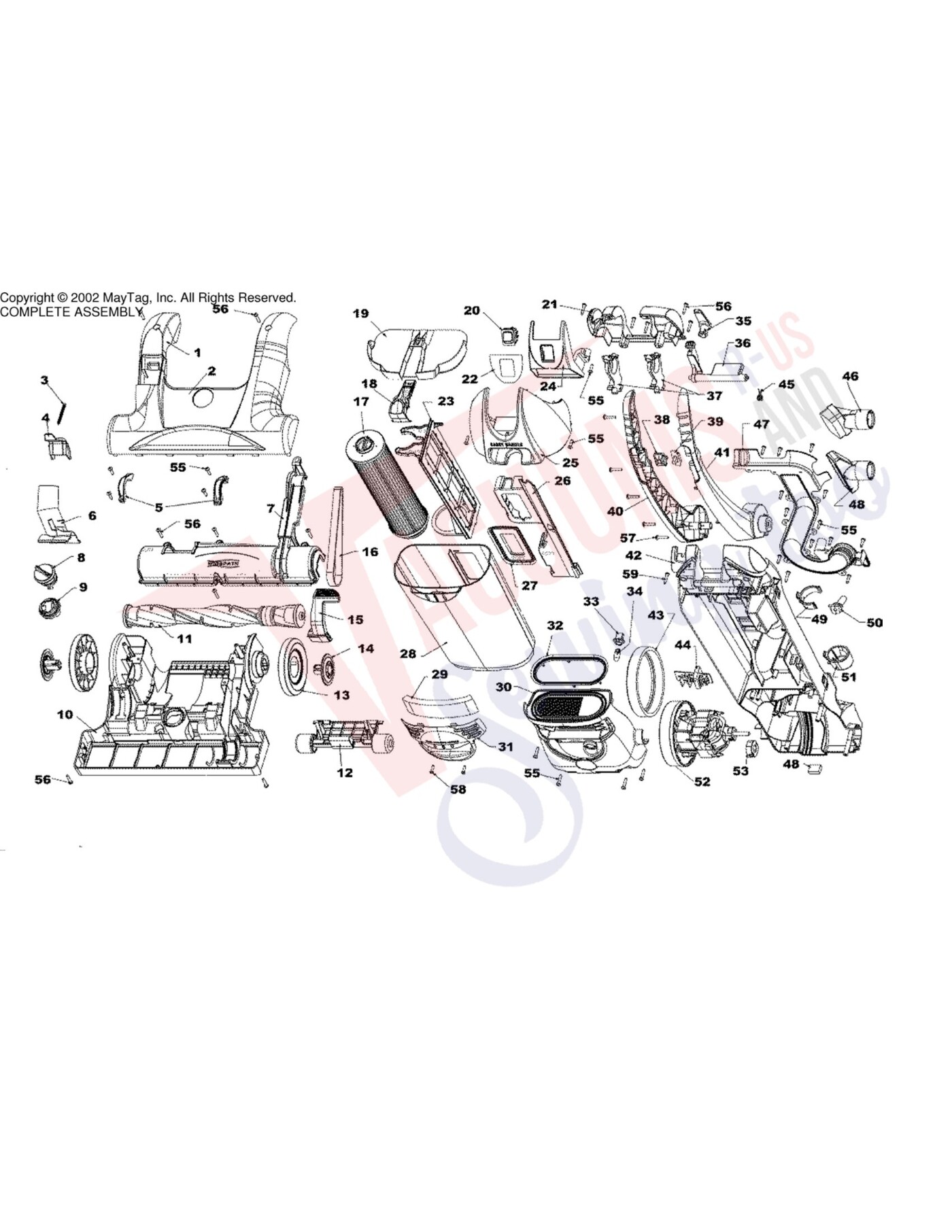

Schematic and parts book for Hoover U5265900, U5265-900 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | No Image | HOOD, U5262-900 Part Number: 37253404 for Hoover | 37253404 | $21.60Read more |
| 3 |  | Debris Door Spring / Hoover U5162-900 Upright For: hoover | 38335026 | $1.83Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Debris Door - Graphite Gray For: hoover | 37257312 | $2.13Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Cover, Black Plastic Trunnion C1660-900/UH40155 Part Number: 36131118 for Hoover | 36131118 | $1.44Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | LOWER DUCT-AGS | 38646087 | Not Available |
| 7 | Not Available | AGITATOR HOUSING | 37243047 | Not Available |
| 8 | Not Available | KNOB-HEIGHT ADJUSTMENT | 38563021 | Not Available |
| 9 | Not Available | HEIGHT ADJUSTMENT CAM | 38563022 | Not Available |
| 10 | Not Available | MAIN BODY-AGS-SERVICE | 37242146 | Not Available |
| 11 | Not Available | AGITATOR ASSEMBLY 15 IN-COMP | 48414132 | Not Available |
| 12 | Not Available | FRONT WHEELASSEM | 90001005 | Not Available |
| 13 | Not Available | WHEEL-REAR-AGS | 38522088 | Not Available |
| 14 | Not Available | WHEEL HUB-AGR | 37912018 | Not Available |
| 15 |  | Lever, :( Handle Release Fold-Away/EmPower Part Number: 38458070 for Hoover | 38458070 | $4.72Read more |
| 16 | Not Available | AG BELT-12AMP BULK | 38528040 | Not Available |
| 17 |  | Hepa Filter Hoover Dirt Cup Model For: hoover | 40140201 | $14.30Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | LATCH ACT UATOR LID-AGR | 92001065 | Not Available |
| 19 | Not Available | DIRT CUP LID-AGS | 37249051 | Not Available |
| 20 | Not Available | SWITCH | 28166001 | Not Available |
| 21 |  | Handle Retainer Cover For: hoover | 37258177 | $6.37Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | SWITCH MOUNT NAMEPLATE | 91001052 | Not Available |
| 23 | Not Available | PREFILTER ASSEM-AGS SUPPORT | 36426067 | Not Available |
| 24 | Not Available | SWITCH MOUNT | 37258178 | Not Available |
| 25 | Not Available | HANDLE COVER-AGP | 39458048 | Not Available |
| 26 | Not Available | WIRE CHANNEL COVER-AGS | 37258176 | Not Available |
| 27 | Not Available | INLET SEAL-DIRT CUP | 38785020 | Not Available |
| 28 | Not Available | DIRT CUP-AGT SERVICE | 38775113 | Not Available |
| 29 | Not Available | FINAL FILTER | 38765024 | Not Available |
| 30 | No Image | COVER,MOTOR WBD HOOVER Part Number: 37196175 for Hoover | 37196175 | $14.93Read more |
| 31 | Not Available | LENS/FINAL FILTER RETAINER-AGT | 39383120 | Not Available |
| 32 | Not Available | EXHAUST SEAL-AG | 38785021 | Not Available |
| 33 | Not Available | LAMP SOCKET ASSEM | 27341505 | Not Available |
| 34 | Not Available | BULB | 27313107 | Not Available |
| 35 |  | Cord Wrap-Hoover U6445 For: hoover | 39442048 | $22.78Add to cart Special order: ships in 2 to 4 weeks |
| 36 | Not Available | PIVOT LATCH LEVER - AGR | 92001063 | Not Available |
| 37 | Not Available | TRUNNION-UPPER HANDLE | 36131121 | Not Available |
| 38 | Not Available | SURGE BUTTON-AGR | 91001051 | Not Available |
| 39 | No Image | SWITCH, SURGE Part Number: 28179106 for Hoover | 28179106 | $7.82Read more |
| 40 | Not Available | UPPER HDL-RH-EMPOWER | 39453003 | Not Available |
| 41 | Not Available | UPPER HDL-LH-EMPOWER | 39453004 | Not Available |
| 42 | No Image | HOUSING, DIRT CUP Part Number: 37259021 for Hoover | 37259021 | $31.69Read more |
| 43 | Not Available | MOTOR MOUNT-LRG 36322037 | 36322035 | Not Available |
| 44 | Not Available | PCB ASSEMBLY | 46851035 | Not Available |
| 45 | Not Available | PIVOT LATCH SPRING | 38335016 | Not Available |
| 46 | Not Available | DUSTING BRUSH ASSEMBLY-AGR | 43414195 | Not Available |
| 47 | Not Available | DIRT DUCT COVER-ABE | 38656039 | Not Available |
| 48 | Not Available | FURNITURE NOZZLE-AGR | 38614044 | Not Available |
| 50 | Not Available | CORD PROTECTOR-WTBGL | 36215028 | Not Available |
| 51 | Not Available | WAND HOLDER-LOWER-AGS | 36433192 | Not Available |
| 52 | Not Available | MOTOR ASSEM COMP. | 43576188 | Not Available |
| 53 | Not Available | MOTOR MOUNT-SMALL | 36322030 | Not Available |
| 54 | Not Available | WIRE GROMMET | 36218023 | Not Available |
| 55 | Not Available | SCREW- SELF TAPPING | 21447266 | Not Available |
| 56 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 57 | Not Available | SCREW | 21447274 | Not Available |
| 58 | Not Available | SCREW | 017001FW | Not Available |
| 59 | Not Available | SCREW | 21447273 | Not Available |
| 60 | Not Available | THERMAL PROTECTOR | 28382097 | Not Available |
| 60 | Not Available | ATTACHMENT CORD ASSEM-31 FT | 46383342 | Not Available |
| 60 | Not Available | EXTENSION TUBE-14 IN-AGS | 38634092 | Not Available |
| 60 | Not Available | CREVICE TOOL-LONG-AGR | 38617031 | Not Available |
| 60 | Not Available | UPPER HANDLE NAMEPTATE | 51375137 | Not Available |
| 60 | Not Available | GASKET-35IN | 38781060 | Not Available |
| 60 | Not Available | TURBINE HAND TOOL | 49129024 | Not Available |
| 60 | Not Available | HOSE ASSEMBLY-AGS | 43431226 | Not Available |
| 61 | Not Available | SVC MAN EMPOWER UPRIGHT | 16025792 | Not Available |
| 61 | Not Available | OWNERS MANUAL | 56511C36JI | Not Available |
