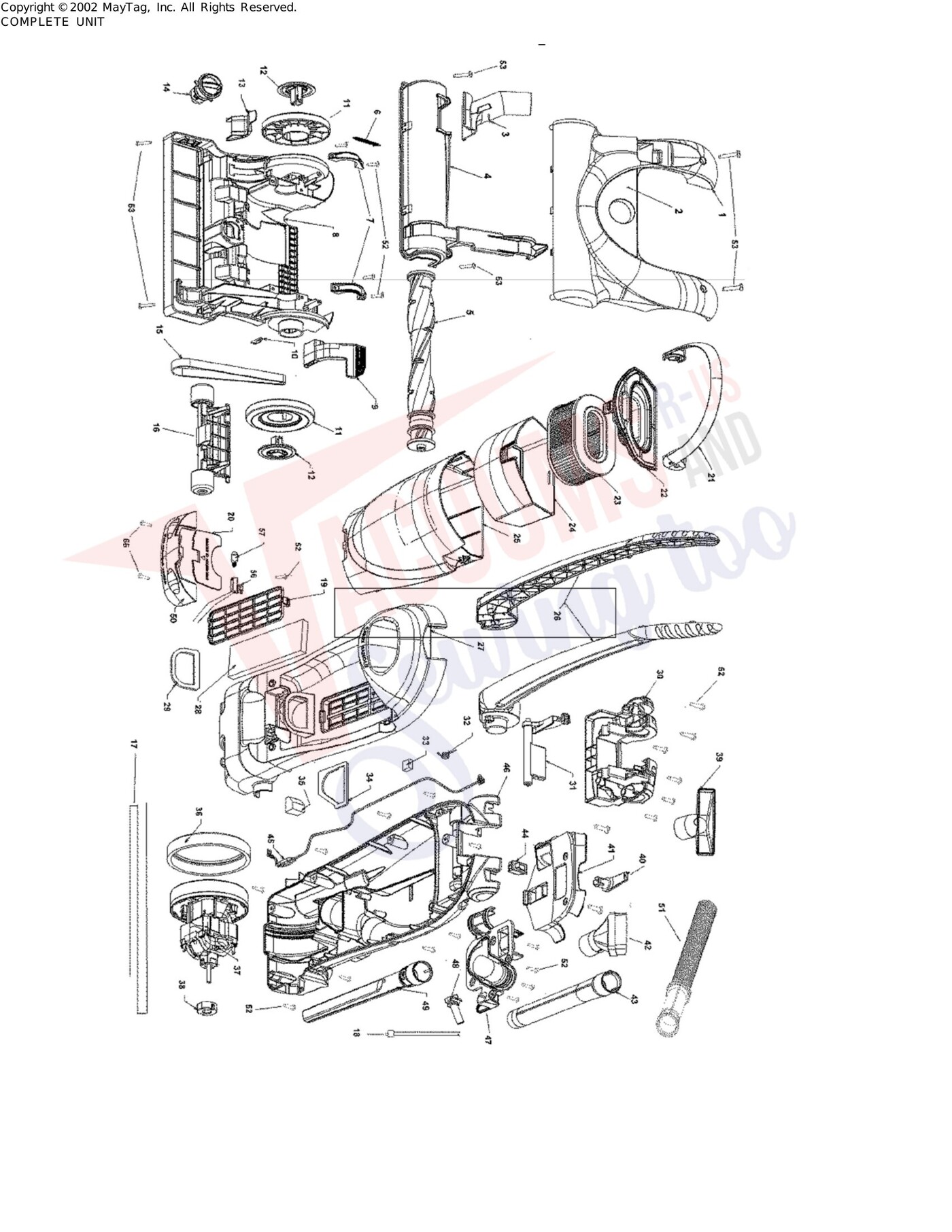

Schematic and parts book for Hoover U5176900, U5176-900 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | No Image | HOOD, NOZZLE COVER IRIS BLUE U5176900 Part Number: 92001015 for Hoover | 92001015 | $22.12Read more |
| 2 | Not Available | NAMEPLATE | 51351013 | Not Available |
| 3 | Not Available | LOWER DUCT | 38646085 | Not Available |
| 4 | Not Available | AGITATOR HOUSING | 37243044 | Not Available |
| 5 | Not Available | AGITATOR-15-SERVICE | 48414115 | Not Available |
| 6 |  | Debris Door Spring / Hoover U5162-900 Upright For: hoover | 38335026 | $1.83Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Cover, Black Plastic Trunnion C1660-900/UH40155 Part Number: 36131118 for Hoover | 36131118 | $1.44Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | MAIN BODY-ABE-15" | 37242141 | Not Available |
| 9 |  | Lever, :( Handle Release Fold-Away/EmPower Part Number: 38458070 for Hoover | 38458070 | $4.72Read more |
| 10 | Not Available | RIB SHOES | 013261AY | Not Available |
| 11 |  | Wheel, Rear U5161/U5262 Part Number: 38522086 for Hoover | 38522086 | $4.62Read more |
| 12 | Not Available | WHEEL HUB | 37912016 | Not Available |
| 13 | Not Available | DEBRIS DOOR | 37257300 | Not Available |
| 14 | Not Available | NOZZLE HEIGHT ADJ CAM | 38562022 | Not Available |
| 15 | Not Available | AG BELT-12AMP BULK | 38528040 | Not Available |
| 16 | Not Available | FRONT WHEELASSEM | 90001005 | Not Available |
| 17 | Not Available | ROPE SEA .GASKET | 38781076 | Not Available |
| 18 | Not Available | ATTACHME NT CORD | 46383348 | Not Available |
| 19 | Not Available | FINAL FILTER RETAINER | 36426061 | Not Available |
| 20 | Not Available | BULB ACCESS DOOR | 37248005 | Not Available |
| 21 | Not Available | DIRT CUP CARRY HDL | 39457047 | Not Available |
| 22 | Not Available | DIRT CUP LID W/SEAL | 37249037 | Not Available |
| 23 |  | Hoover 40130050 Allergen Wide-Path Foldaway Uprights Cartridge Filter | 40130050 | $14.29Read more |
| 23 |  | Compatible alternatef924 Hepa Filter Hoover Upright Foldaway Turbopower 3100 u5163 More Product Details | 38-2307-04 | $15.93Add to cart |
| 23 |  | Compatible alternateFilter-Hoover Foldaway U5163 Hepa Cartridge - Replac For: envirocare More Product Details | F924 | $15.93Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | FILTER SUPPORT | 36426065 | Not Available |
| 25 | Not Available | DIRT CUP-SERVICE | 38775098 | Not Available |
| 26 | Not Available | UPPER HANDLE ASSEMBLY | 39453001 | Not Available |
| 27 | Not Available | HOUSING FRONT-AFU | 92001016 | Not Available |
| 28 | Not Available | FINAL FILTER | 38766008 | Not Available |
| 29 | Not Available | INLET SEAL | 38785019 | Not Available |
| 30 | No Image | COVER, HANDLE RETAINER U5161900 Part Number: 37258161 for Hoover | 37258161 | $6.95Read more |
| 31 | Not Available | PIVOT LATCH LEVER | 36151033 | Not Available |
| 32 | Not Available | PIVOT LATCH SPRING | 38355016 | Not Available |
| 33 | Not Available | PLUG | 34131010 | Not Available |
| 34 | Not Available | DUCT SEAL | 38783032 | Not Available |
| 35 |  | Wire Opening Plug For: hoover | 34131019 | $1.89Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Motor Mount (Large) Hoover U5469 Windtunnel For: hoover | 36322037 | $4.36Add to cart Special order: ships in 2 to 4 weeks |
| 37 | Not Available | MOTOR ASSEM COMP 43576188 | 43576175 | Not Available |
| 38 | Not Available | MOTOR MOUNT-SMALL | 36322030 | Not Available |
| 39 | Not Available | FURNITURE NOZZLE | 3861401E | Not Available |
| 40 | Not Available | CORD WRAP | 3944201P | Not Available |
| 41 | Not Available | TOOL HLDR UPPER | 36433182 | Not Available |
| 42 | Not Available | DUSTING BRUSH ASSEMBLY-ABR | 92001017 | Not Available |
| 43 | Not Available | EXTENSION TUBE-14 IN | 38634091 | Not Available |
| 44 | Not Available | SWITCH-WT-.025 TERM | 28161067 | Not Available |
| 45 | Not Available | THERMAL PROTECTOR | 28382094 | Not Available |
| 46 | Not Available | REAR HOUSING | 37255035 | Not Available |
| 47 | Not Available | TOOL HLDR LOWER | 36433181 | Not Available |
| 48 | Not Available | CORD PROTECTOR-WTBGL | 36215028 | Not Available |
| 49 | Not Available | CREVICE TOOL-ABR | 38617029 | Not Available |
| 50 | Not Available | DIRT FINDER LENS | 39383118 | Not Available |
| 51 |  | Hose Assemble Hoover U5161 Fold-Away For: hoover | 43431224 | $23.16Read more |
| 52 | Not Available | SCREW-SELF TAPPING | 21447242 | Not Available |
| 53 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 55 | Not Available | SCREW 0170C 1FW | 21479345 | Not Available |
| 56 | Not Available | WIRE HAR NESS ASSY | 92001018 | Not Available |
| 57 | Not Available | BULB | 27313107 | Not Available |
| 57 | Not Available | TURBINE TOOL-UPT. 40200013 | 49129007 | Not Available |
| 58 |  | Hoover Screw | 21447269 | $1.11Add to cart Special order: ships in 2 to 4 weeks |
| 58 | Not Available | OWNER MANUAL | 56511B72 | Not Available |
| 58 | Not Available | EXTRA HOSE ASM COMP | 43434042 | Not Available |
